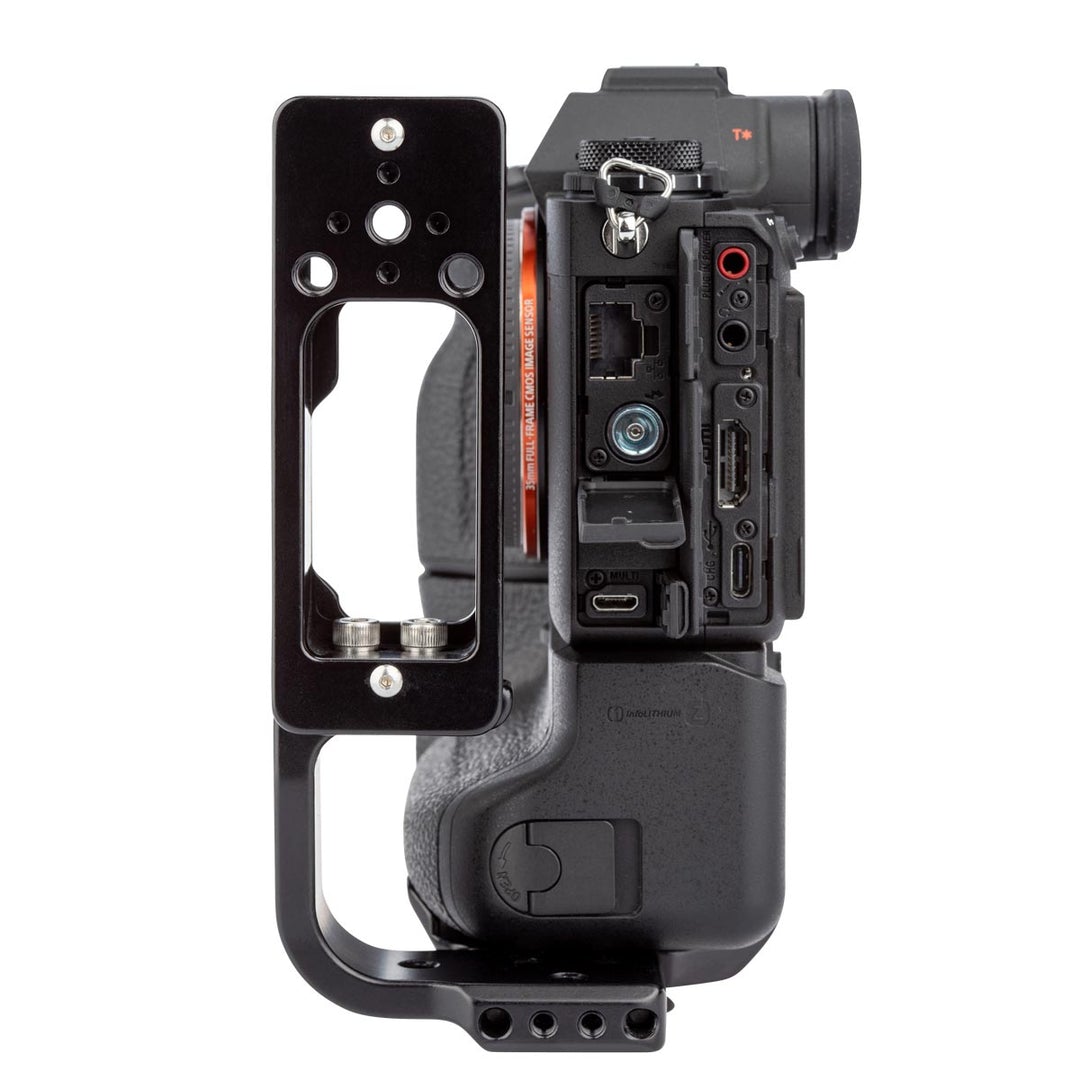

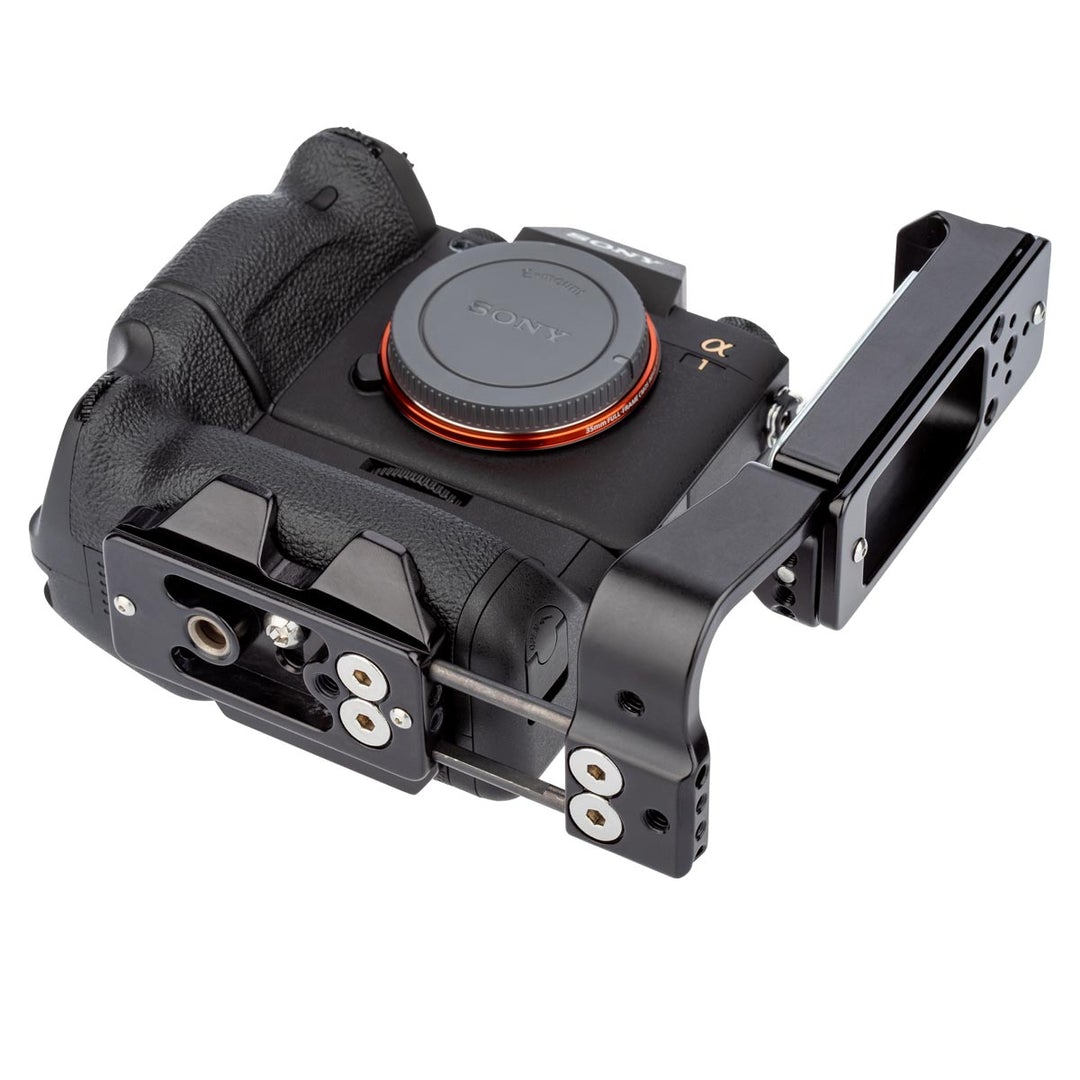

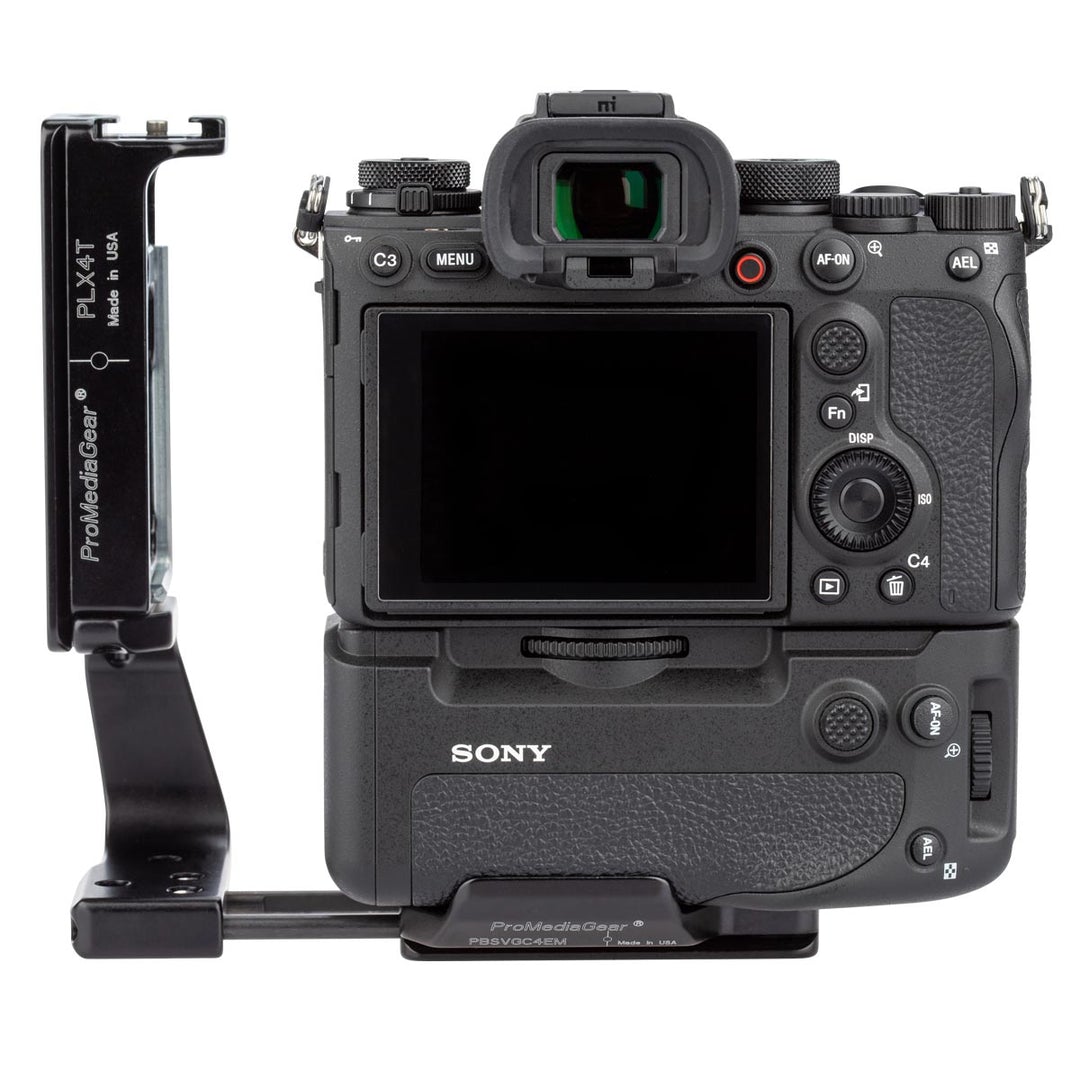

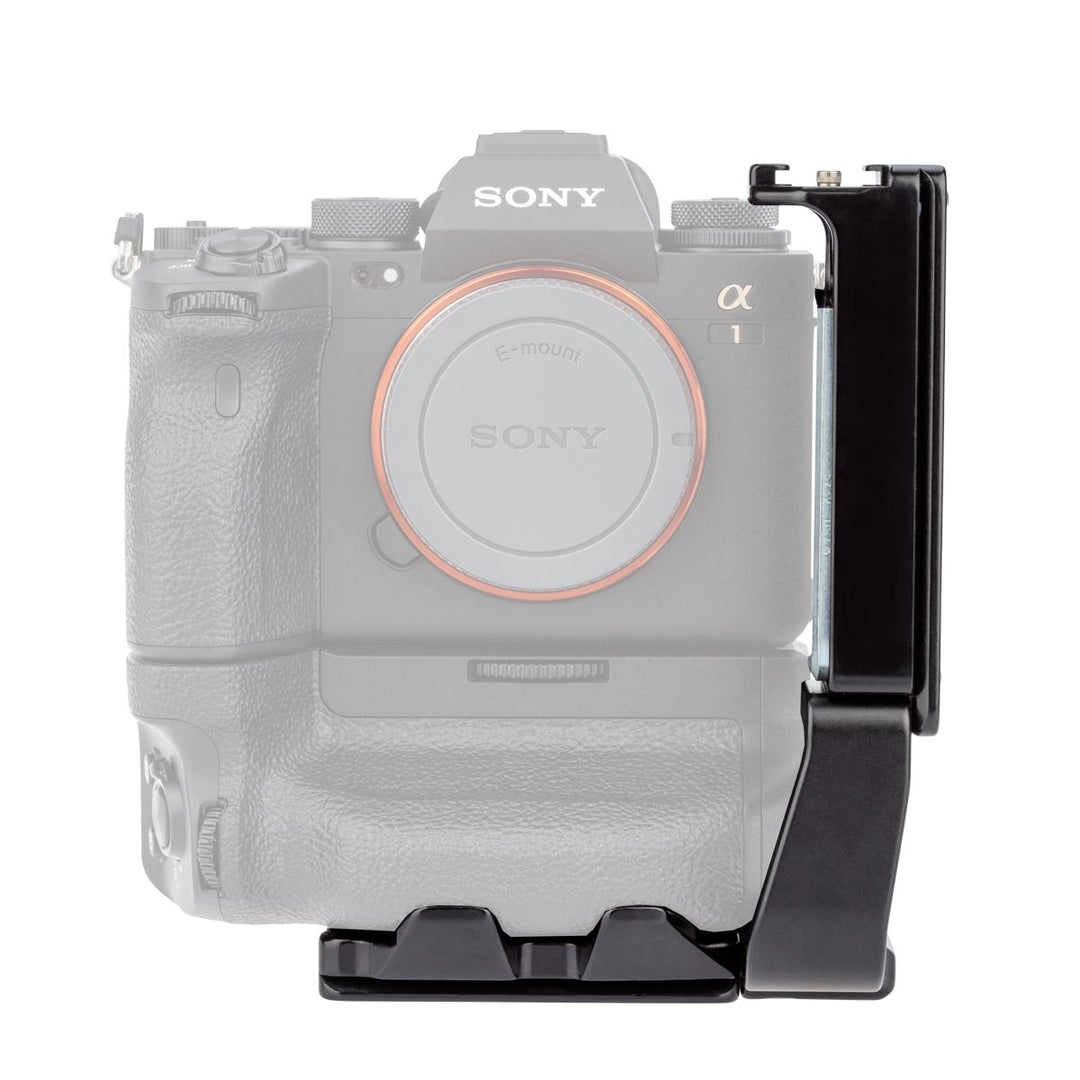

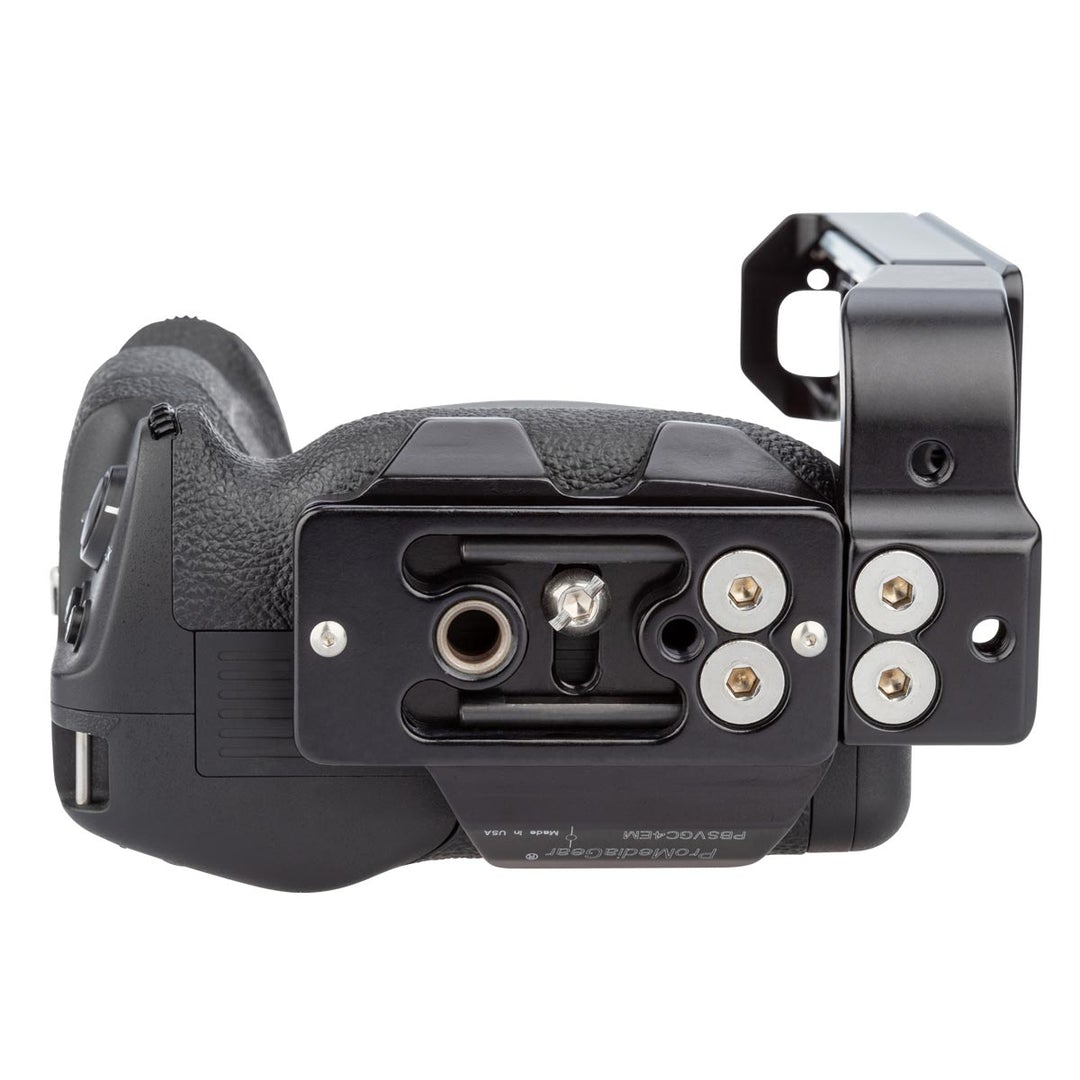

ProMediaGear PLSX4T L-Bracket L-Plate for Sony Alpha a1 with VG-C4EM Vertical Battery Grip, Arca-Type, SS2 Strap Port
The ProMediaGear L-Bracket L-Plate for Sony Alpha a1. ProMedia Gear L-Brackets or L-Plates allow for really fast changes between...
The ProMediaGear L-Bracket L-Plate for Sony Alpha a1.
ProMedia Gear L-Brackets or L-Plates allow for really fast changes between portrait and landscape orientations, without the need of tripod head readjustment and re-composition. You simply release the bracket from your tripod head, flip it at 90 degrees mounting it back into the tripod head. Compatible with Arca-Swiss type standards from all major manufacturers.
- This ProMediaGear L-Bracket has been designed specifically for Sony Alpha a1 Series camera: with VG-C4EM Battery Grip.
The L- Bracket has been machined from solid Aluminium T6061 block and black anodized for scratch resistant finish. The main feature of this L-Bracket is its two piece design; the vertical piece of the L-Bracket can be extended to allow cable connection (cable connections are also possible without extending).
This L-Bracket / L-Plate is also suitable for video accessories. Two 1/4-20 threads, one on top and one on the side allow for attachment of various accessories, lights, mics, cold shoes. Furthermore, it's offset to allow for easy camera cable connections, and full articulation of LCD screen is permitted. - Features:
-
- Offset Design to allow full articulation of Camera LCD without blocking ports
- Built-in Cold shoe on Top of Bracket for Speed-lights, Mics etc.

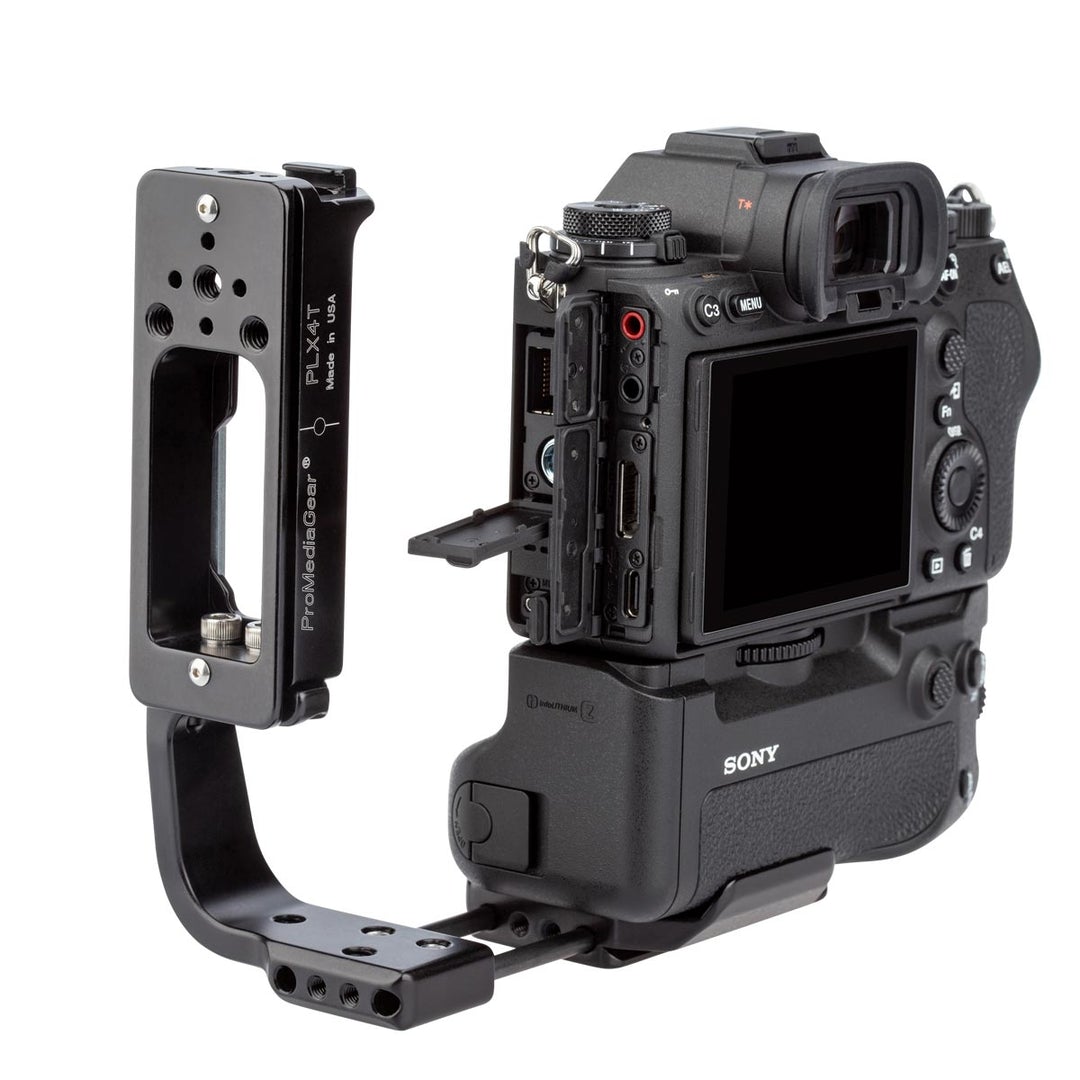

- Slide out vertical Piece allows for easy port access
- Efficiently swap between portrait and landscape orientations
- Captive 1/4-20 Camera Mounting screw with Integrated Magnetic Allen Wrench Storage
- Two safety stops in vertical and horizontal surface
- Compatible with Arca-Swiss style tripods, mono-pods etc.
- Easy battery access
- Centering Lines for Easy Panorama shooting
- Machined aircraft aluminum construction using CNC precision machine
- Additional 1/4-20" on Top, Side and Bottom for attaching straps etc.
- Unobstructed LCD access
-
What's Included:
- L-Bracket
- Removable strap loop
- Allen wrench 5/32 inch, for camera mounting, and other for stop screws.
- L-Bracket
Specifications:
- Height: Inches ( mm)
- Width: Inches ( mm)
- Depth: Inches ( mm)
- Rotation 90°
- Weight: 7.76 oz - 220 grams
- Mount Thread: 1/4-20 with 5/32 inch Hex Screw
- Arca Swiss Type Dovetail
Compatible with:
- Meike Grips
- Arca-Swiss
- Kirk
- Markins
- Really Right Stuff
- Wimberley
