Amaran F22X (V-mount)
AMARAN F22X
2'x2' Bi-Colour LED Flexible Fabric Light
BI-COLOUR FLEXIBLE MAT

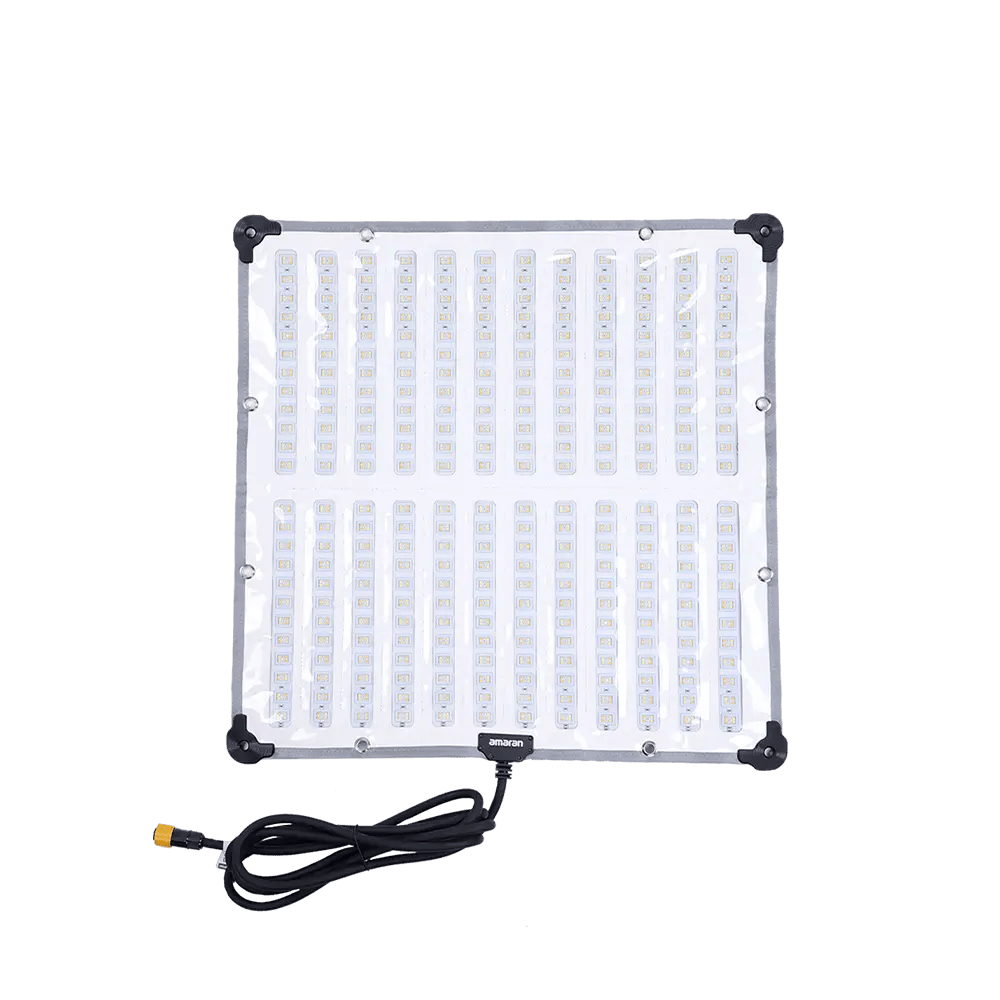

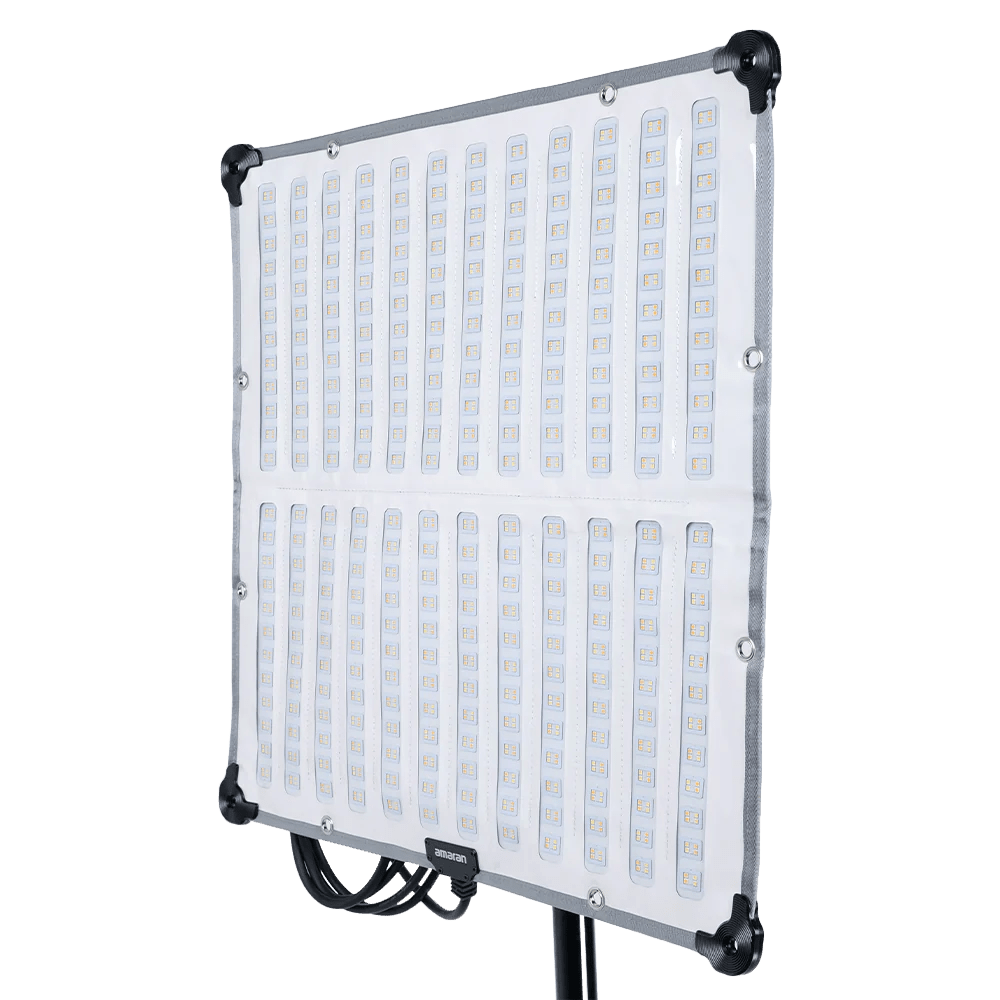

The Amaran F22x is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and colour rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution.
2X2 FORM FACTOR

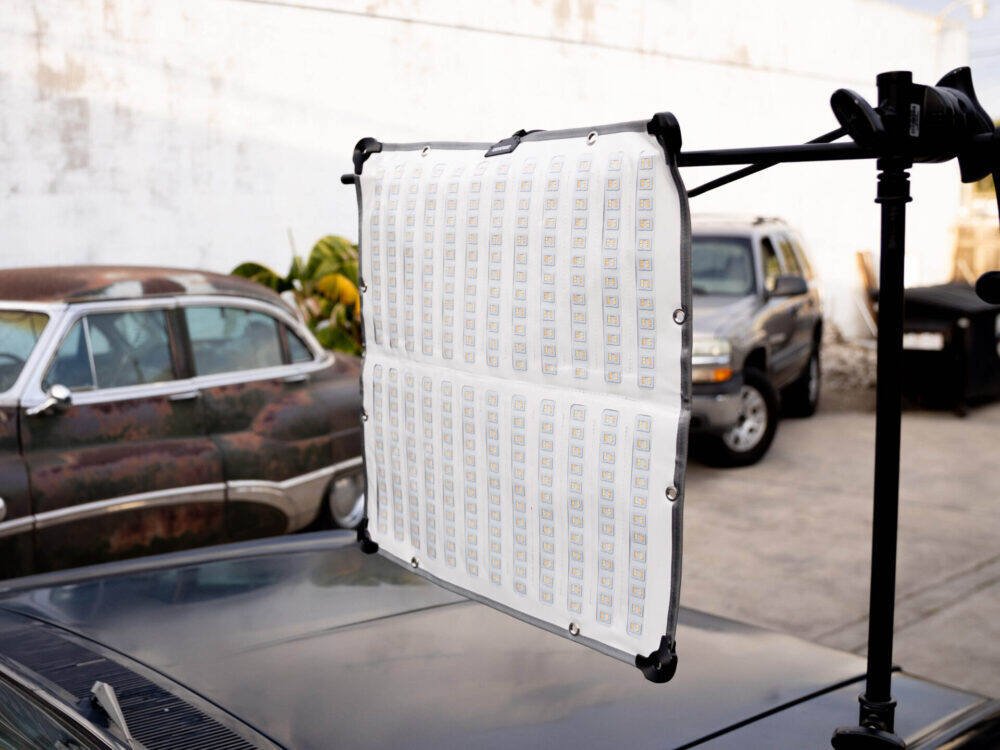

As an ultra-light, ultra-thin fabric light, the F22x is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ square form factor allows the F22x to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.
OUTSTANDING LIGHT OUTPUT

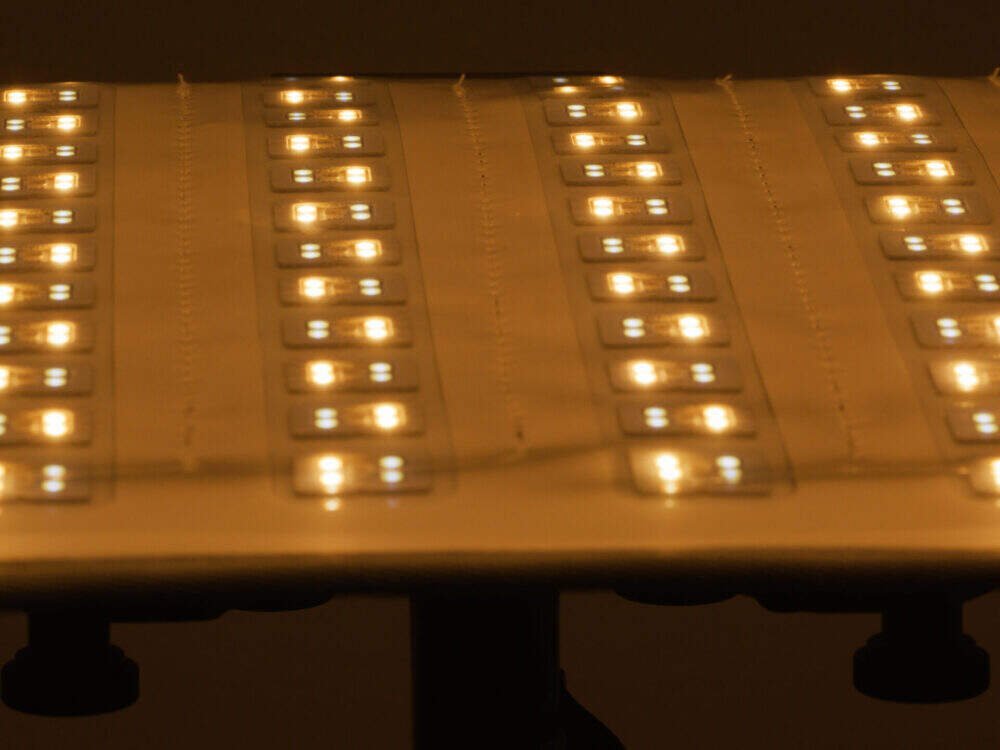

With 200W of output power, the ultra-lightweight bi-colour flexible panel produces unmatched strength, outputting 6,960+ lux at 1 meter. You can also tune the F22x’s high-output bi-colour chipset over its wide CCT range from 2,500K to 7,500K to match a variety of white light environments, coupled with stepless dimming from 0 to 100%, frequency selection for tuning out flicker, and 9 built-in lighting FX.
COMPACT SETUP

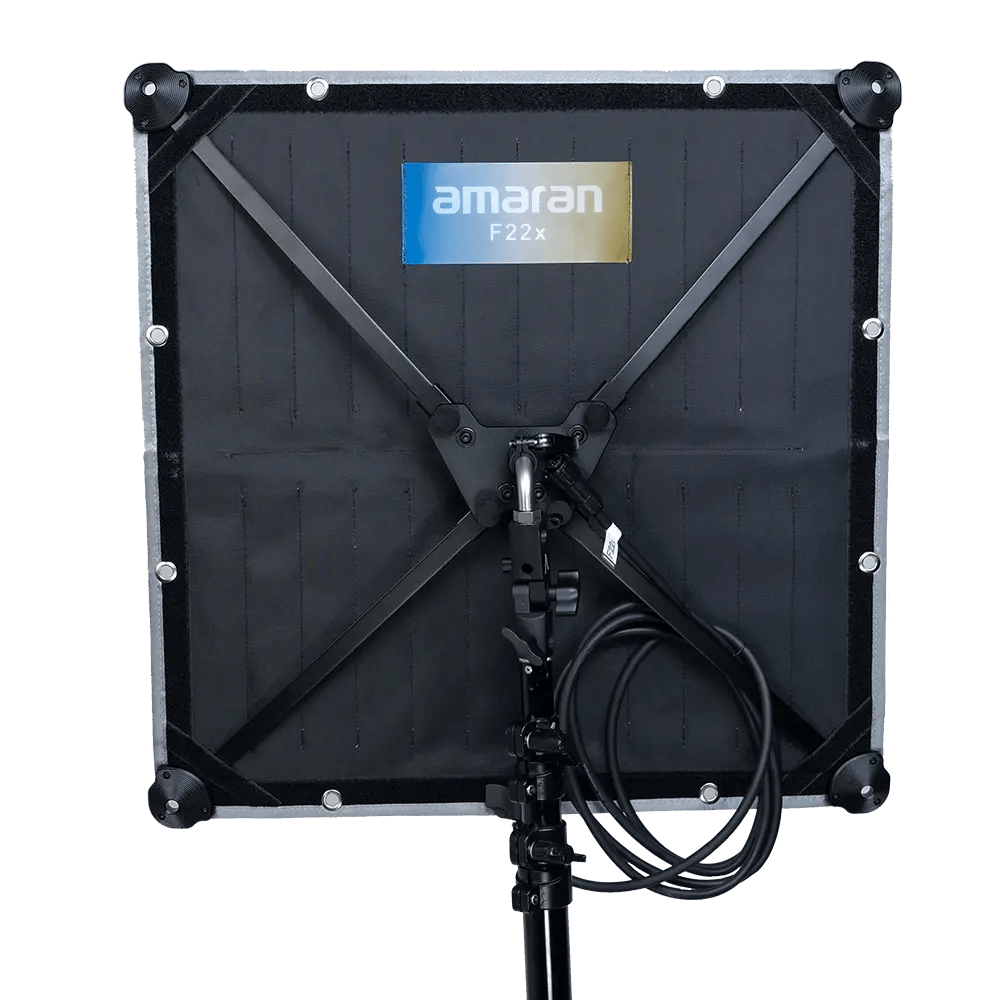

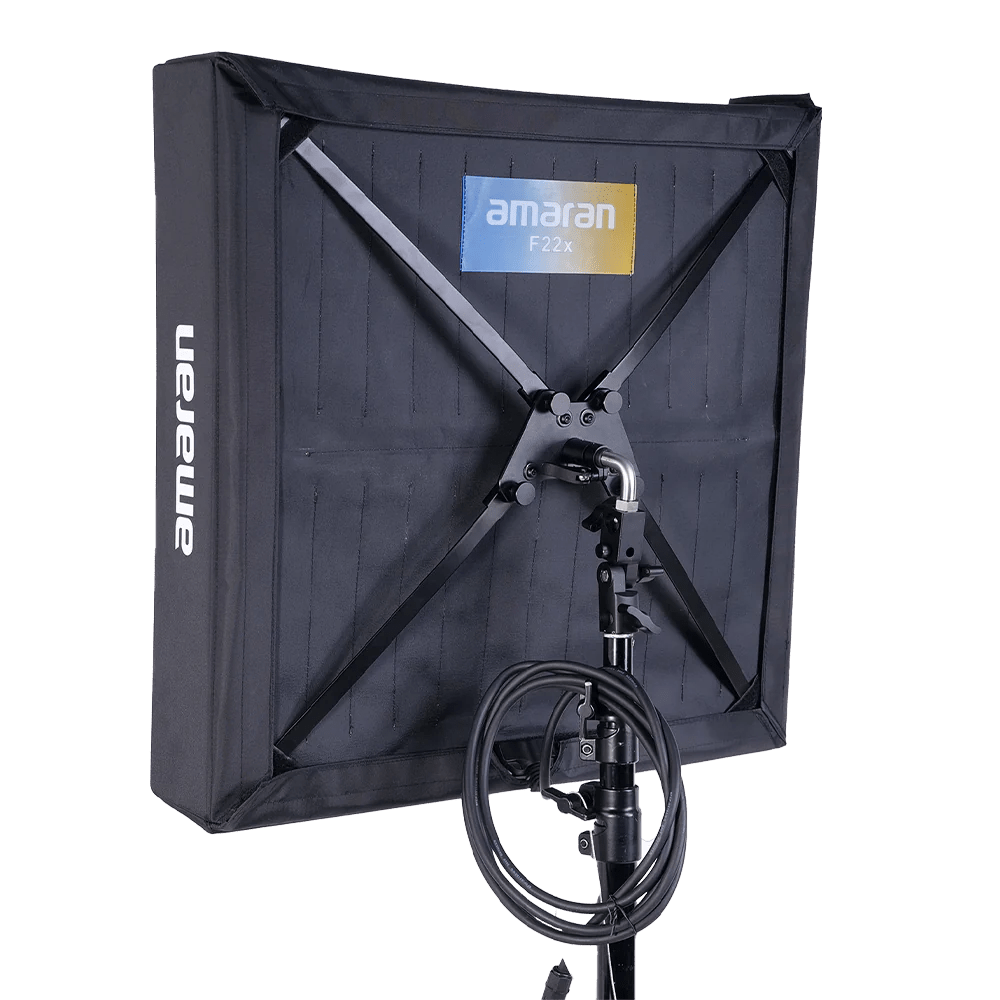

The F22x and its compact setup design is ideal for all types of filmmakers and creators. The F22x includes a compact, folding X-Frame to quickly build the F22x into a rigid panel with ease. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter, or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount.
POWER SOLUTIONS

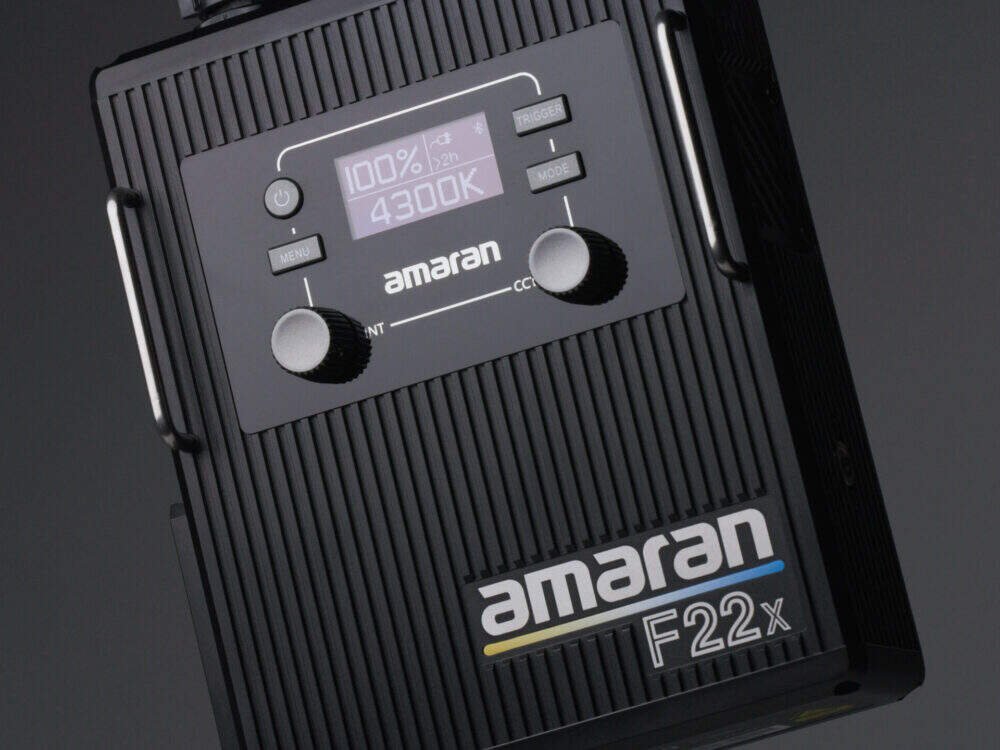

For creators looking for a compact and portable lighting solution with a seamless user experience, the F22x control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.

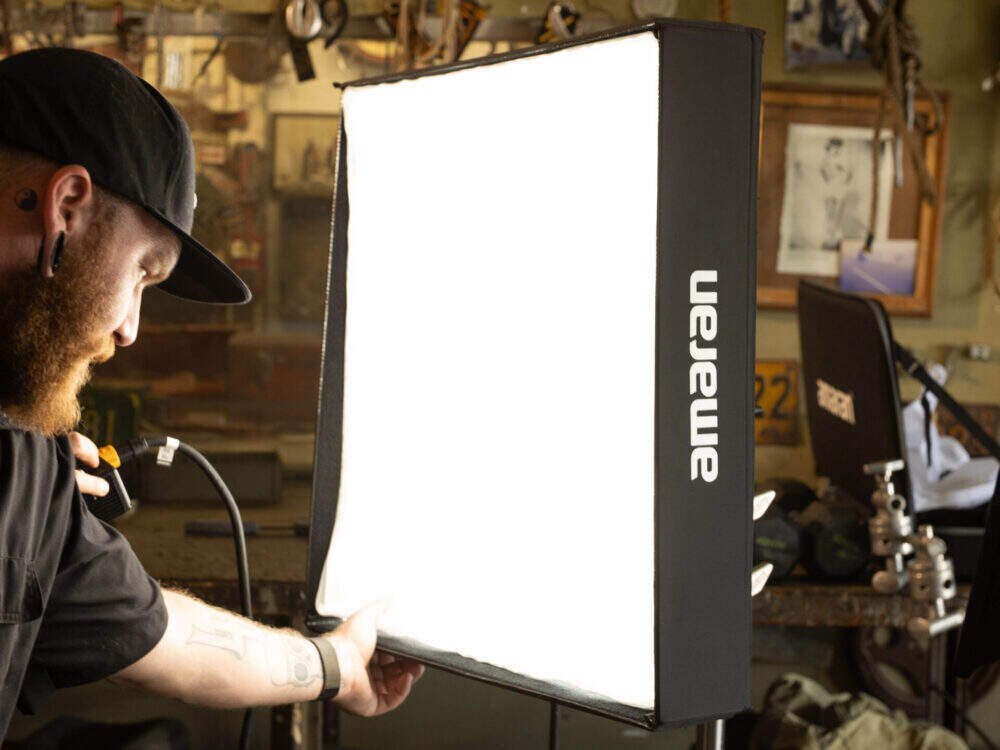

SOFT DIFFUSION

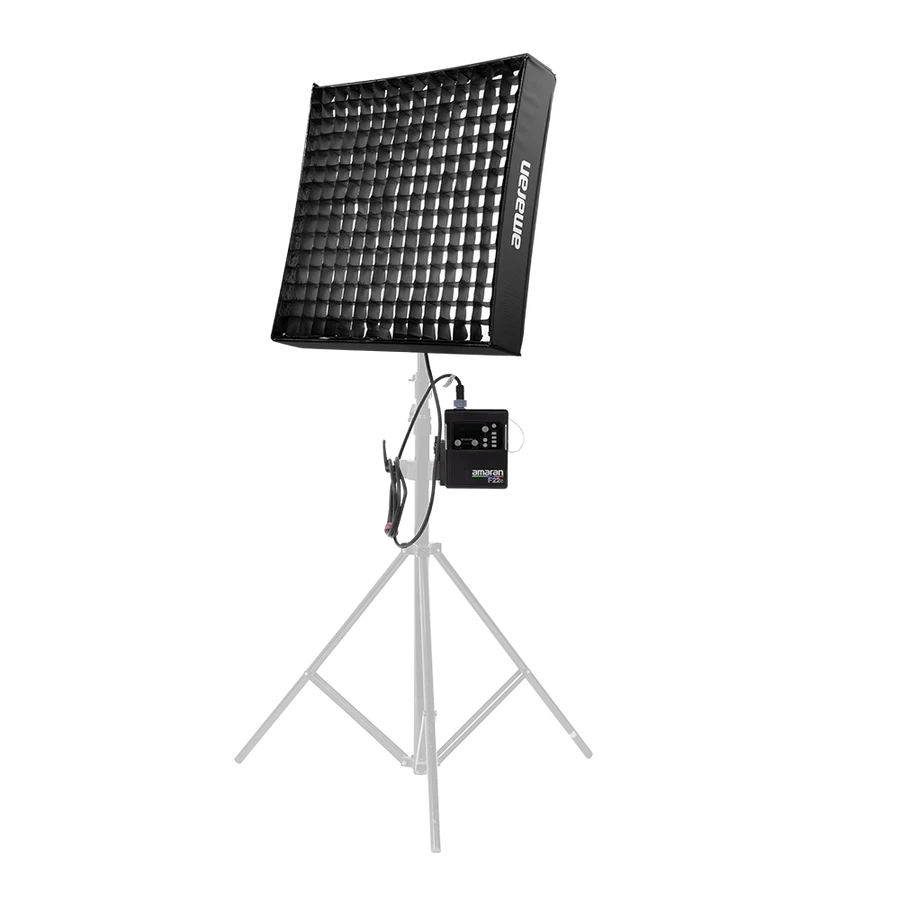

To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22x can also be combined with the Amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.`
SIDUS LINK APP
For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and Amaran ecosystems to control the F22x. With the Source Match, Colour Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect colour for the scene has never been easier.
PROFESSIONAL CONTROLS

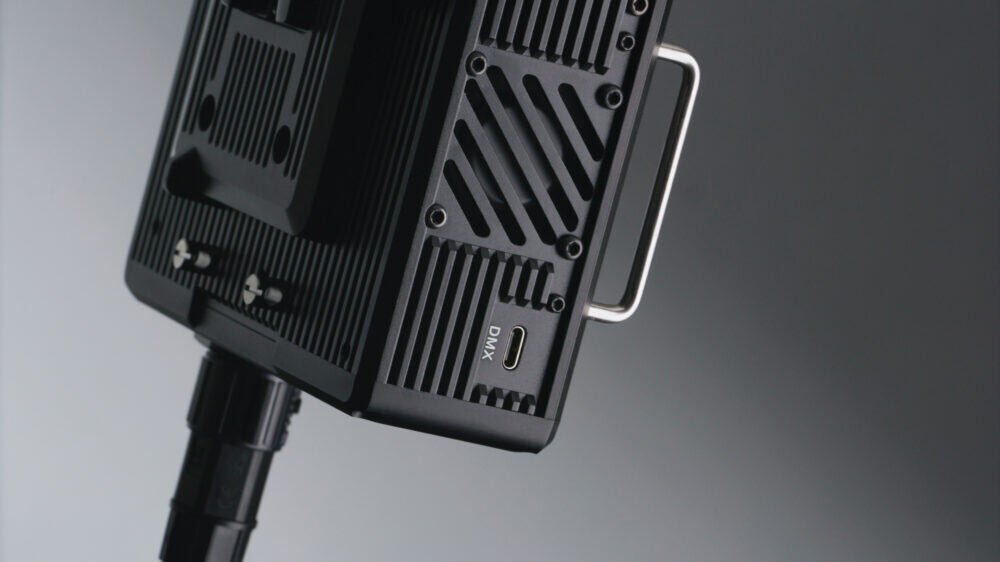

In addition to controlling your lighting design from Sidus Link, the F22x can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.
* USB-C to 5-Pin DMX512 In & Out Adapter sold separately

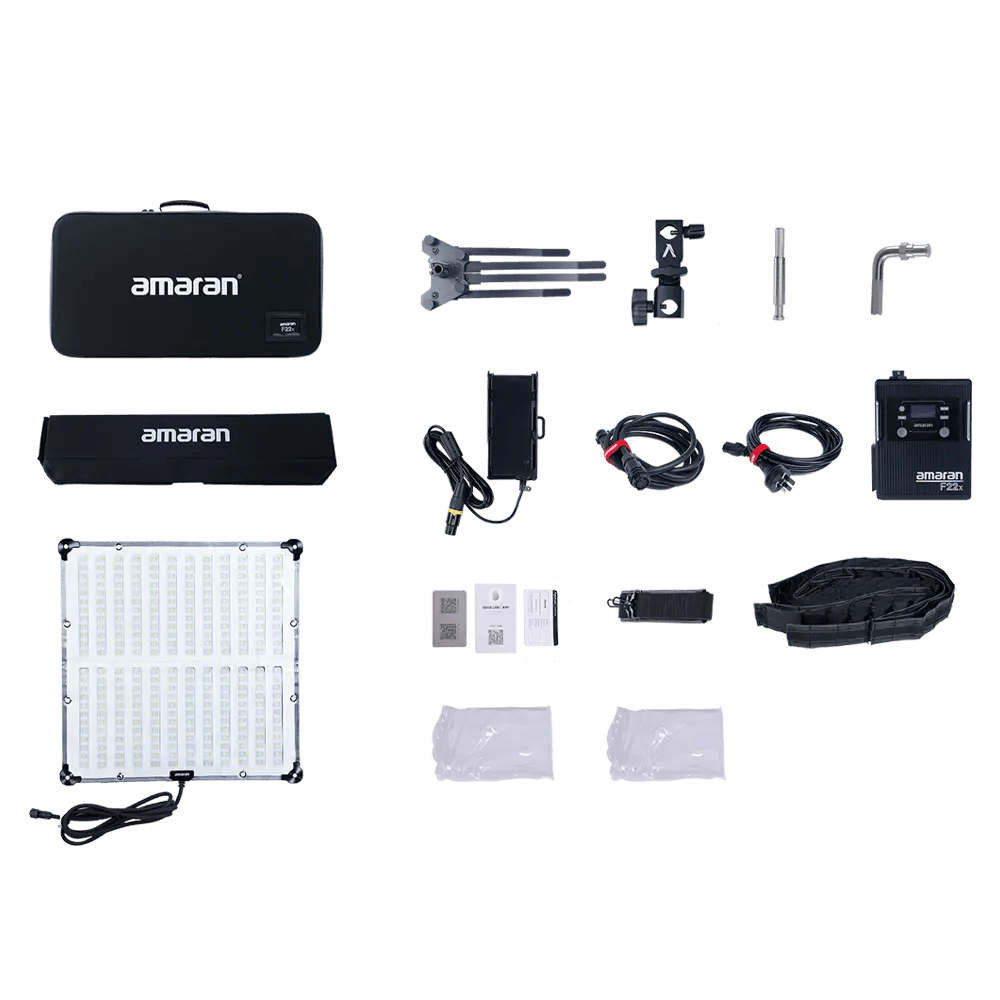

In the Box
-
1x Amaran F22x Bi-Colour 2x2 LED Flexible Mat
- 1x Amaran F22x Control Box
- 1x Amaran F22x Head Cable Extension (3m)
- 1x Amaran F22 Support Bracket
- 1x Amaran Flexible Light Right Angle Baby Pin Adapter
- 1x Amaran Flexible Light Straight Baby Pin Adapter
- 1x Tilting Stand Mount
- 1x Amaran F22 Soft Box Frame
- 1x Amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
- 1x Amaran F22 Diffusion Cloth 2 (2.5 Stop)

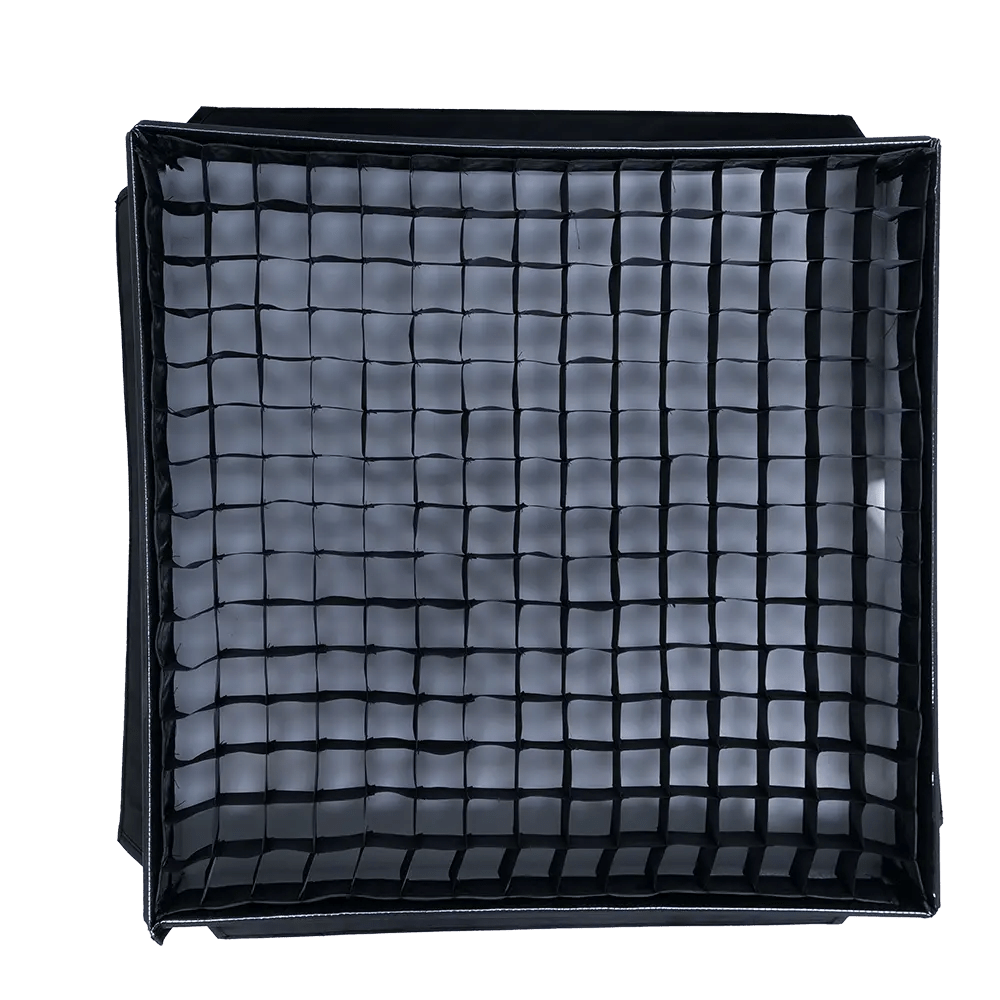

- 1x Amaran F22 Light Control Grid
- 1x AC Power Supply
- 1x AC Power Cable

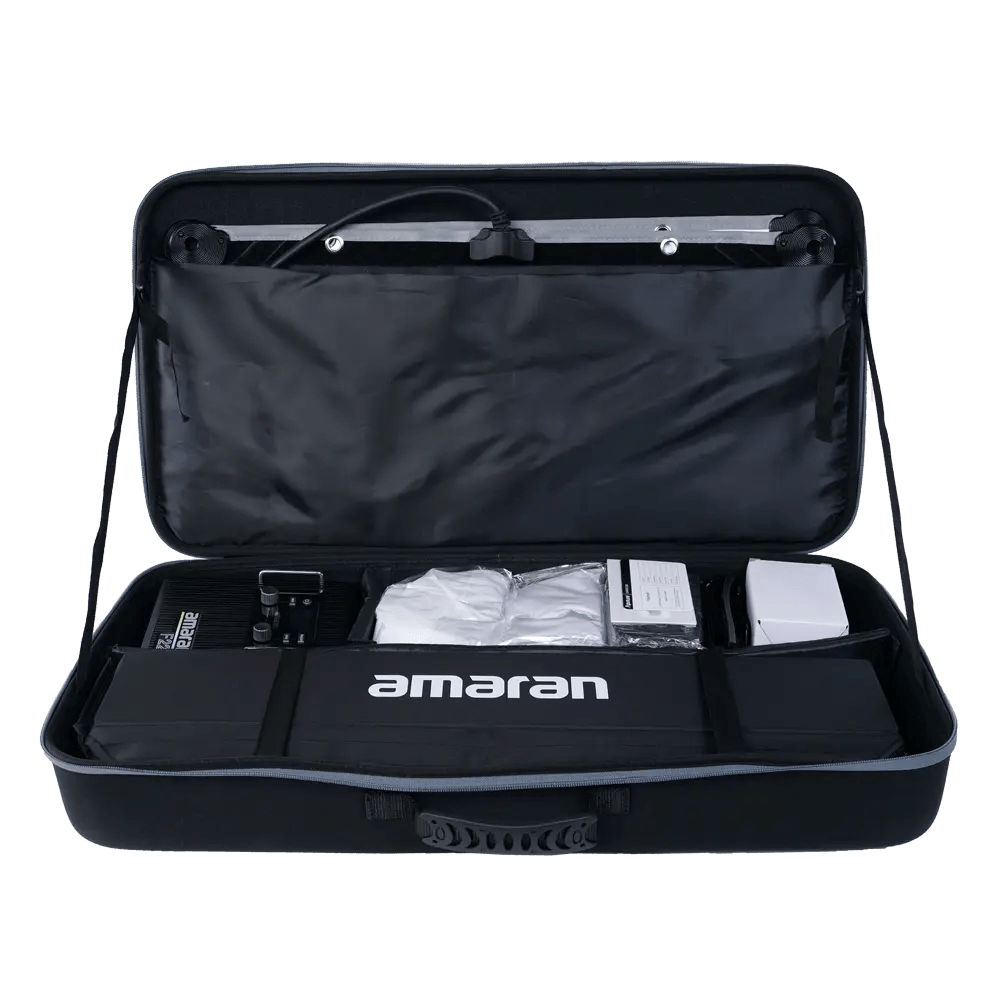

- 1x Amaran Flexible Light Carrying Case
