Aputure LS1200d Pro (V mount)
New lower price!
The Brightest Light In The Entire Aputure Product Line

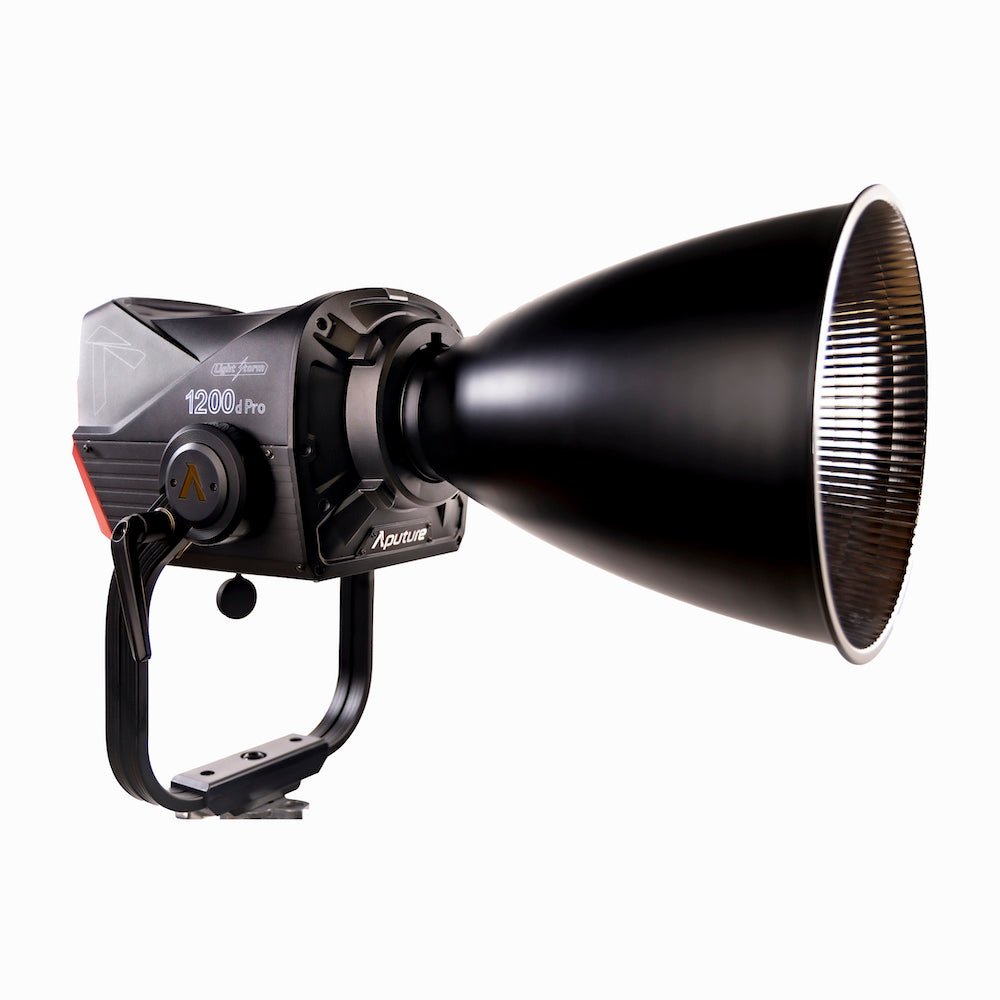

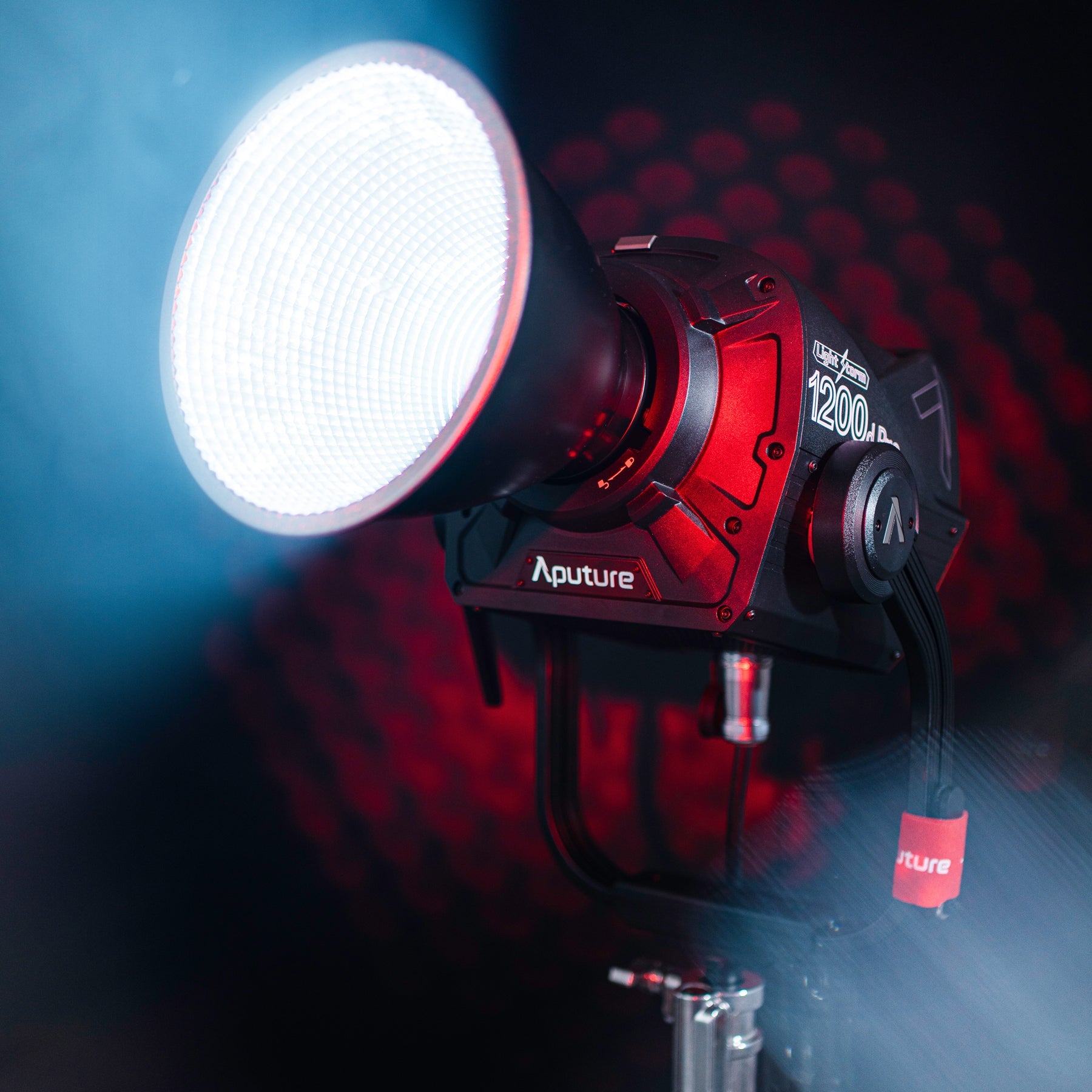

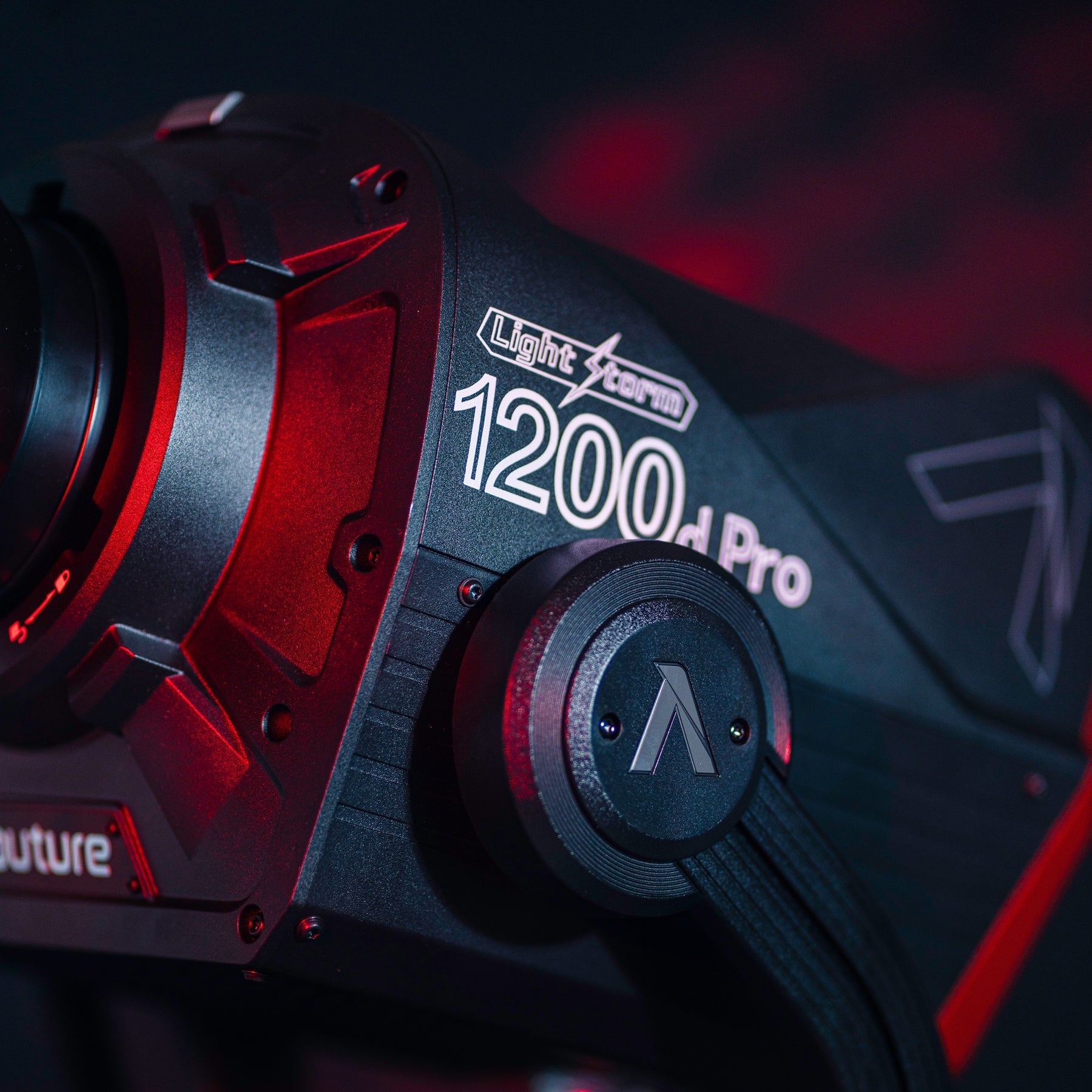

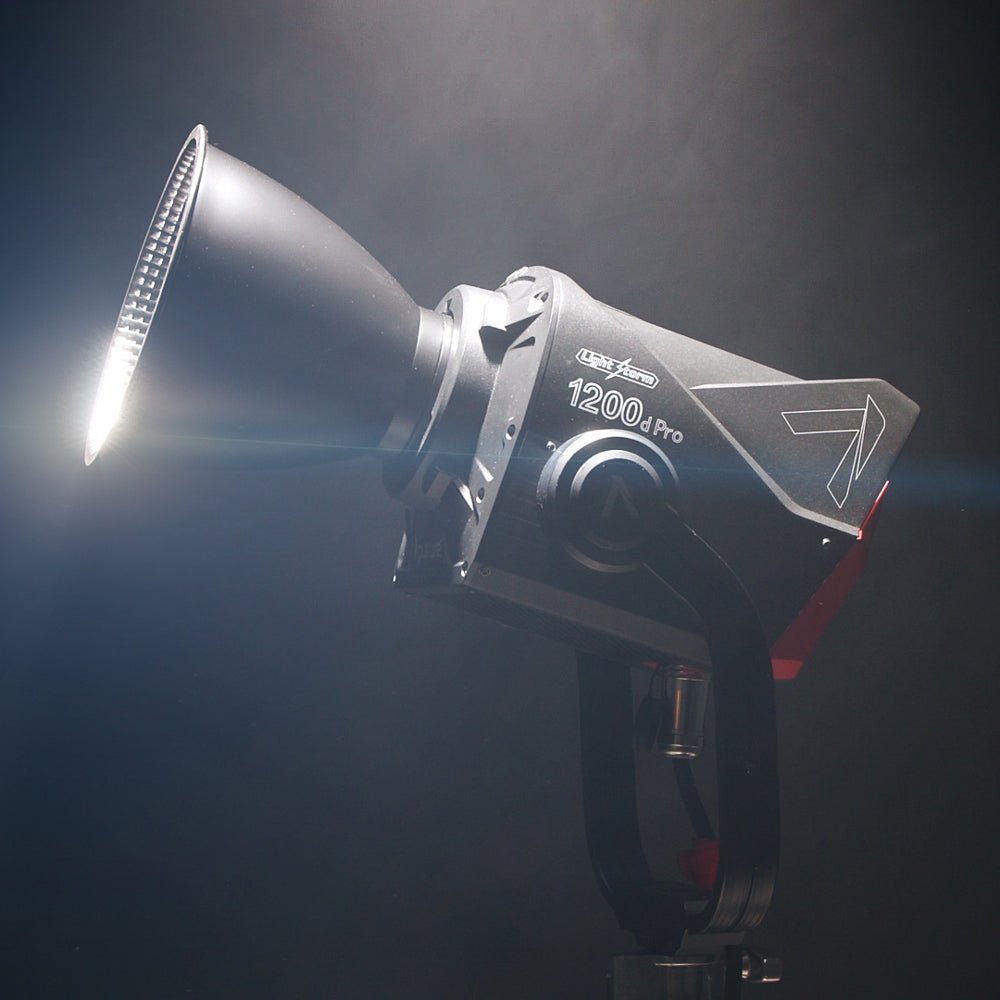

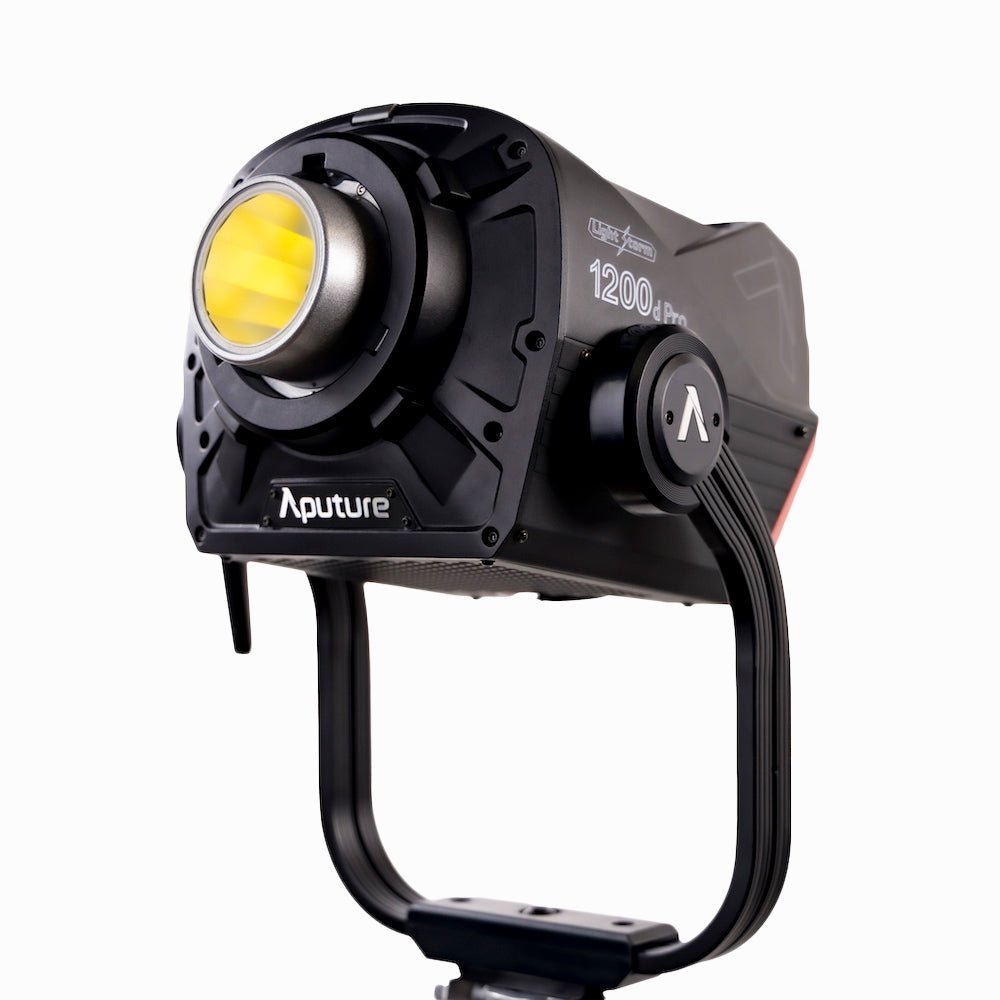

The Light Storm 1200d Pro is Aputure's flagship Light Storm Product. Featuring a 1200W COB, the LS 1200d Pro is both the brightest light in the entire Aputure product line, as well as the highest output Bowens Mount light fixture on the market.

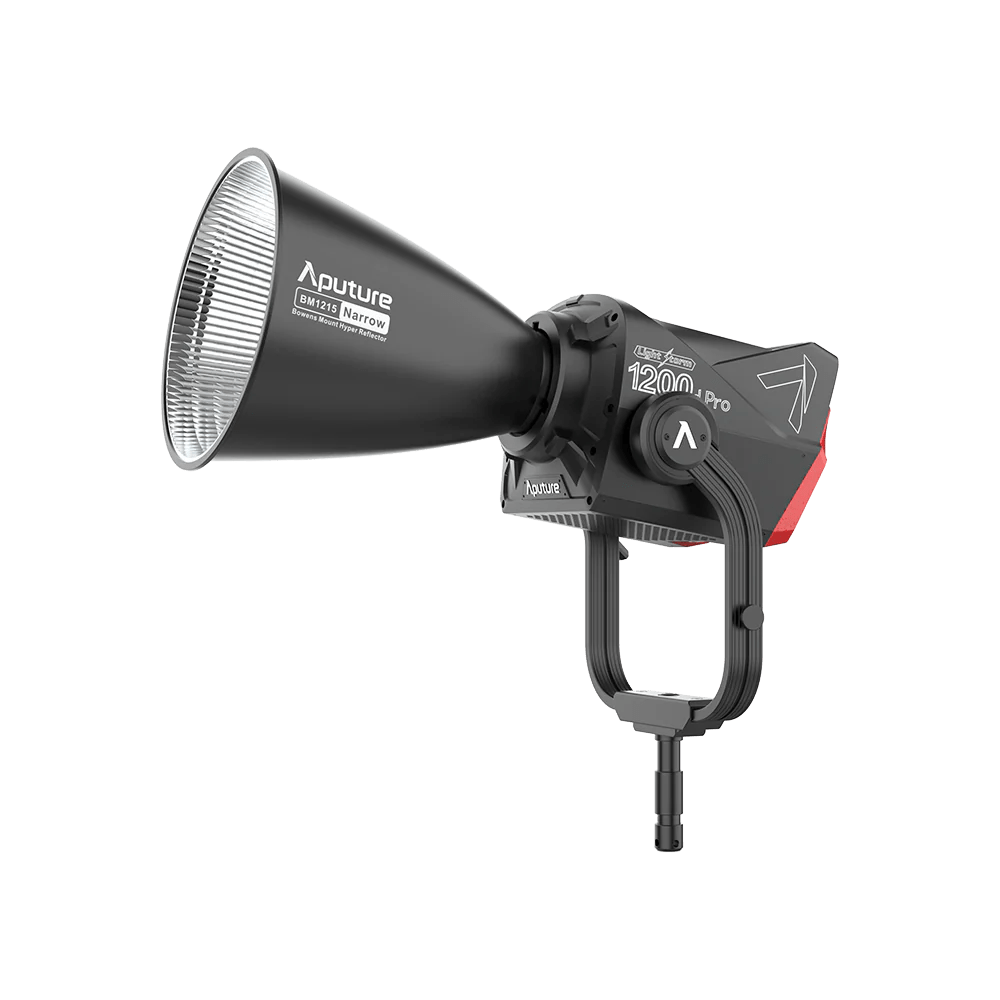

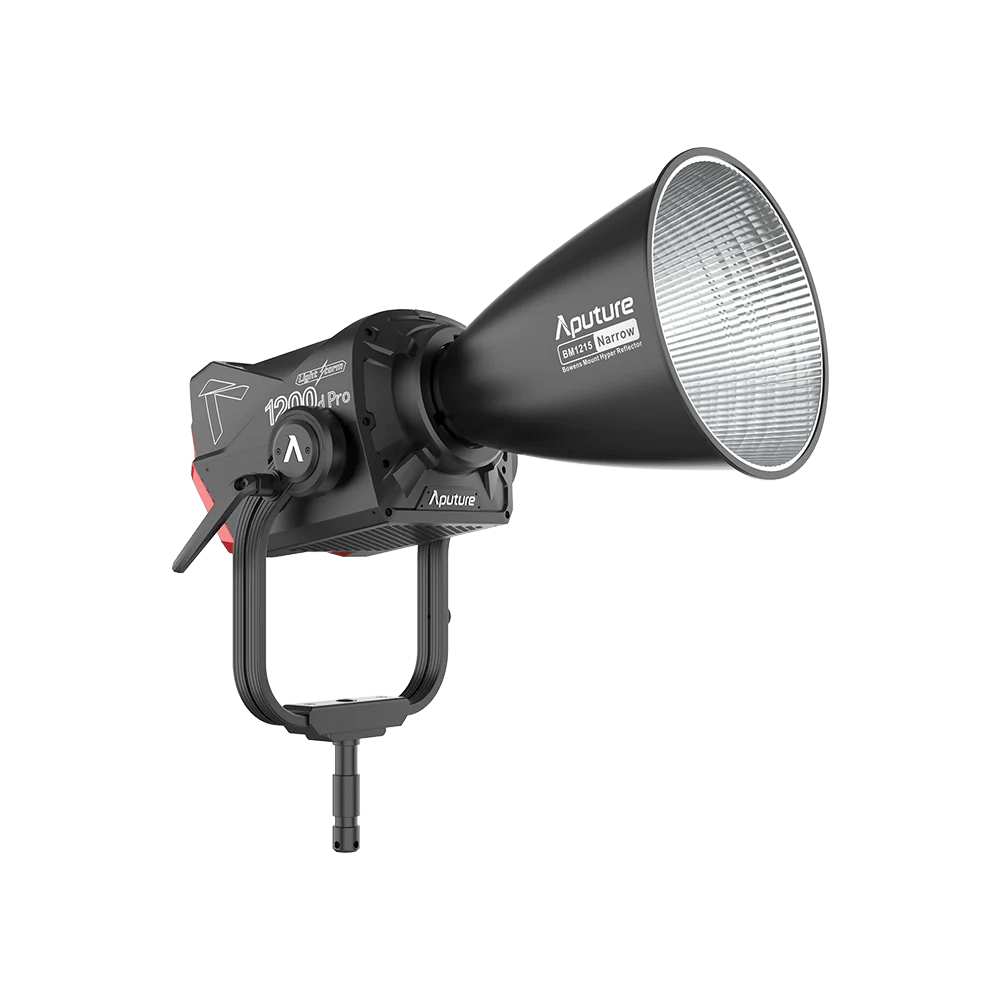

To optimise its output, the LS 1200d Pro includes three Bowens Mount Hyper Reflectors with varying beam angles: Narrow, Medium, & Wide. With its Narrow Hyper Reflector, the 1200d Pro can achieve an output of 83,100 lux at a distance of 3 meters.
What's in the Box
LS 1200d Pro Rolling Case

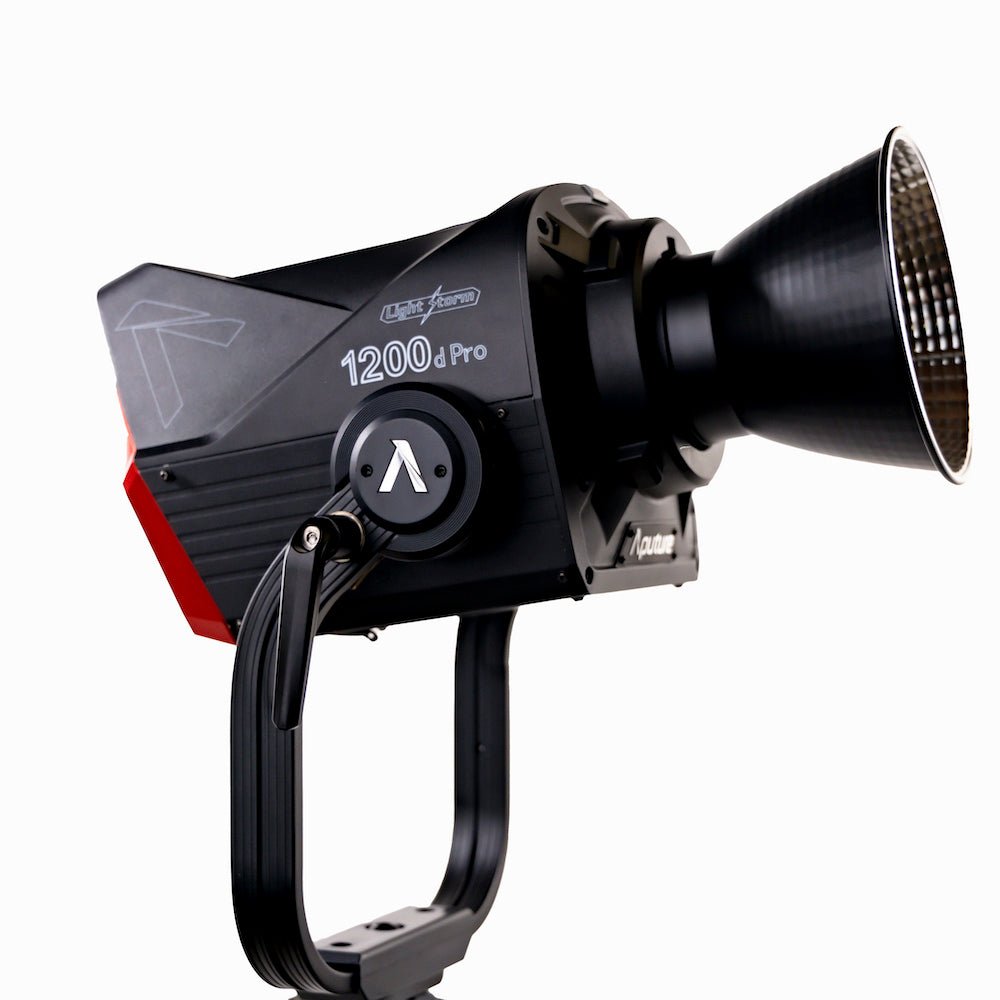

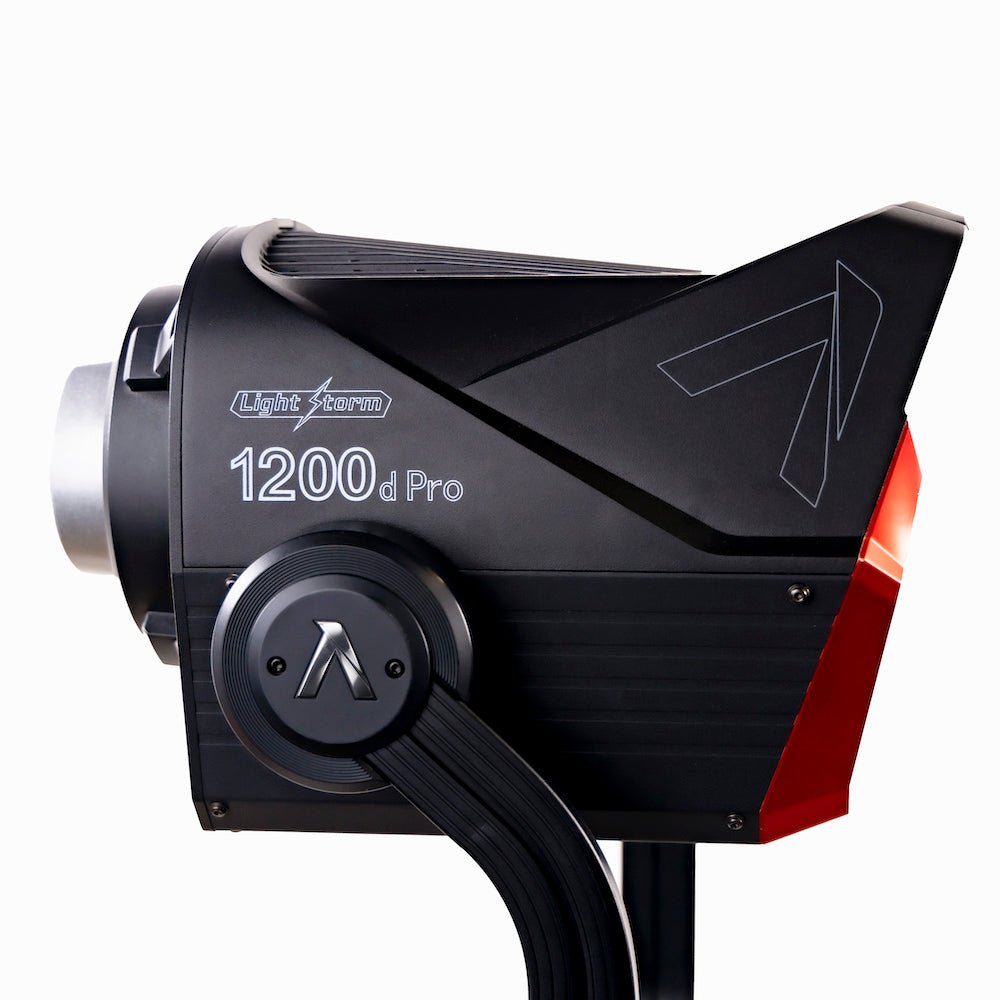

- 1 x LS 1200d Pro Lamp Head

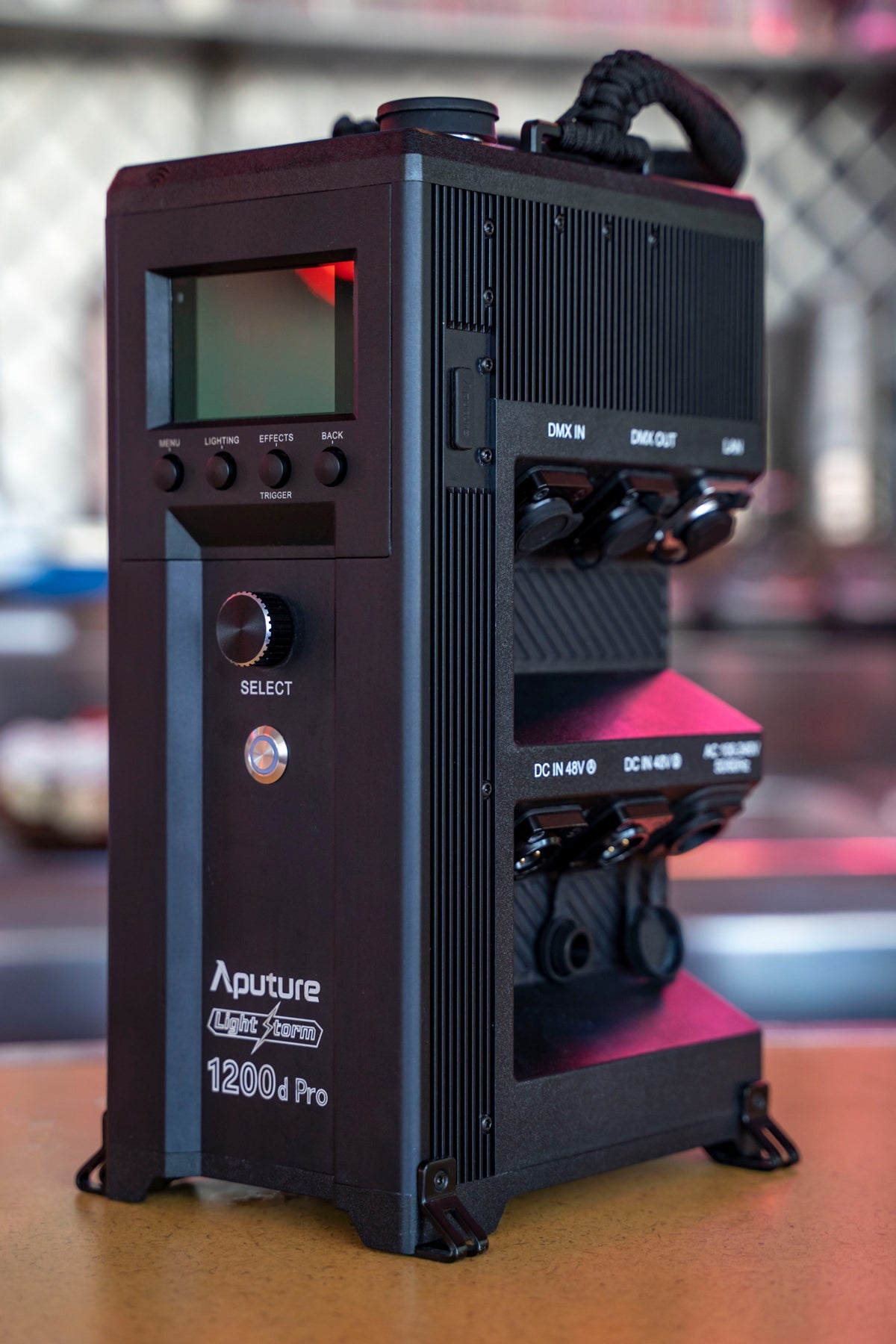

- 1 x LS 1200d Pro Control Box

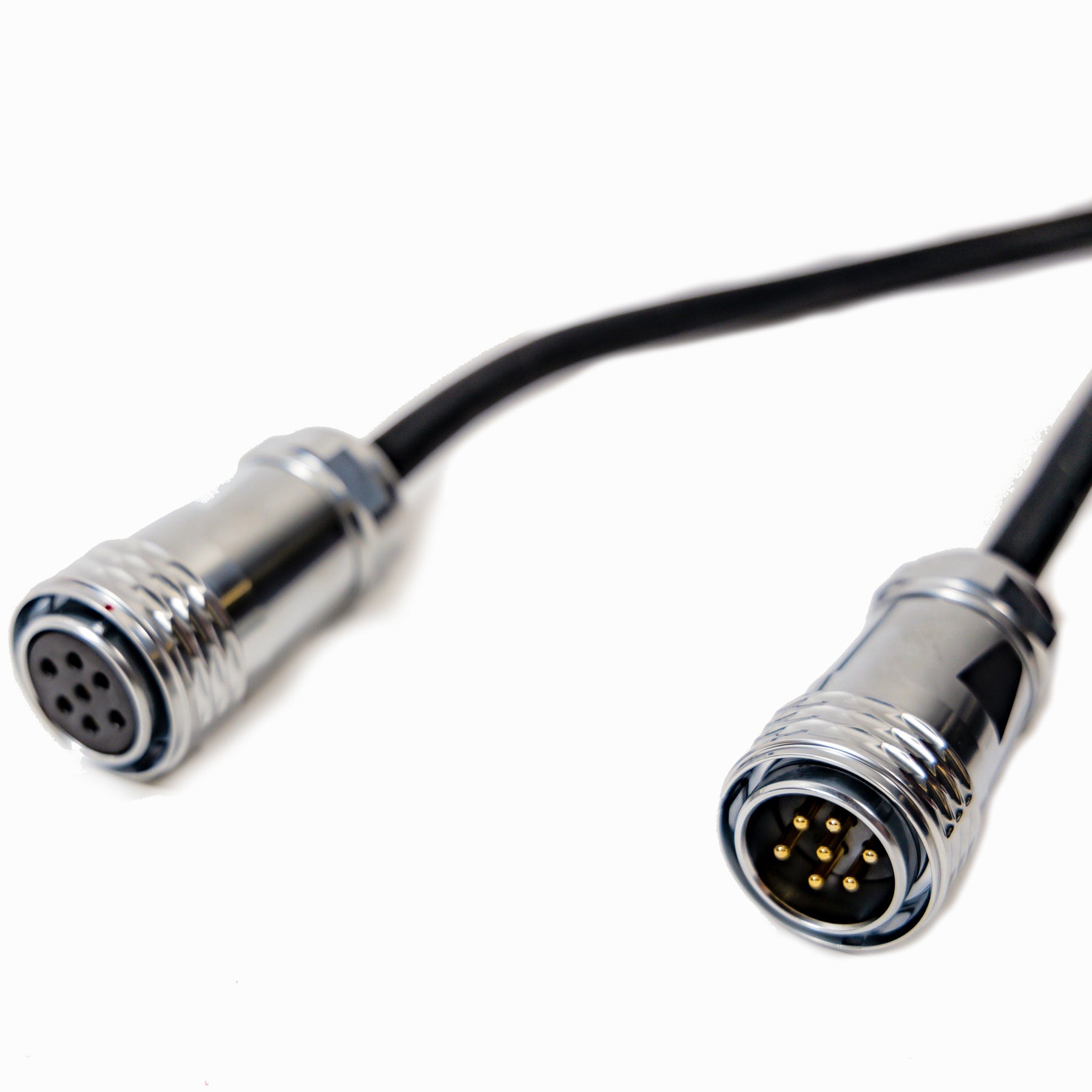

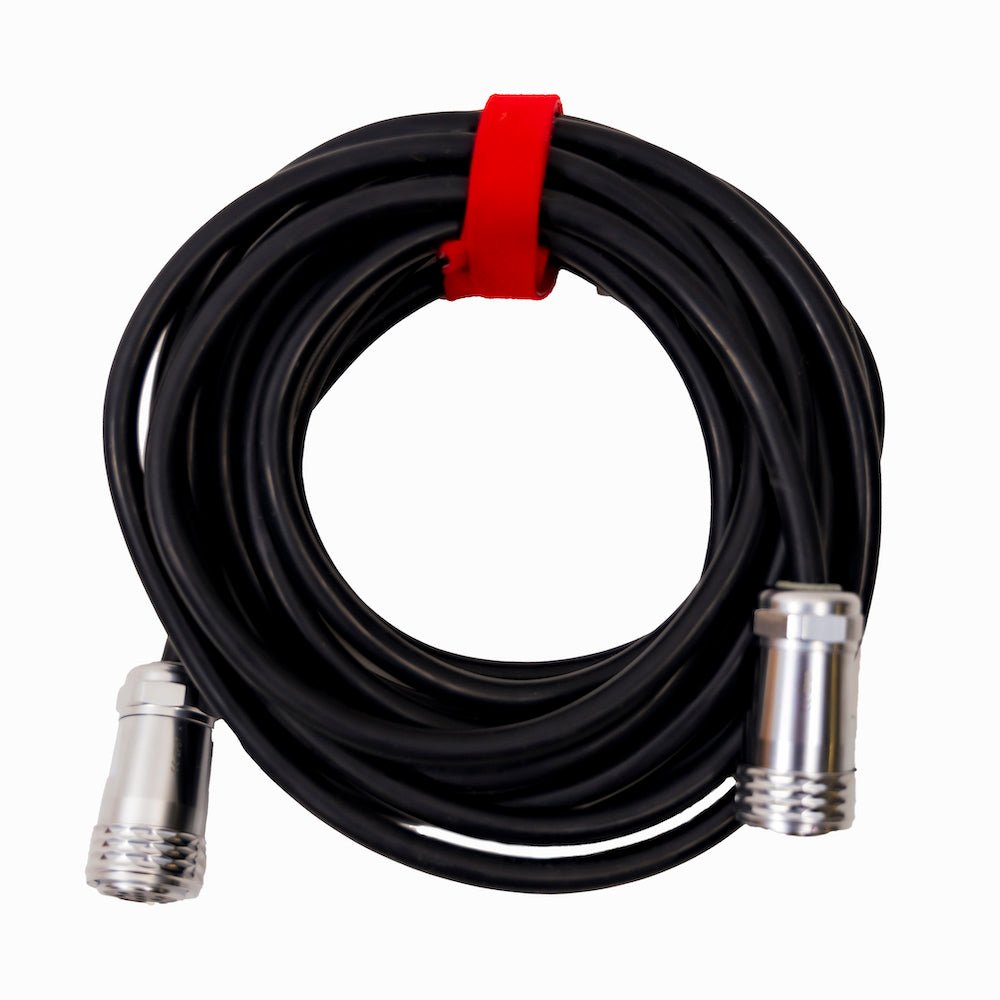

- 1 x LS 1200 Series 7-Pin Weatherproof Head Cable (7.5m)
- 1 x Neutrik powerCON TRUE1 TOP AC Power Cable (6m)
- 1 x Lightning Clamp
- 1 x LS 1200d Pro Rolling Case

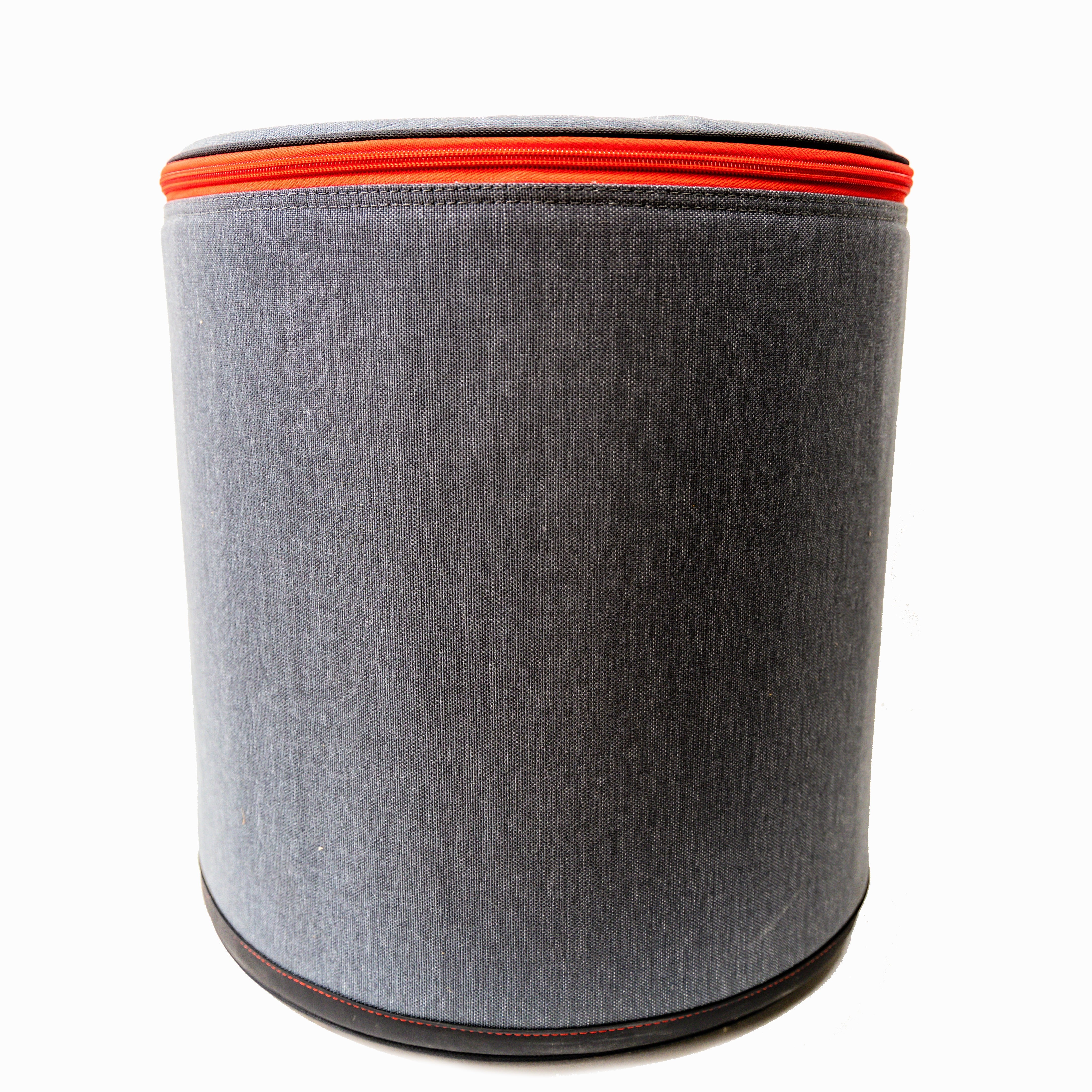

Reflector Carrying Case
- 1 x BM1215 Bowens Mount Hyper Reflector (Narrow)

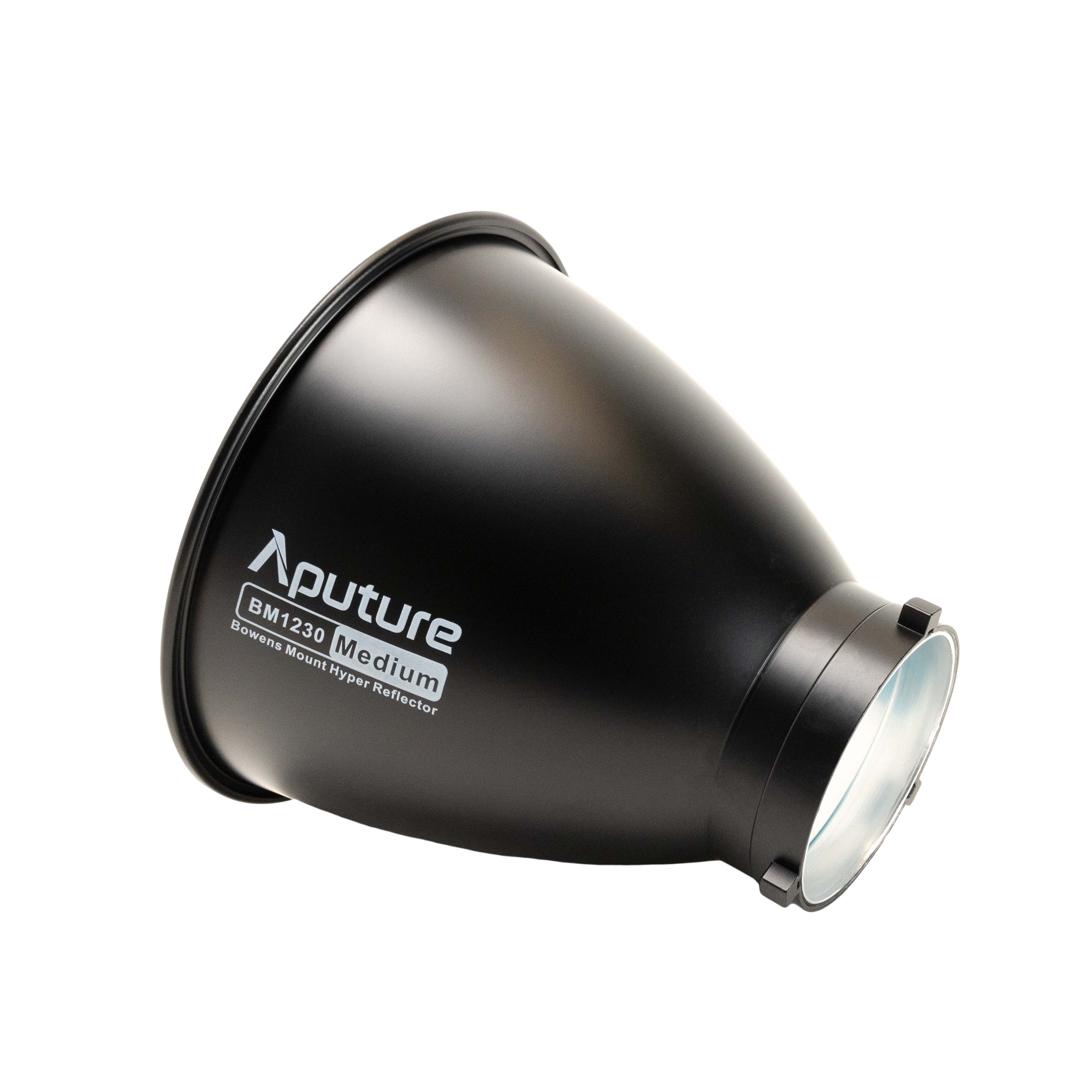

- 1 x BM1230 Bowens Mount Hyper Reflector (Medium)

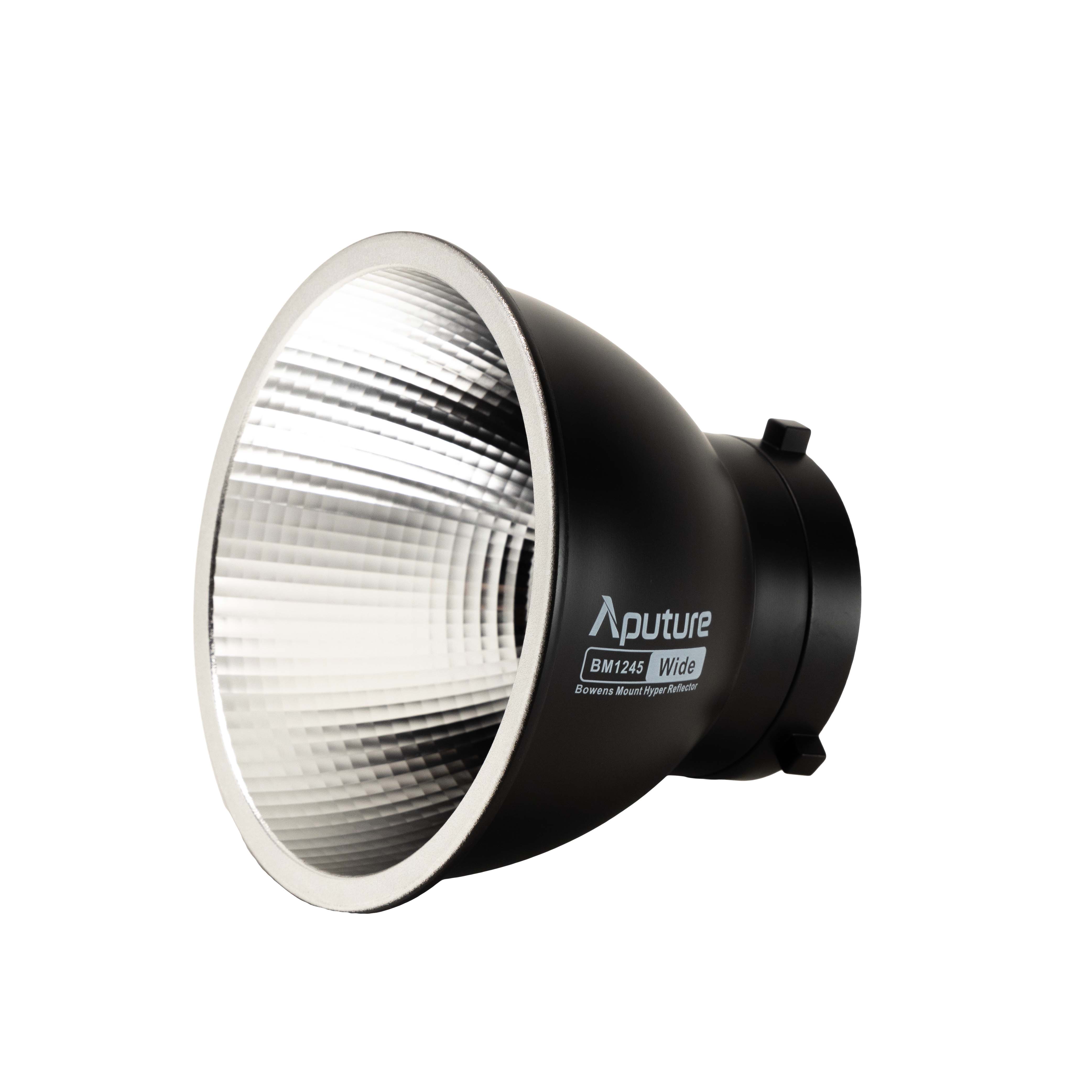

- 1 x BM1245 Bowens Mount Hyper Reflector (Wide)
- 1 x LS 1200 Series Reflector Carrying Case

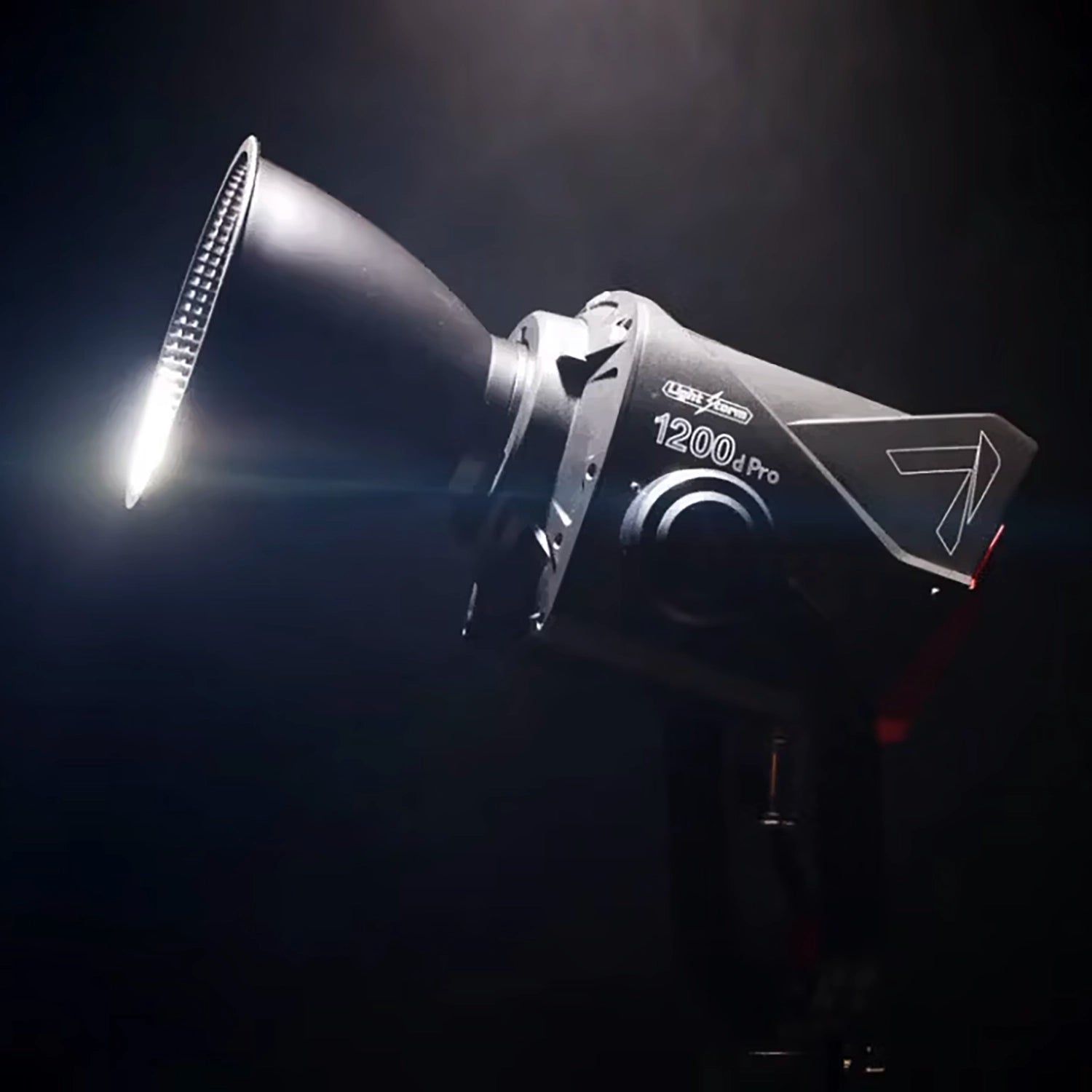

By designing the LS 1200d Pro to utilise the Bowens Mount, the Light Storm flagship can also use a wide array of Bowens Mount soft light modifiers such as Light Domes and Lanterns.

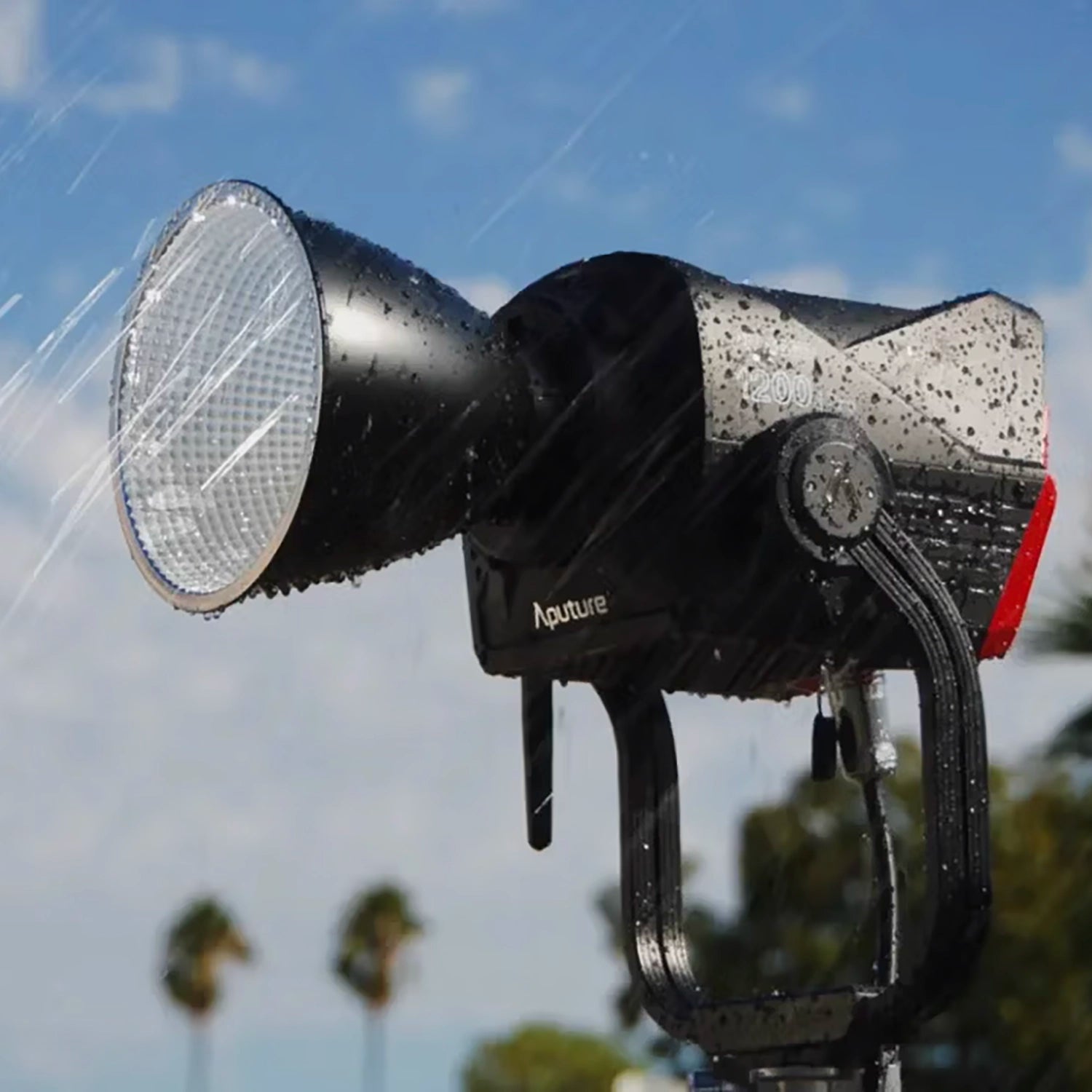

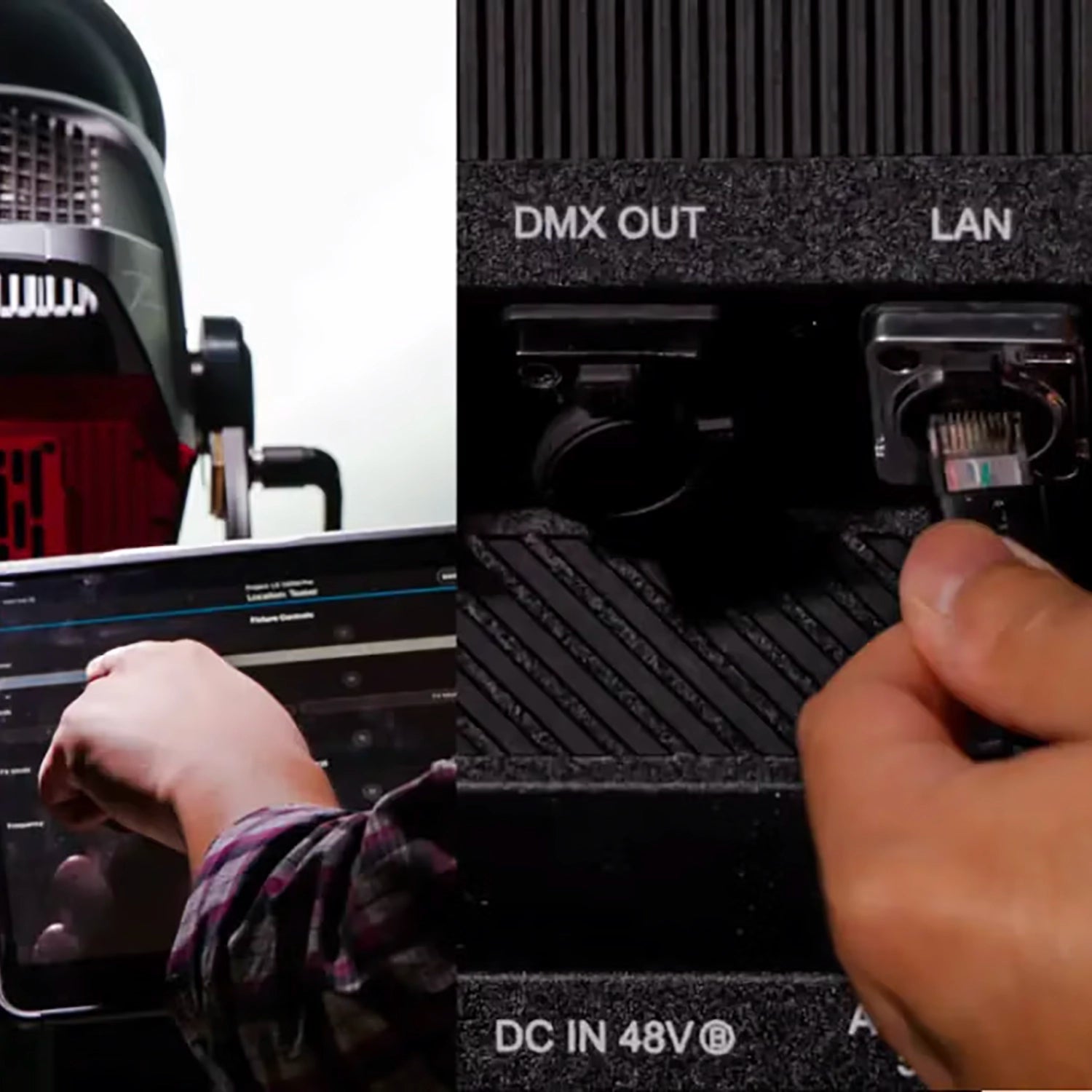

As a professional Light Storm fixture, the LS 1200d Pro utilises a weather-resistant construction to withstand inclement weather. Its connectivity is also designed with lighting technicians in mind. The 1200d Pro uses Lumenradio CRMX and Art-net & sACN via an etherCON connector, in addition to the 5-Pin DMX512 ports, to seamlessly
integrate into any professional DMX interface.
The LS 1200d Pro also makes battery operation possible for high output fixtures by integrating two 48V/15A DC inputs for half or full power so that users can operate the 1200d Pro without noisy generators.
Main Features
-
83,100 lux @ 3m with Hyper Reflector (Narrow)
-
22,400 lux @ 3m with Hyper Reflector (Medium)
- 13,010 lux @ 3m with Hyper Reflector (Wide)
- 1200W Output Daylight Bowens Mount Point-Source LED
- 1440W Max Power Draw
- 5600K Daylight CCT
- Optimized Output with 3 Hyper Reflectors: Narrow, Medium, Wide
- CRI ≥96 TLCI ≥98, CQS ≥95, SSI (D56) ≥73
- Weather-Resistant: IP54 Certified
- 0.1-100% Stepless Brightness Control
- Frequency Selection to Reduce Flicker
- Lead-Follow Mode for Quick Workflow
- 4-Fan Modes: Smart/Medium/High/Silent
- Multiple Control Methods: Sidus Link Bluetooth App Control, LumenRadio CRMX, Art-net & sACN via etherCON, 5-Pin DMX512 In & Out
- Supports Dual 48V/15A DC Inputs (3-pin XLR), Including Battery Power Stations & Block Batteries
- Half Power Output with one 48V/15A Power Source
- Full Power Output with two 48V/15A Power Sources
- Junior Pin (28mm)

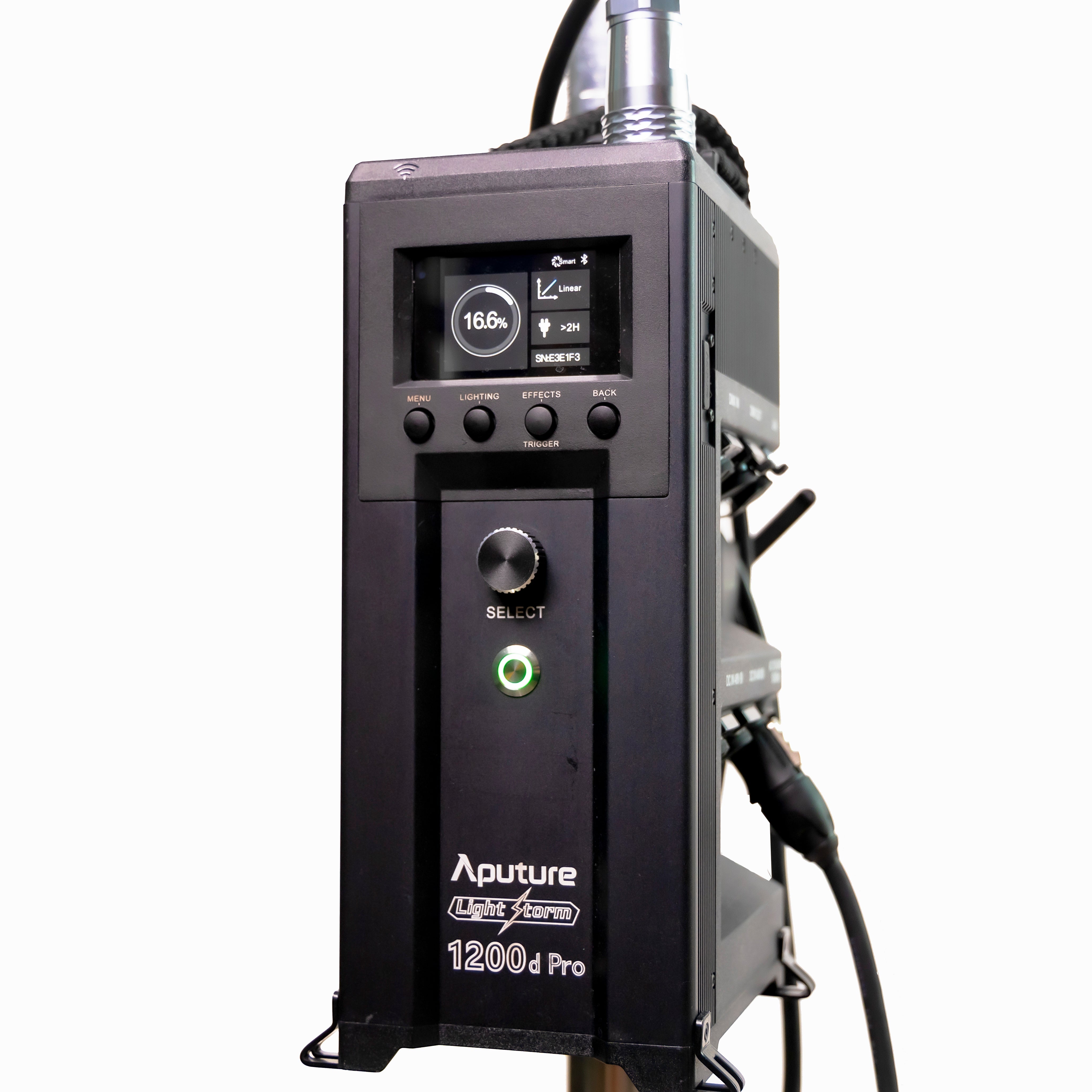

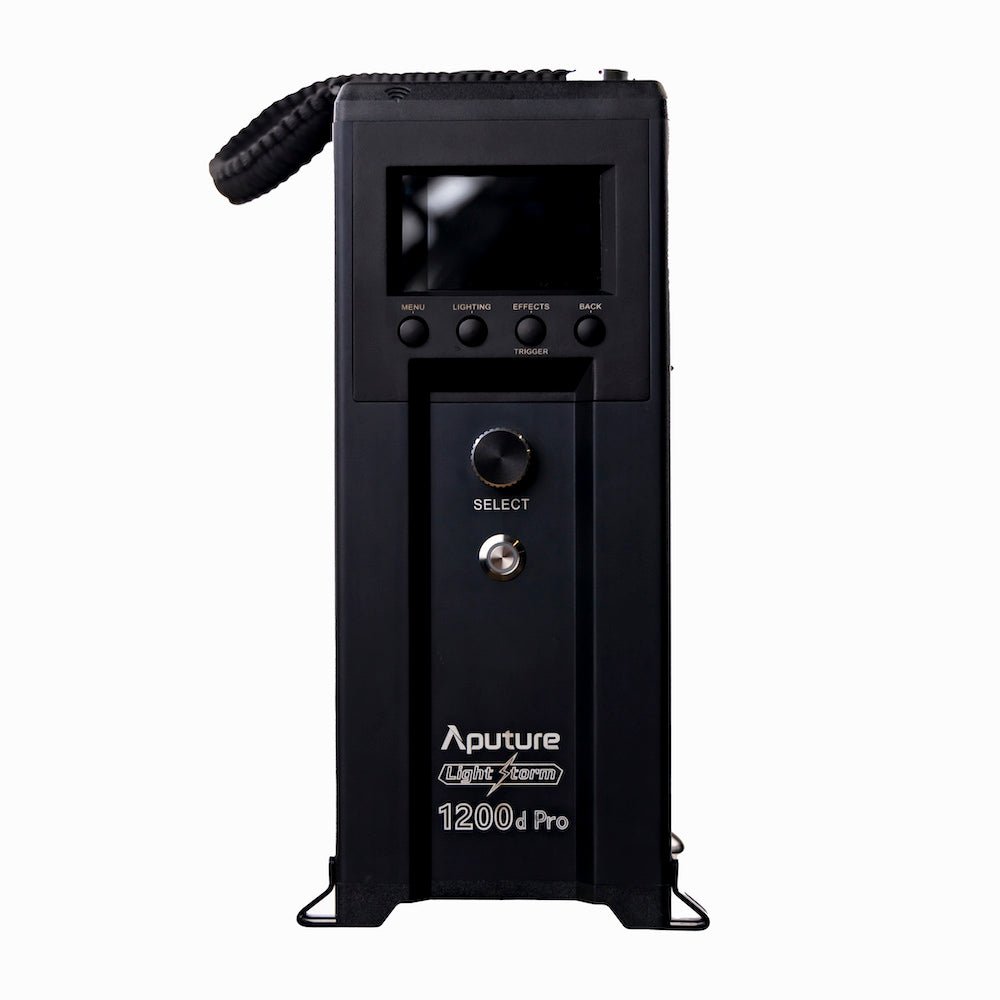

- Separate Control Box for a Lighter Lamp Head
- 7.5m Weatherproof Head Cable
- 6m Locking Neutrik Power Cord
- Dual Lightning Clamp Quick Release Plates
- Curved, Disk-Brake Yoke with 360° Rotation
- Utilizes Universal Bowens Mount Standard
- 4 Dimming Curves: Linear, Exponential, Log, S-Curve

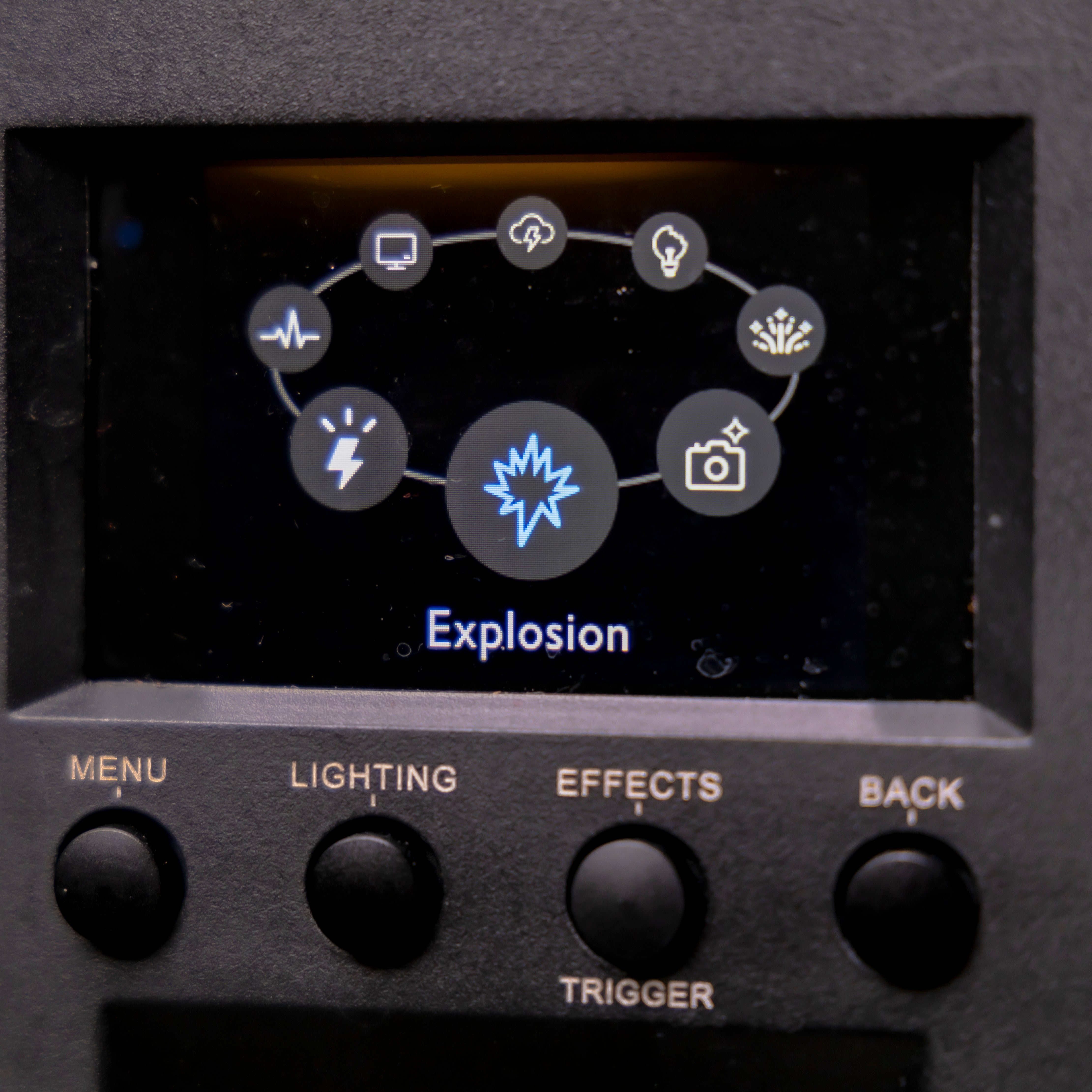

- 8 Lighting FX: Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, & Explosion
- Includes Rolling Case & Reflector Carrying Case
Specifications
- Weights -
- Lamp Head w/o Yoke - 7.57kg / 16.69lbs
- Lamp Head w/ Yoke - 8.95kg / 19.73lbs
- Control Box - 5.80kg / 12.79lbs
- Lightning Clamp - 670g / 1.48lbs
- Reflector Case (Filled) - 4.15kg / 9.15lbs
- Rolling Case (Filled) - 27.25kg / 60.07lbs
Dimensions
- Lamp Head (without Yoke) - 33.23*23.16*21.63cm / 13.08*9.11*8.51in
- Lamp Head (with Yoke) - 33.23*33.12*54.35cm / 13.08*13.03*21.40in
- Control Box - 19.99*16.10*33.60cm / 7.87*6.33*13.22in
- Lightning Clamp - 10.35*8.74*12.5cm / 4.07*3.44*4.92in
- Reflector Case - 41x40x40cm / 16.14x15.75x15.75in
- Rolling Case - 67x48x48cm / 26.38x18.90x18.90in
Product Features
Light Shaping Tool Compatibility
Technical Specification
Photometrics |
|
|
|
|
|
Distance |
Bare Bulb |
BM1215 Bowens Mount Hyper Reflector (Narrow) |
BM1230 Bowens Mount Hyper Reflector (Medium) |
BM1245 Bowens Mount Hyper Reflector (Wide) |
F10 Fresnel (Flood) |
3M |
6,380 lux / 598 fc |
83,100 lux / 7,788 fc |
22,400 lux / 2,099 fc |
13,010 lux / 1,364 fc |
14,470 lux / 1,344 fc |
5M |
2,802 lux / 263 fc |
28,340 lux / 2,656 fc |
8,200 lux / 769 fc |
4,800 lux / 635 fc |
5,590 lux / 519 fc |
7M |
1,538 lux / 144 fc |
15,200 lux / 1,425 fc |
4,660 lux / 437 fc |
2,706 lux / 264 fc |
2,840 lux / 264 fc |
9M |
964 lux / 90 fc |
8,580 lux / 804 fc |
2,880 lux / 270 fc |
1,775 lux / 152 fc |
1,920 lux / 178 fc |
Product Specifications |
|
|
|
|
|
CCT |
5600K |
|
|
|
|
CRI |
≥96 |
|
|
|
|
TLCI |
≥98 |
|
|
|
|
CQS |
≥95 |
|
|
|
|
SSI (D56) |
≥73 |
|
|
|
|
TM-30 RF (Average) |
93 |
|
|
|
|
TM-30 RG (Average) |
102 |
|
|
|
|
Beam Angle (No Accessories) |
66° |
|
|
|
|
Beam Angle BM1215 Bowens Mount Hyper Reflector (Narrow) |
15° |
|
|
|
|
Beam Angle BM1230 Bowens Mount Hyper Reflector (Medium) |
30° |
|
|
|
|
Beam Angle BM1245 Bowens Mount Hyper Reflector (Wide) |
45° |
|
|
|
|
F10 Fresnel |
15° ~ 45° |
|
|
|
|
Lumens |
126,413 lm |
|
|
|
|
Max Power Output |
≤1,200W |
|
|
|
|
Max Power Consumption |
≤1,440W |
|
|
|
|
Max Operating Current |
15A Max |
|
|
|
|
Operating Voltage (Power Supply) |
100V~240V, 50Hz/60Hz |
|
|
|
|
Operating Voltage (Battery) 3-Pin XLR (48V DC) - Half Output (720W / One Input) |
Regulated 48V/15A |
|
|
|
|
Operating Voltage (Battery) 3-Pin XLR (48V DC) - Full Output (1,440W / Two Inputs) |
2x Regulated 48V/15A |
|
|
|
|
DC Input |
2x 48V 3-Pin XLR DC Inputs (720W Each) |
|
|||
Operating Temperature |
-20°C ~ 45°C / -4°F ~ 113°F |
|
|
||
Dimming |
0-100%; Linear, Exponential, Logarithmic, S-Curve |
|
|||
Screen Type |
LCD |
|
|
|
|
Firmware Upgradeable |
USB (FAT16/FAT32), Sidus Link |
|
|
||

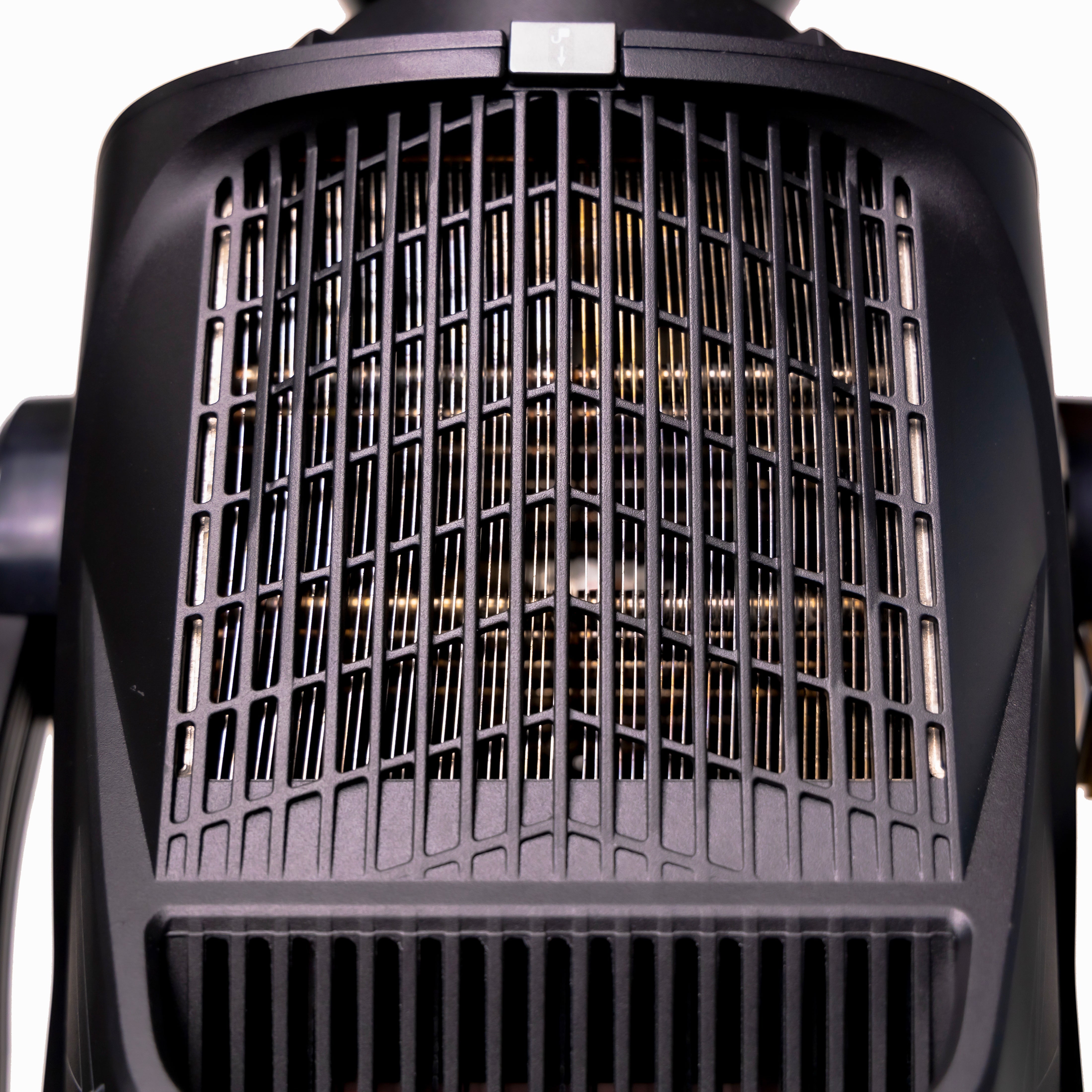

Cooling Method |
Active Cooling |
|
|
|
|
Head Cable |
LS 1200 Series 7-Pin Weatherproof Head Cable (7.5m) |
||||
Max Head Cable Length |
7.5m |
|
|
|
|
Power Cable |
Neutrik® powerCON TRUE1 TOP AC Cable for LS 1200 Series (6m)* |
||||
Accessory Mount |
Bowens Mount |
|
|
|
|
Tilt Angle |
360° |
|
|
|
|
Mounting |
28mm / 1.125in (Junior Pin) |
|
|
||
Carrying Case |
Telescoping Handle, Wheels |
|
|
||
Estimated LED Lifetime (L70) |
50,000H |
|
|
|
|
Est. Color Shift Over Lifetime (CCT) |
2% (6,000H) |
|
|
|
|
Est. Max Flicker-Free FPS |
2,000 FPS |
|
|
|
|
Certifications |
CE, FCC, ROHS, KC, NCC, PSE, BIS |
|
|
||
Control Methods |
|
|
|
|
|
Control Methods |
On-board, Sidus Link App, DMX512, Art-net & sACN via etherCON, LumenRadio CRMX |
||||
Wireless Operating Range (Bluetooth) |
≤80m |
|
|
|
|
Wireless Operating Range (LumenRadio) |
≤100m |
|
|
|
|
Weight |
|
|
|
|
|
Lamp Head w/o Yoke |
7.57kg / 16.69lbs |
|
|
|
|
Lamp Head w/ Yoke |
8.95kg / 19.73lbs |
|
|
|
|
Control Box |
5.80kg / 12.79lbs |
|
|
|
|
Lightning Clamp |
670g / 1.48lbs |
|
|
|
|
Reflector Case (Filled) |
4.15kg / 9.15lbs |
|
|
|
|
Rolling Case (Filled) |
27.25kg / 60.07lbs |
|
|
|
|
Dimensions |
|
|
|
|
|
Lamp Head w/o Yoke |
33.23 x 23.16 x 21.63cm / 13.08 x 9.11 x 8.51in |
|
|||
Lamp Head w/ Yoke |
33.23 x 33.12 x 54.35cm / 13.08 x 13.03 x 21.40in |
|
|||
Control Box |
19.99 x 16.10 x 33.60cm / 7.87 x 6.33 x 13.22in |
|
|||
Lightning Clamp |
10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in |
|
|||
Reflector Case |
41 x 40 x 40cm / 16.14 x 15.75 x 15.75in |
|
|||
Rolling Case |
67 x 48 x 48cm / 26.38 x 18.9 x 18.9in |
|
|

(
Sale price£2,159.00ex. VAT)

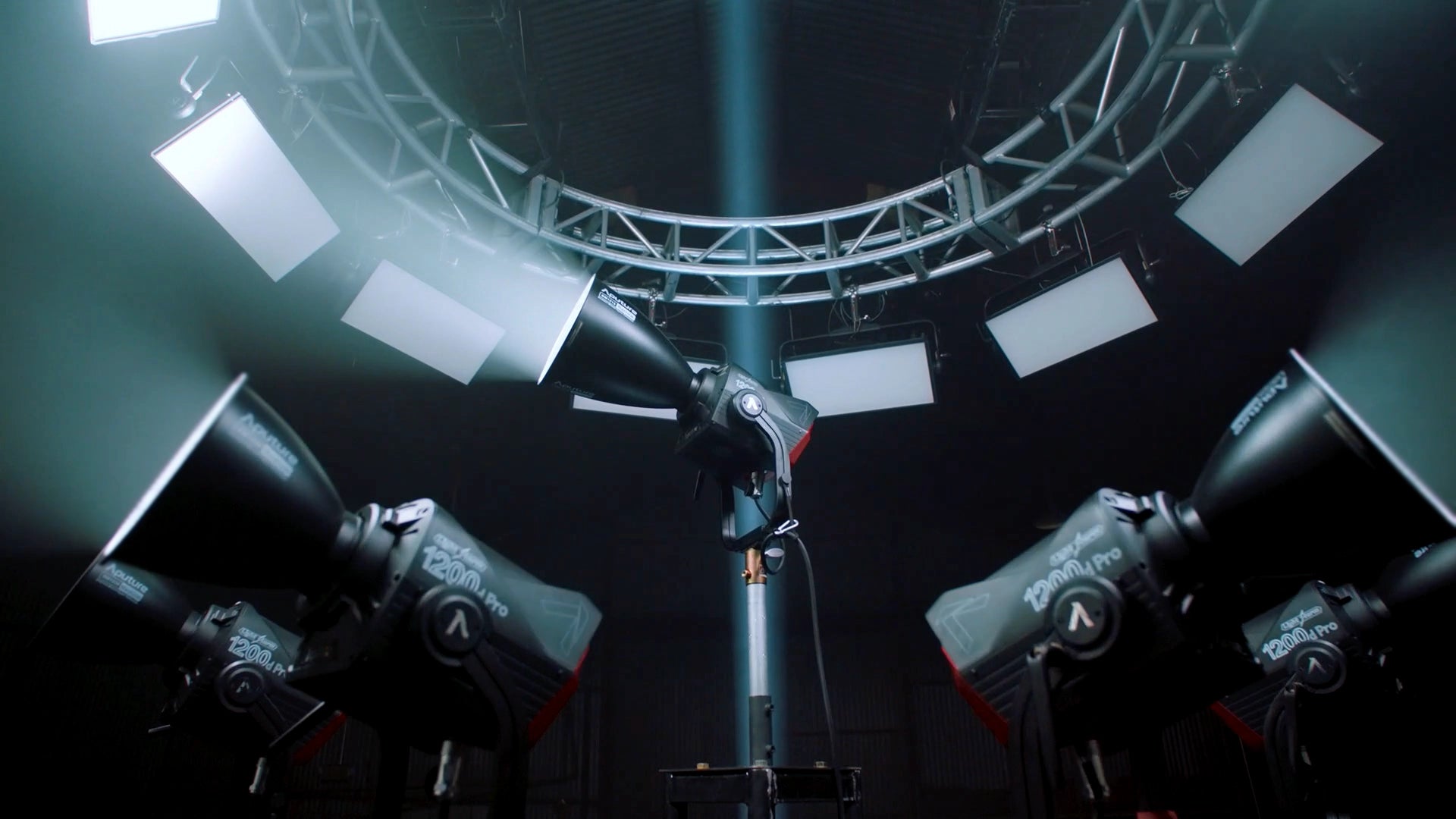

There's a Storm Coming
