Aputure CF12 Fresnel

Designed for the STORM 1000c and 1200x

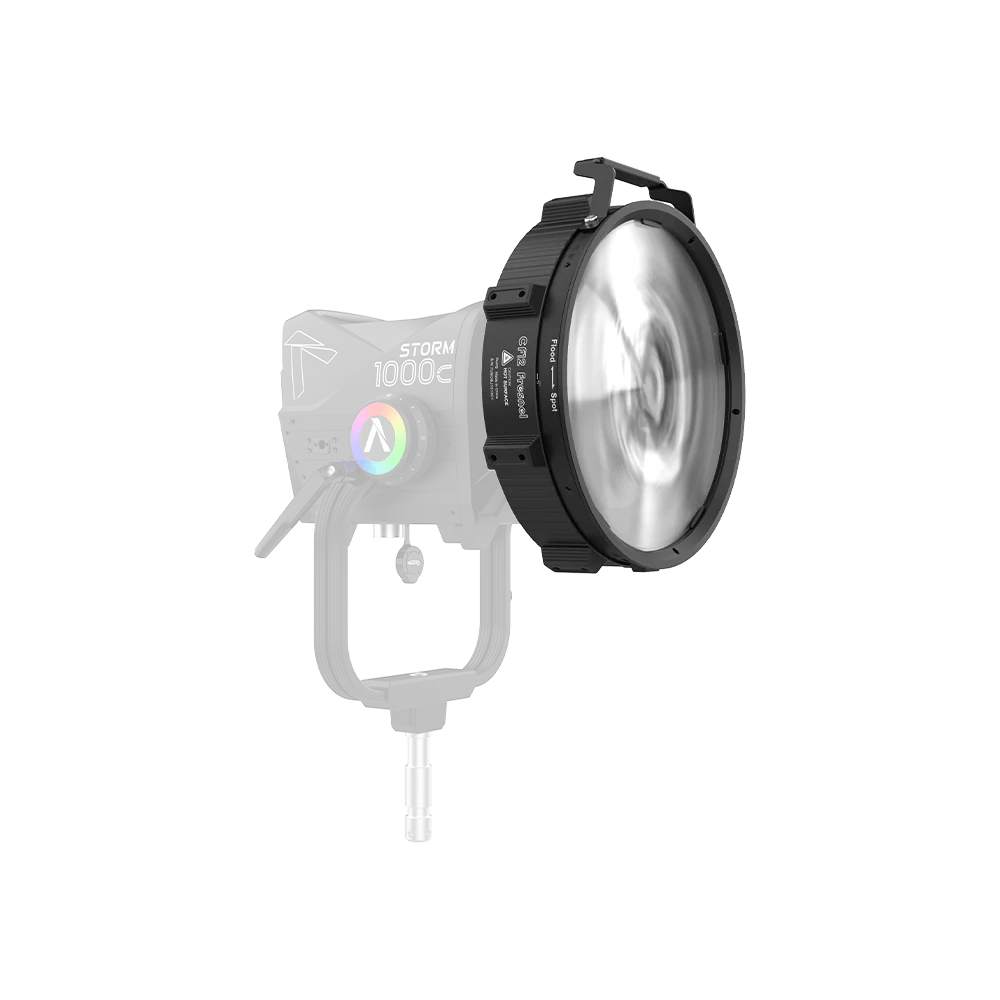

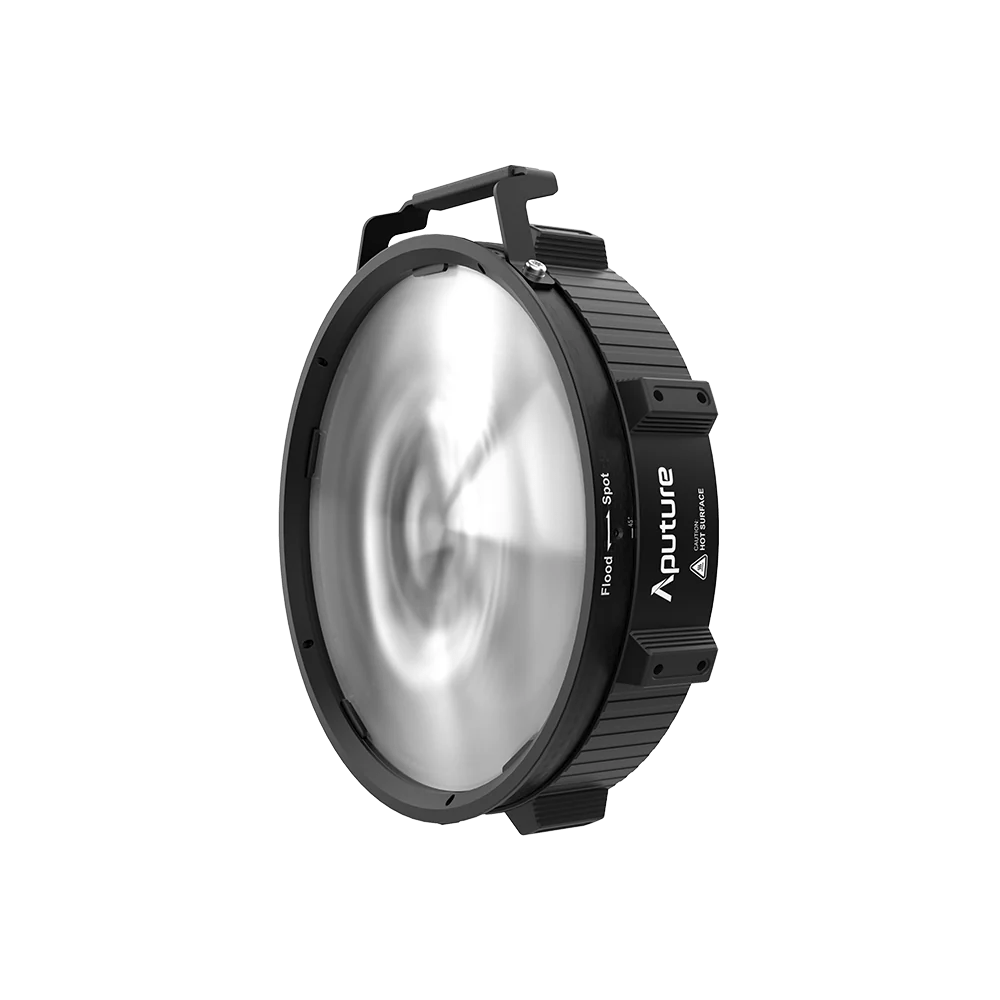

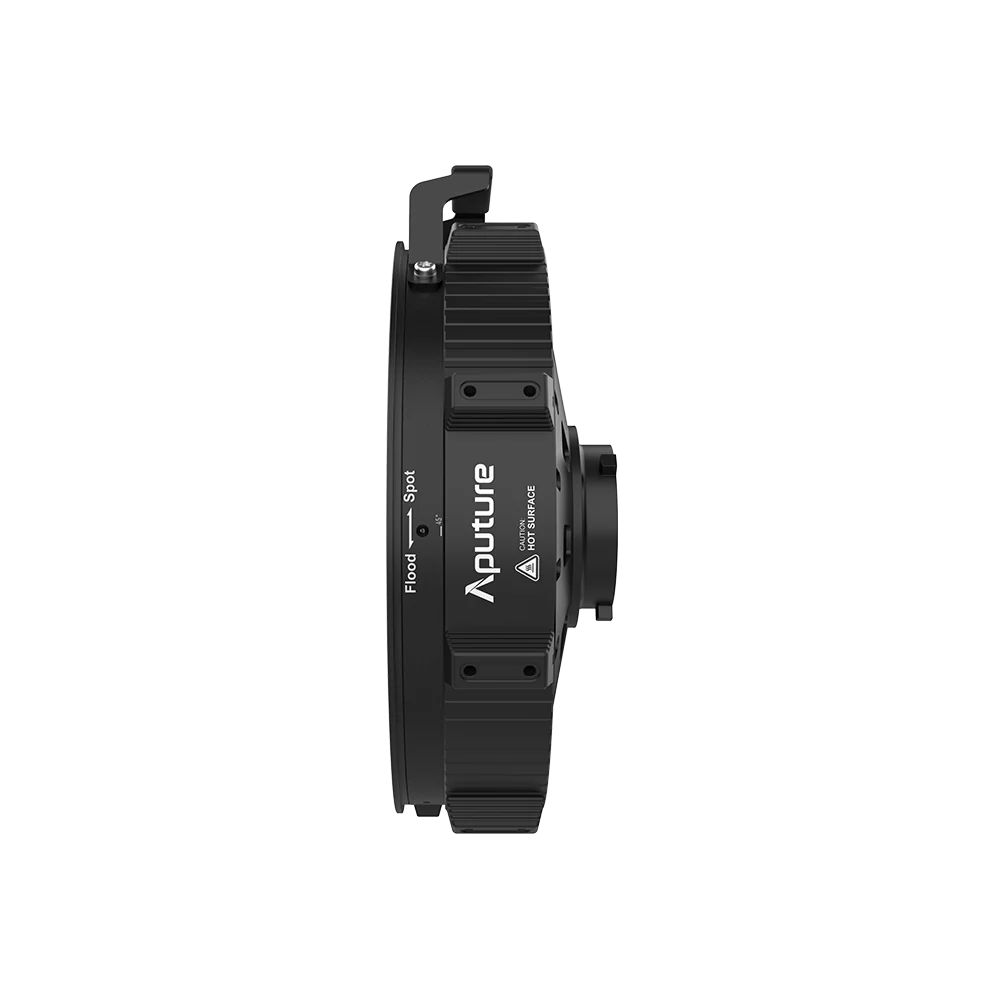

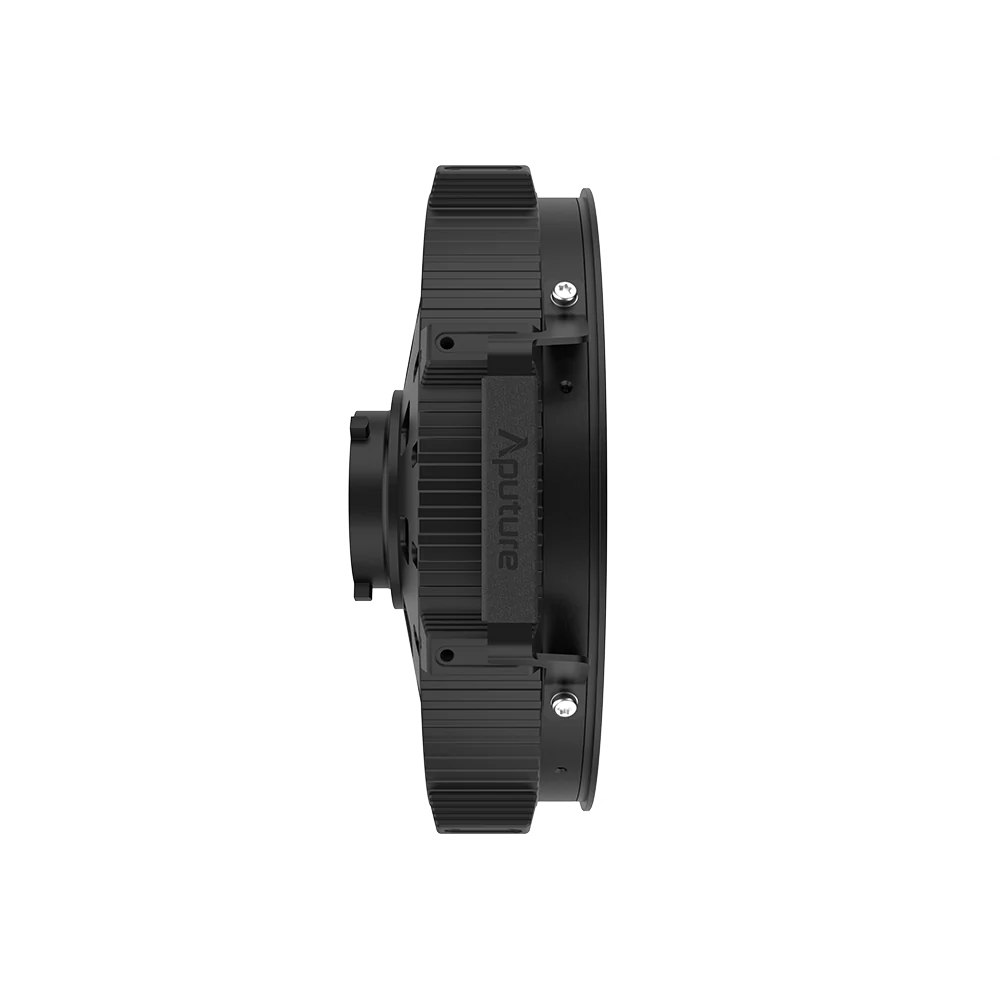

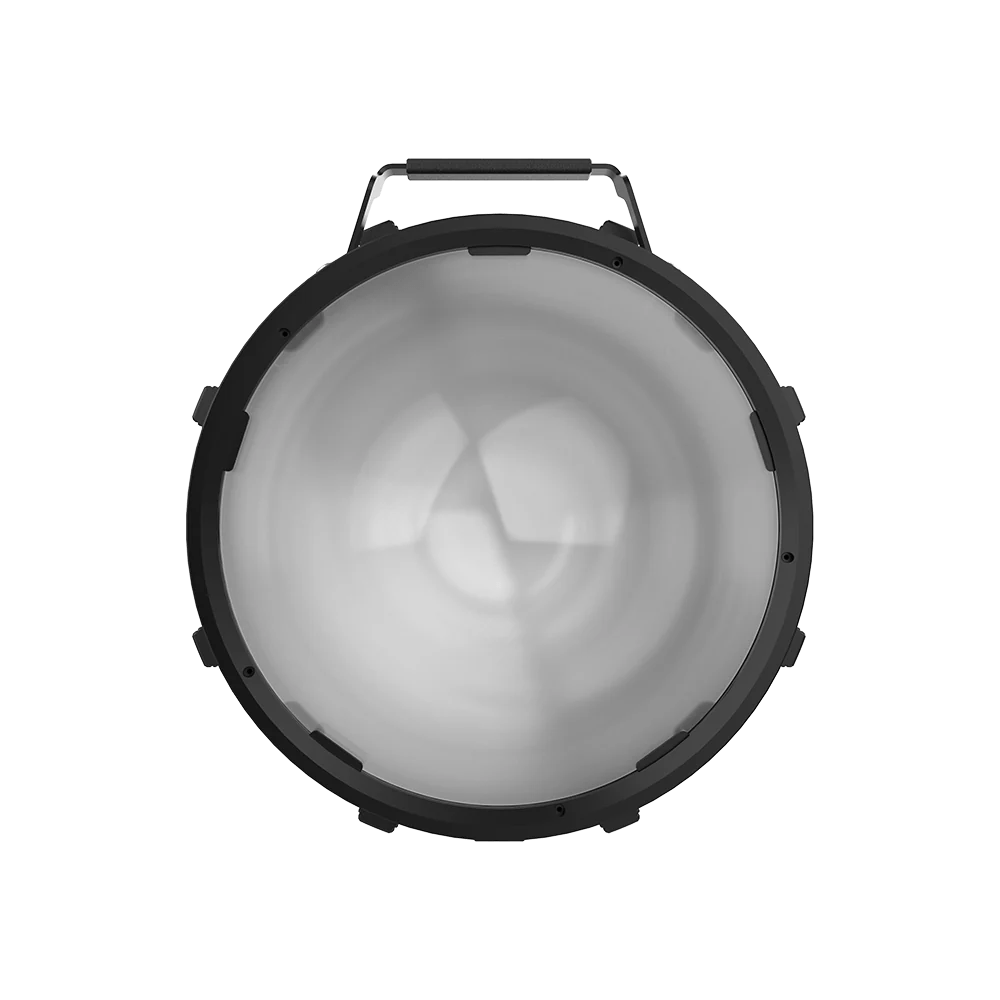

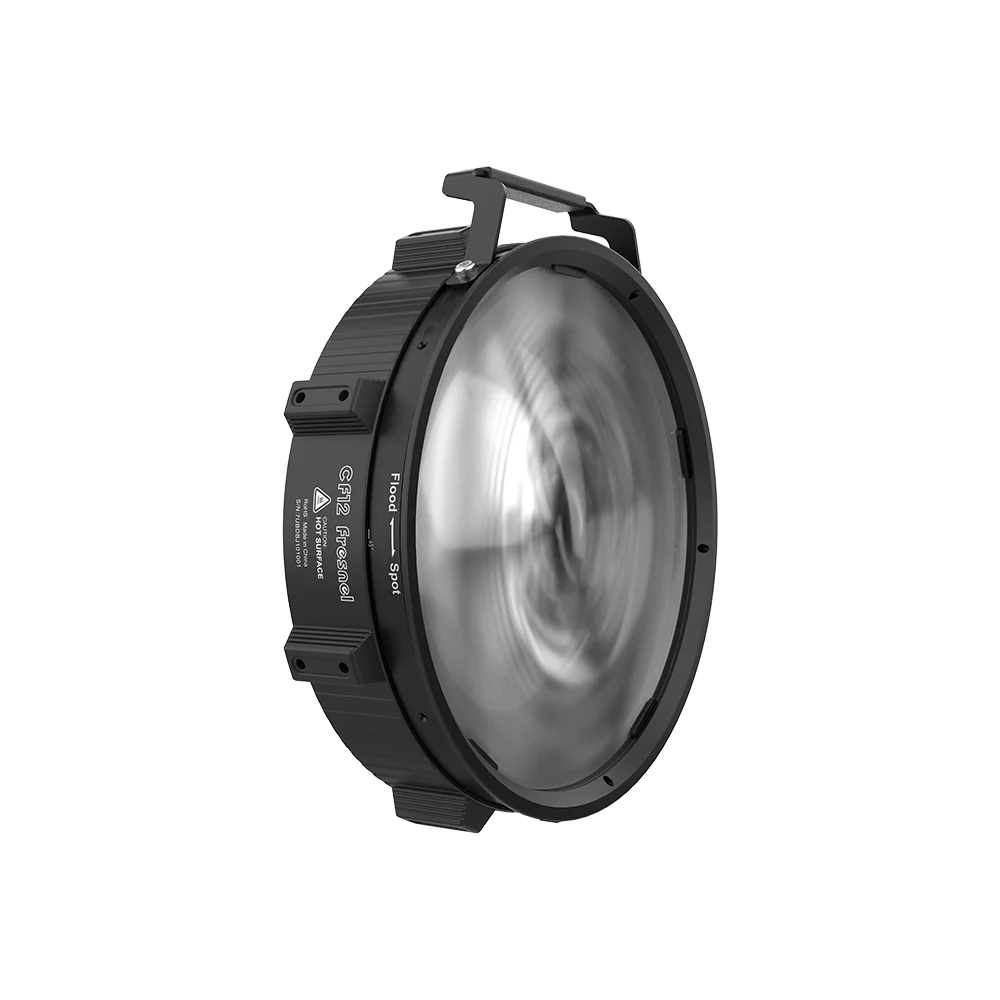

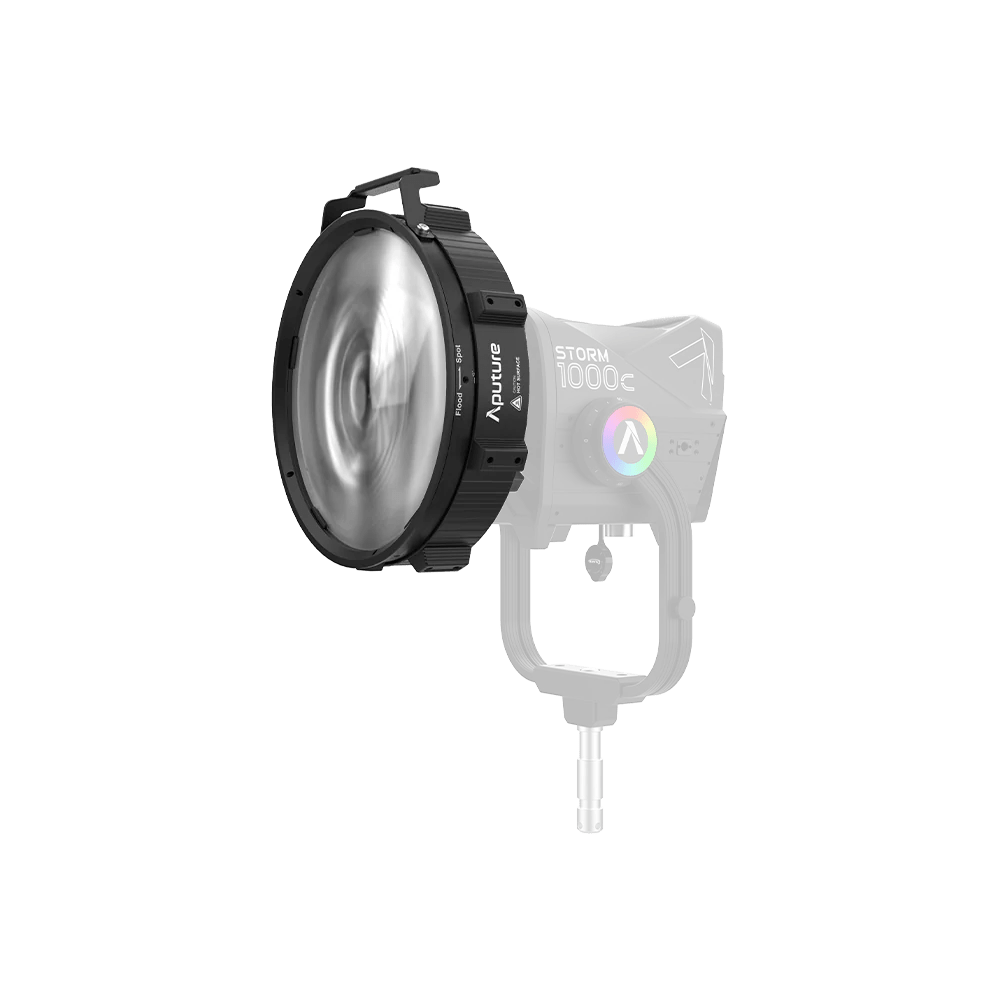

The CF12 is a Compact 12 inch diameter fresnel with integrated Bowens S-Mount, and designed specifically for the STORM 1000c and 1200x.

Buying the CF12 Fresnel? You may need to consider the Skid Base.

Brighter by Design

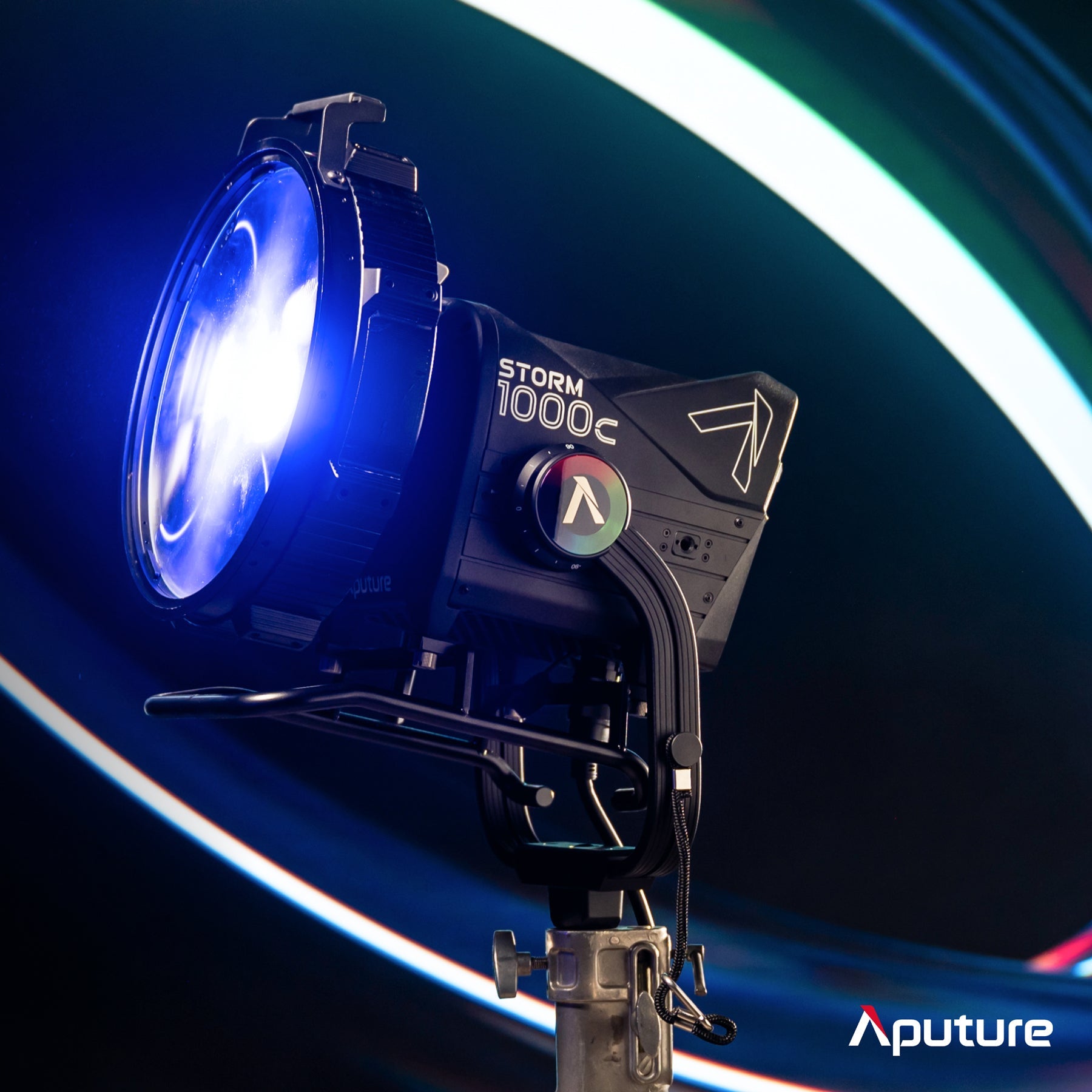

The CF12 Fresnel intensifies the STORM 1000c output by up to 9 times (5600K, full intensity at 1 meter equals 58,500 lux) and the STORM 1200x output by up to 9.9 times (5600K, full intensity at 1 meter equals 84,400 lux).

Need the Aputure CF12 Barn Doors for this? Find them here.

The optics provide an even output at all beam angles, with a smooth center-to-edge falloff.

Wide Beam Range, Compact Design

The new Aputure CF12 Fresnel offers a beam range of 15º to 45º while maintaining a compact profile. It uses a dual-expanding focusing system with multiple lens elements to drastically reduce its size and weight without compromising optical performance.

Its compact design is perfect for small, well-balanced setups on the STORM 1000c and STORM 1200x. The CF12 Fresnel is also compatible with the LS 1200d Pro, LS 600c Pro, and LS 600c Pro II.

What’s in the Box

• x1 - CF12 Fresnel
• x1 - Carrying Case

Specifications

Beam Angle

• Full Spot -15°
• Full Flood - 45°

Dimensions

• CF12 Fresnel - 38.3 x 37.0 x 12.8cm (15.1 x 14.6 x 5.0in)
• Carrying Case - 49.0 x 22.0 x 45.0cm (19.3 x 8.7 x 17.7in)


Weight

• CF12 Fresnel 4.72kg / 10.41lbs
• Carrying Case - 2.65kg / 5.84lbs
