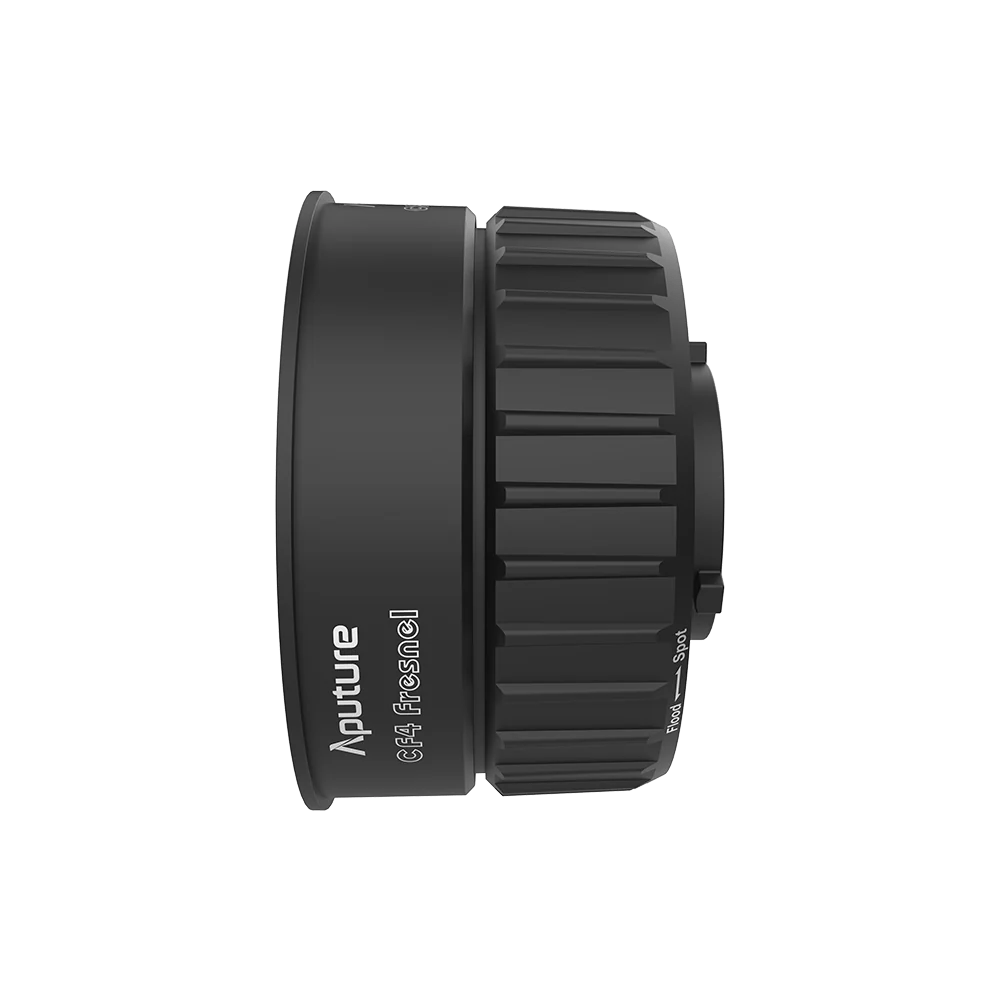

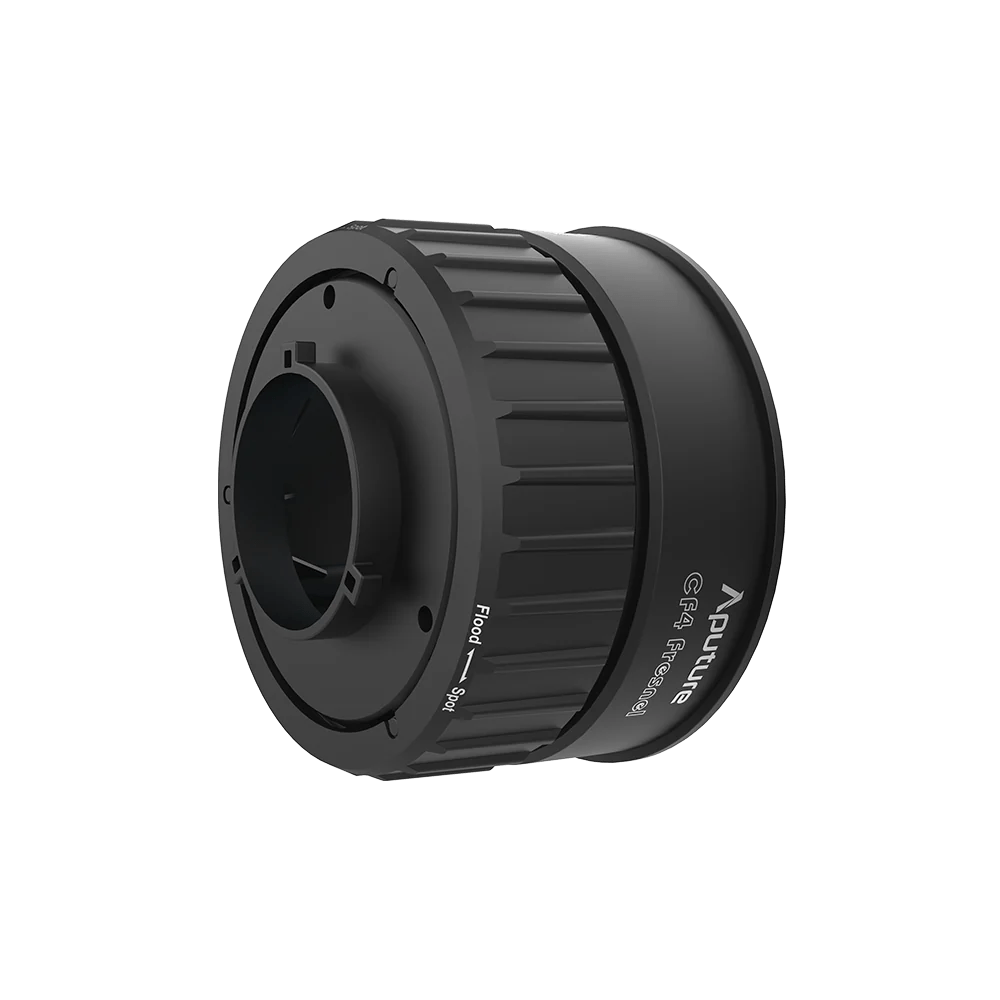

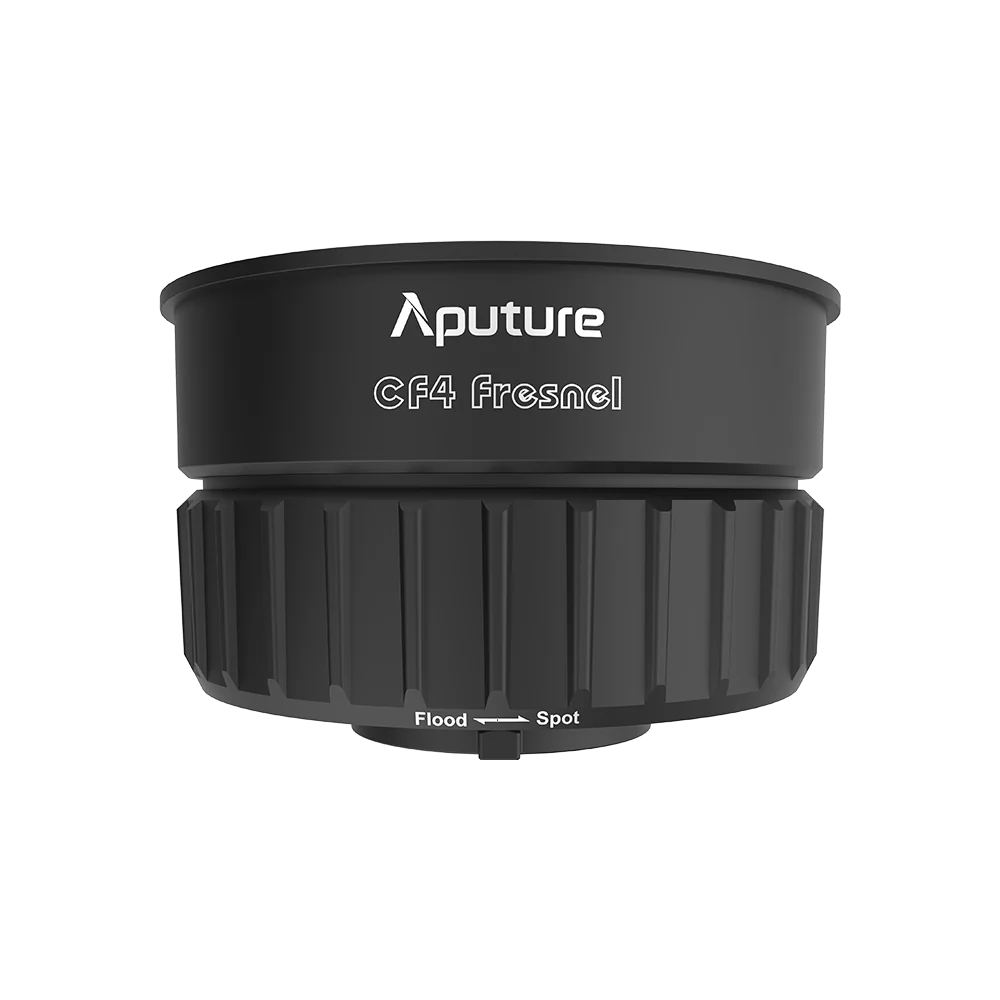

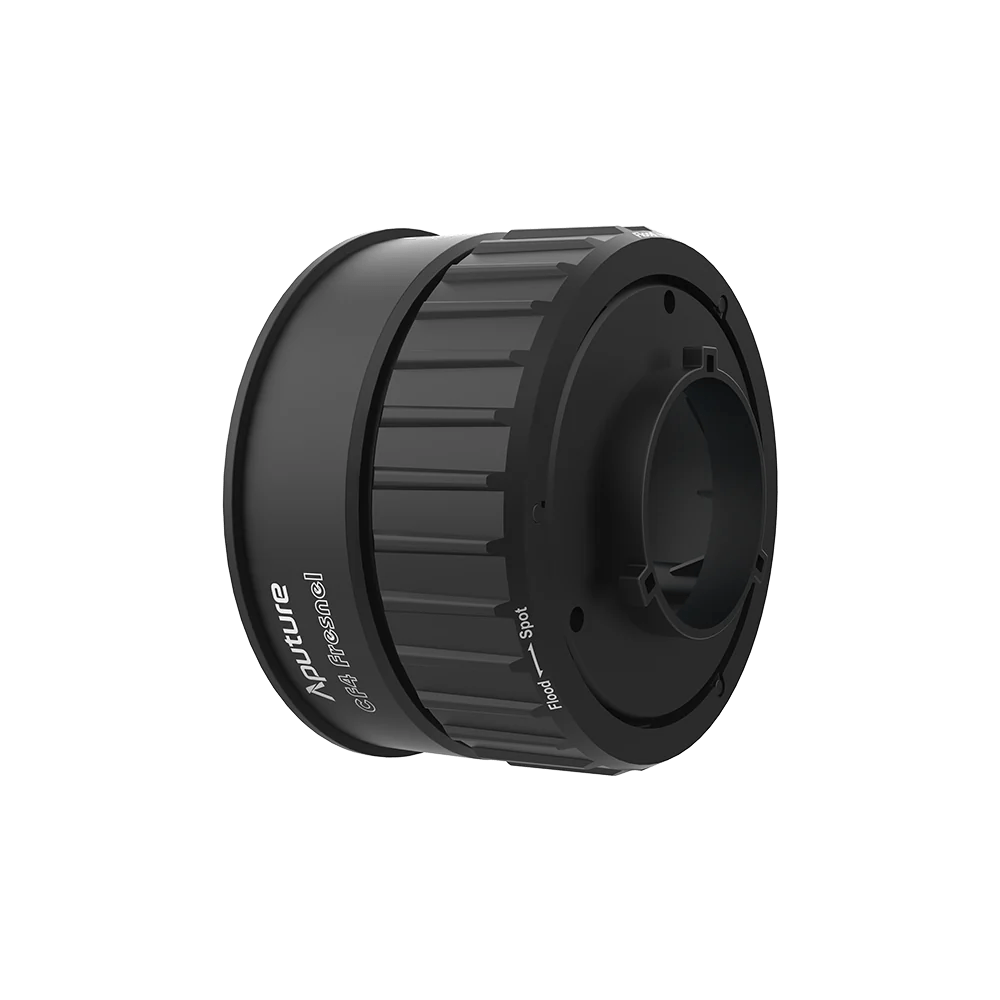

Aputure CF4 Fresnel (Mini ProLock)

Designed for the Mini ProLock mount

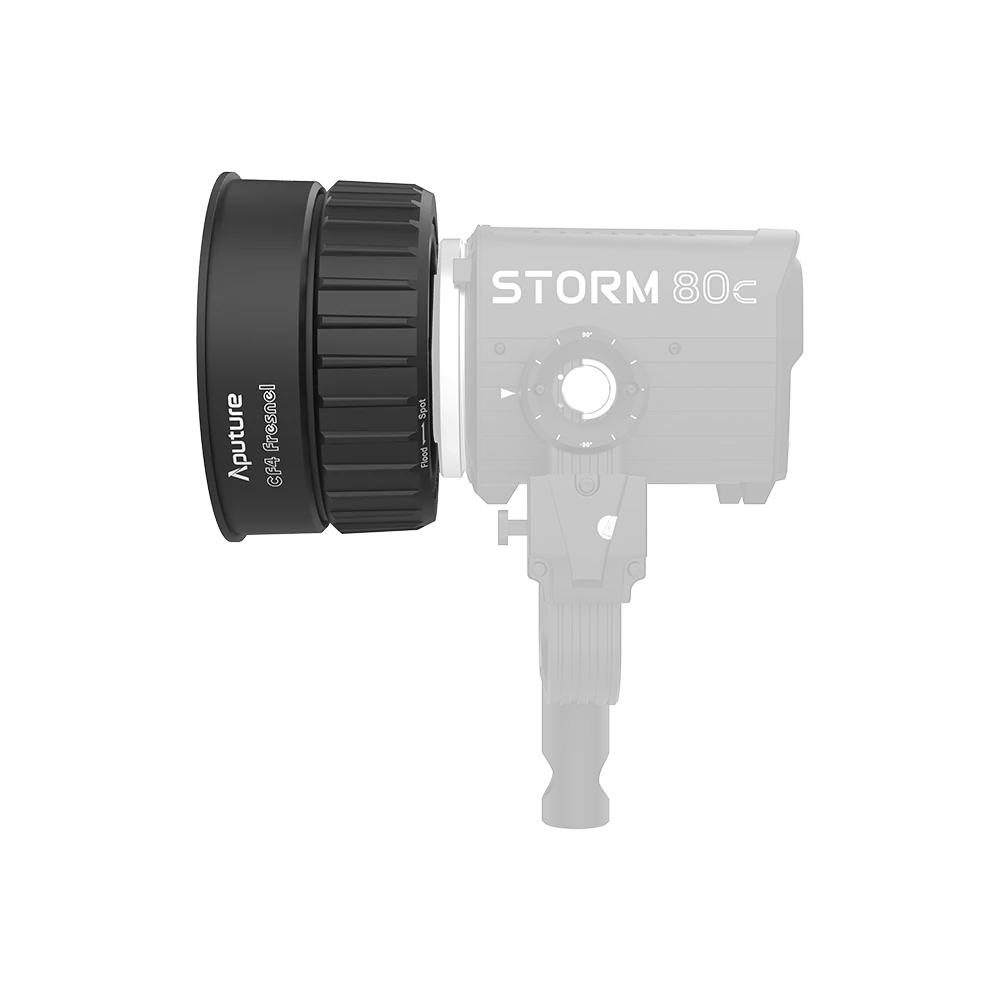

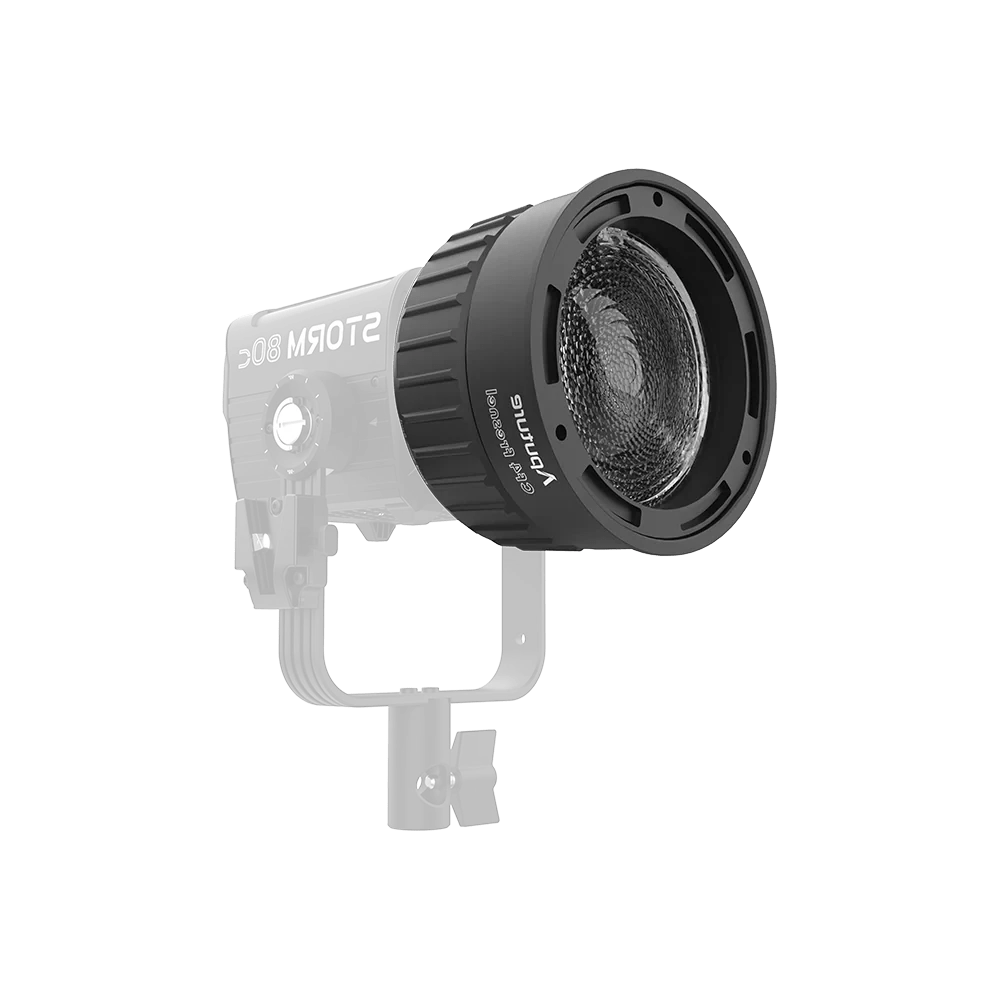

The CF4 is a Compact 4 inch diameter fresnel with intergrated Mini-ProLock Mount, and designed specifically for the STORM 80c and fixtures with the Mini-ProLock.

Brighter by Design

The CF4 Fresnel intensifies the STORM 80c by up to 5.5 times (on STORM 80c at full intensity, 5600K at 1 meter distance equals 36,000 lux).

Need the Aputure CF4 Barn Doors for this? Find them here.

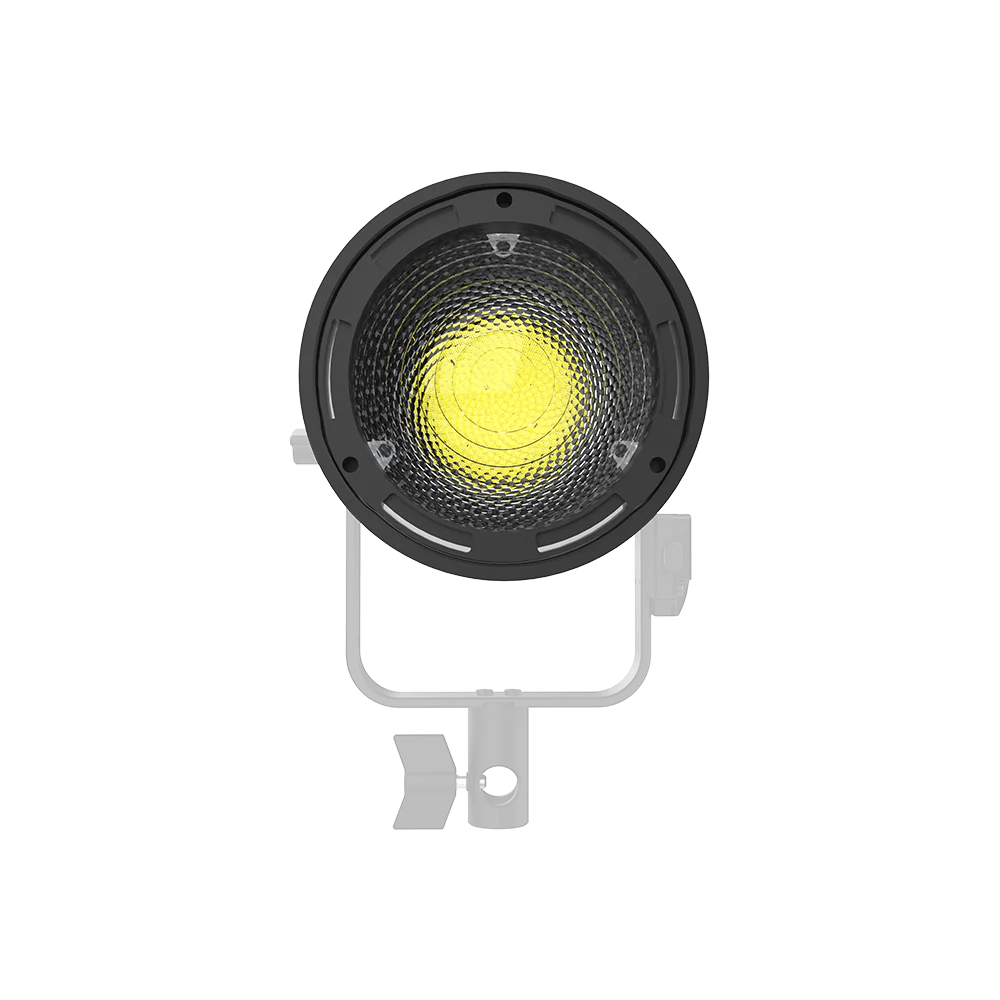

The optics provide an even output at all beam angles, with a smooth center-to-edge falloff.

Wide Beam Range, Compact Design

The new CF4 Fresnel offers a beam range of 15º to 40º while maintaining a compact profile. It uses a dual-expanding focusing system to drastically reduce its size and weight without compromising optical performance. Its compact design is perfect for small, well-balanced setups on the STORM 80c.

Its compact design is perfect for small, well-balanced setups on the STORM 80c.

What’s in the Box

• x1 - CF4 Fresnel
• x1 - Carrying Case

Specifications

Beam Angle -

• Full Spot -15°
• Full Flood - 40°

Dimensions

• CF4 Fresnel - Ф14.0 x 8.7cm (Ф5.5 x 3.4 in)
• Carrying Case - 24 × 15 × 25cm (9.44 × 5.9 × 9.84in)

Weight

• CF4 Fresnel 0.53kg / 1.17lbs
• Carrying Case - 0.22kg / 0.49lbs
