Aputure LS 600d (V mount) (UK version)

Aputure LS 600d (V mount) (UK version)

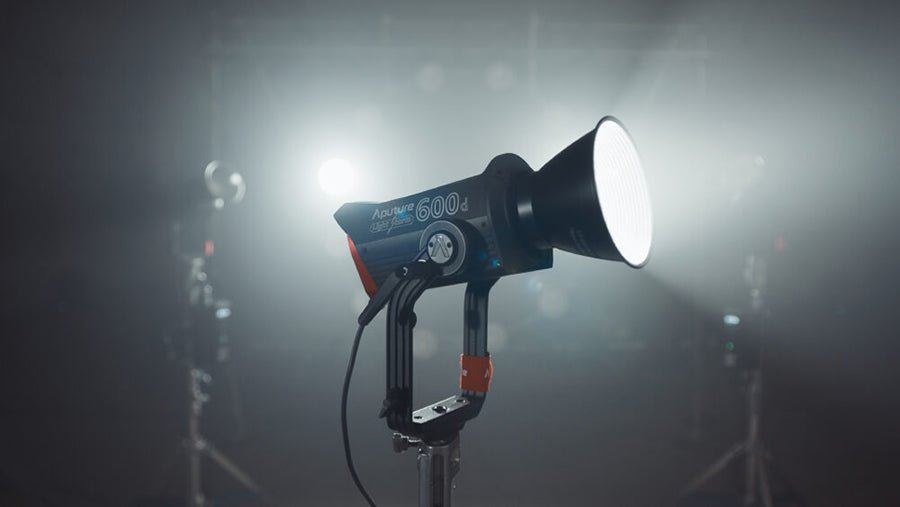

Powerful & Modifiable Daylight Fixture

The Light Storm 600D is ideal for any creator who needs a powerful & modifiable light fixture, including cinematographers, videographers, and photographers alike.

The LS 600d features the same power as the LS 600D Pro while streamlining the control box and feature set for users who don’t require professional-level LumenRadio CRMX, Art-net compatibility, extreme weather-resistance, and battery charging functionality.

For photographers and video creators who require convenient access to intense output with the support of the Aputure and Sidus Link ecosystems, the LS 600D is an excellent tool. Integrating the LS 600D into onset workflows with Sidus Link and DMX512 control gives creators a powerful fixture that seamlessly integrates into their existing ecosystems with smooth dimming control and without colour shift or the need to use scrims to decrease output.

The Light Storm product line centres around Bowens Mount compatibility, making it incredibly easy for users to quickly change the look of a scene by simply swapping modifiers. This makes the LS 600D perfect for both users who work in studios and on-location because they can start with a foundation of one light and quickly change between hard and soft qualities.

The LS 600D easily fits into any existing LED lighting package and does not require constant bulb changes and maintenance like HMI or Tungsten lamps, making it an easy plug-and-play solution for users who need simple and intuitive controls with solid output.

In the box

• 1 x LS 600d Rolling Case

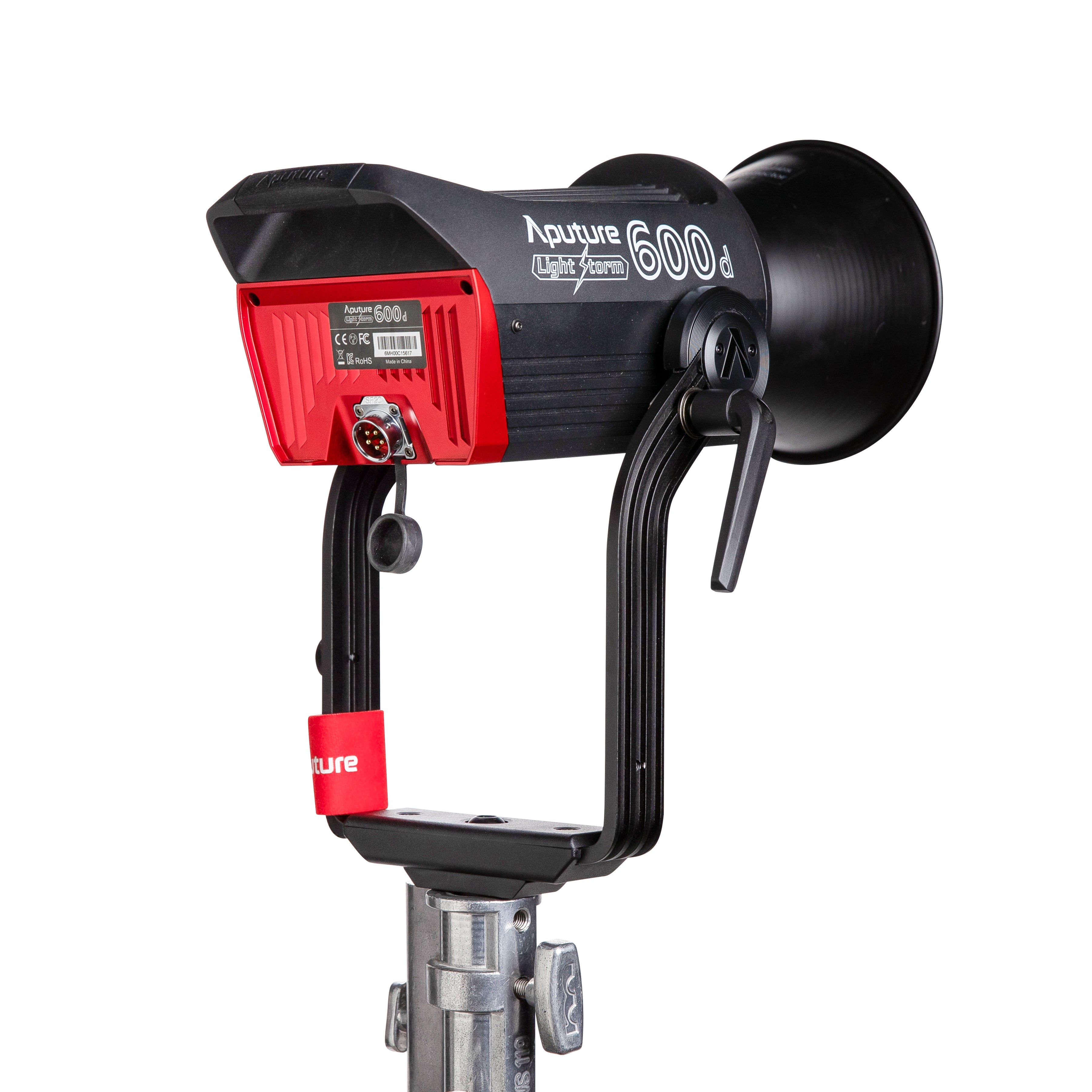

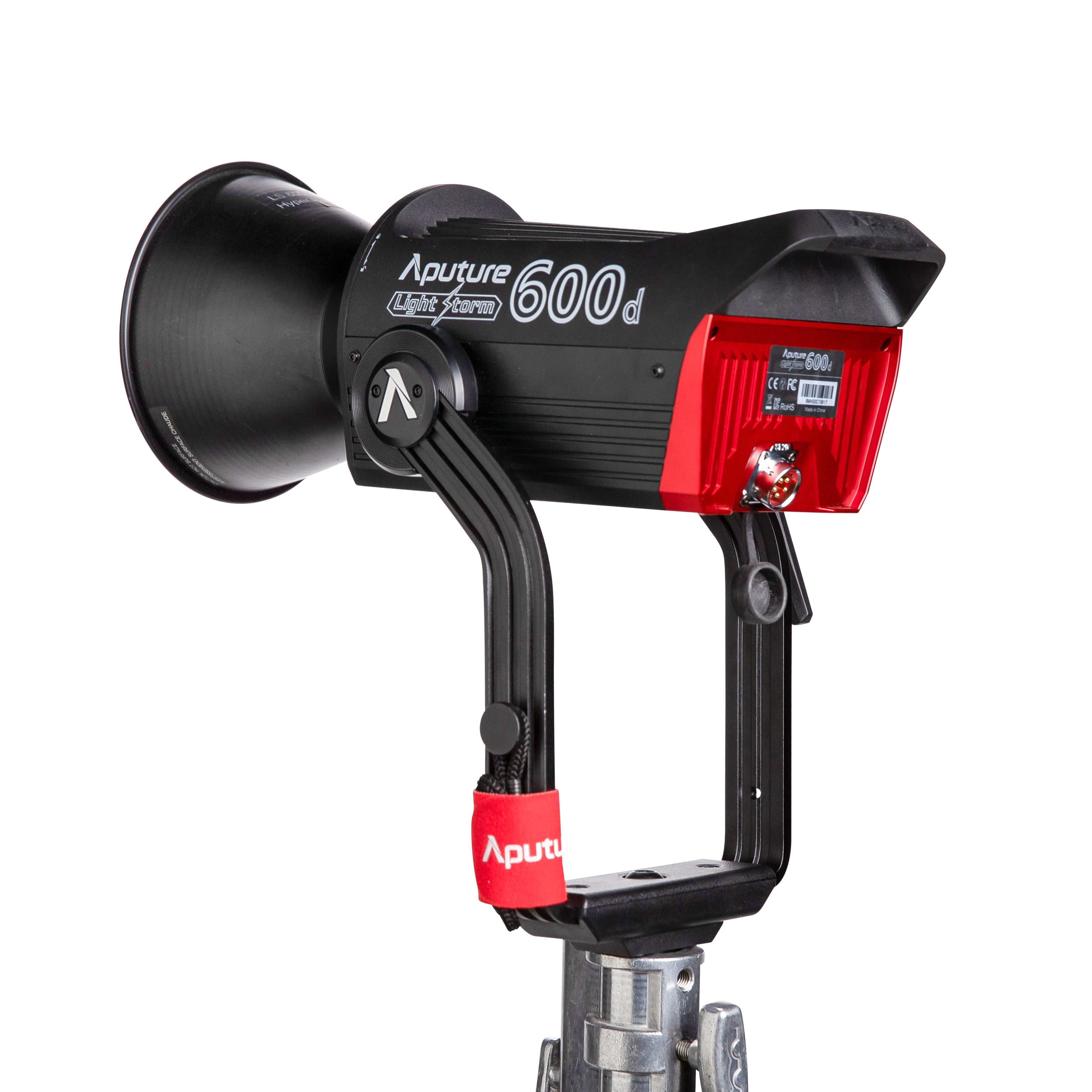

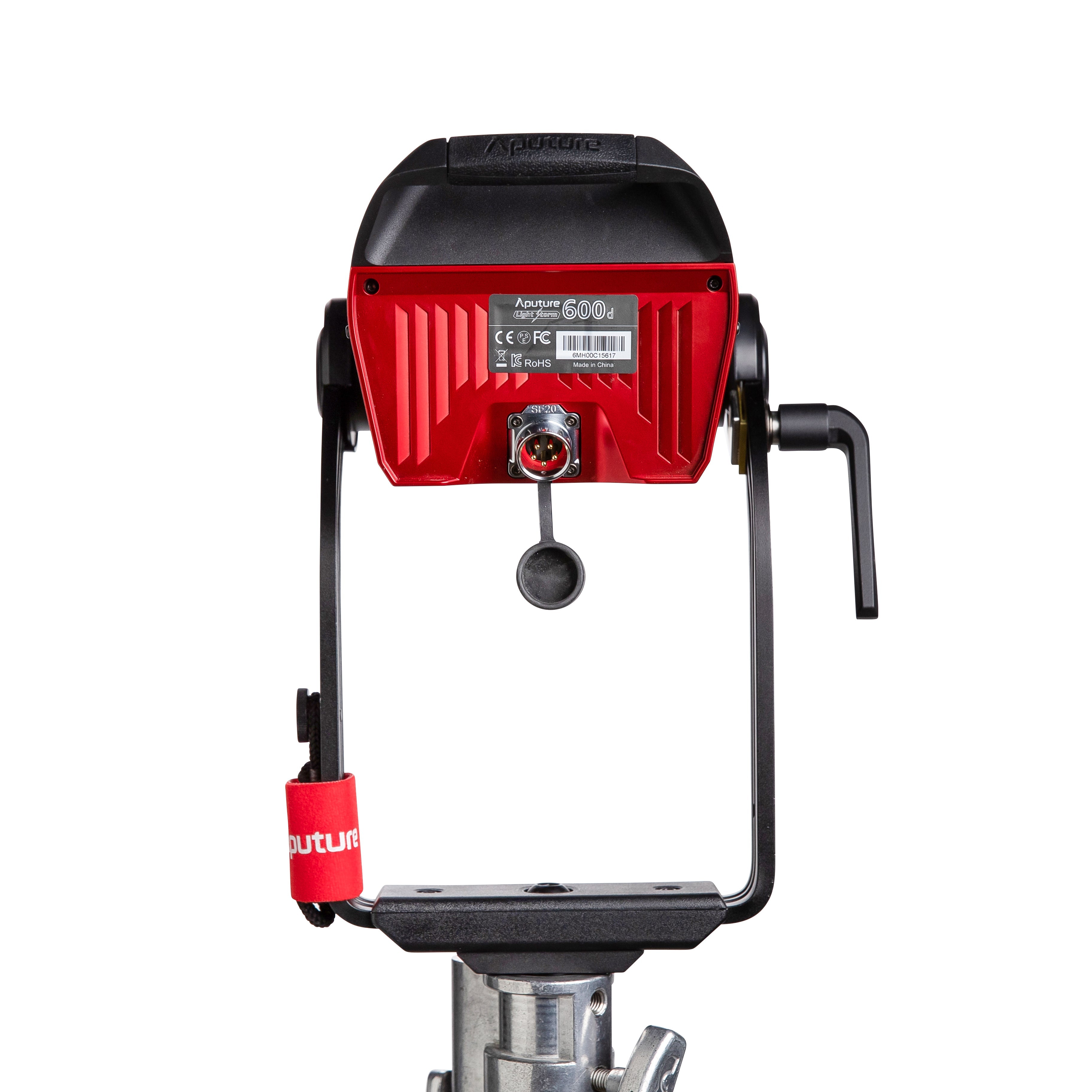

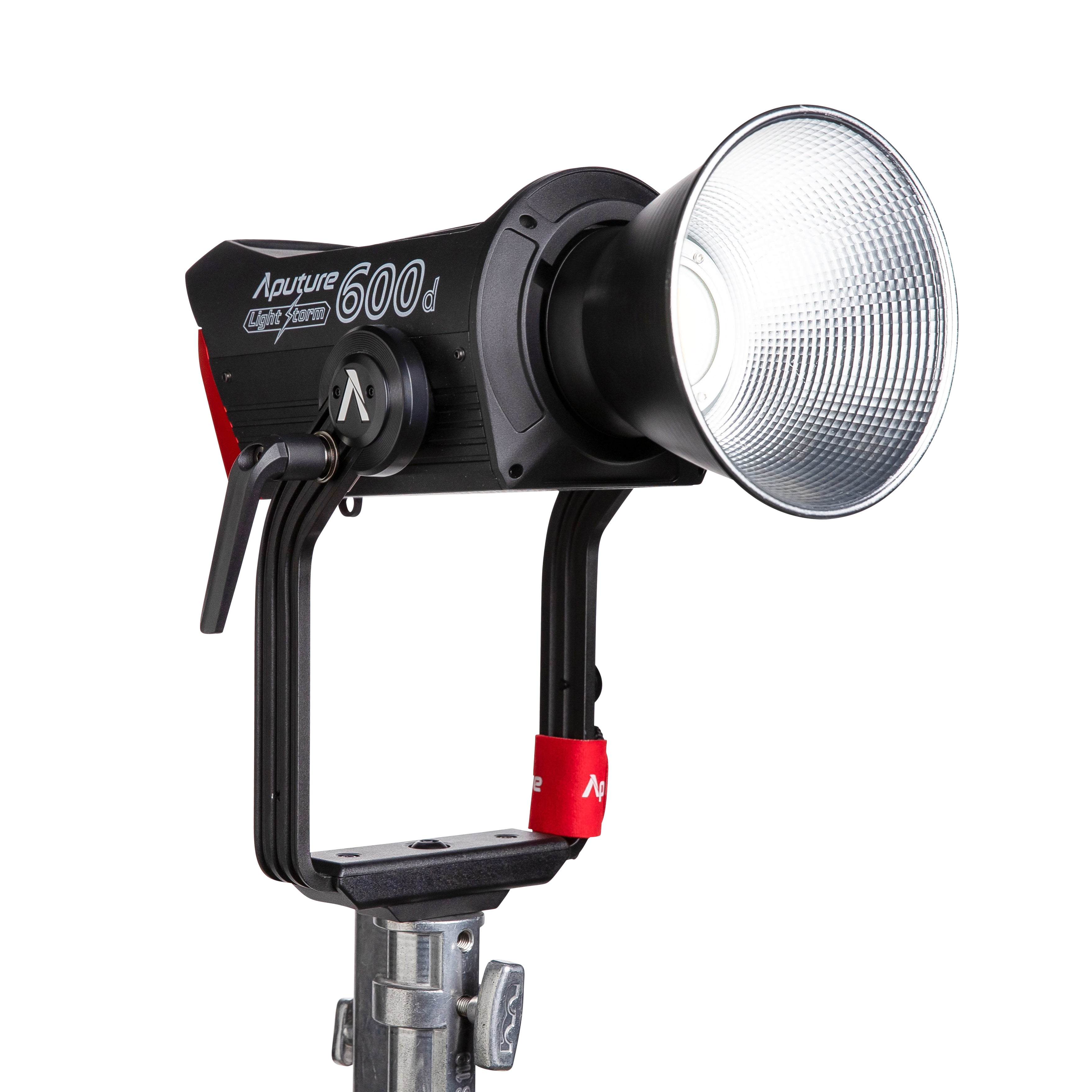

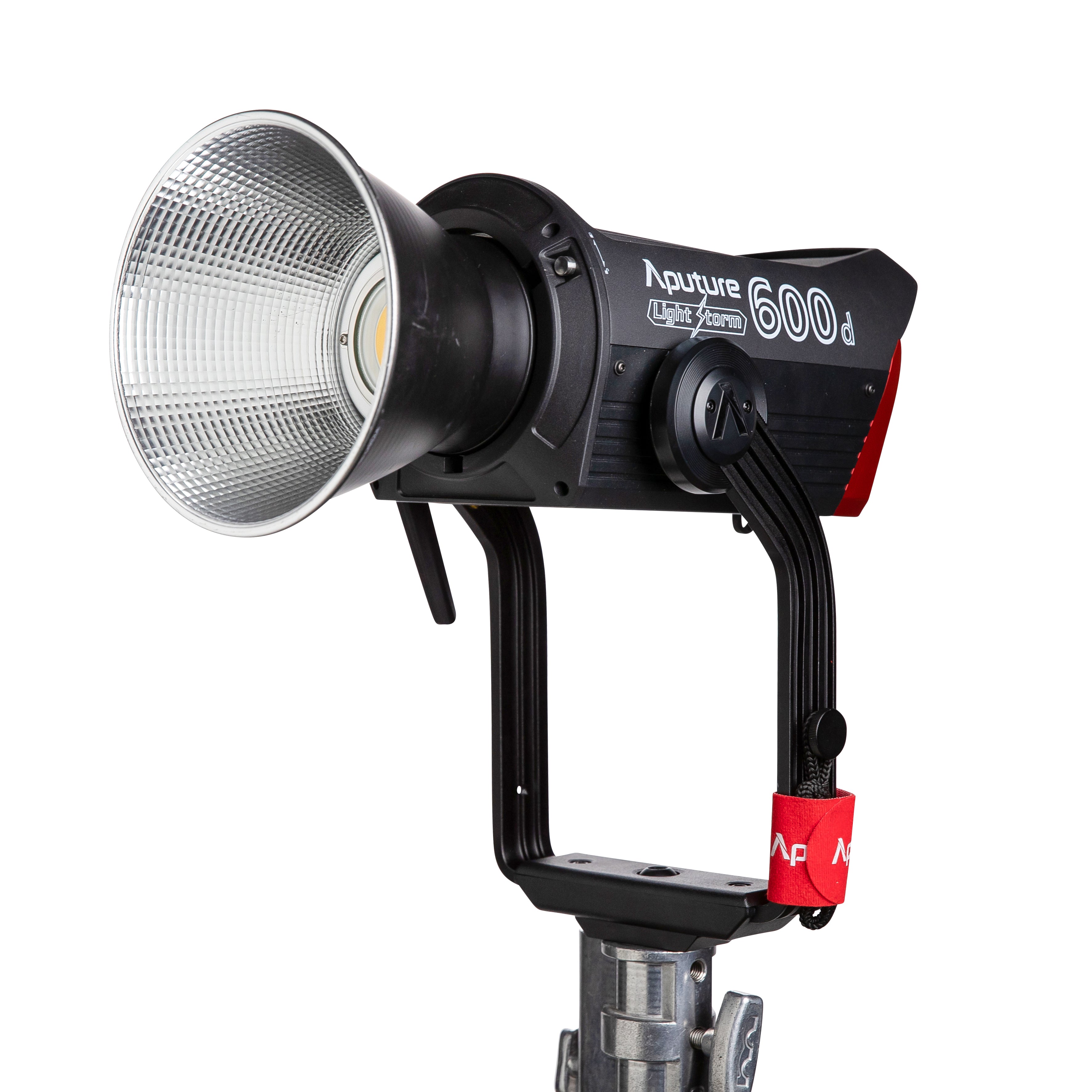

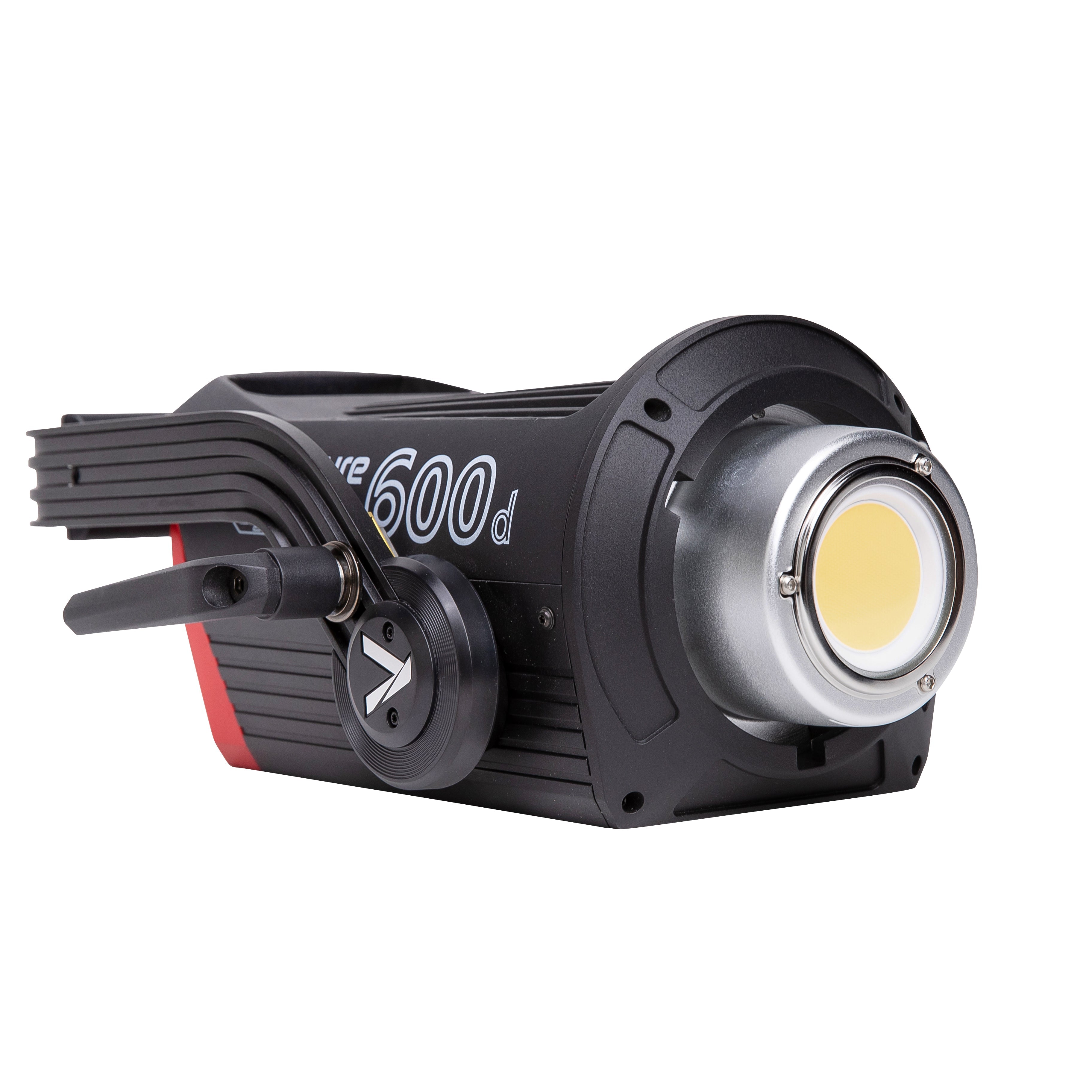

• 1 x LS 600d Lamp Head

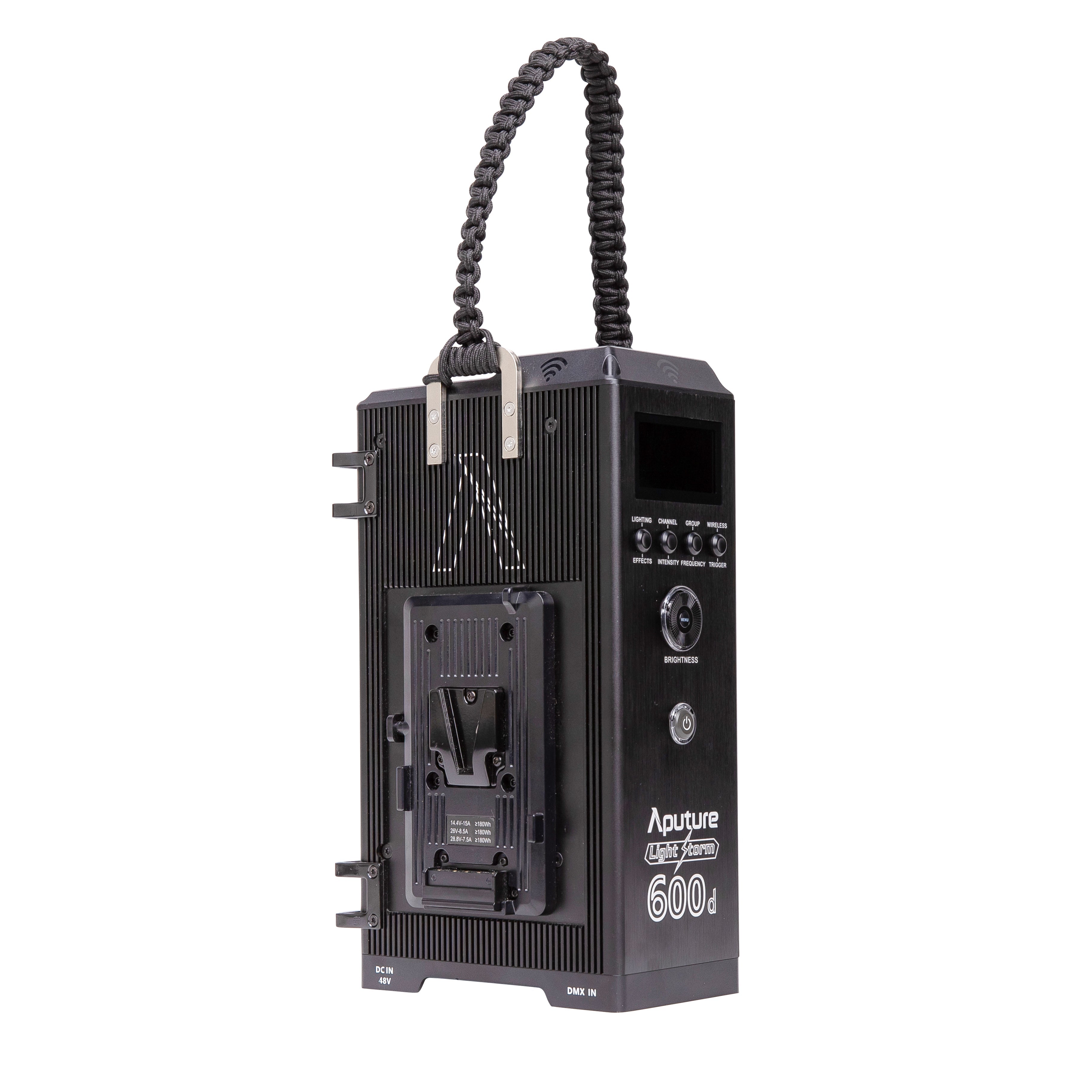

• 1 x LS 600d Control Box

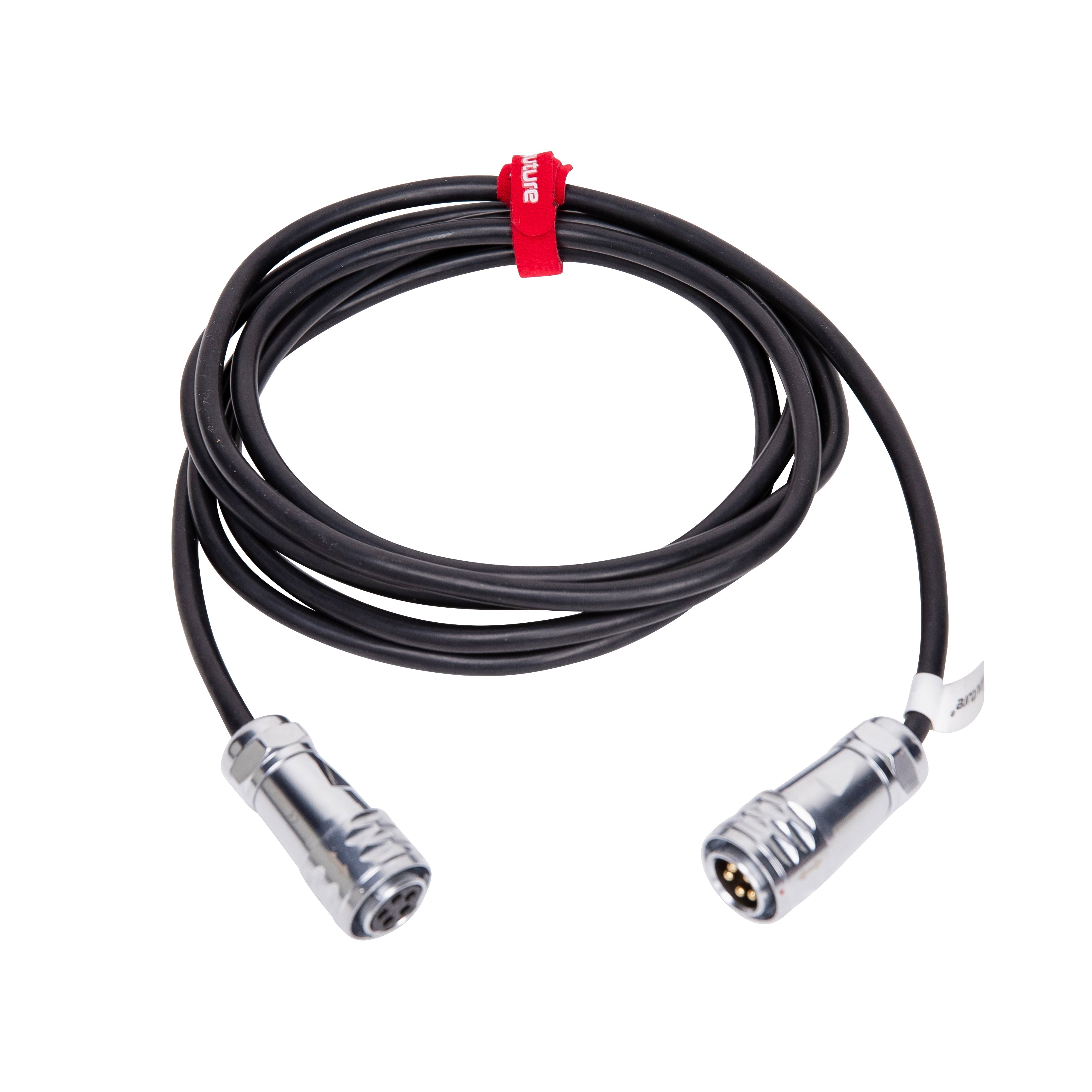

• 1 x LS 600 Series 5-Pin Weatherproof Head Cable (3m)
• 1 x Neutrik powerCON TRUE1 TOP AC Power Cable (6m)
• 1 x Lightning Clamp
• 1 x LS 600d Rolling Case

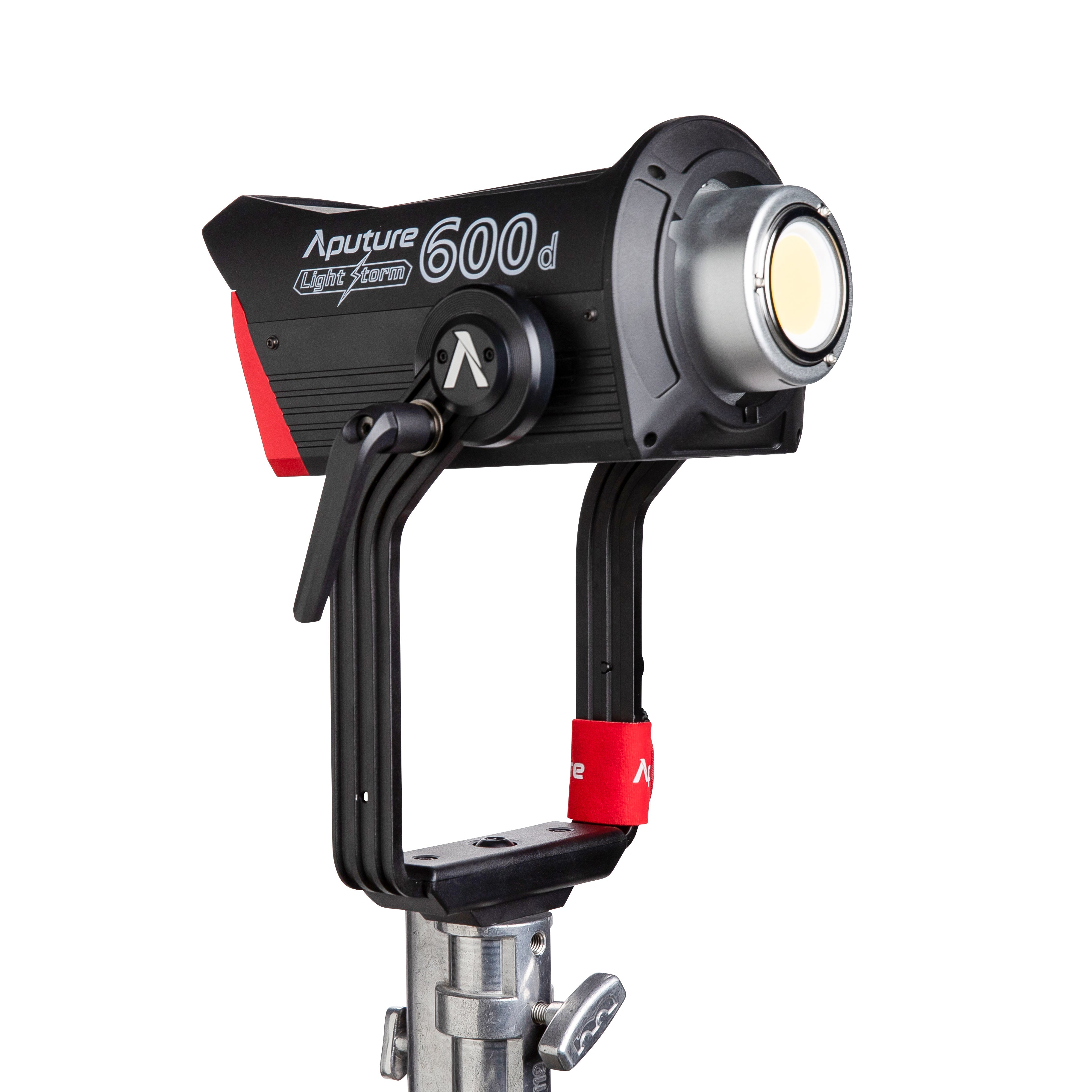

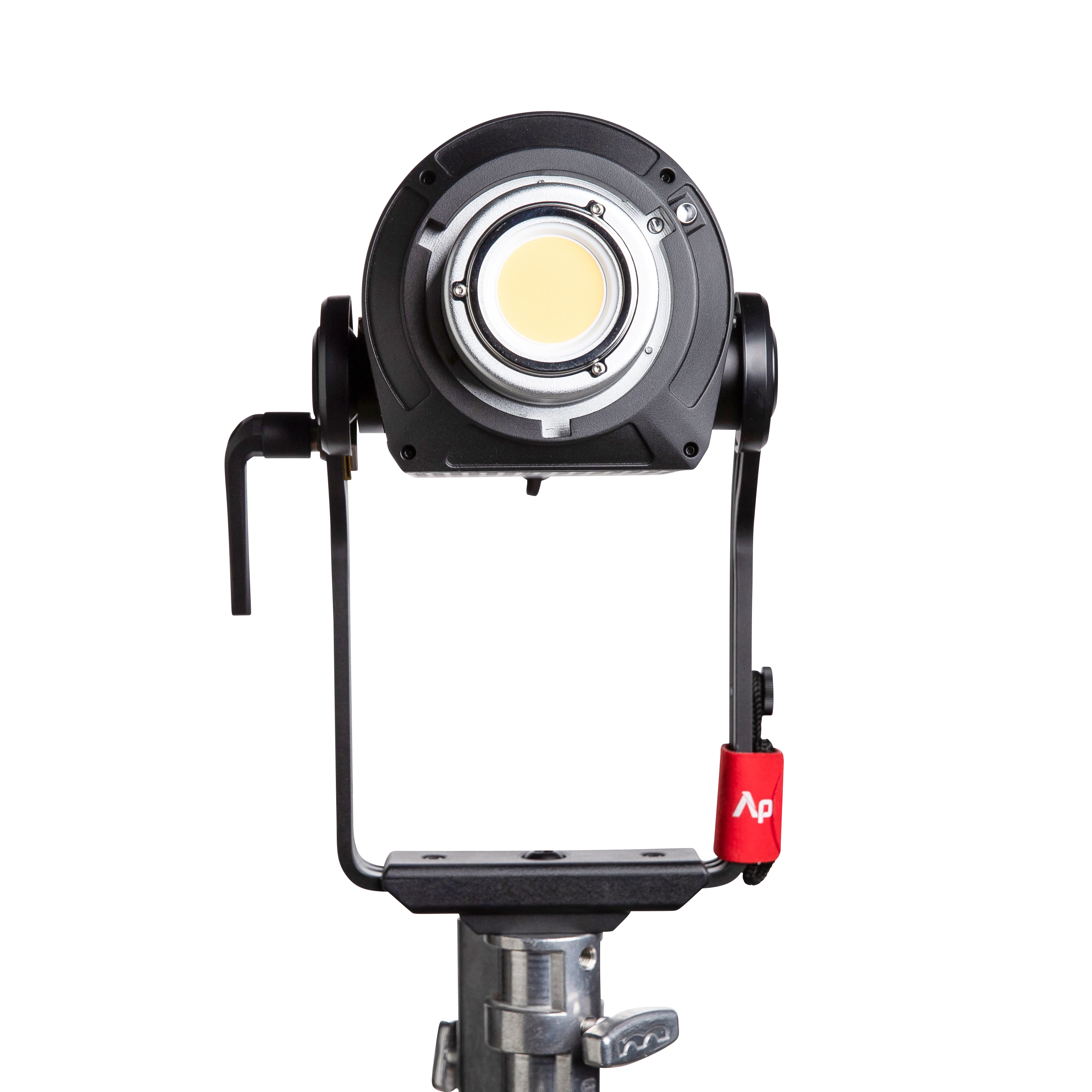

BOWENS MOUNT

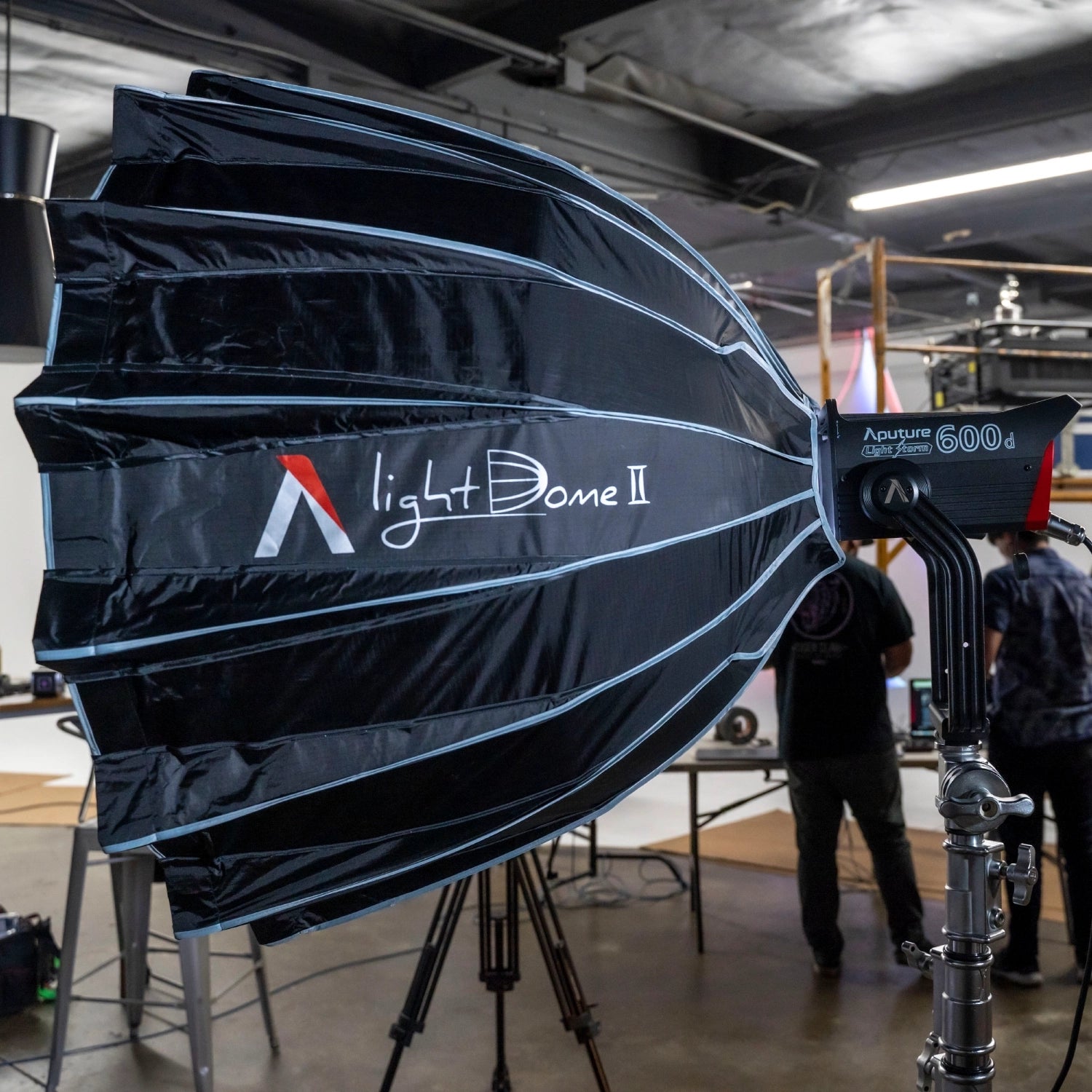

Continuing Aputure’s philosophy of modular lighting control, the LS 600x Pro’s Bowens Mount makes it compatible with Aputure’s lighting modifiers like the F10 Fresnel, Light Dome II, Spotlight Mount, and Lantern 90, but also third-party accessories from companies like DoPchoice and Chimera Lighting.

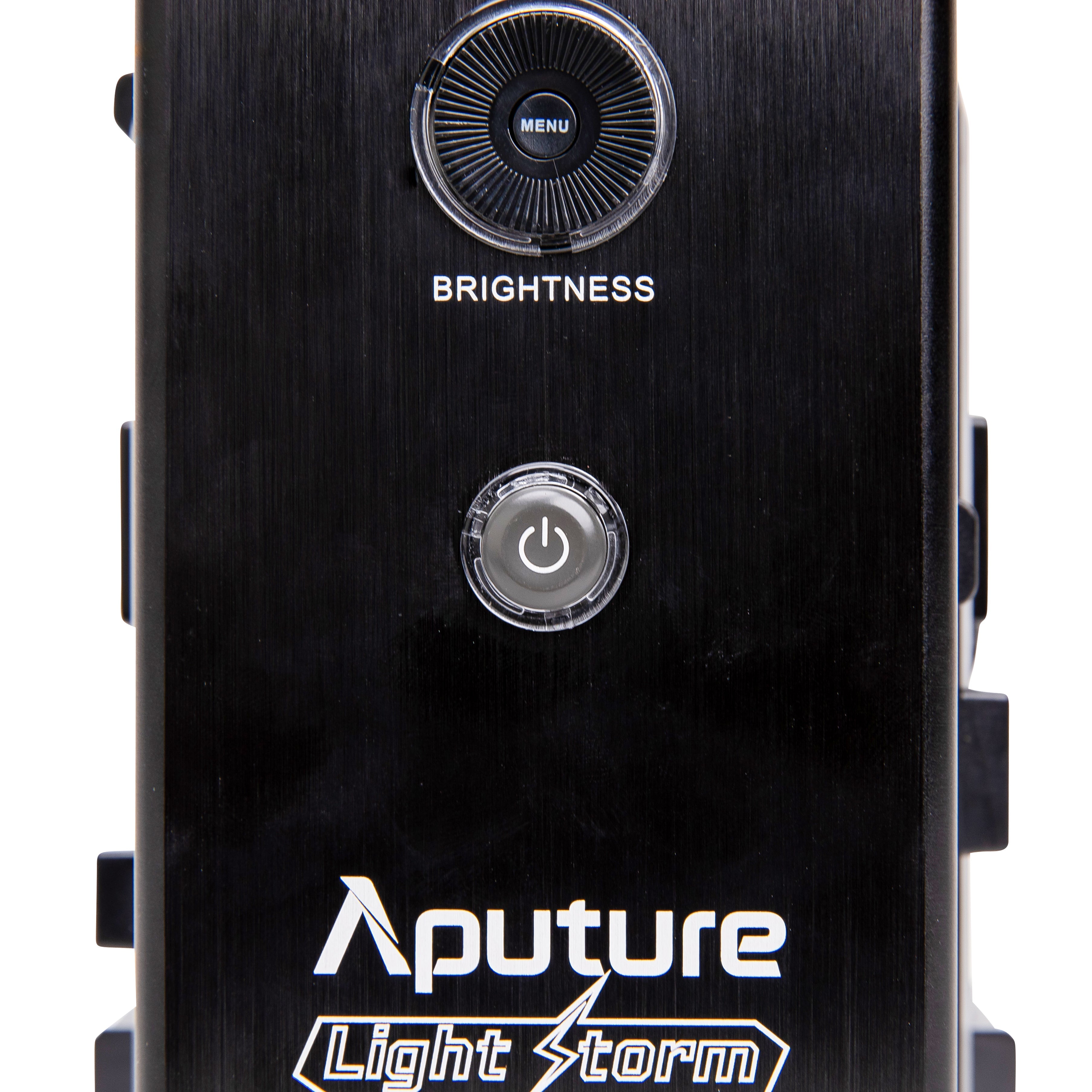

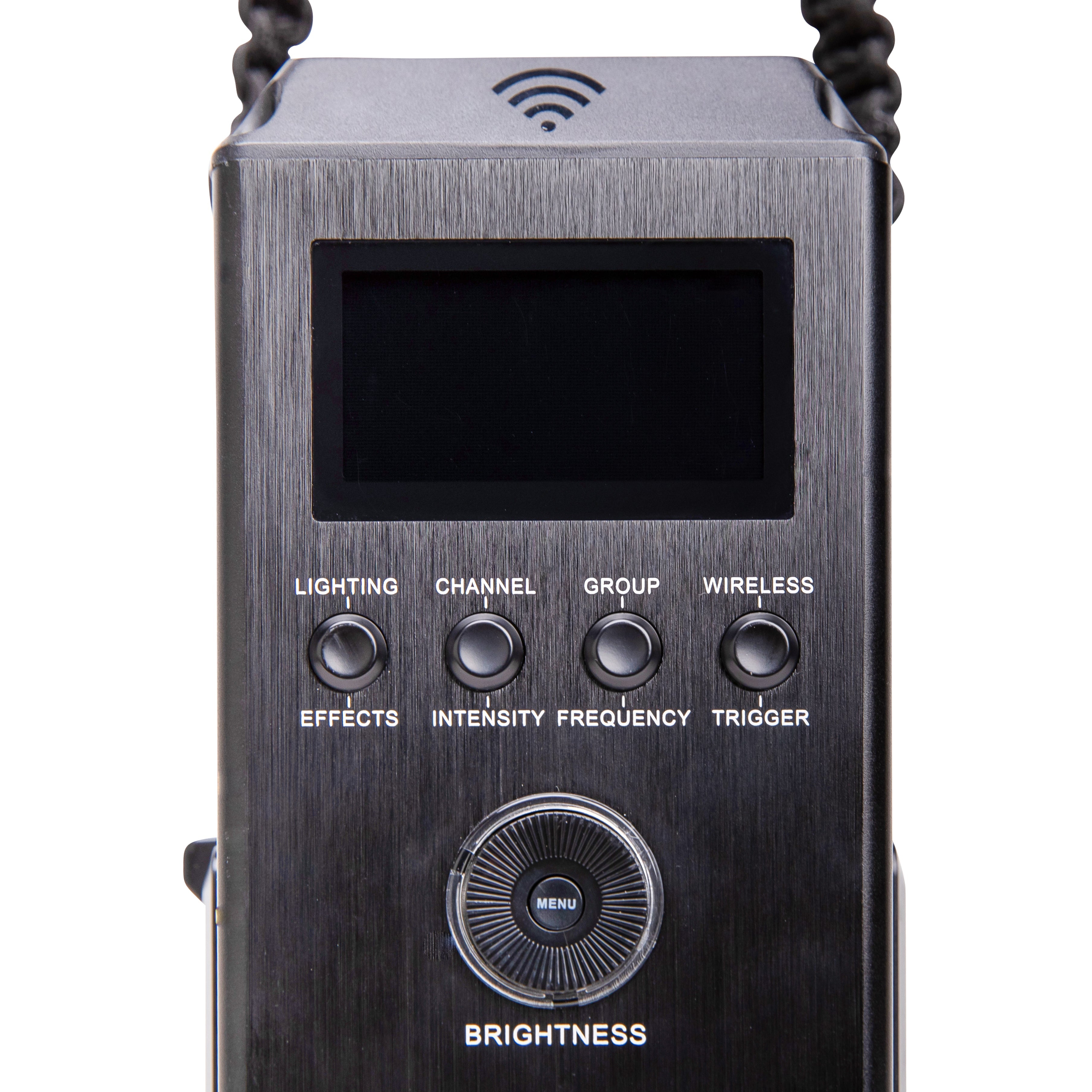

ADVANCED UI
The LS 600x Pro features a detailed LCD screen interface that, including a revamped professional UI that displays important information in an intuitive way, including easy-to-read intensity and colour information.

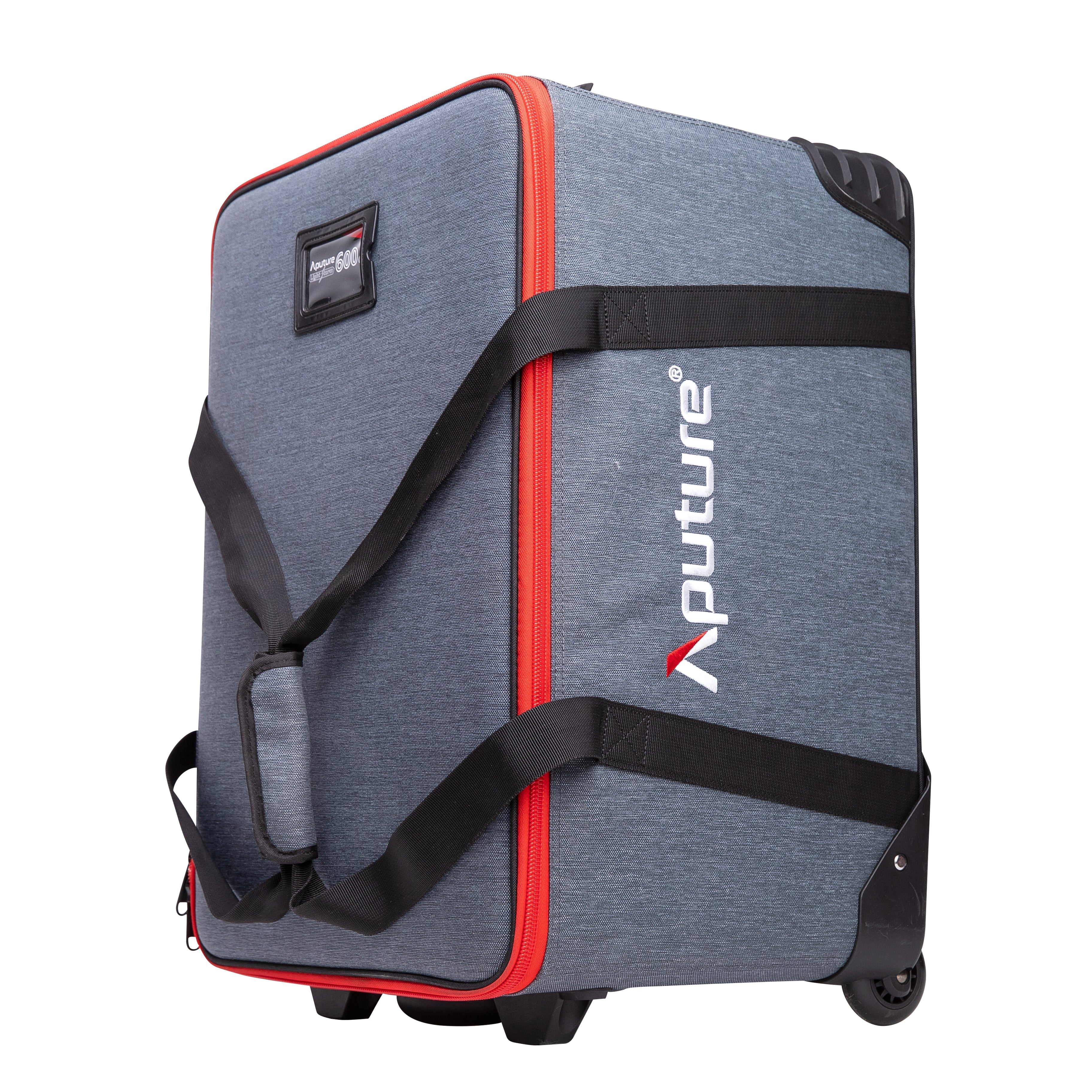

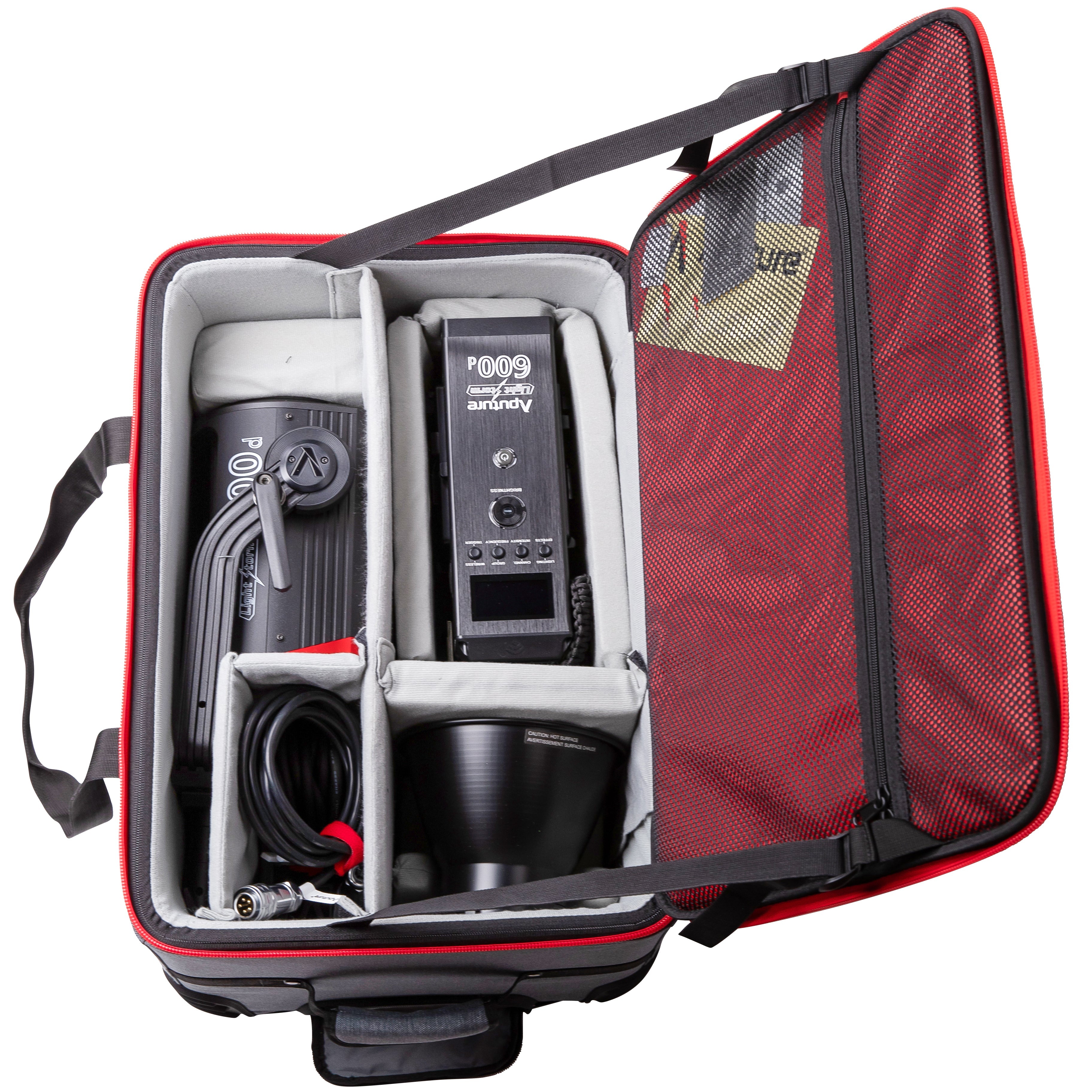

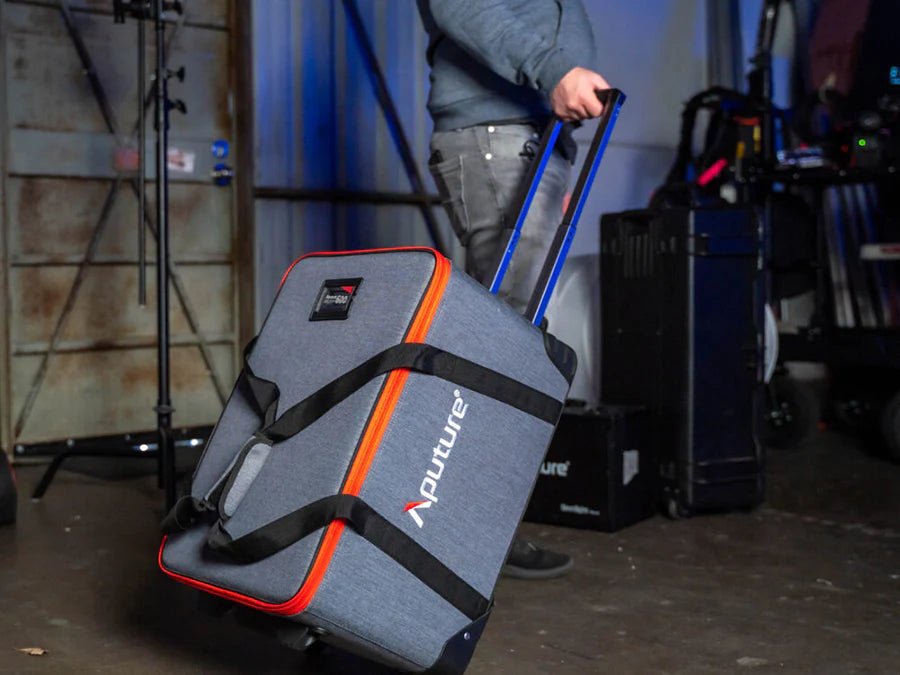

DURABLE TRANSPORT CASE
The LS 600x Pro comes standard with a durable carrying case that features wheels and a telescoping handle, making transporting the fixture to and from set a breeze.

Main Features

• 600W daylight balanced point source lamp
• 600W Daylight-Balanced Bowens Mount Point-Source LED
• Comparable to 1,200W HMI: 8,500+ lux @ 3m with LS 600c Series Hyper Reflector
• Streamlined Control Box: Maintains Many LS 600d Pro's Controls at 50% Weight
• Controls: Sidus Link, 5-Pin DMX512 In & Out, 2.4GHz Remote
• Universal Bowens Mount: Compatible with Soft Light and Optical Bowens Mount Modifiers



Specifications

Weight

• Lamp Head (without Yoke) - 4.69kg / 10.34lbs
• Control Box V-Mount - 3.24kg / 7.14lbs
  Lightning Clamp - 670g / 1.48lbs
• Total with Case - 16.71kg / 36.84lbs

Dimensions

• Lamp Head without Yoke - 30.8 x 15.61 x 15.01cm / 12.13 x 6.15 x 5.91in
• LampHead with Yoke - 30.8 x 2 5.03 x 45.6cm / 12.13 x 9.85 x 17.95 in
• Control Box V-Mount - 28.2 x 15.4 x 9cm / 11.1 x 6.1 x 3.54in
• Lightning Clamp - 10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in
• Rolling Case - 60.7 x 40 x 37.2cm

Detailed Product Specifications

• CCT -5600K±200K
• CRI - ≥96
• TLCI - ≥96
• CQS - ≥94
• SSI (D56) - ≥72
• TM-30 RF (Average) - 92
• TM-30 RG (Average) - 102
• Beam Angle (No Accessories) - 105°

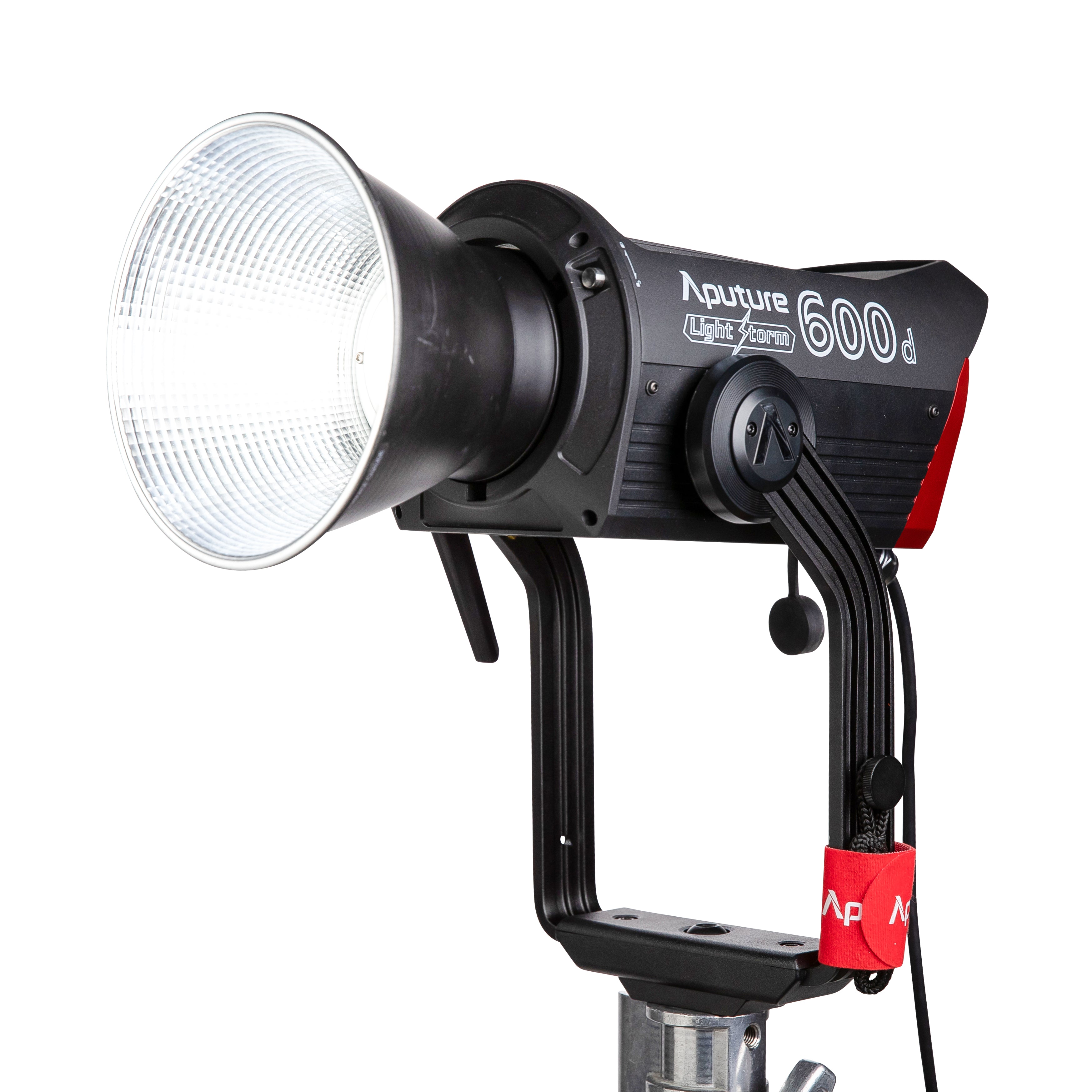

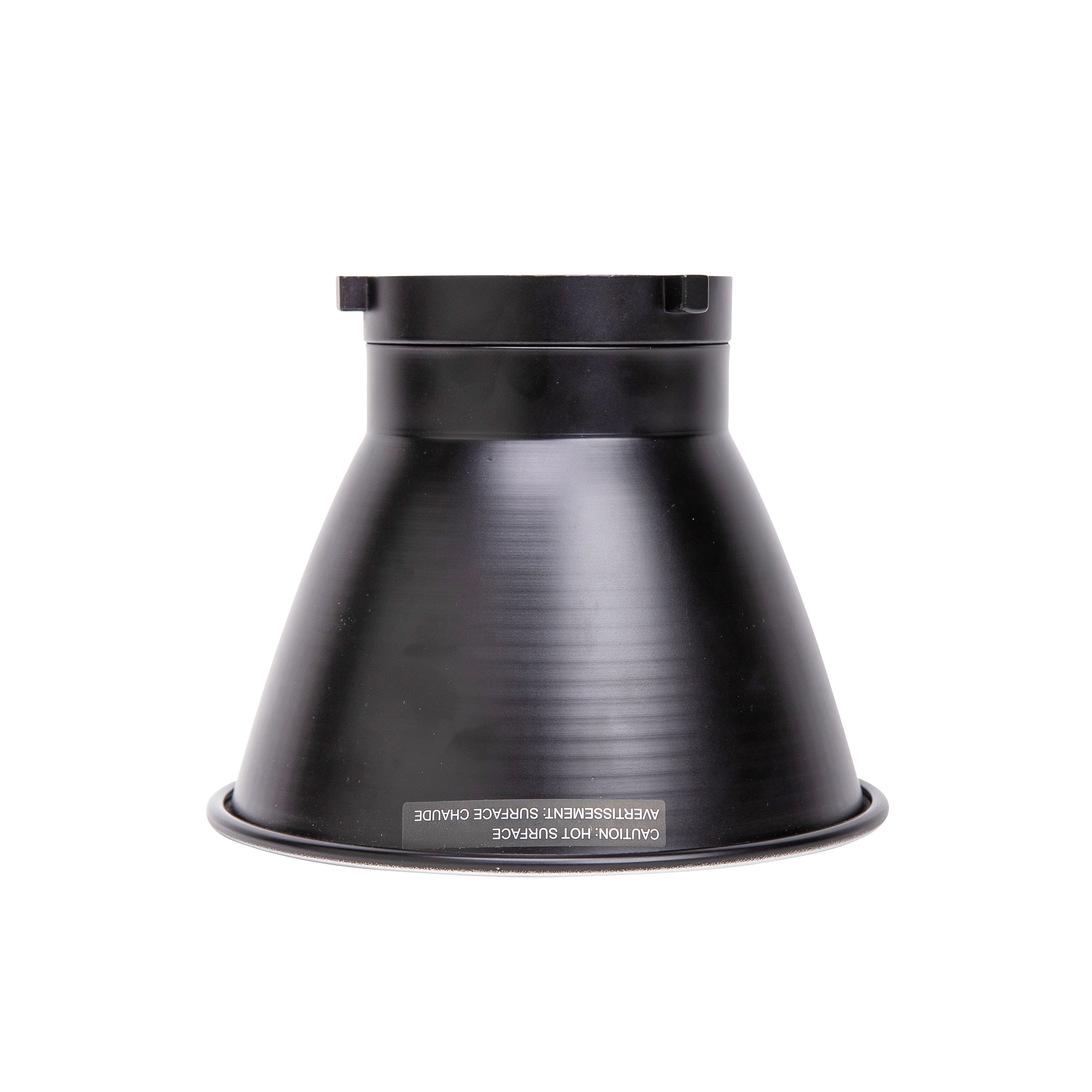

• Beam Angle (LS 600 Series Hyper Reflector) - 55°
• Beam Angle (F10 Fresnel) - 15° ~ 45°
• Lumens - 62,187lm
• Max Power Output - ≤600W
• Max Power Consumption - ≤720W
• Max Operating Current - 8A Max
• Operating Voltage (Power Supply) -100V~240V, 50Hz/60Hz
• Operating Voltage (Battery): V-Mount / Gold Mount (Two Batteries) | Half Output -12.5V-16.8V (14.4/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)
• Operating Voltage (Battery): 3-Pin XLR (48V DC) | Full Output - 48V/15A
• DC Input - 1x 48V 3-Pin XLR DC Input (720W)
• Operating Temperature - -20°C ~ 45°C / -4°F ~ 113°F
• Dimming - 0-100%; Linear, Exponential, Logarithmic, S-Curve
• Wireless Operating Range (Bluetooth) - ≤80m
• Wireless Operating Range (2.4GHz) - ≤100m
• Screen Type - OLED
• Firmware Upgradeable
• USB (FAT16/FAT32), Sidus Link

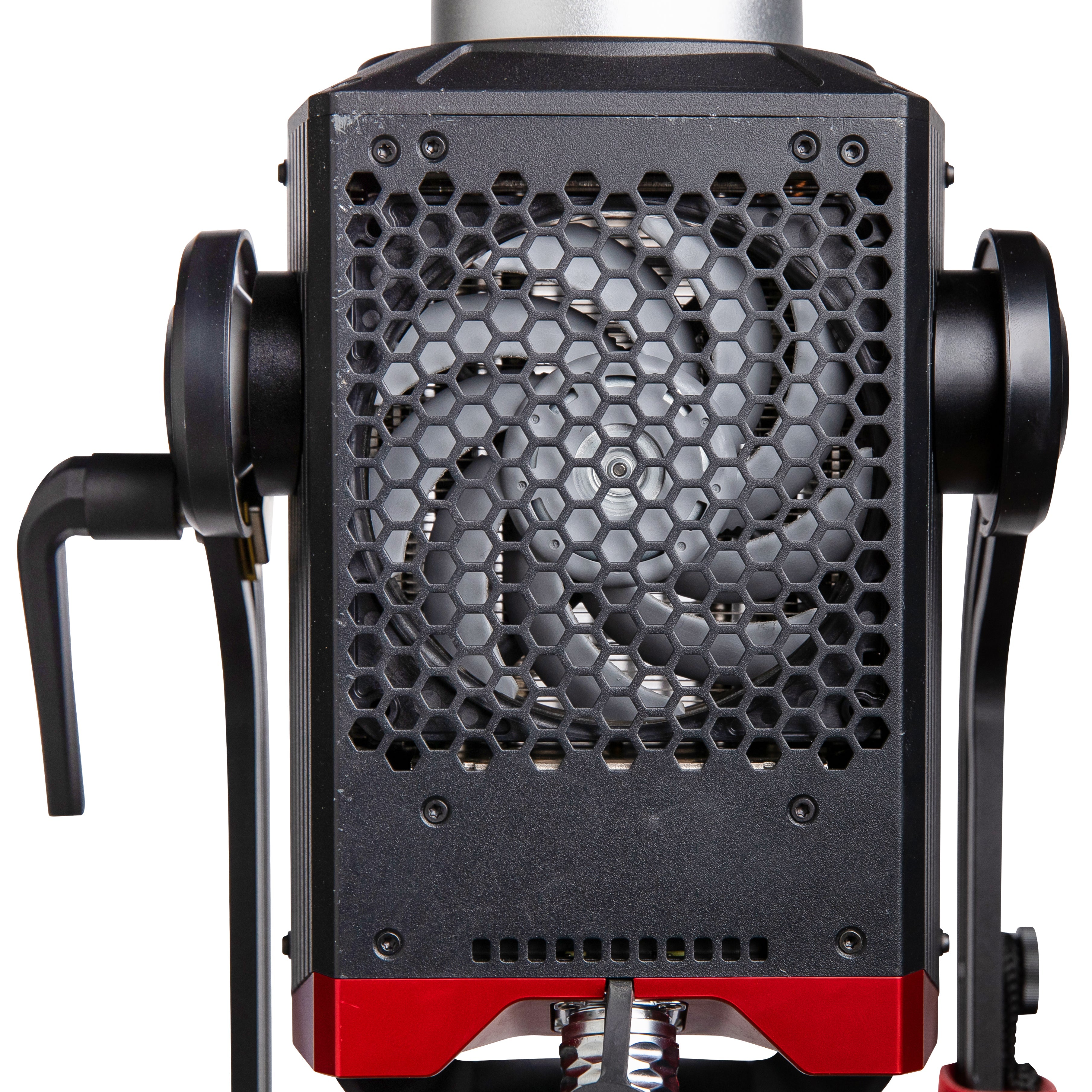

• Cooling Method
• Active Cooling
• Cable Type (Head Cable) - LS 600 Series 5-Pin Weatherproof Head Cable (3m)
