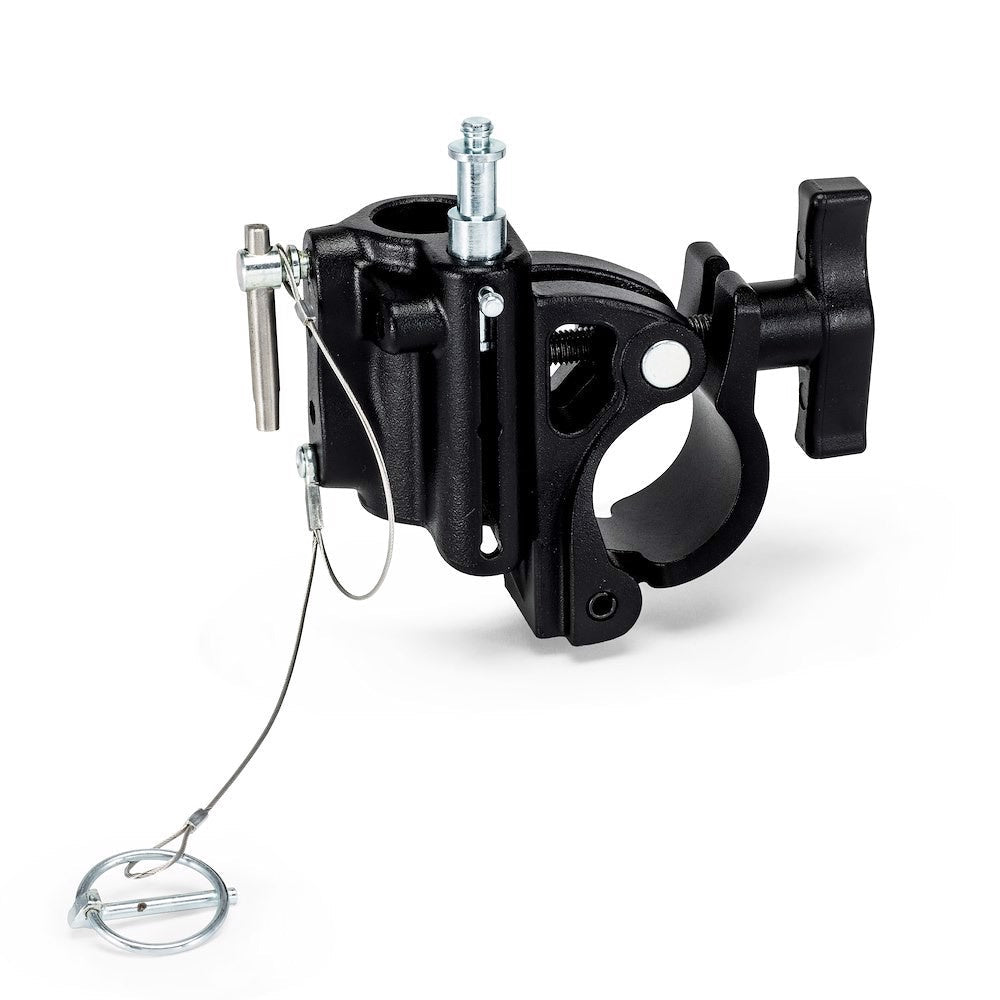

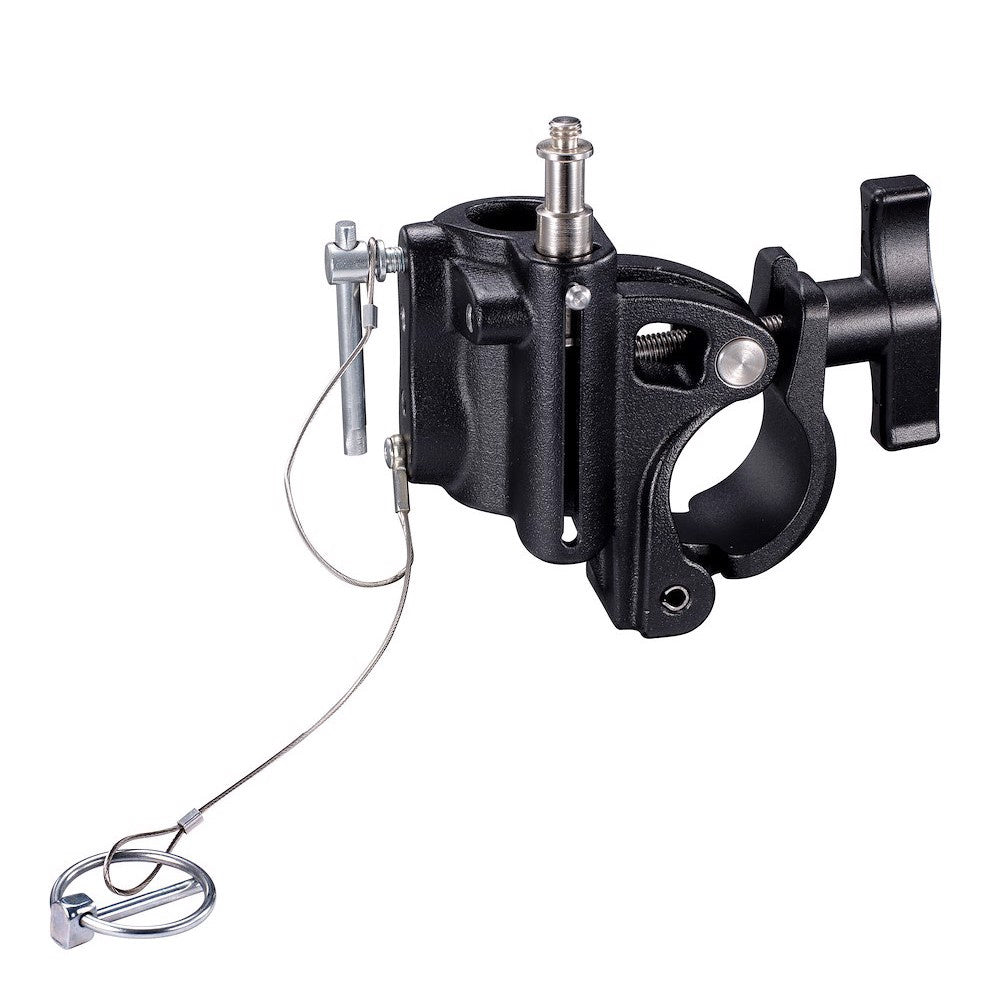

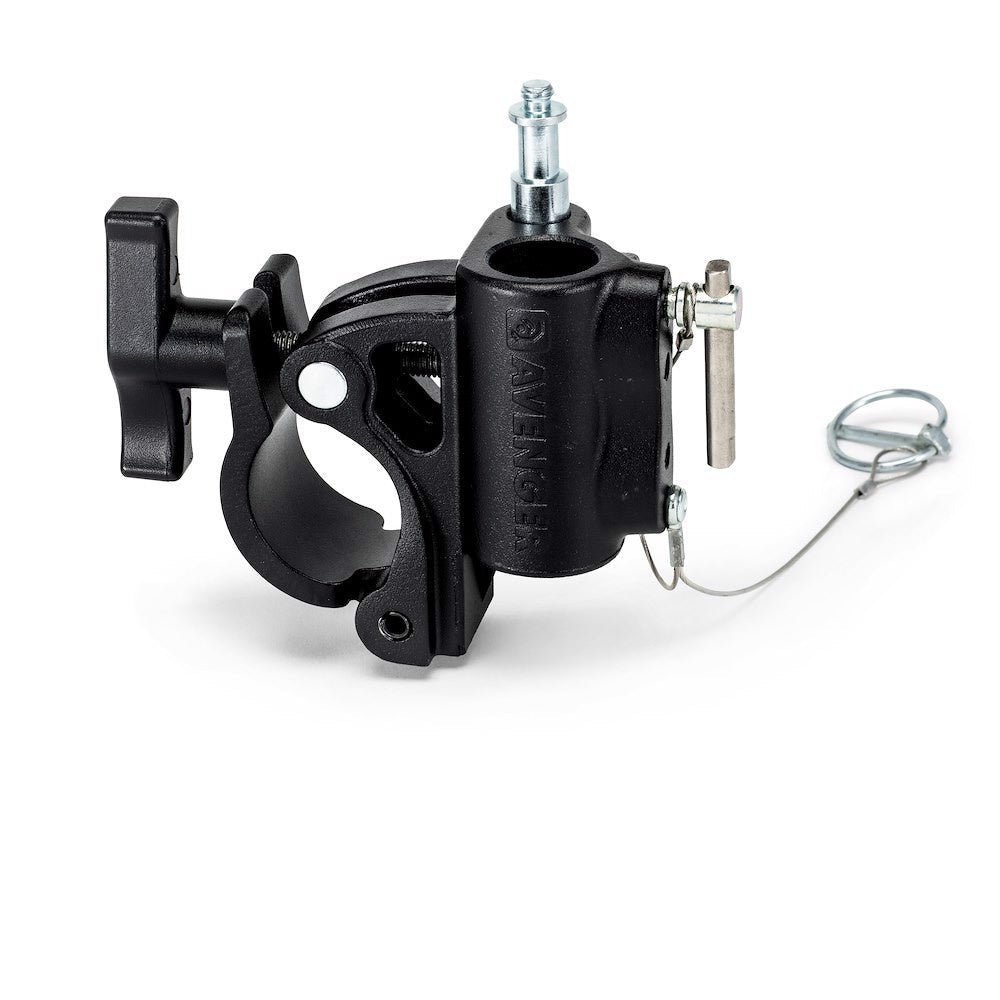

C345BK Avenger Barrel Clamp with T-Knob
- T-Bar locking handle
- Aluminium construction
- Accepts tubing from 42 - 52 mm diameter
- Integrated safety cable
- Baby 5/8” (16mm) spigot
- Junior 1-1/8" (16mm) female receiver
The Avenger couplers are perfect for carrying heavy loads. They are characterised by being the perfect mix between strength and durability and most of them also comply with TUV SUD safety standards.
The Avenger C345BK Barrel Clamp with T-Knob was created using suggestions from professional users and the latest available Avenger manufacturing techniques. This black aluminum alloy Barrel Clamp has several uses. It has a captive baby pin 5/8" 16mm spigot and a junior 1 1/8" 28mm female receptor. It has a T-Knob locking mechanism and a integrated safety cable.
This extremely strong clamp has a load capacity of 300kg, which is mainly due to gravity casting which eliminates air bubbles from forming inside the casting material that can typically cause weakness. It will mount to any pipe between 42 - 52mm in diameter.
- Weight: 0.95kg
- 1 1/8" (28mm) socket - Payload 300 Kg
- (16mm) stud - Payload 40 Kg
- Certification: TUV
- Minimum Clamp Range (Round Tube) 42mm
- Maximum Clamp Range (Round Tube) 52 mm
- Material: Aluminium
- Colour: Black
The Avenger C345BK-1 Barrel Clamp in black is made with gravity cast aluminium, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4'' threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 - 52 mm/1.65 - 2.05 inch and easily locks into place using a T-Knob.
The baby attachment can support loads up to 40 kg/88.2 lb while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. TÜV SÜD certified. Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626, C590
