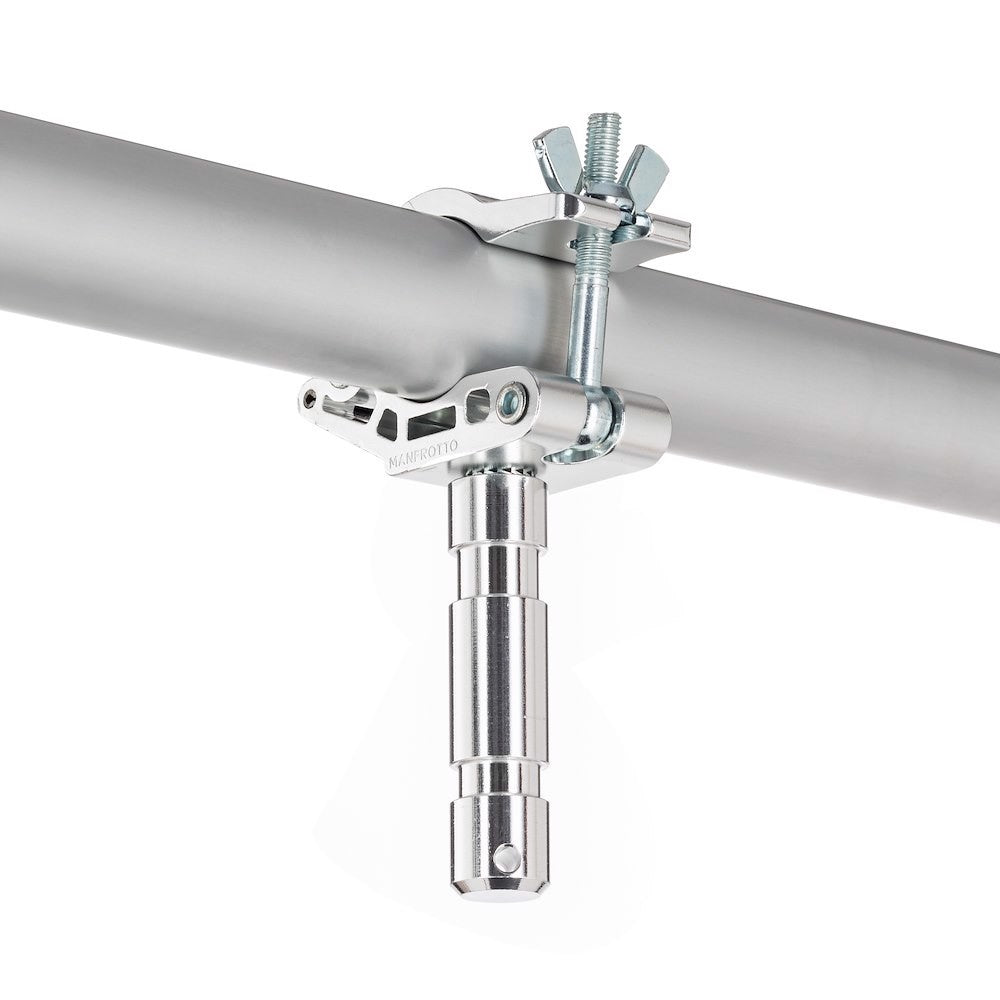

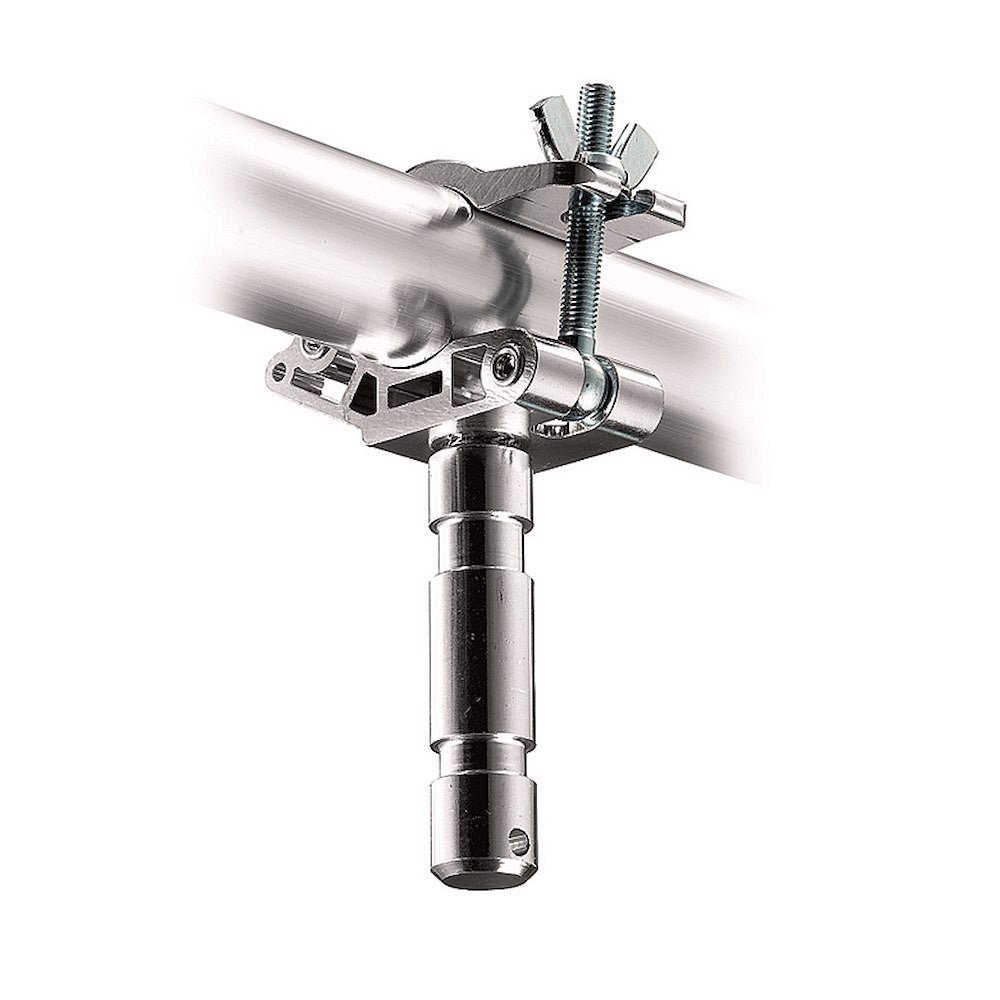

Manfrotto/Avenger Eye Coupler LP Clamp w/28mm/1 1/8'' Spigot, 42-52mm Ø
Manfrotto/Avenger Eye Coupler LP Clamp w/28mm/1 1/8'' Spigot, 42-52mm diameter
- Made from aluminium alloy
- Easily connect trusses, bars or pipes
The EYE Coupler has the standard multipurpose opening that is perfect for use on tubing.
The Avenger C4461-1 LP MP Eye Coupler grid clamp comes supplied with a 28 mm(1 1/8'') TV spigot. Commonly referred to as a Big Ben Clamp, this popular MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. The MP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm(1.65'') to 52 mm(2.04'') and is 50 mm(1.96'') wide. Capable of holding upto 300 kg/661.4 lb loads this clamp will perform in many demanding environments. TÜV and SÜD certified.
Made of an aluminium alloy, it can be tightened without a locking key and has a 28mm hole for mounting lights or other accessories. It can withstand a maximum load of 500kg and works with tubes with a diameter between 42 and 52 mm.
It is perfect for TV / broadcast lighting and rigging lighting.
Specifications
- Weight - 0.52 kg
- Payload - 300 kg
- Attachment 1 1/8 (28 mm) Spigot not threaded
- Length - 5 cm
- Certification - TUV
- Clamp Range - Max. (Round Tube) 52 mm
- Clamp Range- Min (Round Tube) 42 mm
- Colour- Silver
- Material - Aluminium, Steel
(
Sale price£36.63ex. VAT)
