Dedolight DLED9.1SE-D-Studio Edition Daylight LED Head (PRE-OWNED)

Dedolight DLED9.1SE-D-DMX Studio Edition Daylight LED Light Head

(PRE-OWNED)

PRICED TO SELL!

Here we have three Dedo DLED9.1SE fixtures with DMX. These are the big brothers of the standard DLED 4, 7 and DLED9. These fixtures take the same accessories as the DLH400D, or 650.

Daylight only, not Bi-Colour.

We have three of these units, all in excellent condition. They are all supplied with Barn Doors and their respected cables. All ready to go with 6 month warranty.

These units have seen very low use and formed part of a part exchange.

Product description:

The Dedolight DLED9.1SE-D-DMX is a powerful daylight-balanced LED light head designed for demanding studio environments. With its renowned Dedolight precision optics, this fixture delivers an exceptionally clean, controllable beam with a focusing range from a broad flood to a razor-sharp spot. Whether you’re working on detailed product photography, video, broadcast or specialist installations, it offers outstanding consistency and flexibility.

This Studio Edition features passive cooling for silent operation, making it ideal for stills work and noise-critical settings. The integrated DMX control gives you smooth, reliable remote operation, perfect for fixed studio setups, ceiling track systems or larger lighting rigs. Despite its compact footprint, the DLED9.1SE-D-DMX produces impressive output, and its daylight 5600K balance ensures accurate colour reproduction straight out of the box.

Compatible with the Dedolight Series 400 accessories, it slots neatly into the wider Dedolight ecosystem, giving you access to a full suite of optical attachments, imagers and light-shaping tools.

Key Features

• Daylight-balanced 5600K LED with excellent colour accuracy
• 90W output with exceptional optical efficiency
• Wide-to-tight focusing: approx. 50° down to 4°
• Passive cooling for silent studio performance
• Integrated DMX control for professional setups
• Compact, robust Studio Edition housing
• Fully compatible with Dedolight Series 400 accessories

Overview

The Dedolight DLED9.1SE-D-DMX is a high-performance daylight LED focusing light head designed for professional studio, broadcast and photographic environments. With its precision optics and silent passive cooling, it delivers exceptional beam control, high output and full DMX integration — ideal for fixed studios, product photography, and specialist installations.

Technical Specifications:

• Light Source
• Type: Daylight-balanced LED
• Colour Temperature: 5600K
• CRI: ≥ 91
• Power Draw: 90W
• Cooling: Passive (no fan)
• Optical Performance
• Focus Range: Flood to Tight Spot
• Beam Angle: approx. 50° (flood) to 4° (spot)
• Photometrics (approx.):
• Flood: High, even field suitable for general illumination
• Spot: Up to tens of thousands of lux at 1m, depending on focus position
• Optical System: Precision multi-lens Dedolight focusing mechanism
• Accessory Compatibility: Dedolight Series 400 accessories and imagers

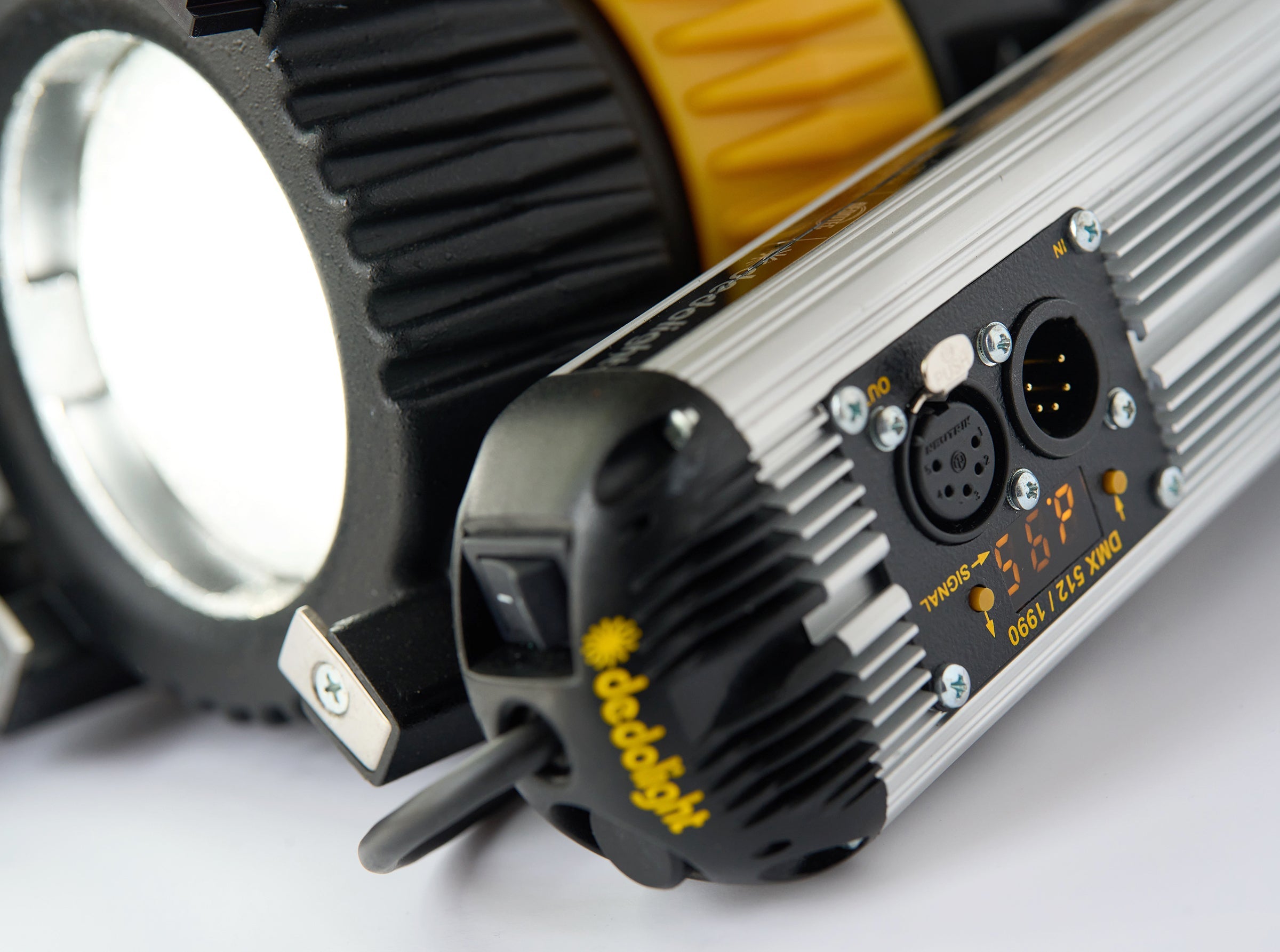

Control & Connectivity

• Dimming: Smooth, flicker-free dimming
• Control Interface: DMX512
• Physical Controls: Local intensity adjustment on ballast
• Flicker: Suitable for high-speed shooting
• Physical & Mounting
• Housing: Studio Edition metal chassis
• Mount: 5/8" (spigot) receiver with 1 1/8" (junior) stud
• Weight (light head): Approx. 2–3 kg depending on version
• Adjustment: Full yoke with locking tilt mechanism
• Power & Ballast
• Power Supply Type: External ballast / controller
• Input Voltage: Compatible with standard studio mains supplies
• Cooling: Passive, silent operation
• Cable Lengths: Vary by kit; extension options available


Environmental:

• Operating Temperature: Typical studio temperatures
• Noise Level: Silent (no fan)


Suitable for:

• Photographic studios
• Film/video production
• E-commerce and product imaging
• Broadcast lighting
• Museum, gallery or medical installations requiring silent operation

Included in Studio Edition

• DLED9.1SE-D Daylight LED Light Head
• DMX-enabled power supply / ballast
• Studio yoke mount
• Mains power cable


Compatible Accessories

• (Useful if you want upsell options.)
• Dedolight Series 400 lenses and optics
• Projection attachments / imagers
• Gobos
•  & gobo holdersSoft boxes and diffusion attachments
• Wide-angle adaptors

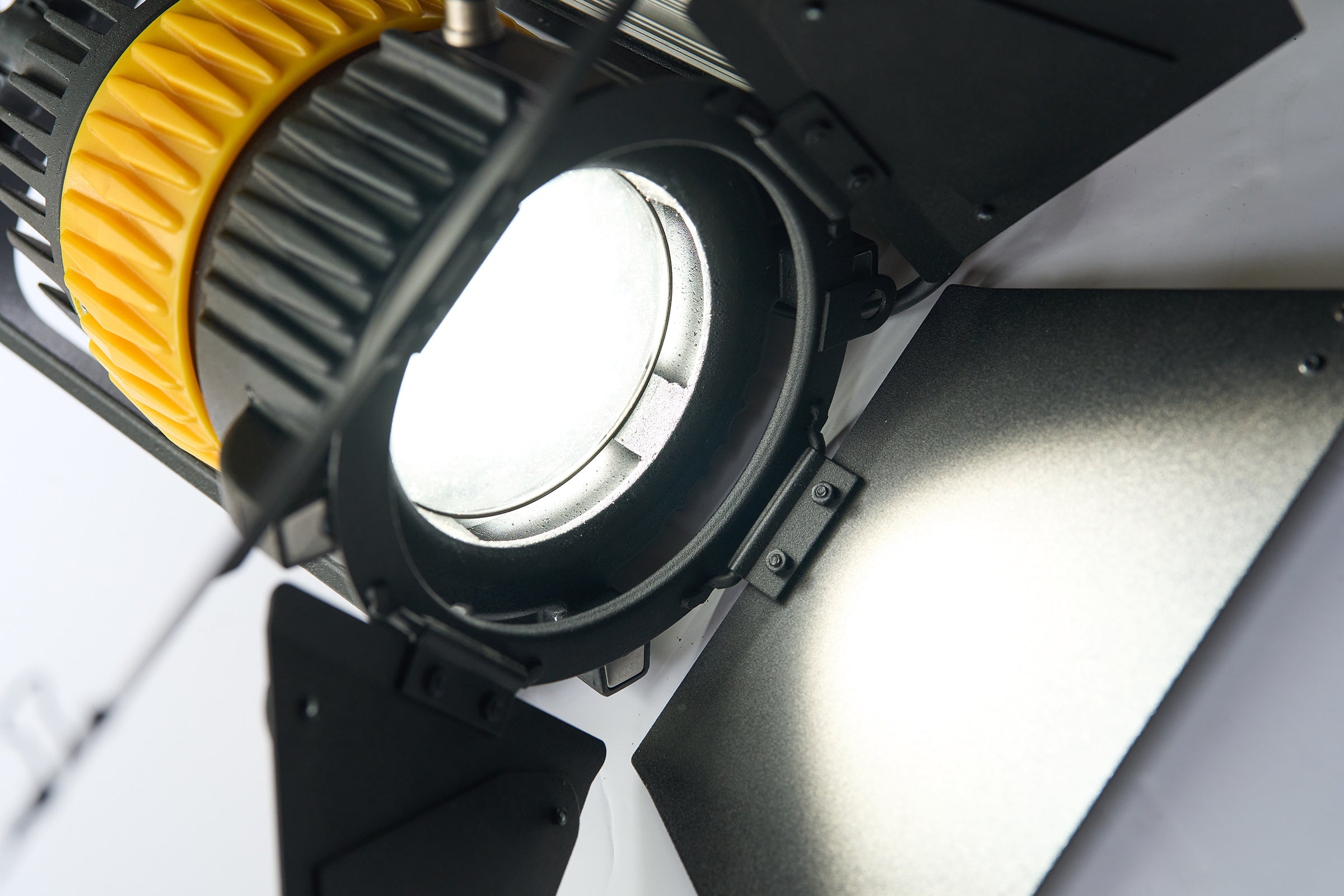

• Barn doors (INCLUDED)
• Gel holders

Key Advantages:

• Silent running – perfect for sound-sensitive environments
• Precise, controllable beam with Dedolight optics
• High output from a compact, energy-efficient head
• Full DMX integration for studio installations
• Works seamlessly within the Dedolight ecosystem
• Excellent choice for product photography, especially detailed or reflective subjects
