Aputure INFINIBAR PB12 4-Light Kit

Aputure INFINIBAR PB12 4-Light Kit

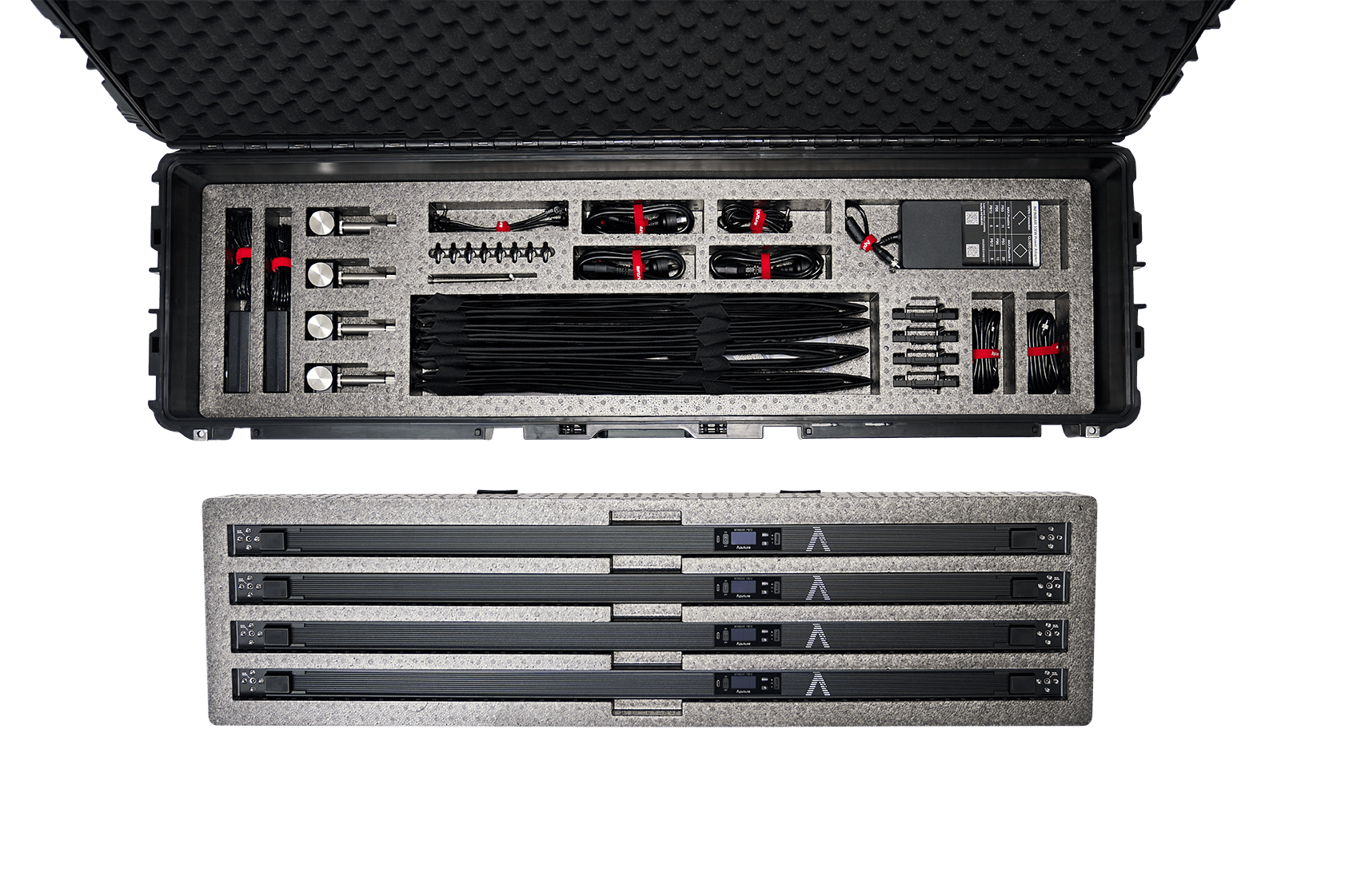

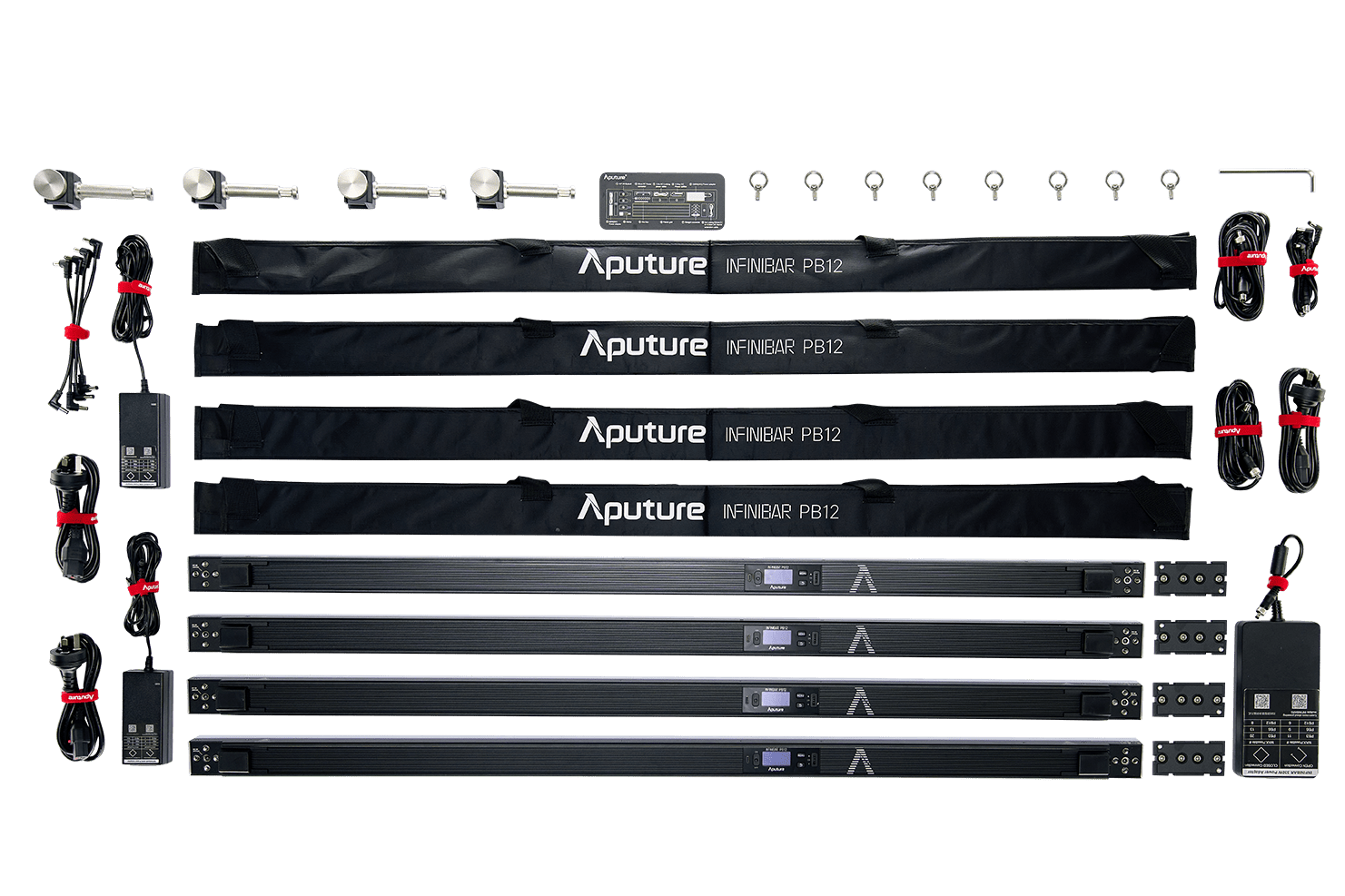

In the Box

• 4 x INFINIBAR PB12 x 4
• 1 x 330W DC Power Adapter

• 2 x48W DC Power Adapter (3m)

• 3 x AC Locking Power Cable (1.5m)

• 4 x 5.5mm DC Barrel Male to Male Power Cable (20cm)

• 1 x 5.5mm DC Barrel 4-Way Splitter Cable

• 4 x INFINIBAR Clamp to Baby Pin Adapter

• 4 x INFINIBAR Straight Connector

• 8 x 1⁄4-20” Eyebolt

• 1 x 5mm Hex Wrench

• 4 x INFINIBAR PB12 45 degree Light Control Grid

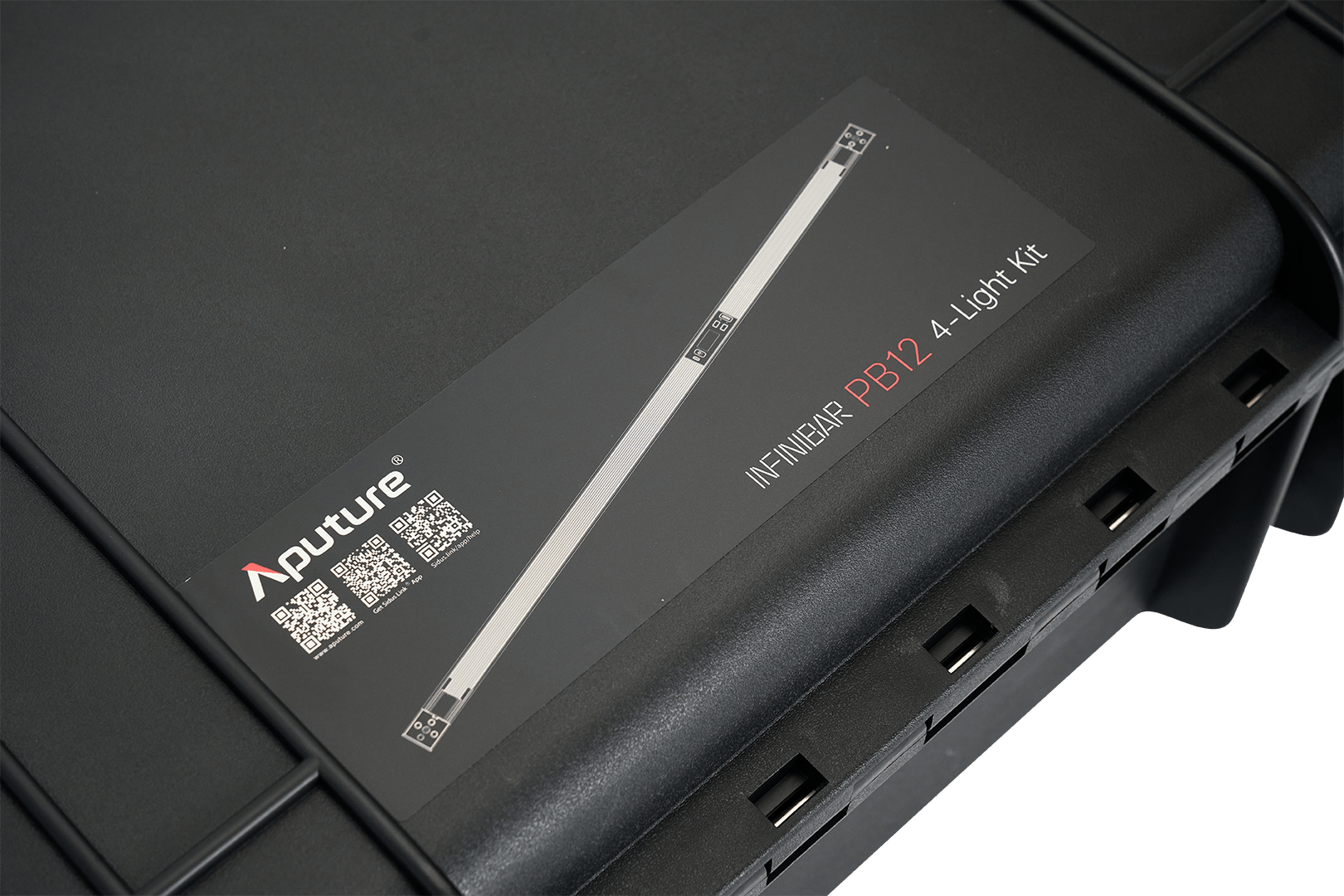

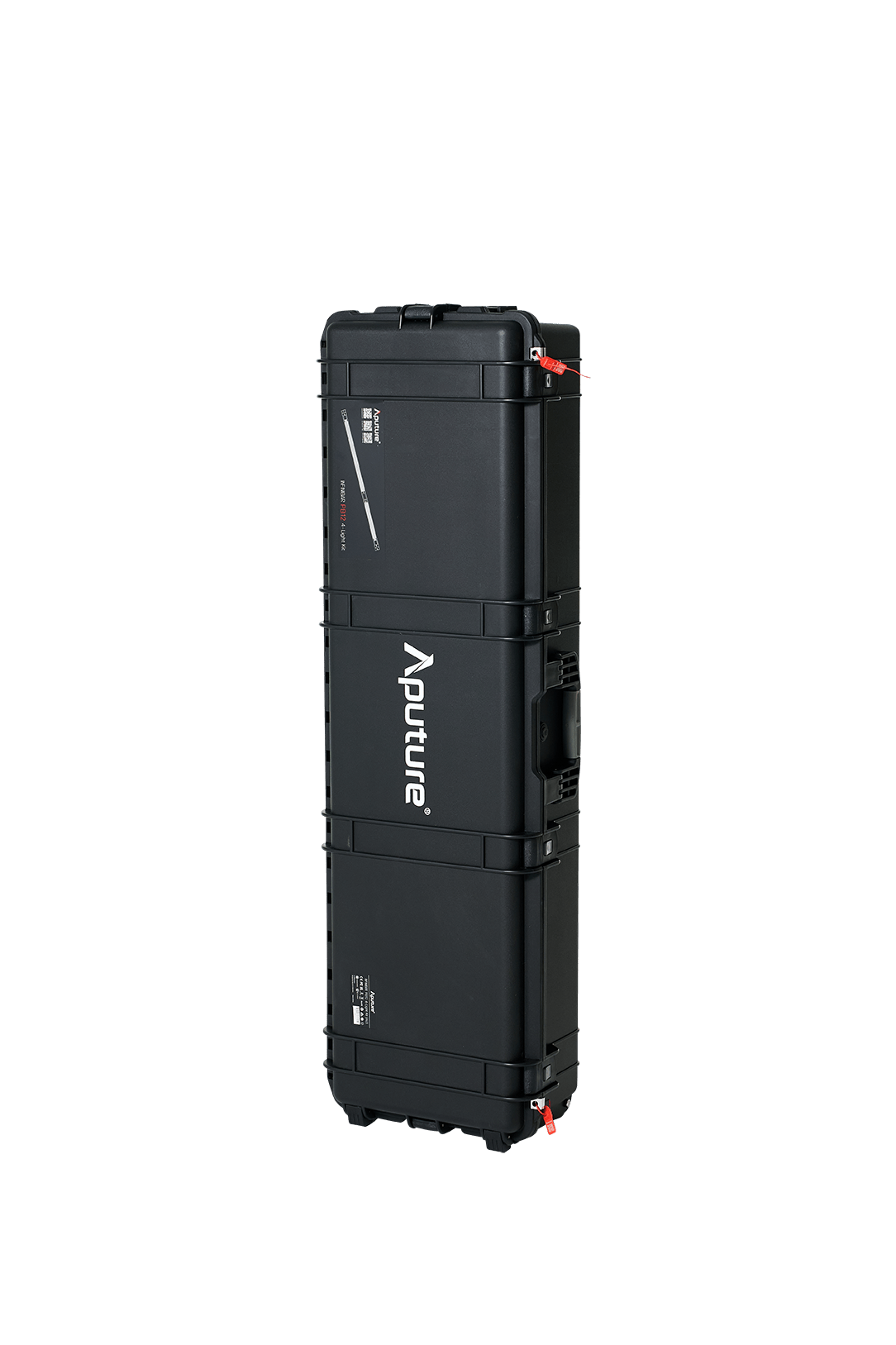

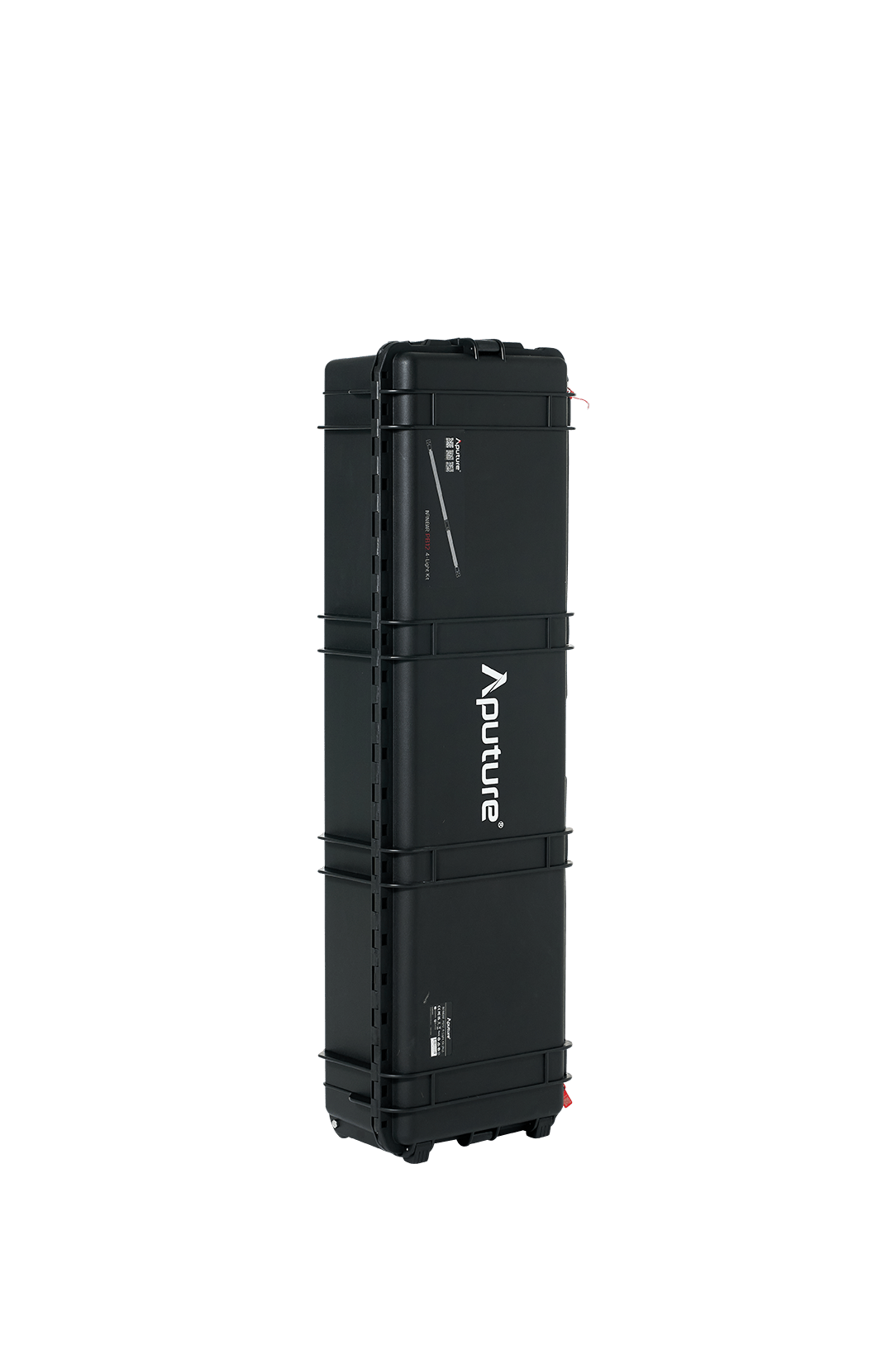

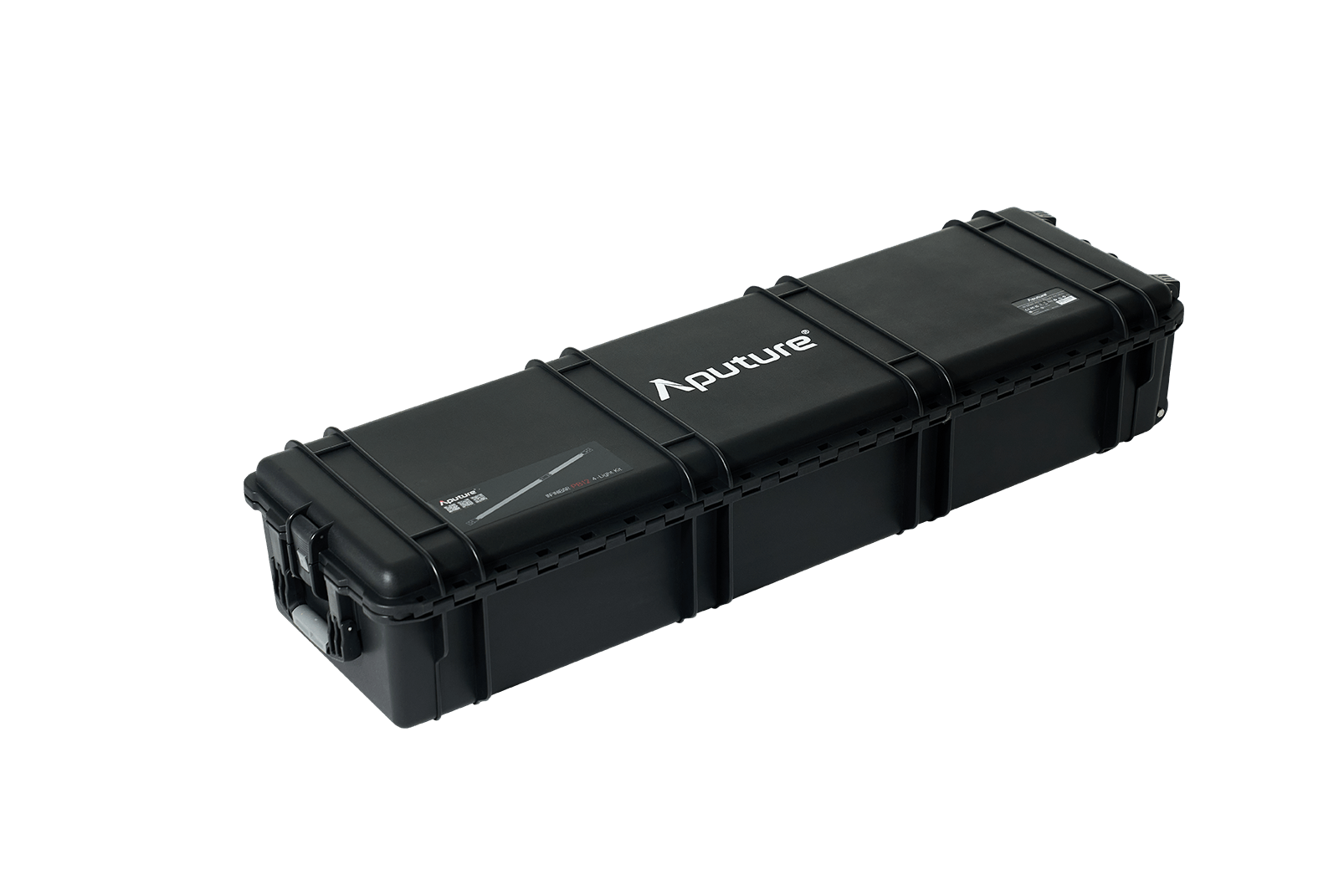

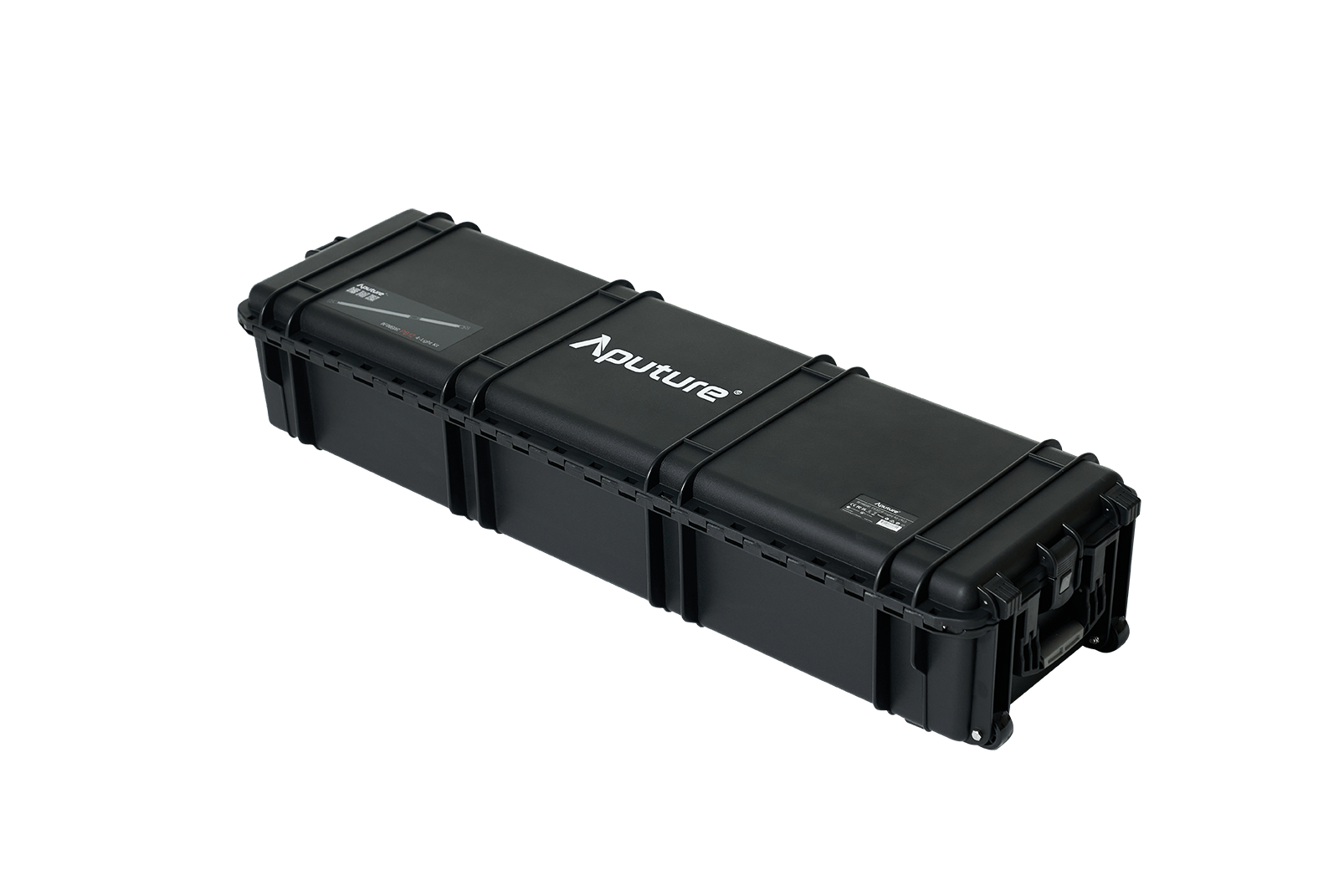

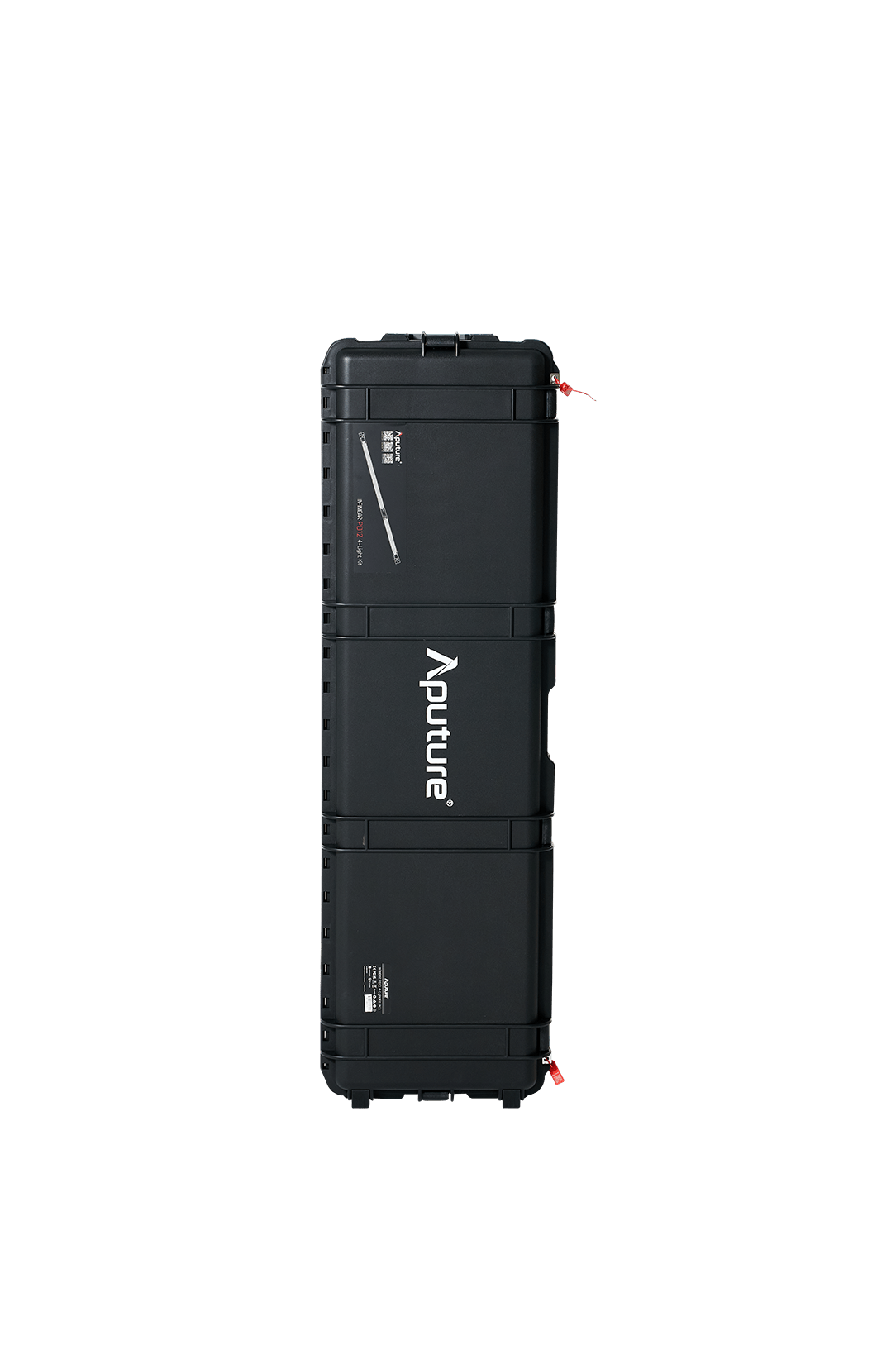

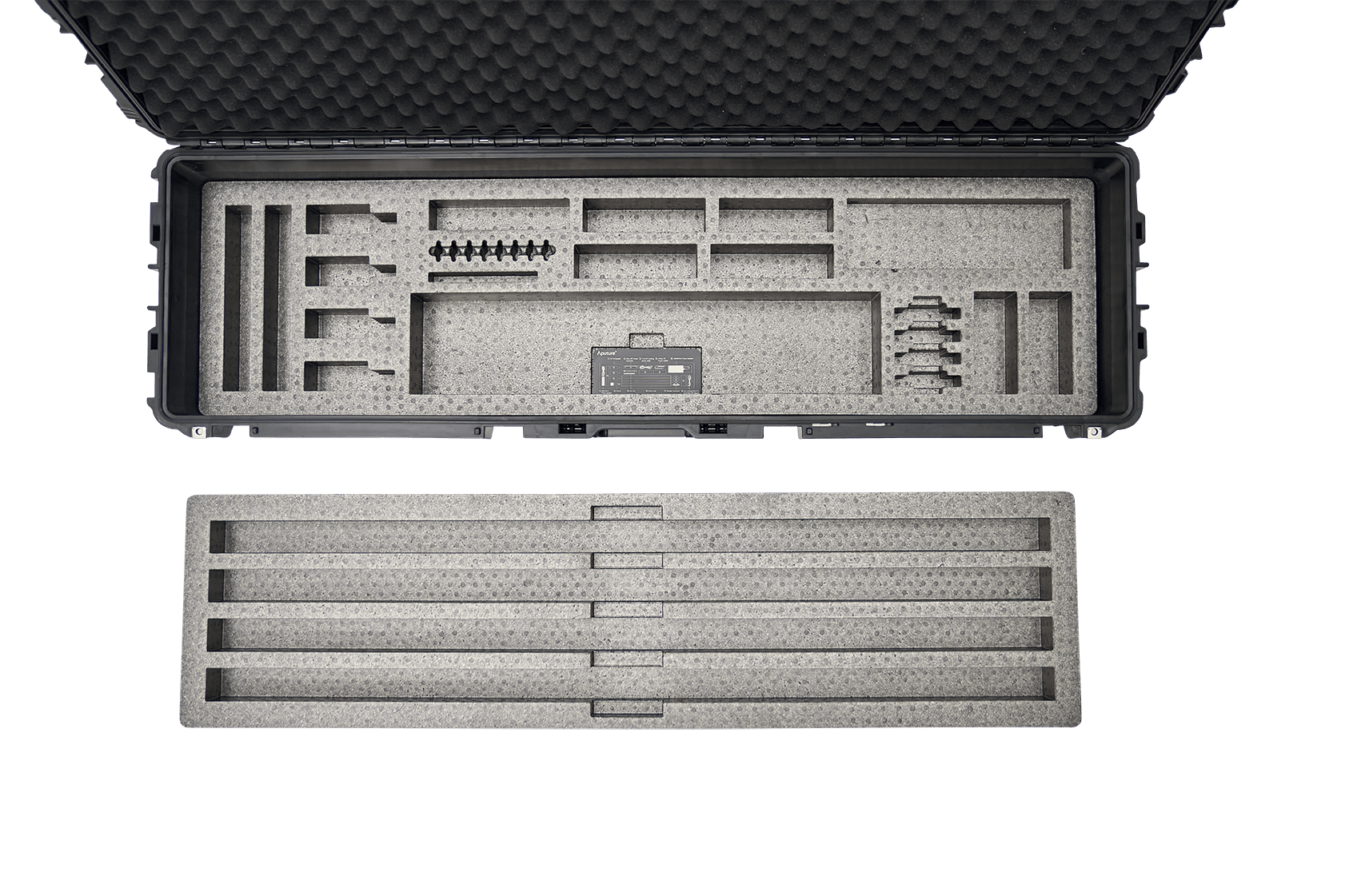

• 1 x Hard Case

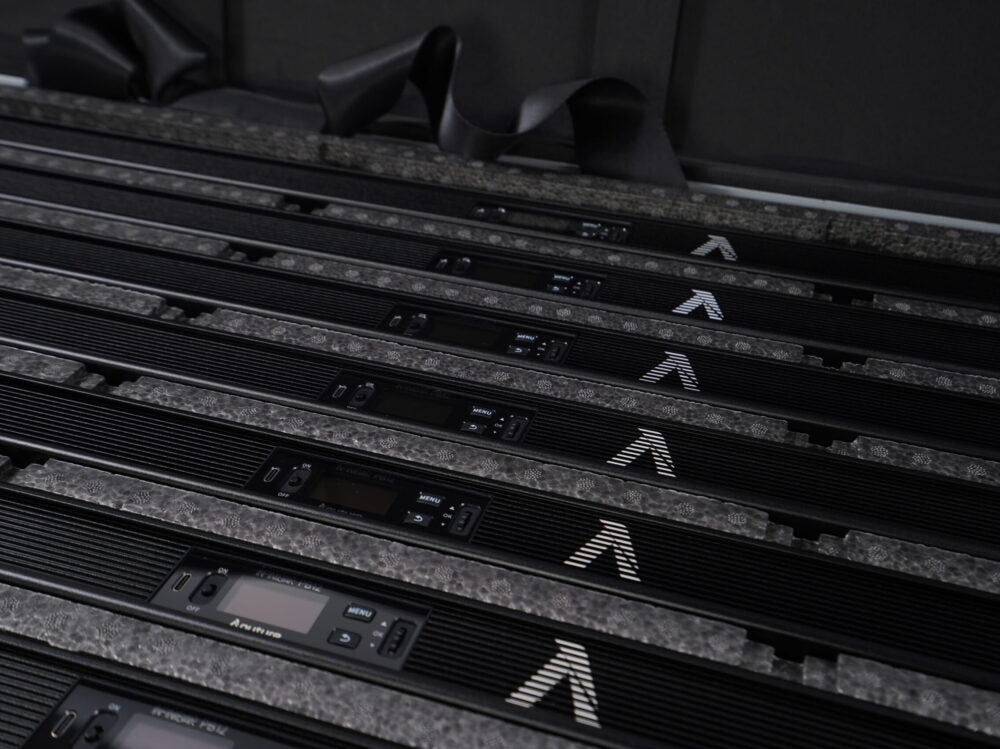

The INFINIBAR PB12 4-Light Kit includes four of Aputure’s 4-foot (120cm) full-
color LED pixel bars efficiently packed in a protective case designed to also hold a comprehensive suite of INFINIBAR accessories. Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB12 excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.

The 4-Light Kit expands this expansive multitool’s capabilities, with not only
four times the available light, but also additional DC male-to-male power
cables, adapters, and light control grids in a sturdy hard case to extend your
creative possibilities. And in addition to charging each light individually, the
4-Light Kit is equipped with a 330W Power Adapter with 4-Way Splitters that
can simultaneously charge all fixtures in or out of the case.

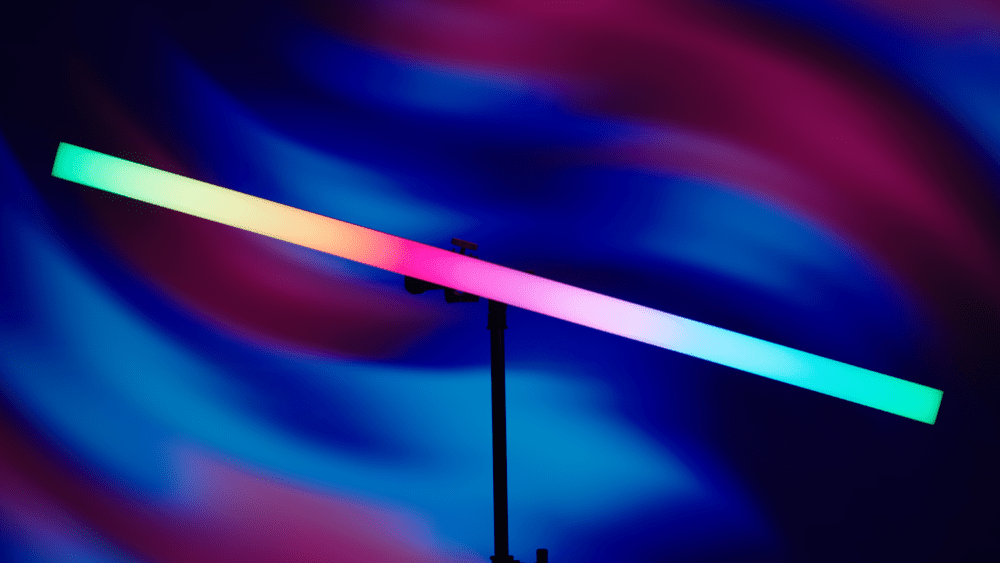

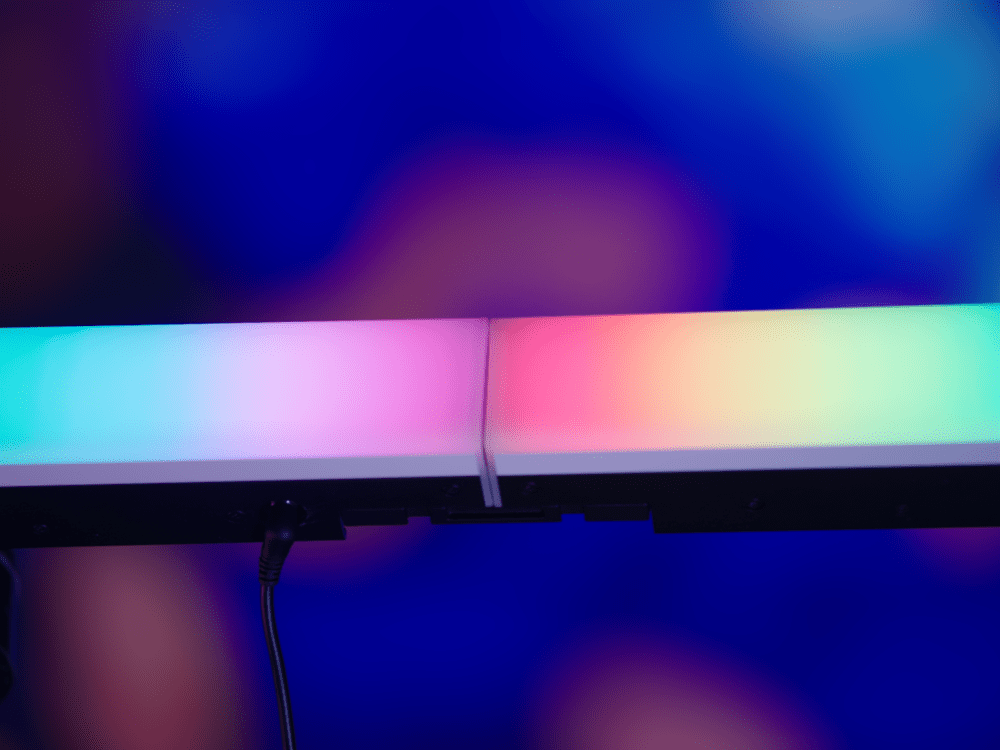

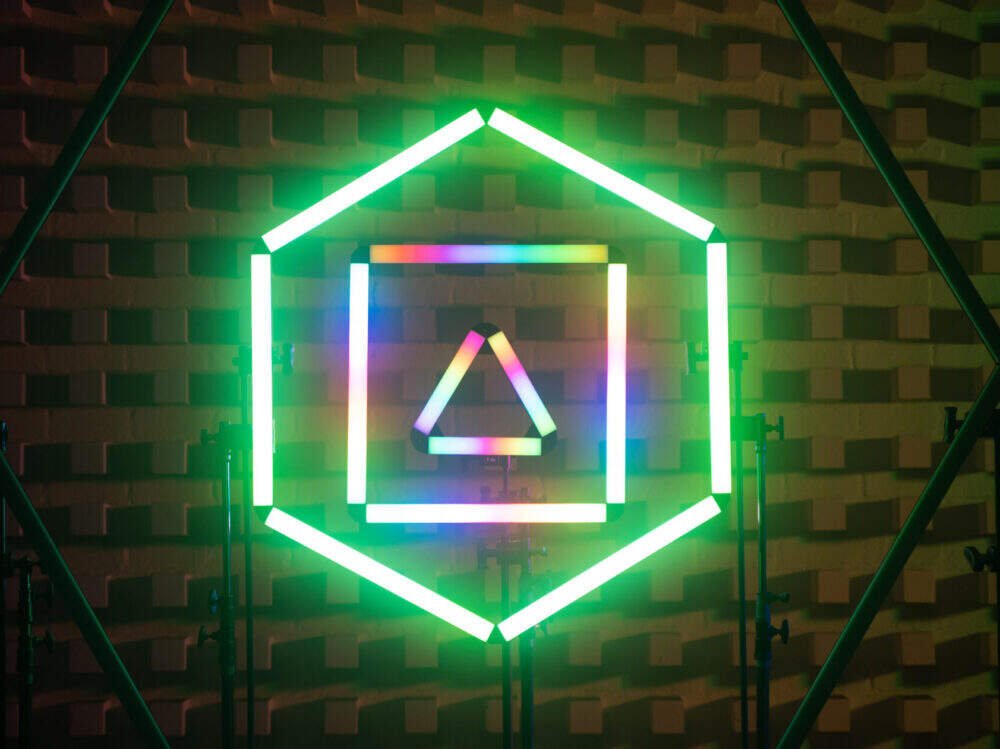

The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB12’s 96 RGB pixels.

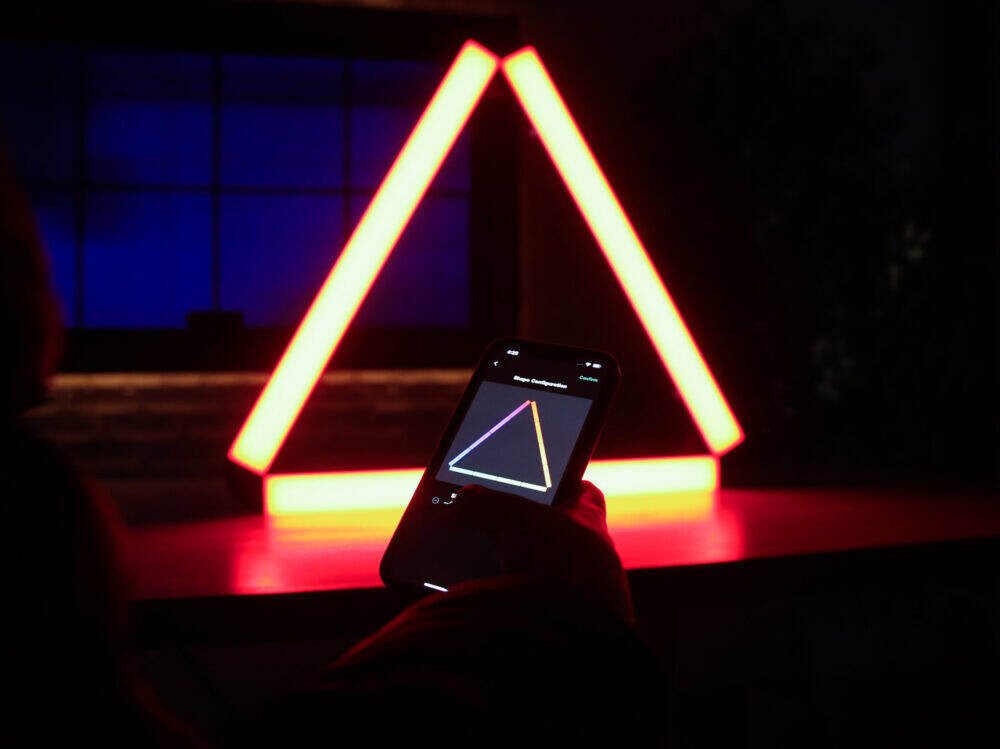

Featuring advanced wireless connectivity, the INFINIBAR PB12’s 96 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter. 2 It also incorporates critical color controls (including advanced HSI with white-point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.

The INFINIBAR PB12’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green- magenta adjustment and can reproduce >90% of colors within the Rec2020  Color Space. Matching Aputure’s high standards for color, the INFINIBAR PB12 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

With its lightweight yet durable aluminum housing, the INFINIBAR PB12
provides ultimate flexibility across all shooting environments. Whether linked
together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR
Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allow the PB12 to be
mounted with ease. And with its built-in 59.2Wh Lithium battery, the INFINIBAR PB12 can operate at its 27W max output for 80 minutes, making it a versatile fixture for your lighting toolkit.

The INFINIBAR PB12 4-Light Kit is ideal for cinematographers, lighting technicians, and lighting designers who need a portable and comprehensive set of highly adaptable linear lights.

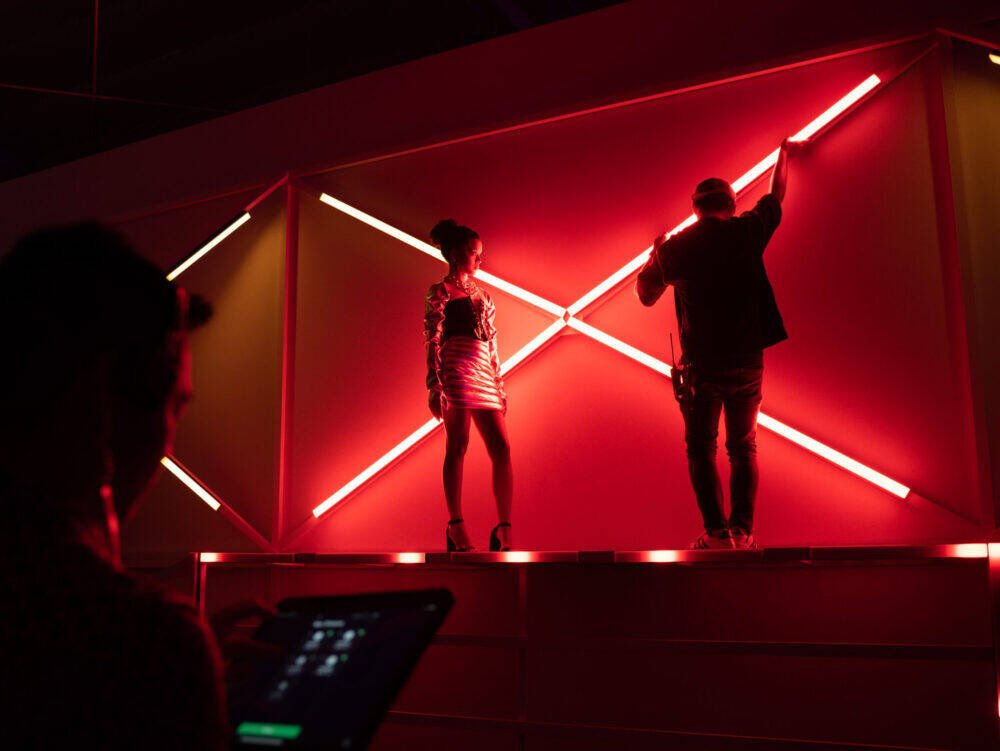

The INFINIBARs are designed to be key lights, built directly into sets, or used with its connector ecosystem to create new shapes and designs, making these lights a great choice for professionals looking to create dynamic lighting setups.

Professionals who work on volume stages or in product cinematography, where detailed lighting and high pixel density are critical, would also benefit from the INFINIBAR PB12’s 96 pixels across its 4-foot-long frame.

The 4-Light Kit gives professionals the additional tools they need to utilize more lights for building large arrays of unique lighting structures and supply power to multiple fixtures simultaneously with the larger power supply, all in a sturdy flight case that is ready for grip trucks and film sets.

The INFINIBAR PB12’s flat illumination surface makes this light perfect for users who want a more directional light with less wrap but love the form factor of traditional 4-foot tube lights. Coupled with the included INFINIBAR PB12 control grids, these light be shaped even further while still maintaining a minimal footprint on set.For users who require professional connectivity options, the INFINIBAR PB12 offers Sidus Link app control, LumenRadio CRMX, and DMX connectivity via an optional USB-C adapter.

The INFINIBAR PB12 4-Light Kit is the perfect light for any filmmaker or creator who needs a precise, pixel-capable fixture that offers a large suite of professional tools, wireless connectivity options, and limitless mounting and rigging possibilities.
