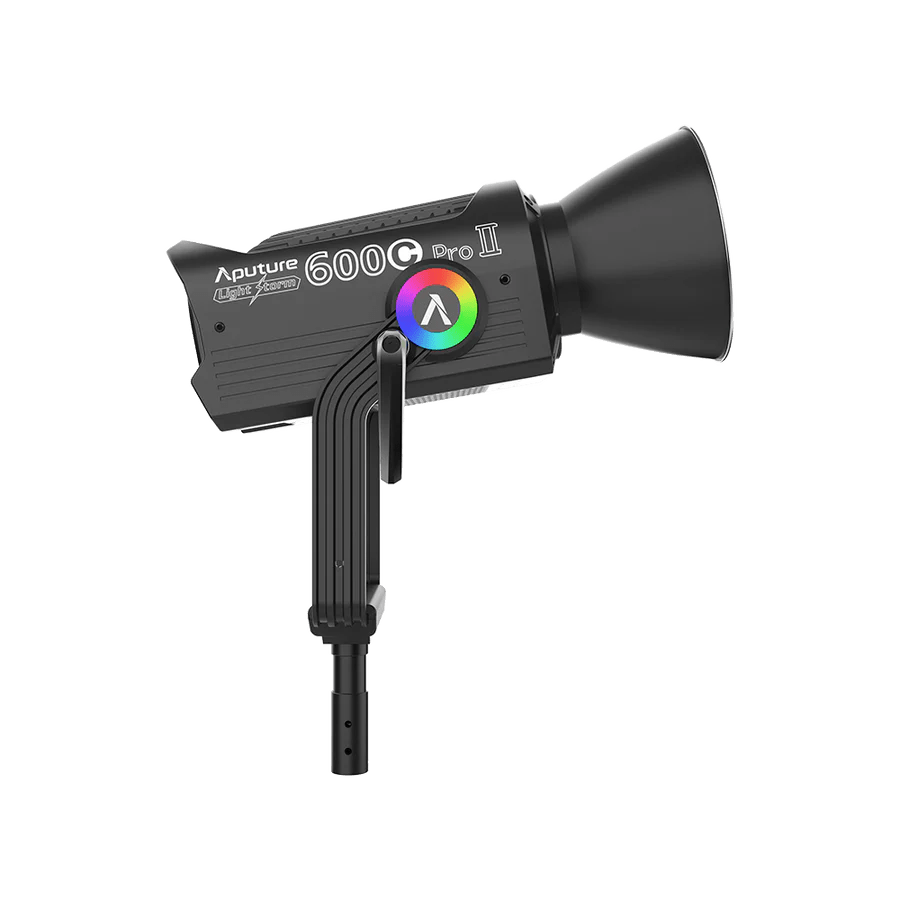

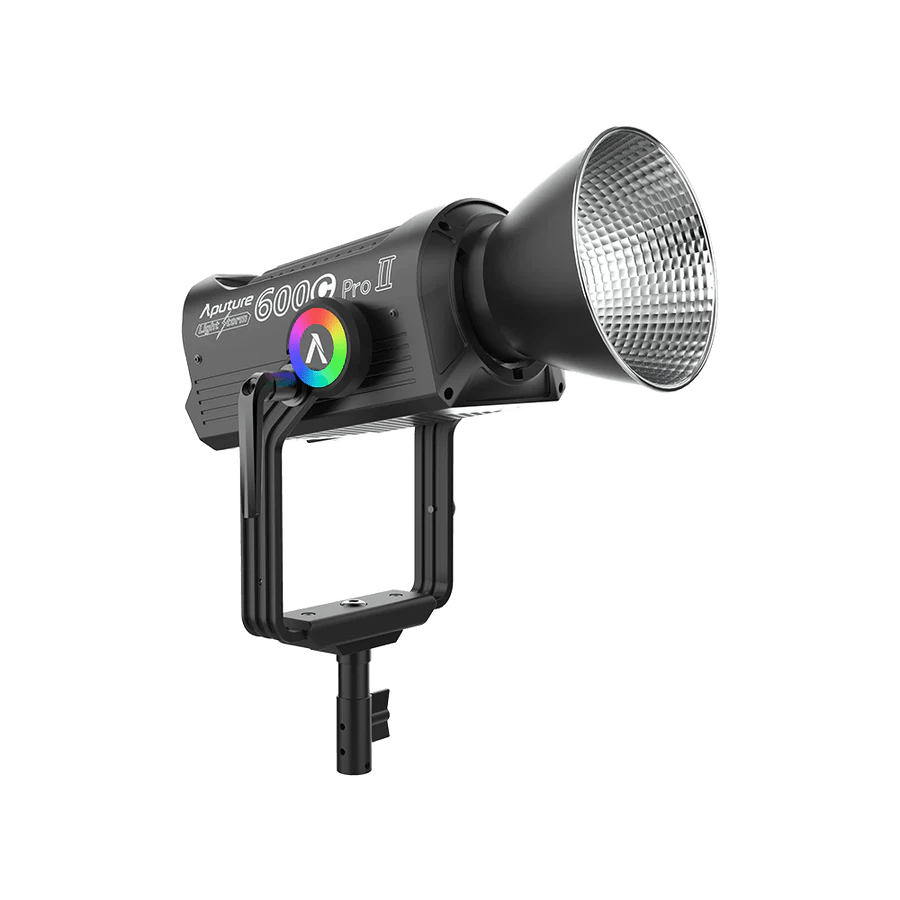

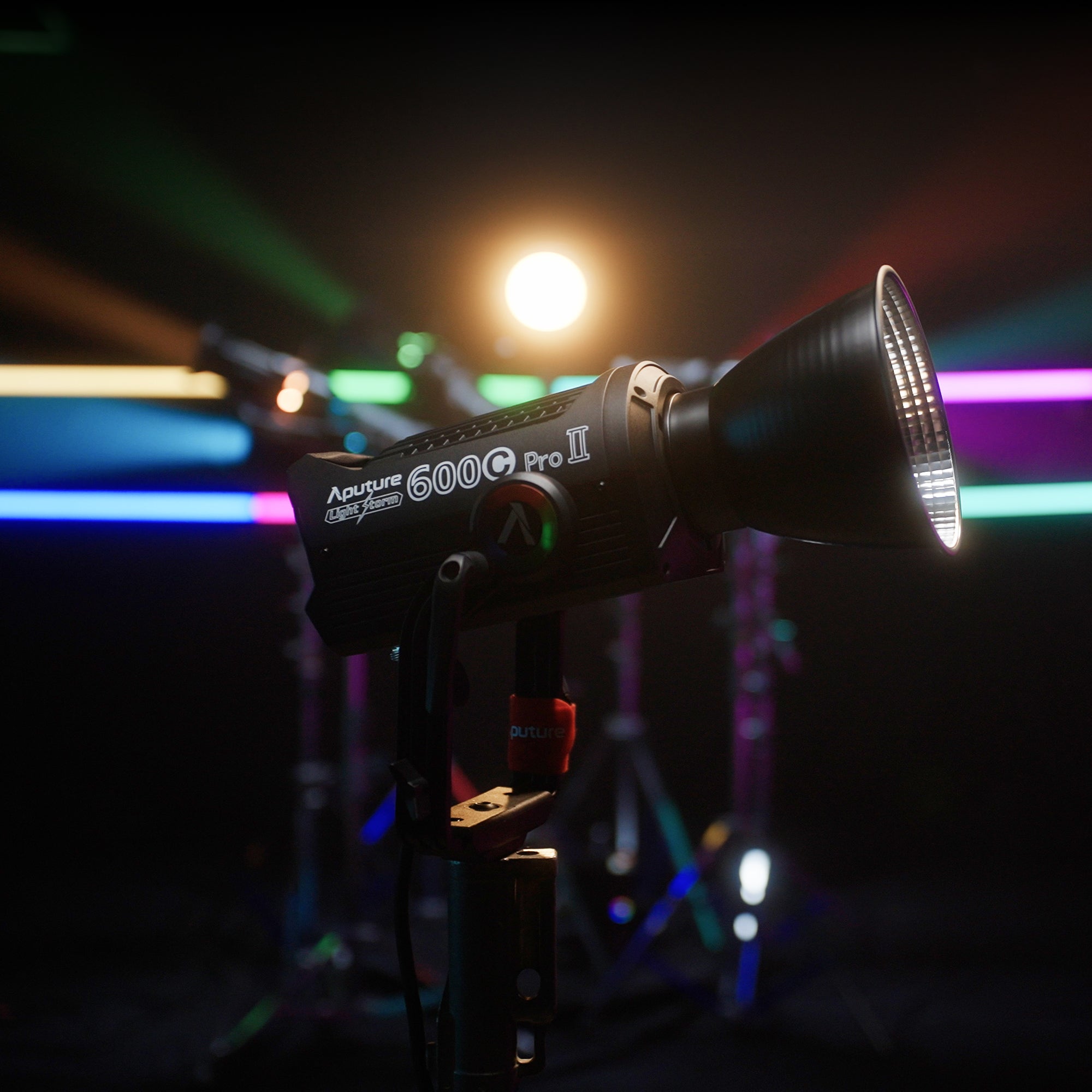

Aputure LS 600c Pro MKII
Aputure LS 600c Pro MKII (V mount)
The Standard Just Got Brighter
Features
- 600W Full-Color Point-Source Bowens Mount LED Fixture
- 720W Maximum Power Draw
- Daylight Output Comparable to 1200W HMI
- Upgraded Small-Diameter COB Design with Significant Output Improvement: 82% More Output Than the LS 600c Pro with New Hyper Reflector (91,500 Lux @1m, 5,600K)
- CCT Range of 2,300K to 10,000K

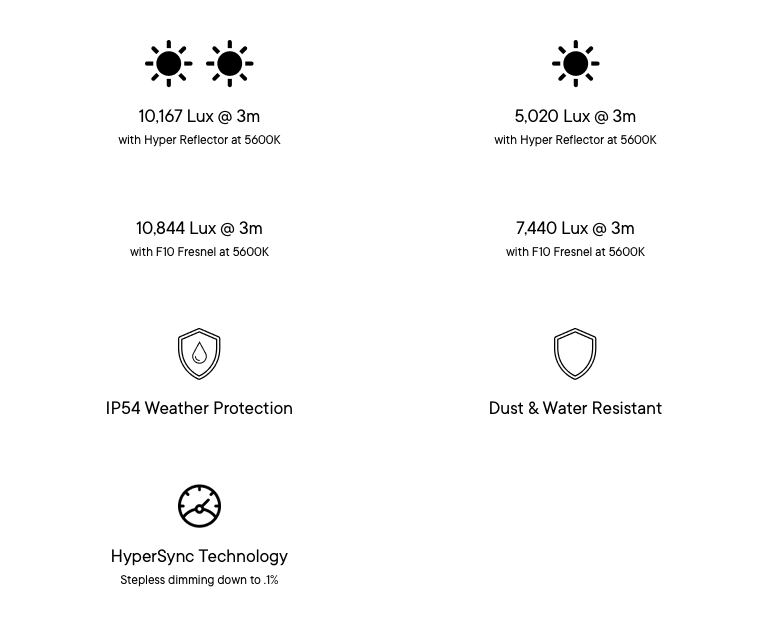

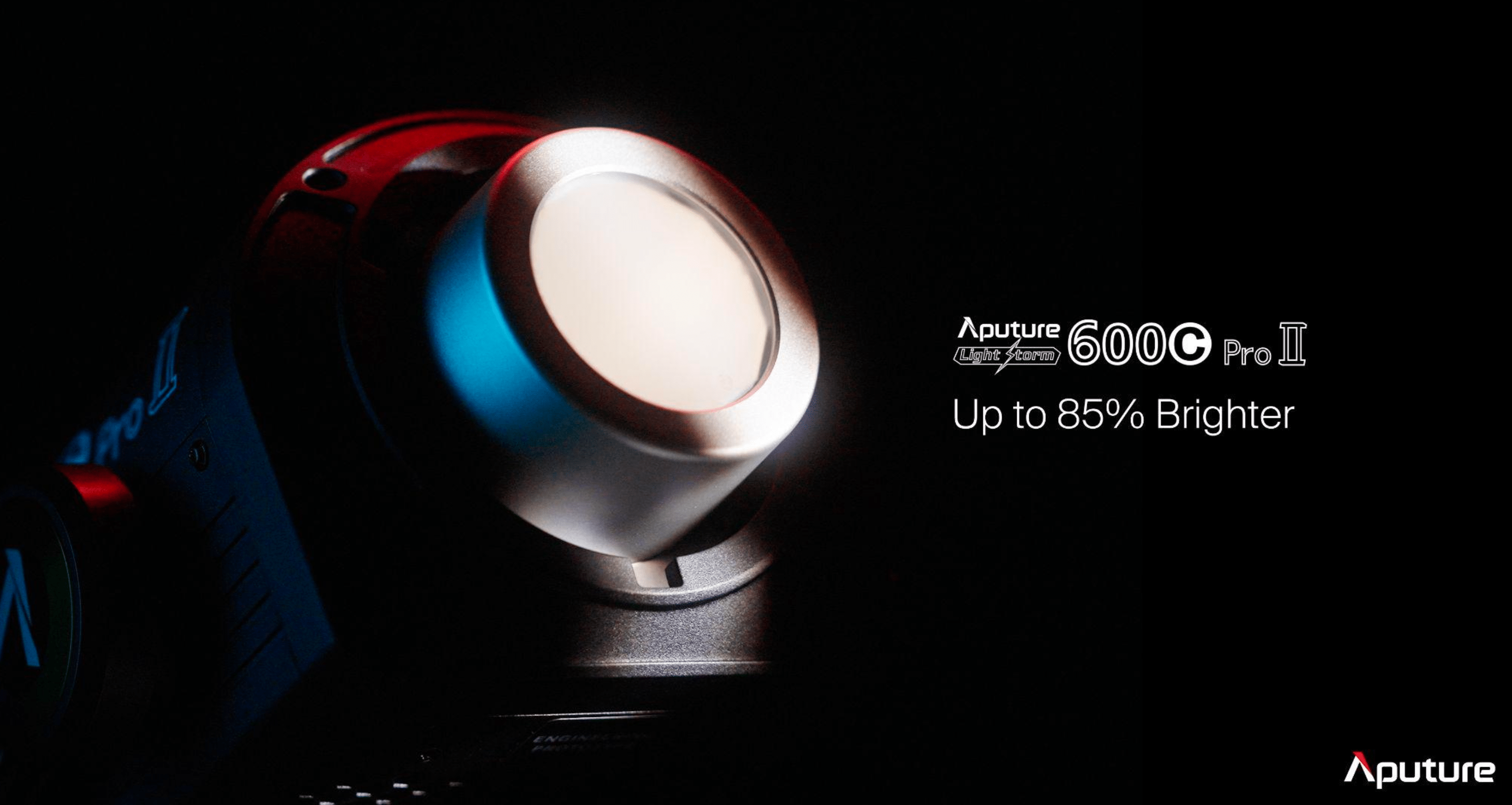

Up to 85% Brighter
The LS 600c Pro II has a new light engine design that increases output efficiency while maintaining power draw and color quality. A new formulation of LED emitters raises the output of the bare light by 35%. The new design is even better with modifiers, yielding 82% more light when used with the included Hyper-Reflector and 70-85% more when paired with the F10 fresnel.

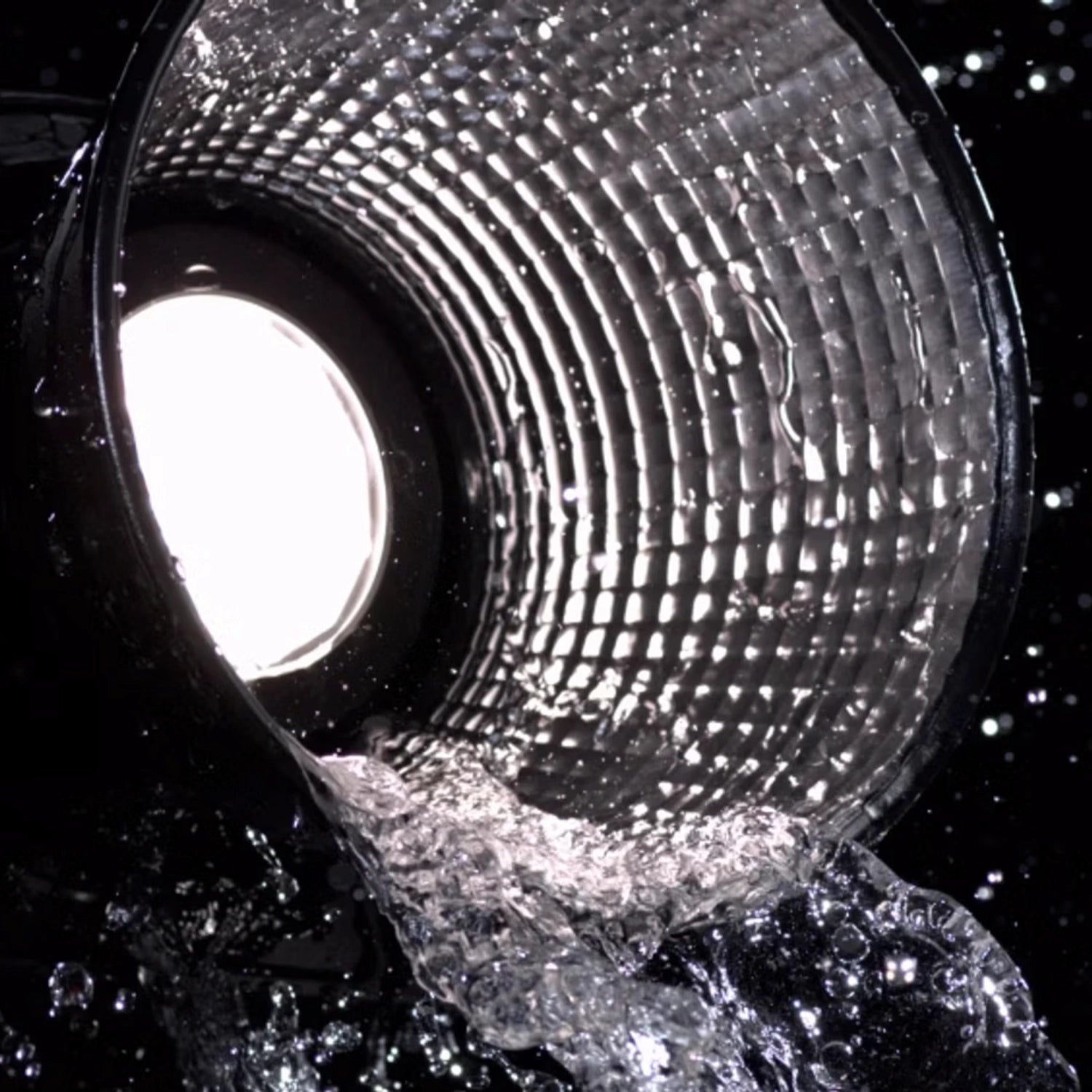

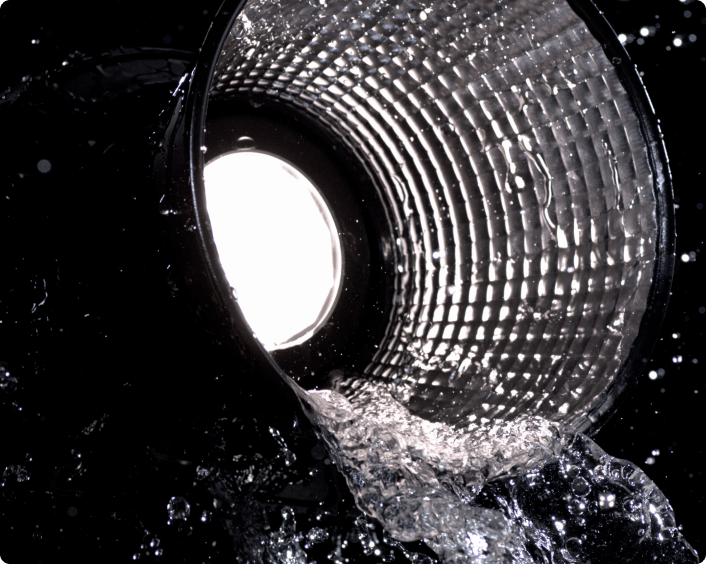

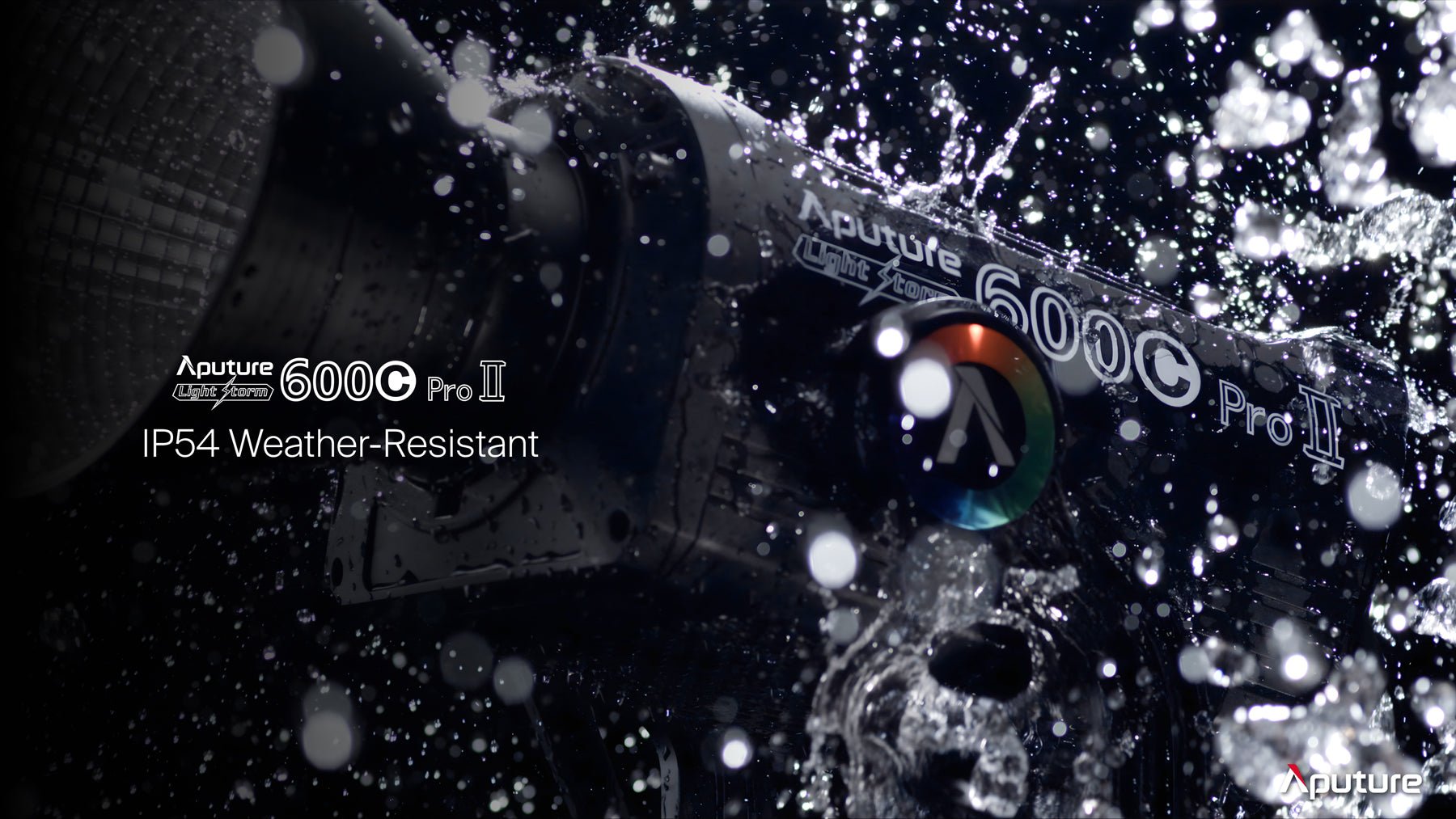

NOW IP54 WEATHER PROTECTION
Head-to-toe IP54 dust and weather protection means the LS 600c Pro II can work in extreme environments. New seals on every connector and around components allow not only the lamphead but also the control box and cabling to be used outside in the rain.

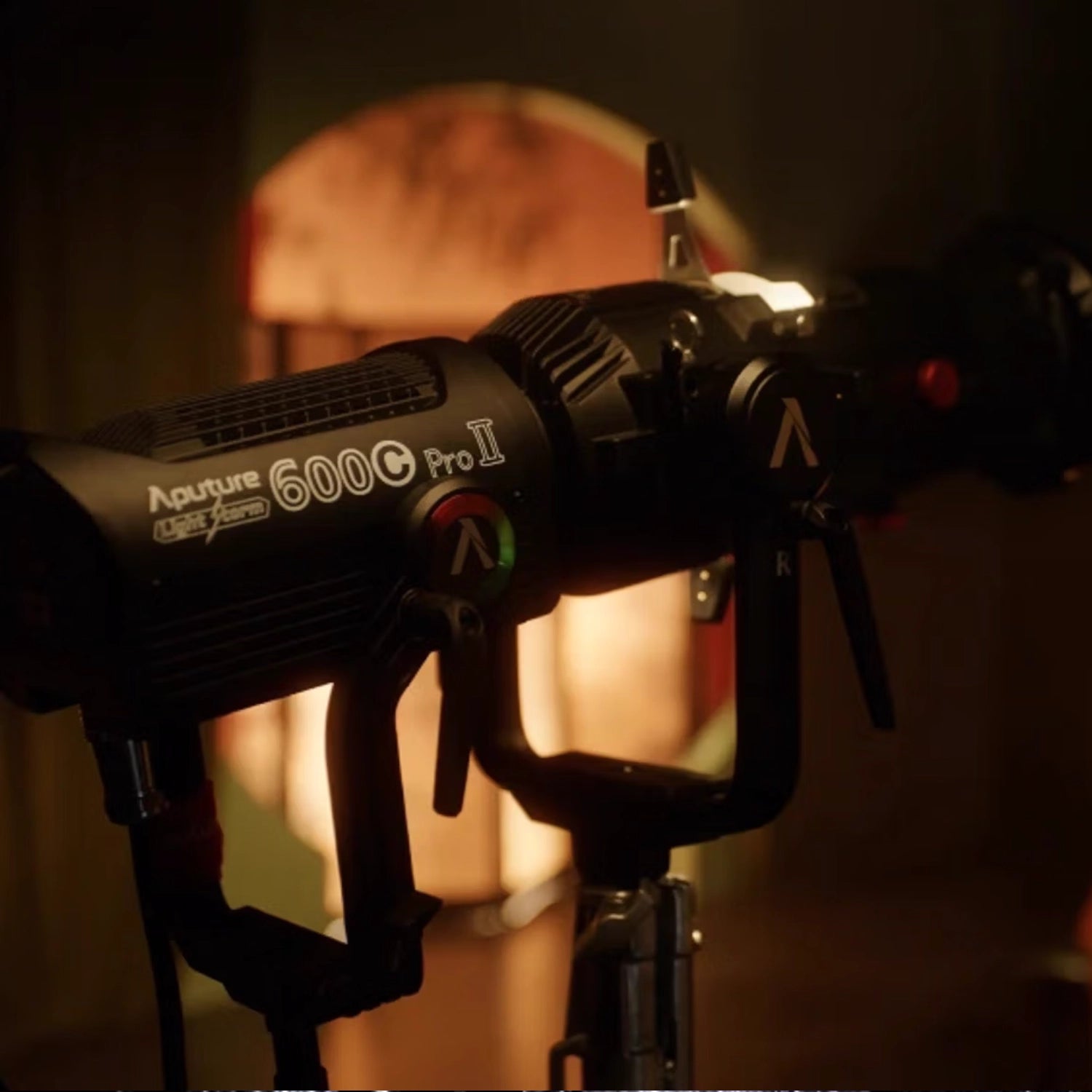

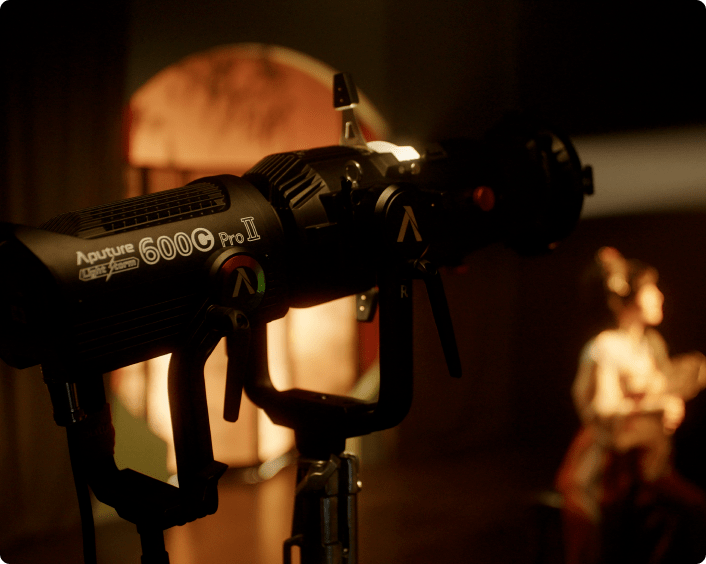

APUTURE ECOSYSTEM COMPATIBLE
The LS 600 series are the popular workhorse lights of the Light Storm line. The LS 600c Pro II uses the same Bowens mount modifiers and can be controlled using Sidus Link. The light offers all of the features of its predecessor while improving output, flicker and dimming. It will slip into your kit with ease, requiring no learning curve.
FAQ
WHY IS THE LS 600C PRO II BRIGHTER THAN THE ORIGINAL LS 600C PRO?
The LS 600c Pro II utilizes a new light engine design. Increased efficiencies in the emitter design allows the bare COB to be brighter. With a redesigned heat management system, Aputure’s engineers are able to pack the LED emitters tighter together. This concentrated COB design interacts more effectively with accessories, dramatically increasing the brightness further with the Hyper Reflector, the F10 fresnel and the Spotlight Max.
CAN THE LS 600C PRO II BE USED ALONGSIDE AN ORIGINAL LS 600C PRO?
Yes, the LS 600c Pro II uses the same color science as the original LS 600c Pro. Aputure designs and calibrates all our lights to be used together.
WILL THE LS 600C PRO II WORK WITH MY CURRENT APUTURE ACCESSORIES?
Yes, the LS 600c Pro II is designed to interface with the same accessories as the original LS 600c Pro. Lanterns, Light Domes, the F10 Fresnel and the Spotlight Max are all fully compatible with the LS 600c Pro II. Sidus Link also supports the LS 600c Pro II and the DMX profiles are unchanged from its predecessor.
IS THE IP54 RATING JUST FOR THE LAMPHEAD?

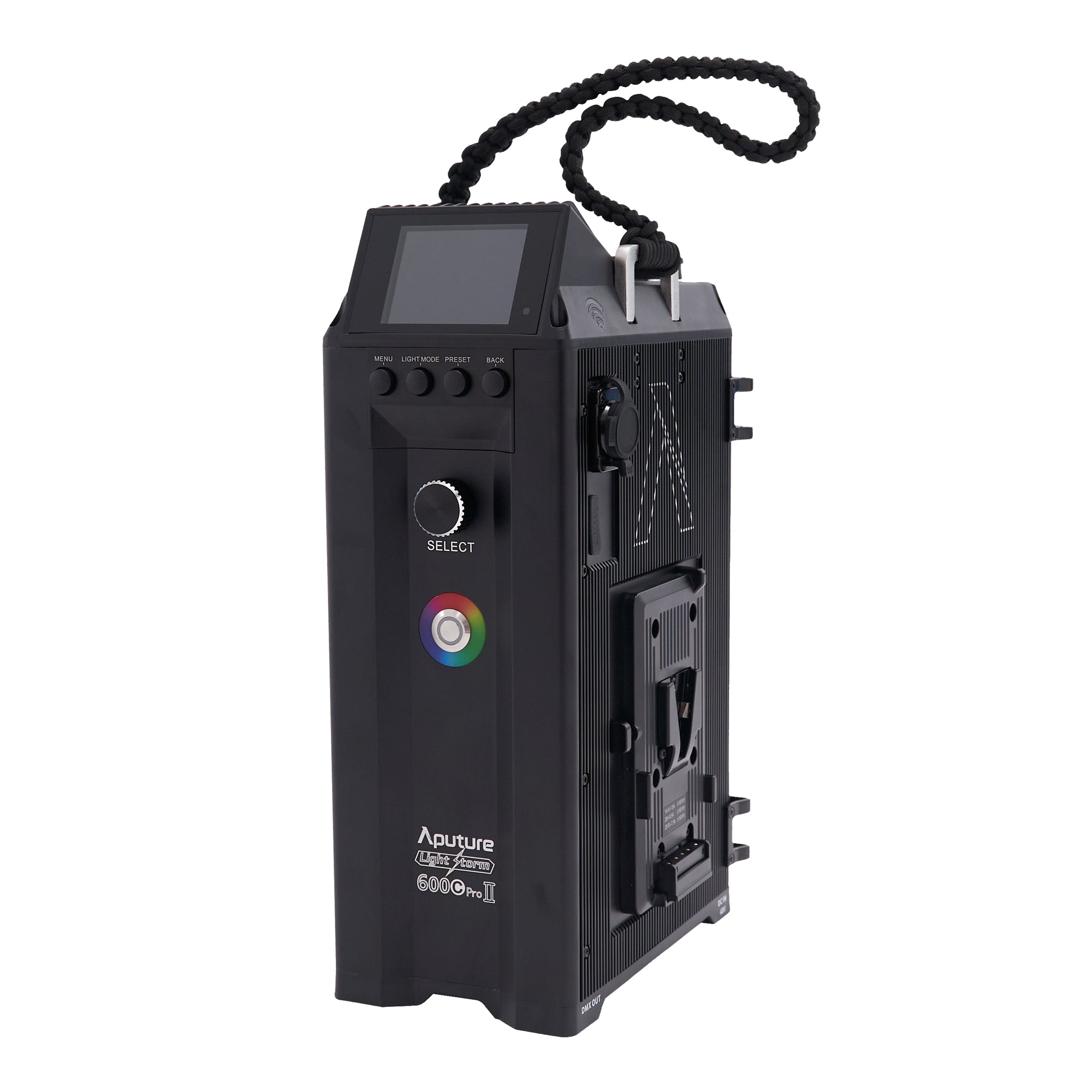

The entire LS 600c Pro II is fully IP54 rated. That means the Control Box, the cables, and the lamphead are all rated for use in adverse weather conditions.

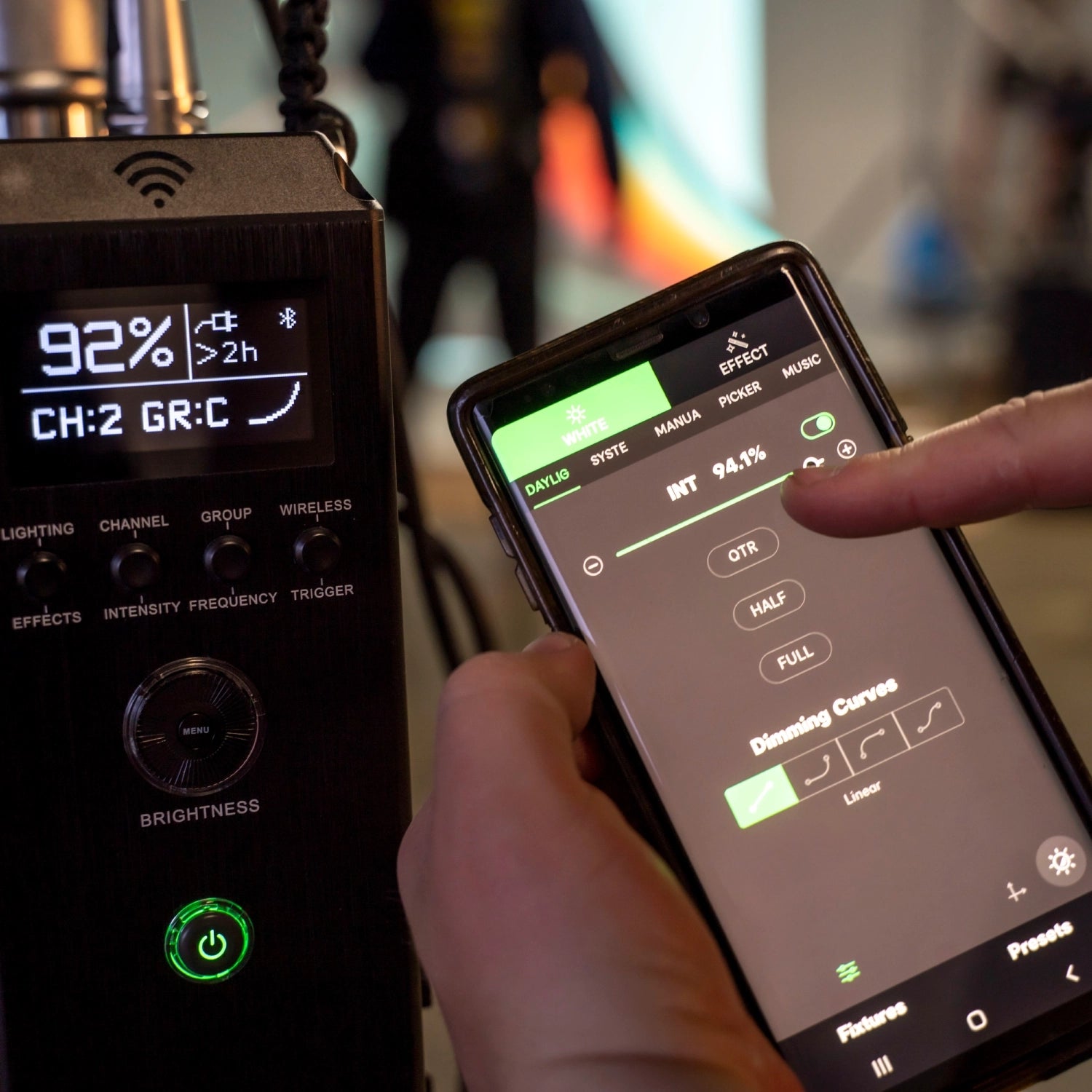

CAN I CONTROL THE LS 600C PRO II USING SIDUS LINK AND OTHER SYSTEMS?
Yes, the LS 600c Pro II features DMX, CRMX, ArtNet, sACN, ethernet and of course Sidus Link. The DMX profiles are the same as the original LS 600c for easy integration into any lighting control system.
LS 600C PRO II
SPECIFICATIONS
TECHNICAL SPECIFICATIONS
CCT | 2,300K – 10,000K |
CRI | ≥95 |
TLCI | ≥98 |
CQS | 96 |
SSI (Tungsten) | 85 |
SSI (D56) | 74 |
TM-30 RF (Average) | 93 |
TM-30 RG (Average) | 101 |
Max Power Consumption | 720W |
Max Power Output | 600W |
Weather Resistance Rating | IP54 |
Reflector Beam Angle | 45° |
Operating Voltage (Two Batteries) | 12-33.6V |
Operating Voltage DC | 48V / 15A |
Operating Voltage PSU | 100V~240V/8A/50-60Hz |
Operating Temperature | -20°C ~ 45°C / -4°F ~ 113°F |
Storage Temperature | -40°C ~ 85°C / -40°F ~ 185°F |
Control Methods | On-board, Sidus Link App, DMX/RDM, CRMX, etherCON |
Firmware Upgradeable | Sidus Link, USB Drive |
Wireless Range (Bluetooth) | ≤80m / ≤262.5ft |
Screen Type | TFT |
Cooling Method | Active Cooling |
Lamp Head Fan Noise Levels Smart Mode | 32.9dBa |
Lamp Head Fan Noise Levels High Mode | 32.9dBa |
Lamp Head Fan Noise Levels Medium Mode | 30.0dBa |
Lamp Head Fan Noise Levels Silent Mode | 24.0dBa |
Control Box Noise Level All Modes |
28.0dBa
|
WEIGHT
Lamp Head With Yoke | 5.9 kg / 13.0lbs |
Control Box | 5.4 kg / 11.9lbs |
DIMENSIONS
Lamp Head With Yoke | 45.2 x 26.7 x 15.0cm 17.8 x 10.5 x 5.9in |
Control Box | 36.6 x 19.7 x 15.6cm 14.4 x 7.8 x 6.1in |
(
Sale price£2,020.00ex. VAT)
