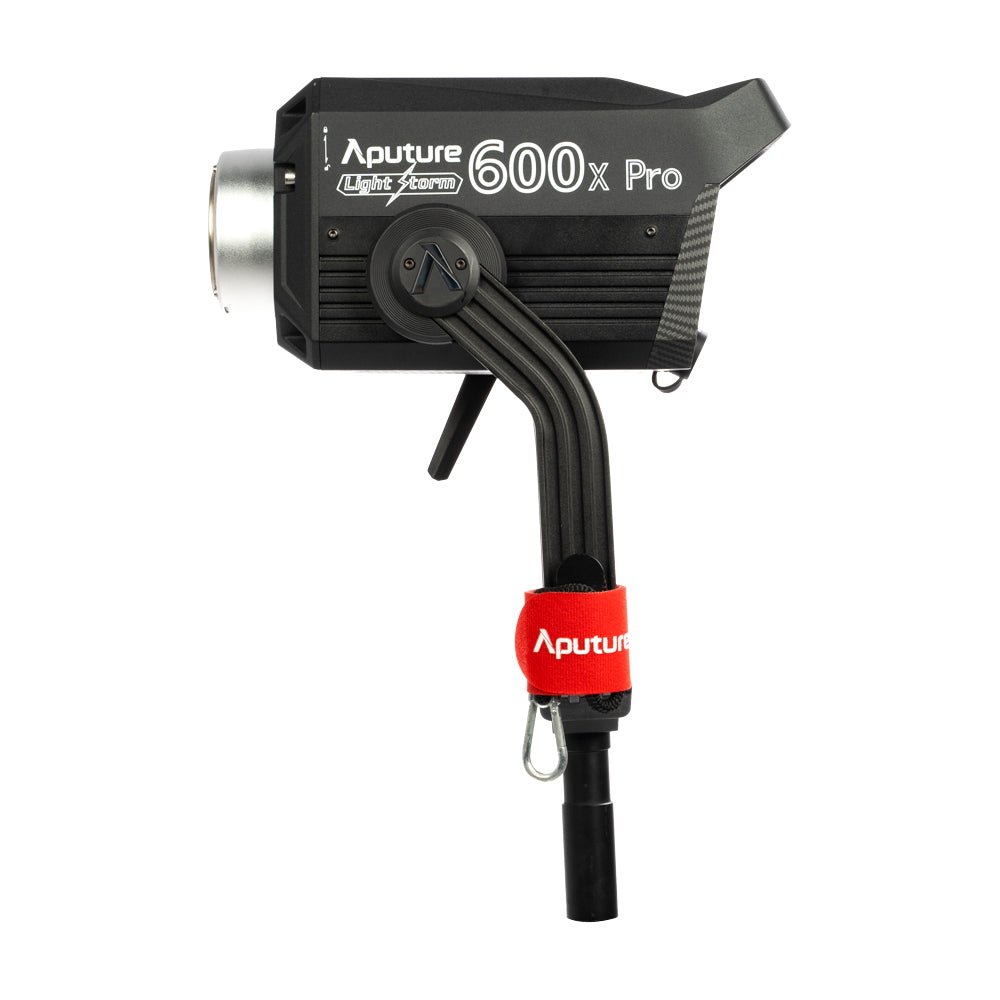

Aputure LS 600x Pro

Aputure LS 600x Pro (V mount)

Powerful & Modifiable Bi-Coloured Fixture

With its 600W bi-colour chipset, weather-resistant build, and professional control methods, including LumenRadio, ethernet, and 5-Pin DMX512 in and out ports, the LS 600x Pro is designed for professional cinematographers and lighting technicians who need a modifiable hard light or soft light fixture that can both provide intense output and flexibility in colour temperature.

The LS 600x Pro embodies all the benefits of the LS 600d Pro, and uses the same technology as the LS 300x that allows it to be one of few bi-colour Bowens Mount LEDs that are truly compatible with optical modifiers like Fresnels and Spotlights, allowing it to act as a proper complement or replacement for traditional filament fixtures on film sets. This makes it compatible with the same modifiers as the LS 600d Pro, so it works perfectly in tandem with existing LS 600 series lights, and Aputure accessories.

With its multi-voltage battery plates and DC Inputs, the LS 600x Pro has the flexibility to be powered on location, and can even act as a battery charger for V and Gold Mount batteries via AC Power, enhancing any lighting technician’s on-set workflow.

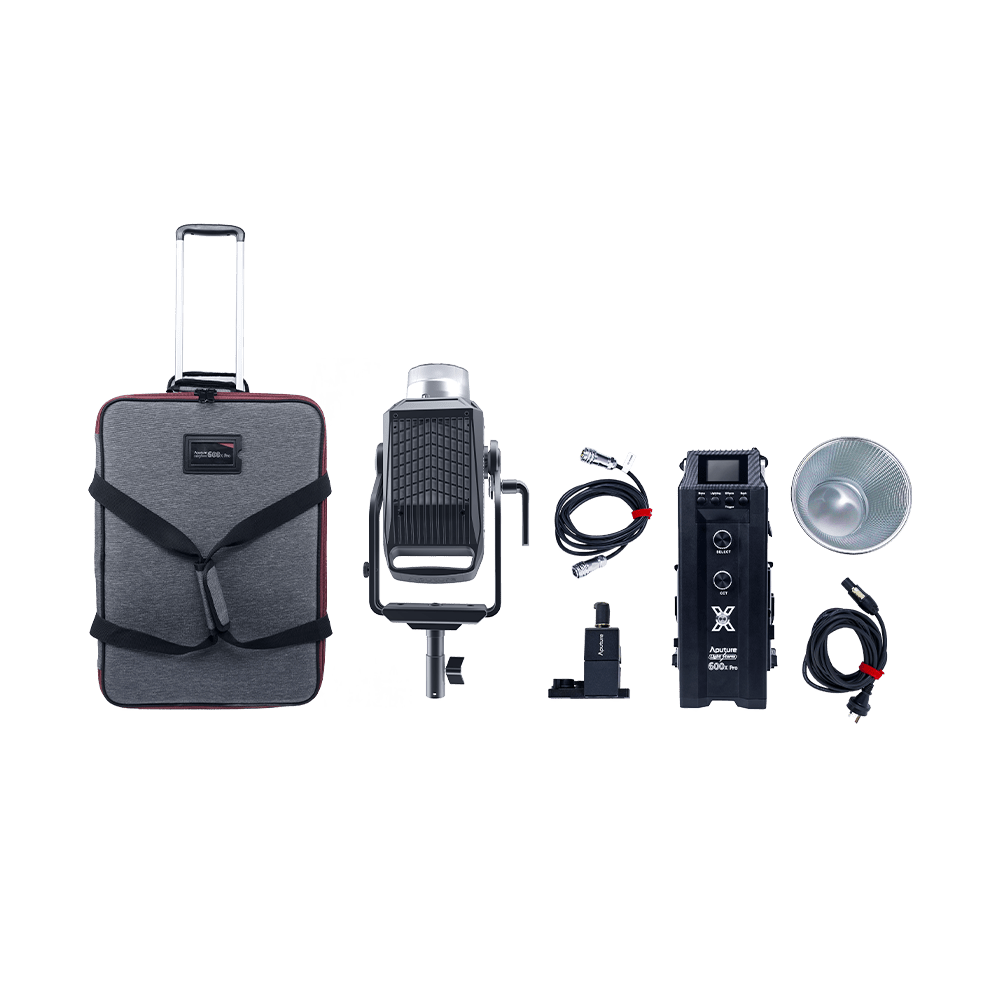

In the box

• 1 x LS 600x Pro Lamp Head

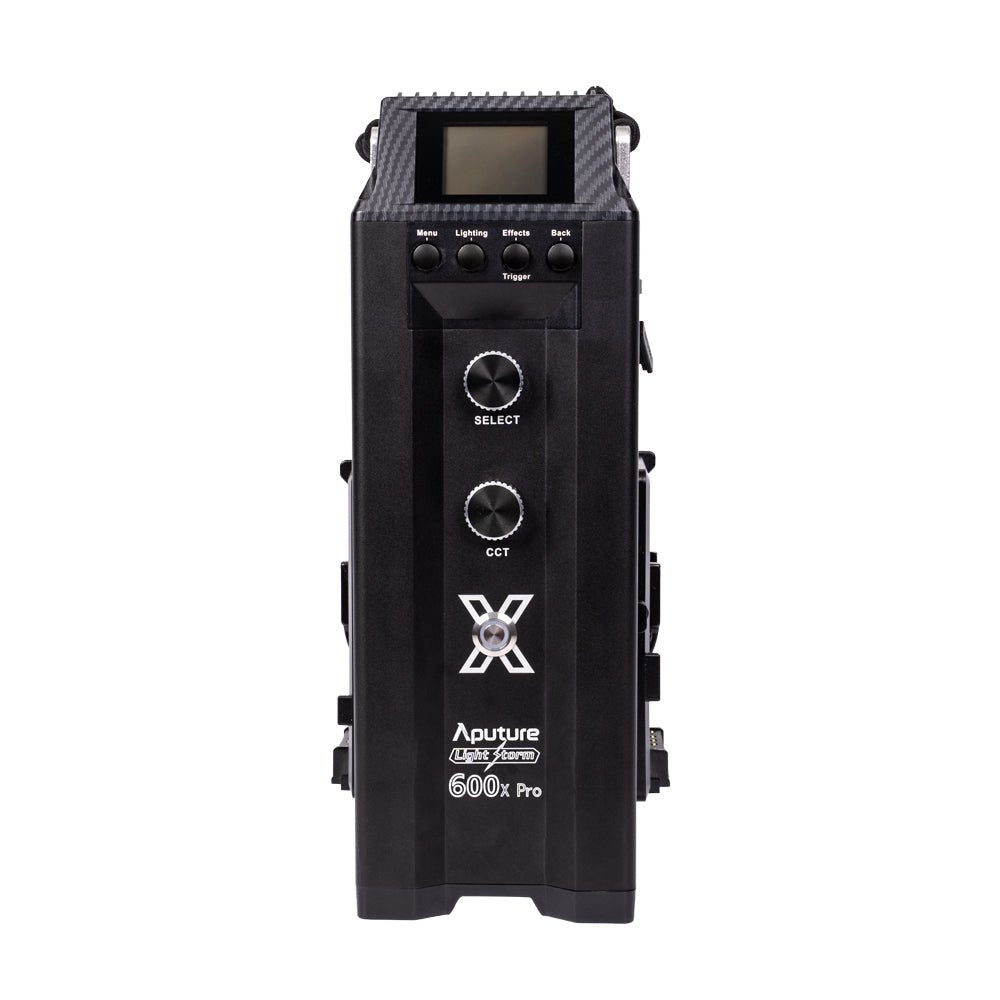

• 1 x LS 600x Pro Control Box

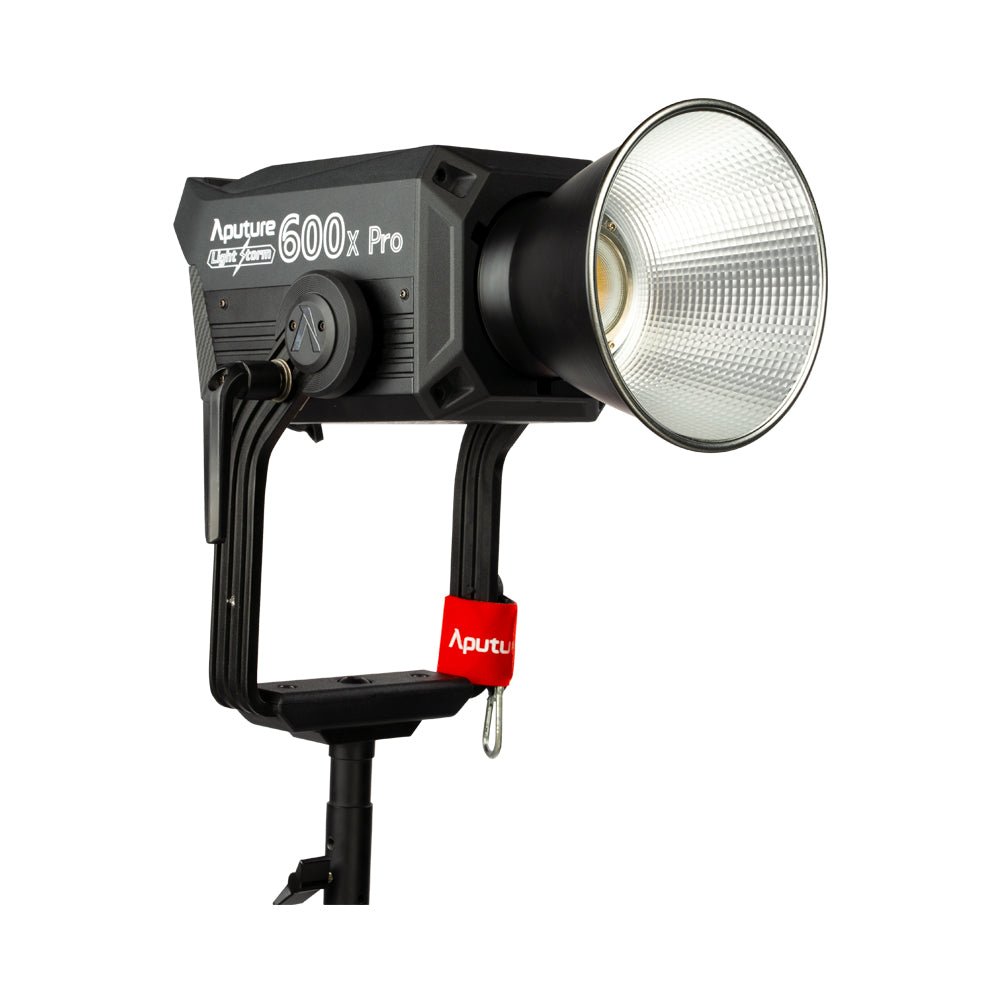

• 1 x LS 600 Series Hyper Reflector

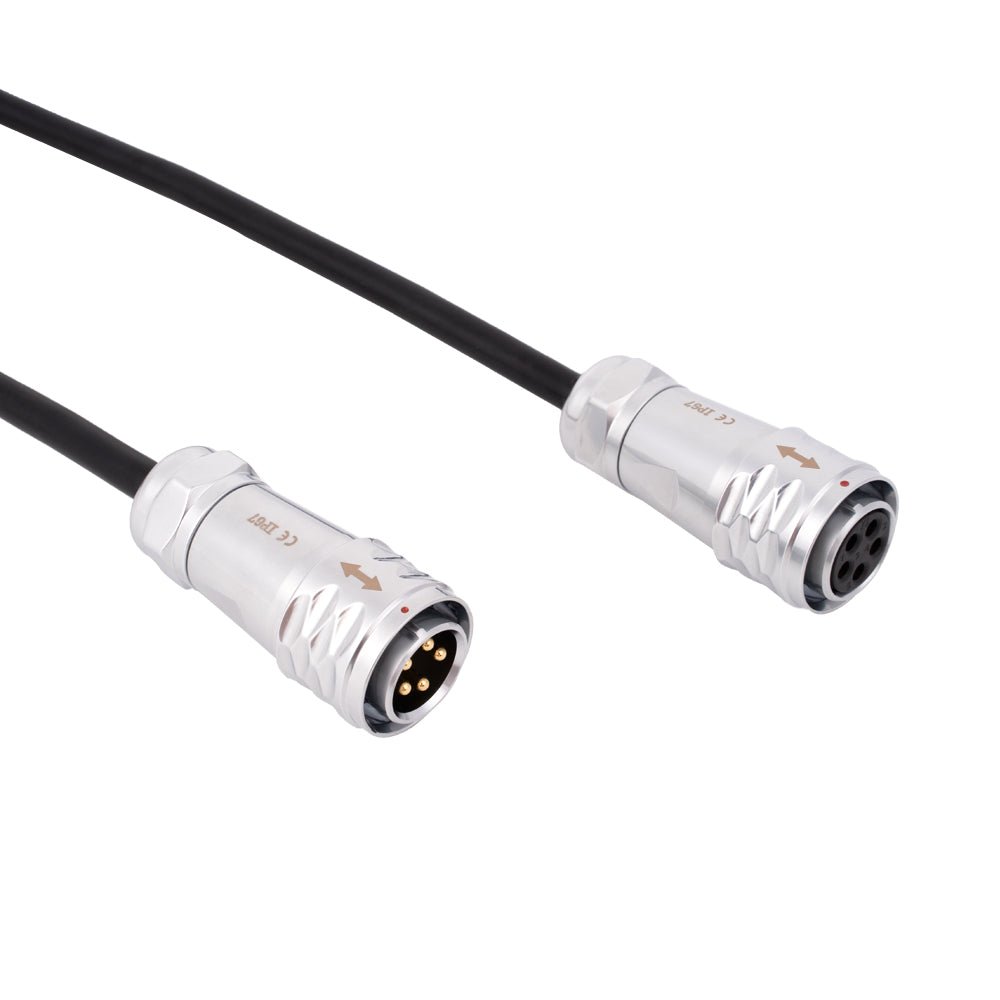

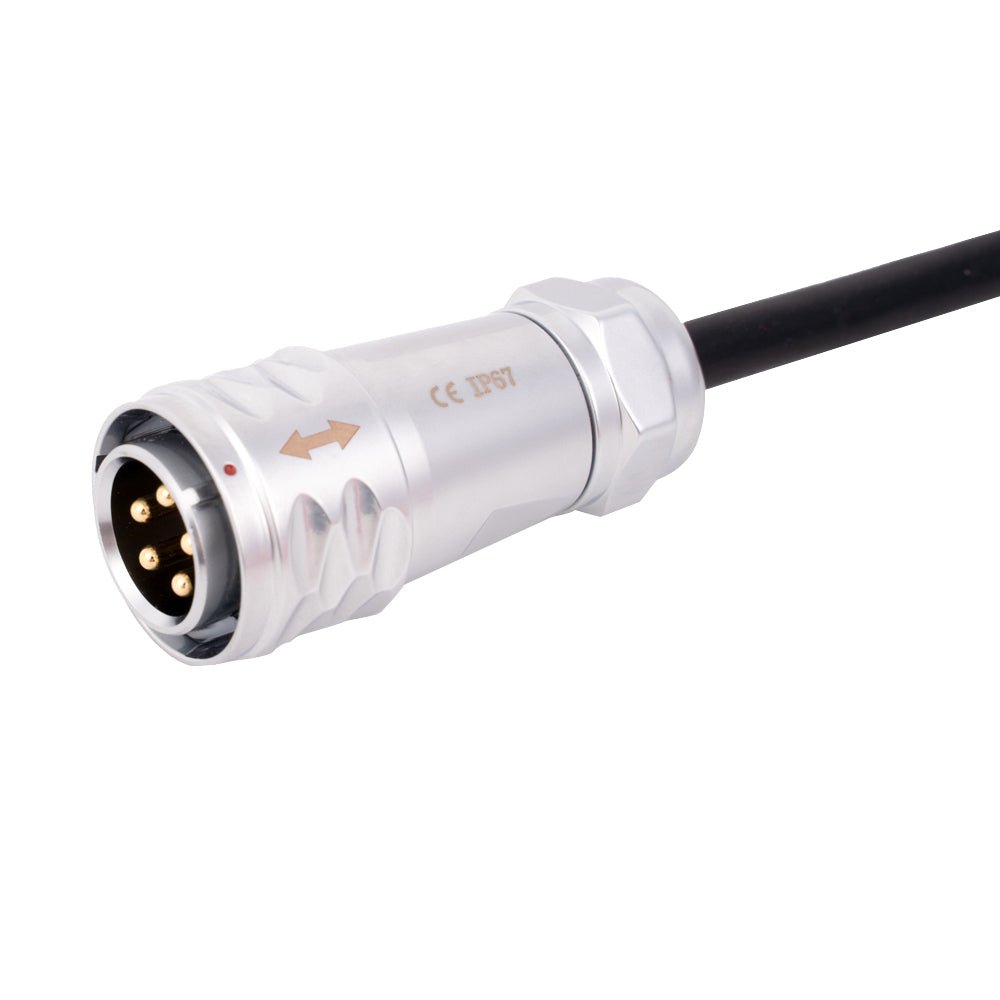

• 1 x LS 600 Series 5-Pin Weatherproof Head Cable (7.5m)
• 1 x Neutrik powerCON TRUE1 TOP AC Power Cable (6m)
• 1 x VA-Remote RC1+
• 1 x Lightning Clamp
• 1 x LS 600x Pro Rolling Carrying Case

BRIGHTER BI-COLOUR
The LS 600x Pro boasts an expanded bi-colour range of 2700K~6500K while still being able maintain an impressive output. Equipped with its native Hyper-Reflector, the 600x Pro can output 5,610 lux at 3 meters (10 feet). With the F10 Fresnel modifier, the combination can reach an illuminance of 18,510 lux at 3 meters in 15° spot.

PRECISION COLOUR BLENDING
Similar to the LS 300x, the 600x Pro utilises Aputure-designed colour-blending optics that combines its bi-colour chipset into a single cohesive light source, allowing it to be used with optical lens modifiers such as the F10 Fresnel and Spotlight Mount.

BUILT FOR PROFESSIONALS
Every aspect of the LS 600x Pro was designed with professionals in mind, with incredible output, a weather-resistant construction, a wide variety of power options, and professional level lighting controls, including Sidus Link, Art-net, and Wireless DMX. This is the LS 600x Pro, and it’s ready to blow away traditional lighting.

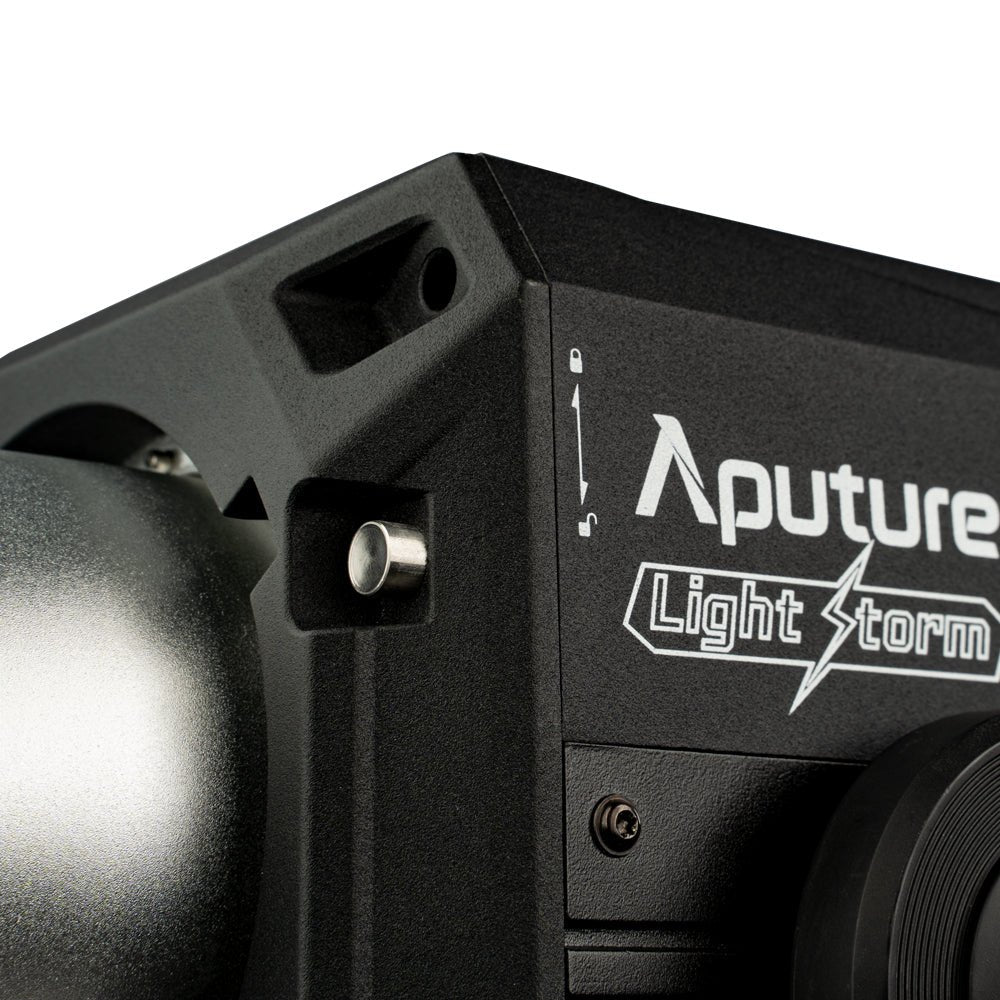

WEATHER-RESISTANT
The LS 600x Pro joins the Light Storm Pro series, featuring a weather-resistant design in a Bowens Mount fixture. Using waterproof fans, sealed internal structures, rubber caps for all ports, and weatherproof connectors, the LS 600x Pro can withstand challenging inclement weather environments.

0.1% STEPLESS DIMMING
The LS 600x Pro joins the professional Light Storm series featuring enhanced, stepless dimming, as well as light control in 0.1% increments, ensuring that you get the exact amount of light that you need.

2 OUTPUT MODES
The LS 600x Pro features two output modes: Max Output and Constant Output mode. In Constant Output mode, the luminance level remains uniform while changing the CCT output. Max Output mode will always maximise the output for the chosen CCT and dimming level.

PROFESSIONAL CONTROL
In addition to its responsive on-board controls, 2.4G remote, DMX512 5-Pin XLR In and Out, and Sidus Link® app compatibility, the LS 600x Pro is the first-ever Aputure light to simultaneously support sACN, ArtNet, and LumenRadio CRMX compatibility.

SIDUS LINK
Sidus Mesh integration allows users to control the 600x Pro from nearly any smartphone or tablet with the Sidus Link mobile app up to 400 meters away with the addition of other fixtures, including the Aputure LS C300d II, LS 300x, Accent B7c, MC, and Nova P300c.

QUALITY COLOUR
With exceptional colour accuracy measurements of CRI&TLCI≥96, CQS≥95, and SSI scores of (D56): 74, (Tungsten): 85, the 600x Pro provides consistently accurate light quality for all filmmakers, upholding a colour temperature standard of 2700K~6500K.

BATTERY CHARGING
Like the LS 600d Pro, when plugged into AC power, the LS 600x Pro doubles as a high-intensity bi-colour fixture and a supplementary charger for V-Mount & Gold Mount batteries, making it a useful addition to any filmmaker's toolkit.

BUILT-IN LIGHTING FX
The LS 600x Pro can utilise 9 different built-in light effects: "Paparazzi", "Fireworks", "Lightning", "Faulty Bulb", "TV", "Pulsing", "Strobe", "Explosion", & "Fire". The 600x Pro is also compatible with the SidusPro FX ecosystem.

BOWENS MOUNT

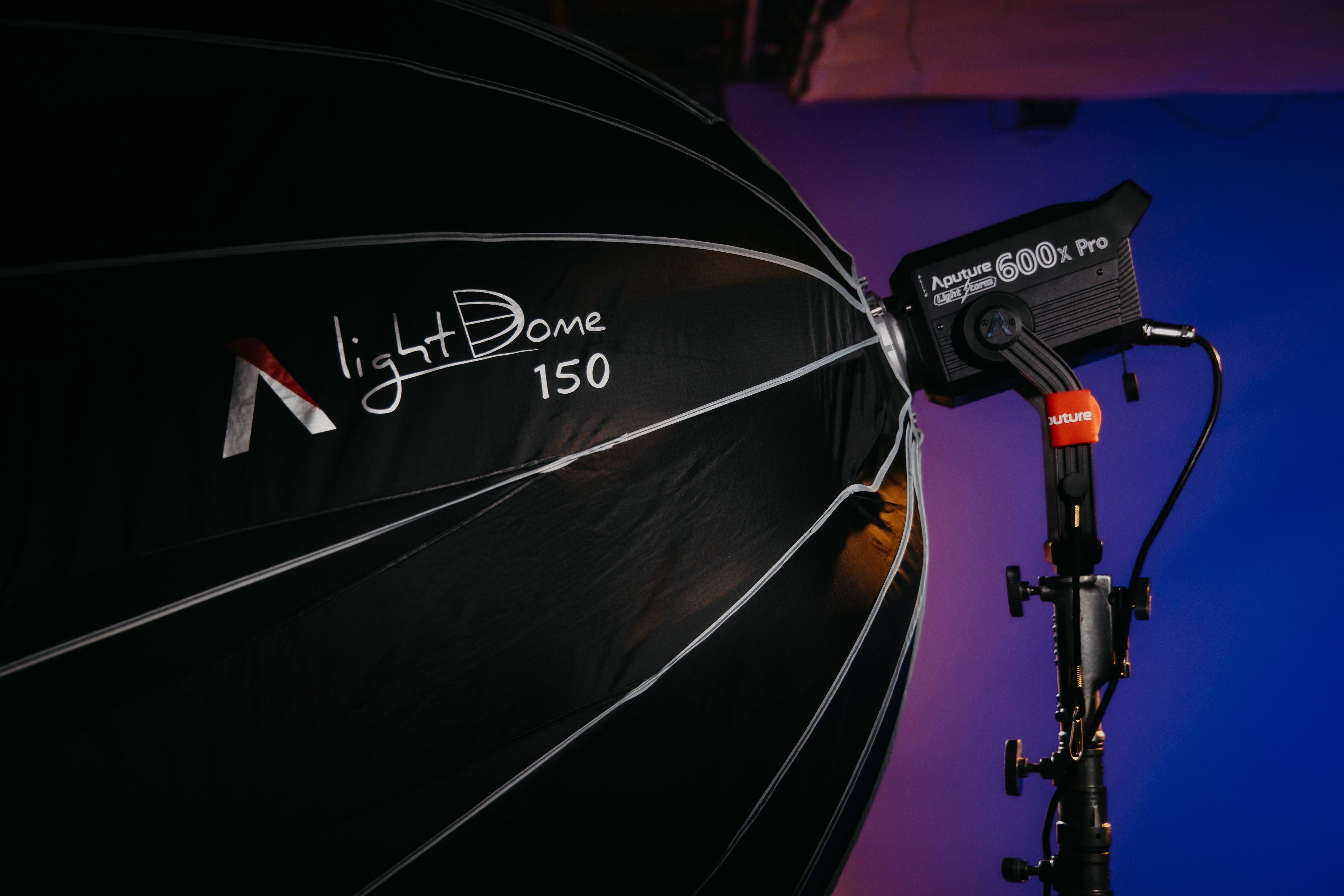

Continuing Aputure’s philosophy of modular lighting control, the LS 600x Pro’s Bowens Mount makes it compatible with Aputure’s lighting modifiers like the F10 Fresnel, Light Dome II, Spotlight Mount, and Lantern 90, but also third-party accessories from companies like DoPchoice and Chimera Lighting.

ADVANCED UI

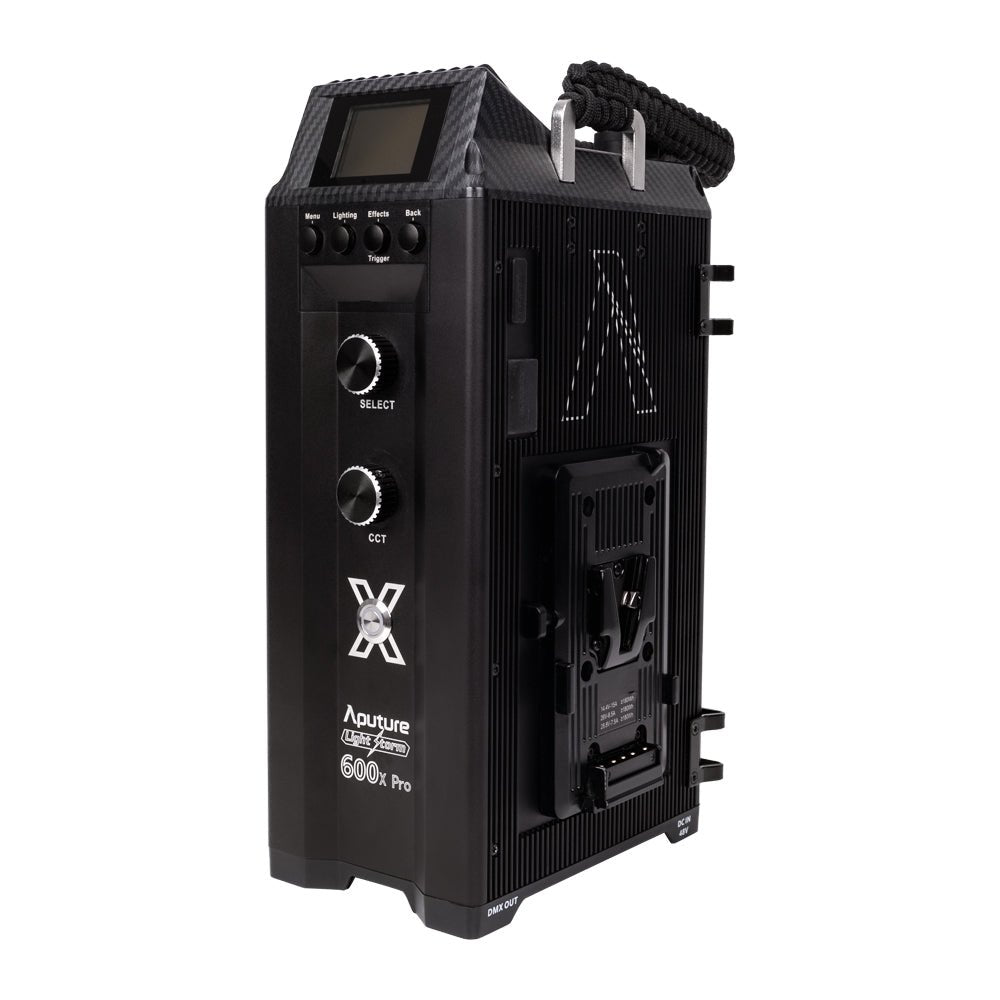

The LS 600x Pro features a detailed LCD screen interface that, including a revamped professional UI that displays important information in an intuitive way, including easy-to-read intensity and colour information.

DURABLE TRANSPORT CASE
The LS 600x Pro comes standard with a durable carrying case that features wheels and a telescoping handle, making transporting the fixture to and from set a breeze.

Main Features

• 18,510+ lux @ 3m with the F10 Fresnel @ 5600K

• 5,610+ lux @ 3m with the LS 600 Series Hyper-Reflector @ 5600K

• 2700K~6500K Variable CCT
• Precision Colour-Blending Optics
• Max & Constant Output Power Modes
• 0-100% Stepless Brightness Control
• CRI & TLCI ≥96, SSI (D56): 74, SSI (Tungsten): 85
• Weather-Resistant: Dust & Water Resistant
• Multiple Control Methods: 2.4GHz Remote, Sidus Link Bluetooth App Control, Built-in Wireless DMX, Art-net, Ethernet, 5-Pin DMX512 In & Out

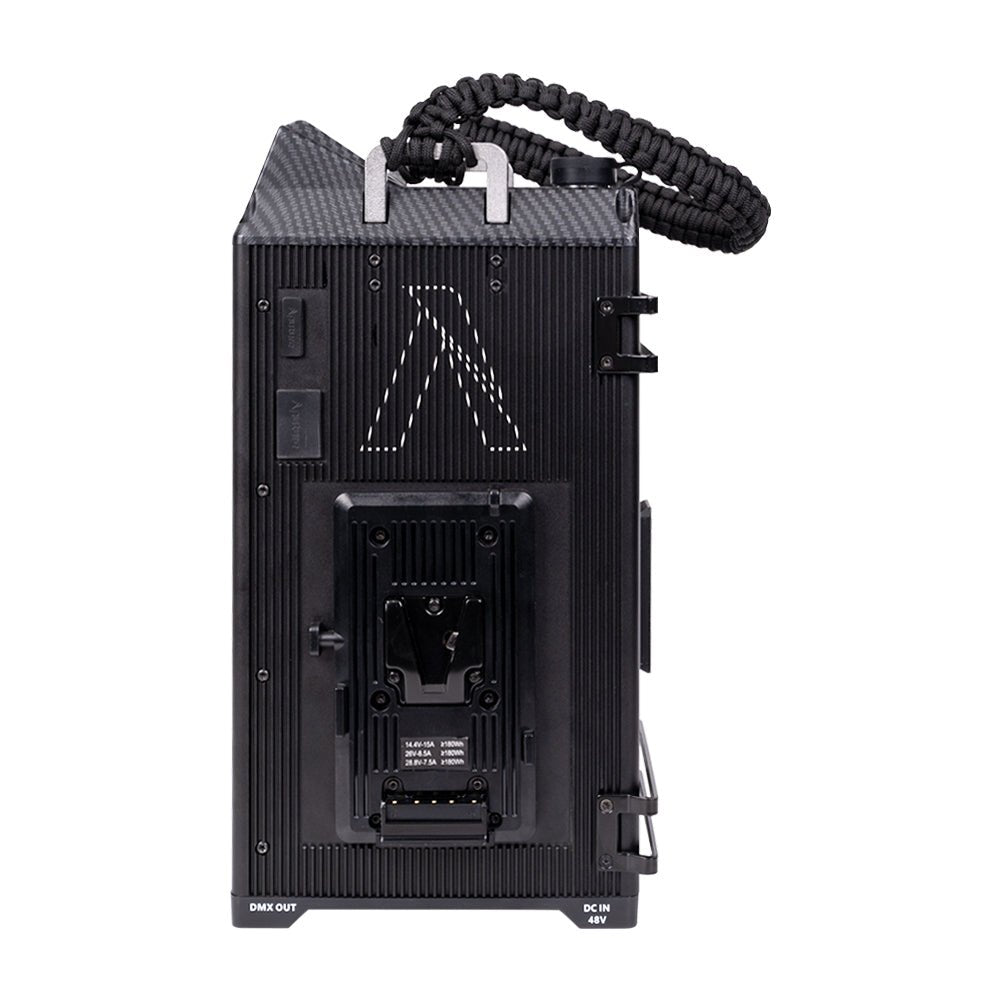

• Multi-Voltage Battery Plates Support 14.4V / 26V / 28.8V Batteries
• Half Power Output with 2x V-Mount / Gold Mount Batteries (14.4V/15A, 26V/8.5A, 28.8V/7.5A)
• Max Power Output with 2x V-Mount / Gold Mount Batteries (26V/18A, 28.8V/16A)

• Charge V-Mount / Gold Mount Batteries via AC Power
• Supports 48V/15A DC Input Power (3-pin XLR), Including Battery Power Stations & Block Batteries
• Optimised Output: LS 600 Series Hyper Reflector
• Utilises Universal Bowens Mount Standard
• Frequency Modulation to Remove Flicker

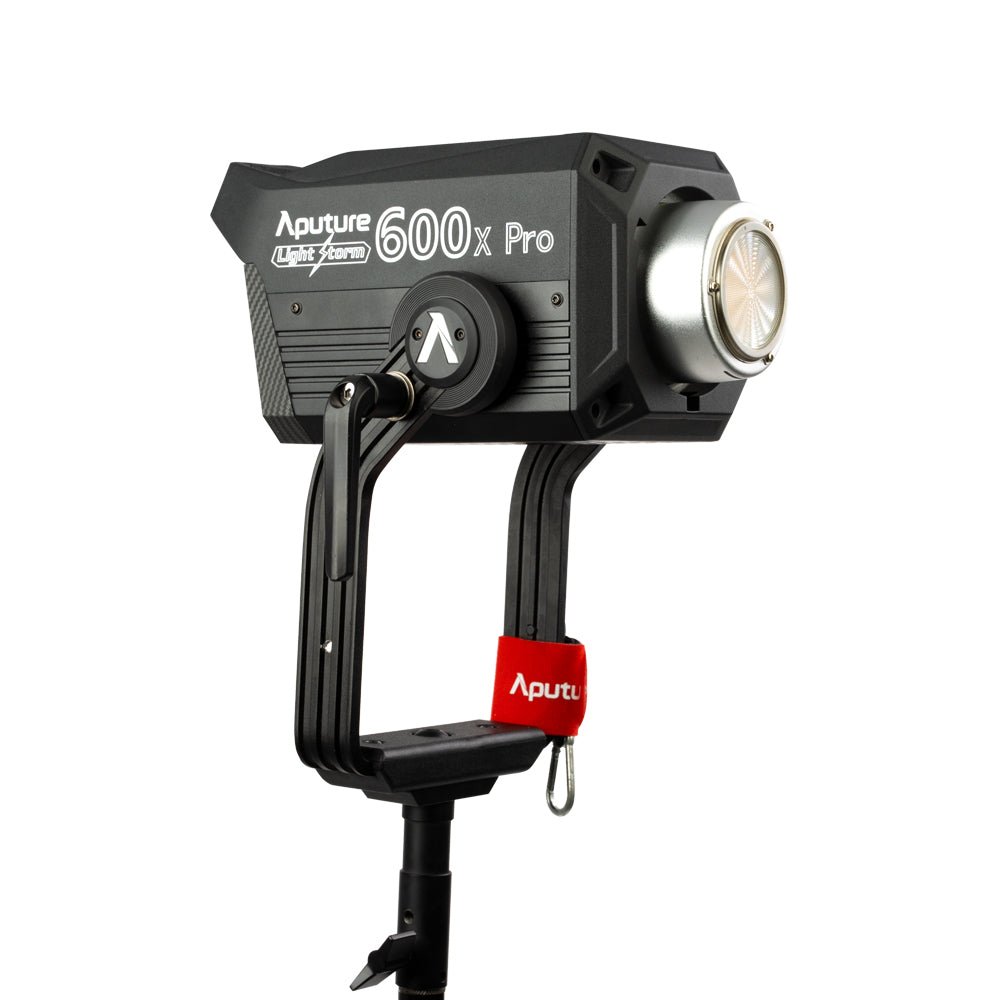

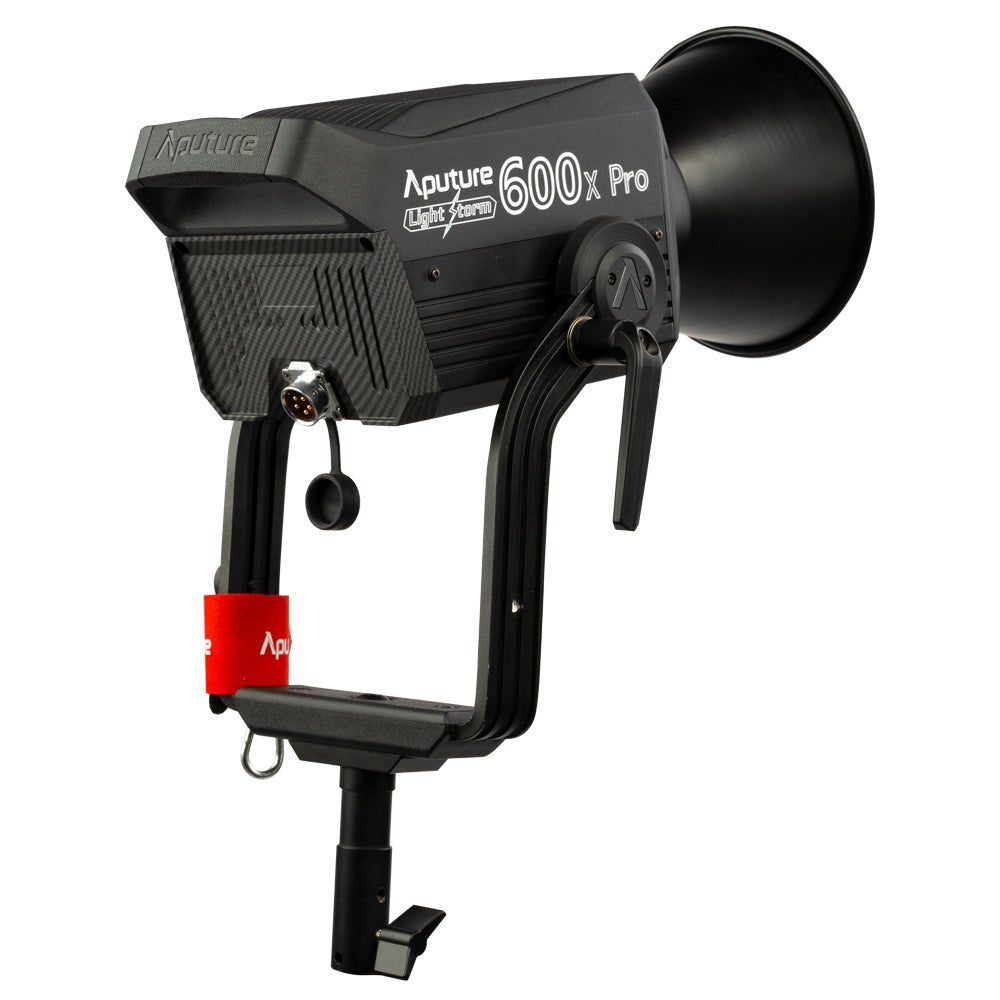

• Curved, Disk-Brake Yoke with 360° Rotation
• Dual Junior/Baby Pin (28mm/16mm) for Easy Mounting
• Separate Control Box for a Lighter Lamp Head
• 7.5m Weatherproof Head Cable
• 6m Locking Neutrik Power Cable
• Lightning Clamp Quick Release Plate
• 4 Dimming Curves: Linear, Exponential, Log, S-Curve
• 9 Lighting FX: Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, Explosion, & Fire

Specifications

• Package Size - 59x40x35.5cm / 23.23x15.75x13.98in
• Net Weight - 12.47kg / 27.491lbs
• Gross Weight - 19.07kg / 42.04lbs
• Carton Qty - 1pc
• Carton Dimensions - 62.5x43.5x39cm / 24.61x17.13x15.35in
• Carton Weight - 19.07kg / 42.04lbs

Detailed Product Specifications

• CCT - 2,700K ~ 6,500K
• CRI - ≥96
• TLCI - ≥98
• CQS - ≥95
• SSI (D56) - ≥74
• SSI (Tungsten) - ≥85
• TM-30 RF (Average) -95
• TM-30 RG (Average) - 100
• Max Power Output - ≤600W
• Power Consumption - ≤720W
• Operating Current - 8A
• Operating Voltage (Power Supply) - 100V~240V, 50Hz/60Hz
• Operating Voltage (Battery): V-Mount / Gold Mount (Two Batteries) Half Output - 12.5V-16.8V (14.4/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)
• Operating Voltage (Battery): Voltage V-Mount / Gold Mount (Two Batteries) - Full Output22V-33.6V (26V/18A, 28.8V/16A)
• Operating Voltage (3-Pin XLR [48V DC]) -48V/15A
• Operating Temperature - -20°C ~ 45°C / -4°F ~ 113°F
• Battery Charging (Voltage) - 16.8V/29.4V
• Battery Charging (Amperage) - 3A
• Wireless Operating Range (2.4GHz) - ≤100m
• Wireless Operating Range (Bluetooth) - ≤80m
