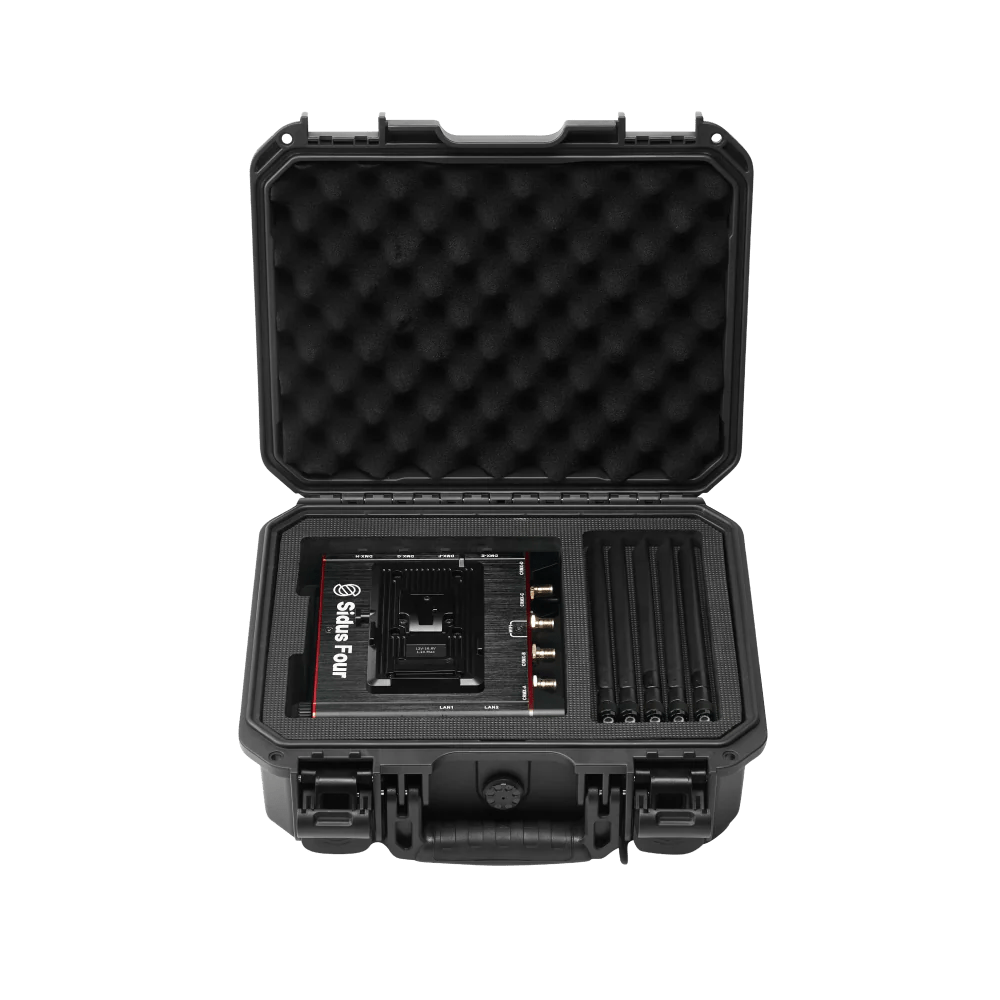

Sidus Four in the included protective csae with four aerials.

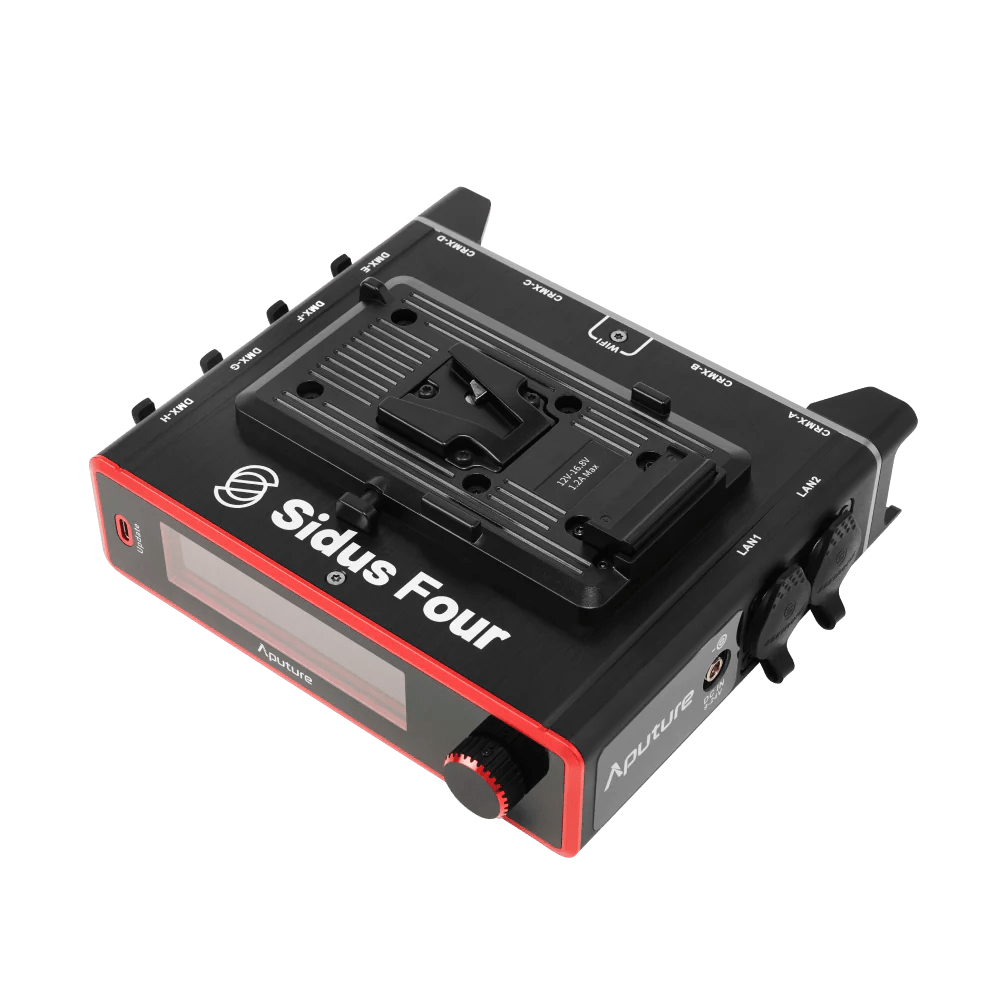

Aputure Sidus Four showing the top plate and the V-Lock mount.

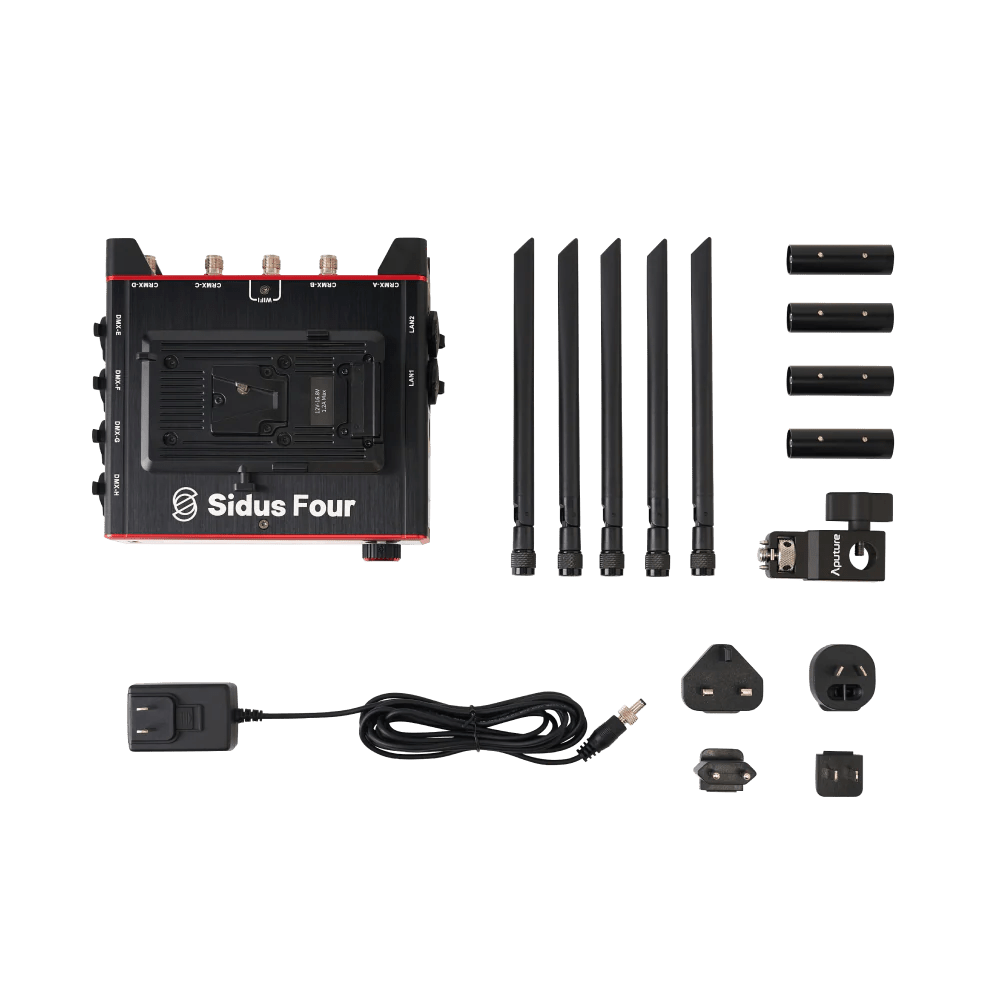

Aputure lay flat showing all items with the exception of the supplied kit case. Sidus Four, four antenna, power supply and all mains adapters and stand mount.

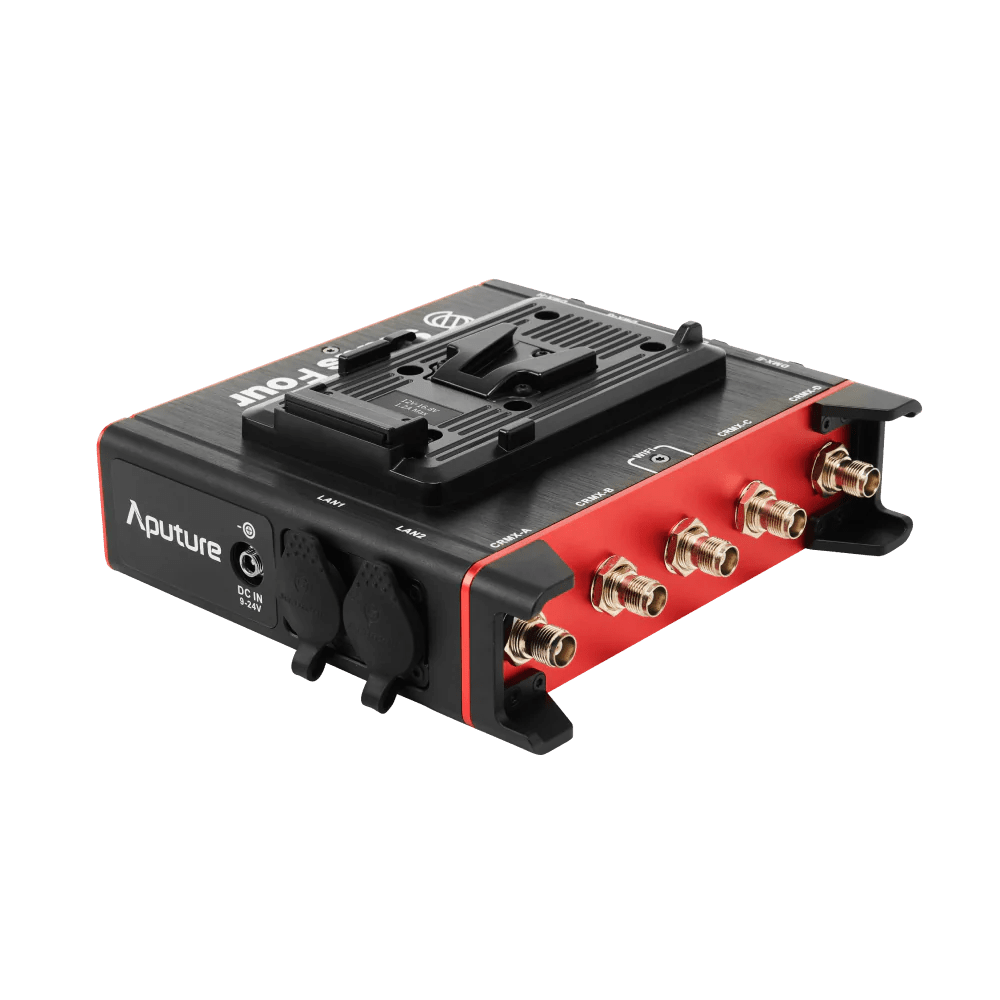

Aputure Sidus Four showing the rear and the four antenna points.

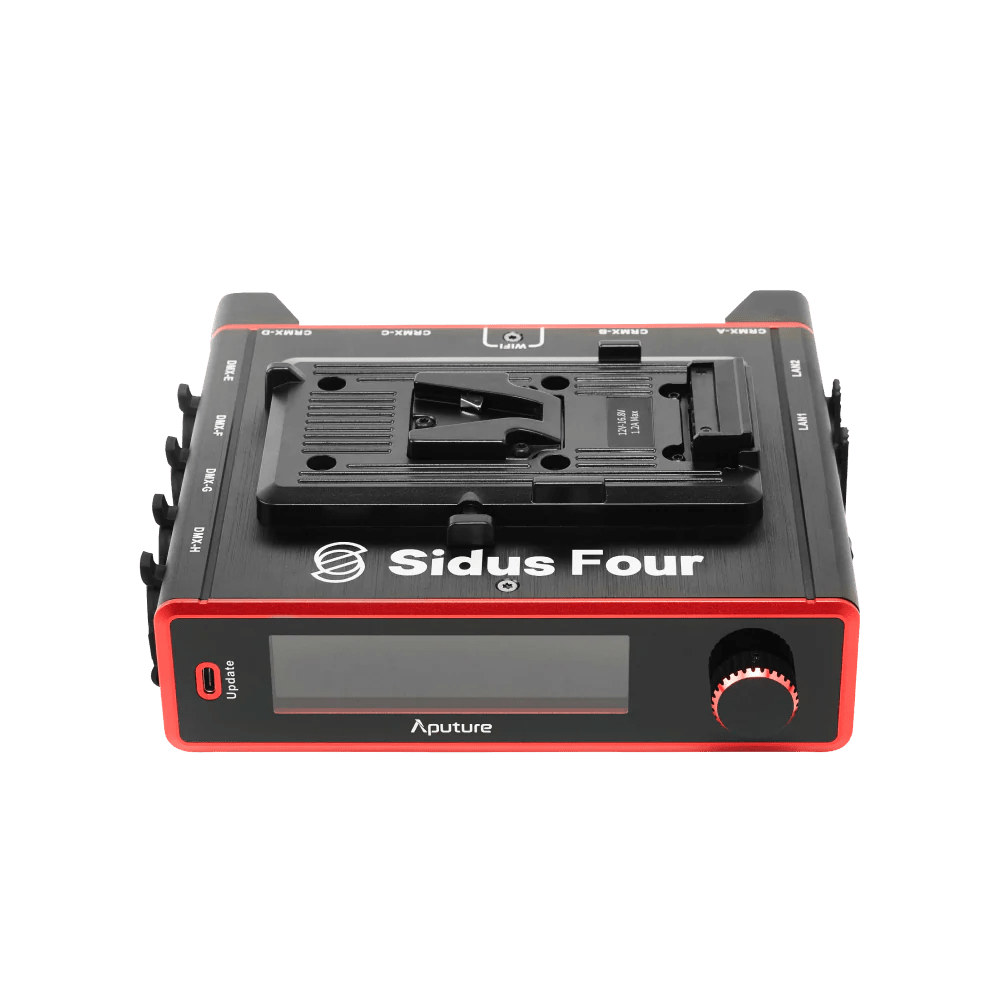

Aputure Sidus Four, front view showing the top plate and the V-Lock mount.

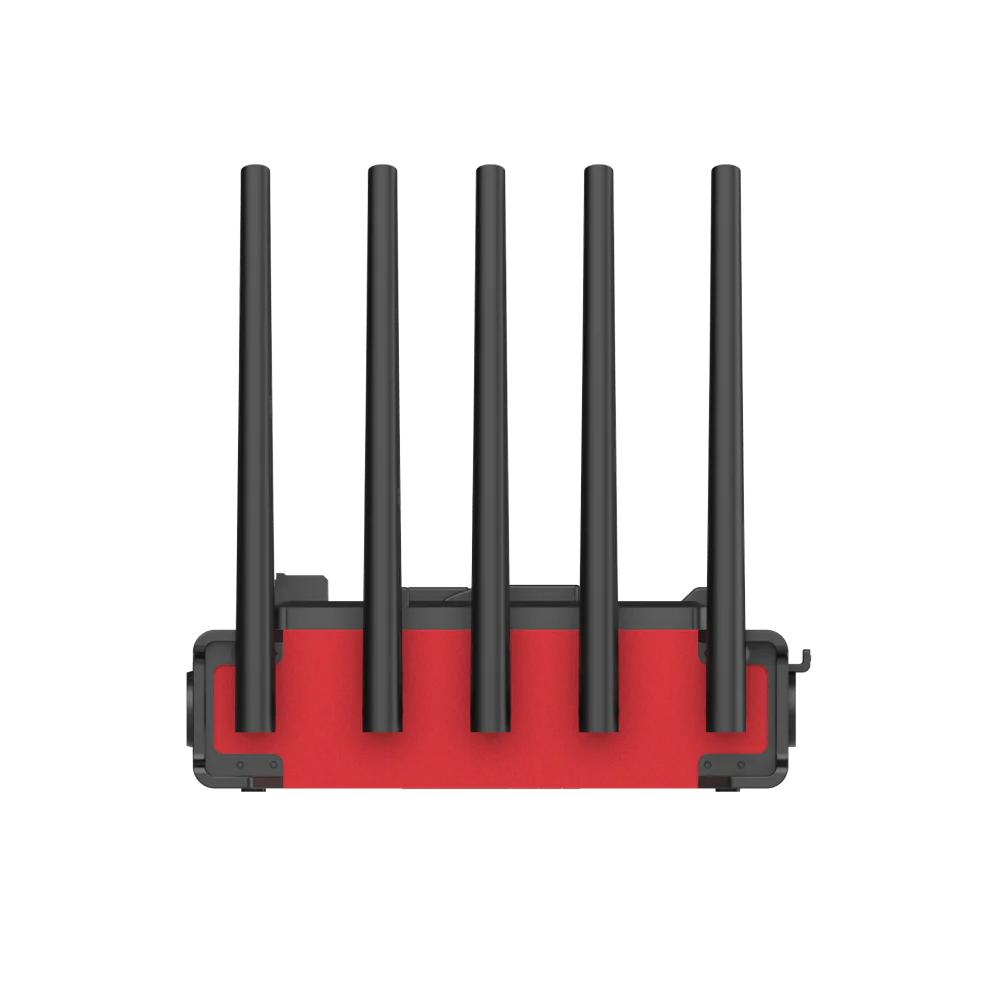

Aputure Sidus Four showing the rear plate and the four antenna.

Aputure Sidus Four

SKU: 6971842189847
Save 4%
Regular price£2,453.40 Sale price£2,361.60

(

Sale price£1,968.00

ex. VAT)

Shipping calculated at checkout.

1 In stock

Control four wireless DMX universes

Sidus Four universe CRMX transmitter, and DMX node with built-in wireless router.

Now you can control four wireless DMX universes across a vast array of protocols with this powerful, production-ready transmitter.

What's in the box

1x Sidus Four
4x Dual Band Antenna
1x 3/8” to Baby Pin Receiver Adapter
1x  Sidus Four 18W (9V) Power Adapter
1x US Plug
1x CN Plug
1x AU Plug
1x EU Plug
1x UK Plug
1x 5-Pin XLR Male to 5-Pin XLR Male Adapter
1x Sidus Four Hard Case

Universes of control

Sidus Four is an all-in-one lighting network device. Control four CRMX universes plus an additional four DMX universes with the built-in Ethernet node. Connect multiple Sidus Fours via the integrated Ethernet switch to expand your capabilities for big jobs.

Speak to your lights

Sidus Four communicates over a wide range of control protocols: 5.8Ghz WiFi, 2.4 Ghz CRMX, DMX, Art-Net, sACN, and Sidus Bluetooth. Transmit up to 800m with the powerful five-antenna array.

Production ready

Easily check network vitals with the clear, color-coded display. Run off AC power or V-mount batteries, and maintain control with an 80-minute internal backup battery. Endure the weather with IP65 dust and water resistance.

Product Specifications

  • Connectivity - CRMX, DMX512, Art-Net & sACN via Ethernet and Wifi
  • Universe Support - 4 Wireless Universes & 4 Wired Universes
  • Ethernet Connectivity - 2x RJ45 Ports at 100Mbps Each
  • DMX Connectivity - 4x XLR 5-Pin DMX Bidirectional Female Ports
  • Wi-Fi Operating Frequency - 5 GHz at 150Mbps
  • CRMX / Sidus BT Operating Frequency - 2.4GHz
  • Bluetooth Wireless Range - ≤300m / ≤984ft
  • Wi-Fi Wireless Range - ≤800m / ≤2,625ft
  • CRMX Wireless Range - ≤800m / ≤2,625ft
  • Wi-Fi Modes - AP mode/STA mode
  • CRMX Mode - TX mode
  • AC Adapter Operating Voltage - AC In: 100-240V DCOut:9V/18W
  • DC Jack - 5.5/2.5mm DC Barrel Jack (9-24V) (3m)
  • V-Mount - V-Mount Battery Plate (12-16.8V)
  • Lithium Polymer Battery - 3.7V 1500mAH

Dimensions

  • (Excluding Antenna) - 18.7 x 18.6 x 6.9cm / 7.4 x 7.3 x 2.7in

Weight

  • Weight - 1.40kg / 8.82lbs
