Forza 60CR LED RGBLAC Spot Light

Forza 60CR RGBLAC LED Spotlight

Nanlite introduces Forza 60CR RGBLAC spotlight with built-in CRMX
Building on the strengths of the Forza 60C, Nanlite introduces the new Forza 60CR. It has all the advantages of the original Forza 60C but with the important addition of built-in LumenRadio CRMX for professional wireless control from lighting consoles and high-end control apps. The size and form factor of the Forza 60CR remains the same as the original Forza 60C.

The original Nanlite Forza 60C spotlight with its RGBLAC six-colour LED mixing system has quickly become the go-to small light for gaffers, DPs and creators worldwide. This is due to its small size coupled with exceptional performance in spectrum, colour gamut, and colour rendering. With the addition of LumenRadio CRMX, the new Forza 60CR becomes the most complete small, colour, high-performance LED spotlight on the market today – providing professionals with even greater creative possibilities. It has unparalleled flexibility, achieving flawless colour and coverage.

The lightweight design, wide colour space, battery-powered capability, and wireless control make it a must-have tool for production. The 60CR enriches the Forza series of 60-watt lights, existing alongside the original Forza 60C, the new light gives filmmakers and photographers the option to choose the light which best suits their needs. The Forza 60C can be upgraded to the Forza 60CR with a paid hardware upgrade at authorised service centres. Users can contact the place of purchase for more details.

Full Spectrum, Full Control
The Forza 60CR is designed with the user in mind. Controls for color and all other settings can be accessed in several ways: via the intuitive on-board interface, the Nanlink App, DMX/RDM, and now with the Forza 60CR via LumenRadio CRMX. LumenRadio’s CRMX is renowned for its rock-solid reliability, making it an established standard in the lighting industry. It offers a reliable, high-performance communication option for wireless lighting control. It has proven its performance in mission critical environments on the biggest movies and TV shows, and at major events.

A Compact Powerhouse
The Forza 60CR redefines what a professional 60W LED light can do in film and stills production. The lightweight lamp head weighs just 1.16kg/2.56lb and provides a high illuminance level of 12,810 lux @ 1m with its reflector fitted. The classic compact design is elegant and intuitive to operate, equally at home in the studio and on location. Adding its battery grip makes on-the-go shooting effortless.

Break Boundaries – The RGBLAC Six-Colour Mixing System
The Forza 60CR uses Nanlite’s advanced RGBLAC six-colour mixing technology to achieve a full spectrum and wider colour space, with higher accuracy and greater saturation of colours. By integrating additional Lime, Amber, and Cyan LED emitters alongside the RGB emitters builds a much more complete light spectrum compared to traditional RGBWW fixtures. The saturation strengthens significantly for colours other than RGB in HSI mode, giving the Forza 60CR the edge in colour rendition over other existing RGB, RGBW, and RGBWW fixtures. Subtle colour reproduction for lower saturated colours can be easily achieved.

The development of an RGBLAC system has been achieved by overcoming multiple technical difficulties. The distribution of light sources is optimized and the structural design adjusted to avoid uneven illumination in actual use. The power of each LED emitter is scientifically calibrated to ensure a consistent 60W power draw across all colours. With the Forza 60CR and RGBLAC the discrepancy in illuminance between different colours is now a thing of the past. The RGBLAC system also offers full control over CCT with the capability to tune green/magenta to match other fixtures. Faces can be lit with accuracy, with the ability to add subtle or bold colour instantly. Users can bring texture to a scene by quickly focusing colour light on specific areas.

Ultra Wide CCT, Adjustable DUV
This ground breaking technology now allows for accurate Green/Magenta adjustments based on real △UV. Thanks to the incorporation of amber within the light source allows for this extreme accuracy. The coordinates always move perpendicular to the Planckian curve isotherm when adjusted.

Multiple Colour Modes
The Forza 60CR features a hardware and software platform designed specifically for use with RGBLAC light sources. Users can experience a new level of colour imaging control with desired values easily dialled in for enhanced flexibility. There are professional options of HSI, RGBW, and also XY coordinates for colour calibration.

HSI Mode
The hue, saturation, and intensity are easily adjustable, with an enhanced boost for saturation beyond RGB colours. Available via On-board, Nanlink App, DMX/RDM and LumenRadio CRMX control.

RGBW Mode
This offers control of four separate channels: Red, Green, Blue and White, enabling greater colour precision. Available via Nanlink App, DMX/RDM, LumenRadio CRMX control.

XY Coordinates
The desired colour can be accurately set by entering the XY coordinates directly within the colour gamut in the CIE1931 color space. Available via Nanlink App, DMX/RDM, LumenRadio CRMX control.

Customizable Lighting Effects
The Forza 60CR is equipped with 15 lighting effects, with fully adjustable parameters for each effect.

FM Mount Ecosystem
Forza 60CR uses the same hugely popular FM mount as the Forza 60C. Compatible with all FM mount modifiers the light shaping possibilities are further expanded with the included Bowens mount adapter, integrating it into the wider Bowens mount ecosystem for even more creative options.

Power and Colour, Anywhere
The Forza 60CR is perfect for both in-studio or on-the-go productions. It can also be used with the included V-mount battery grip for handheld use, running at 100% brightness with a 14.8V battery for about two hours. It also comes with a power adapter for connecting to a AC power outlet.

Control Options:

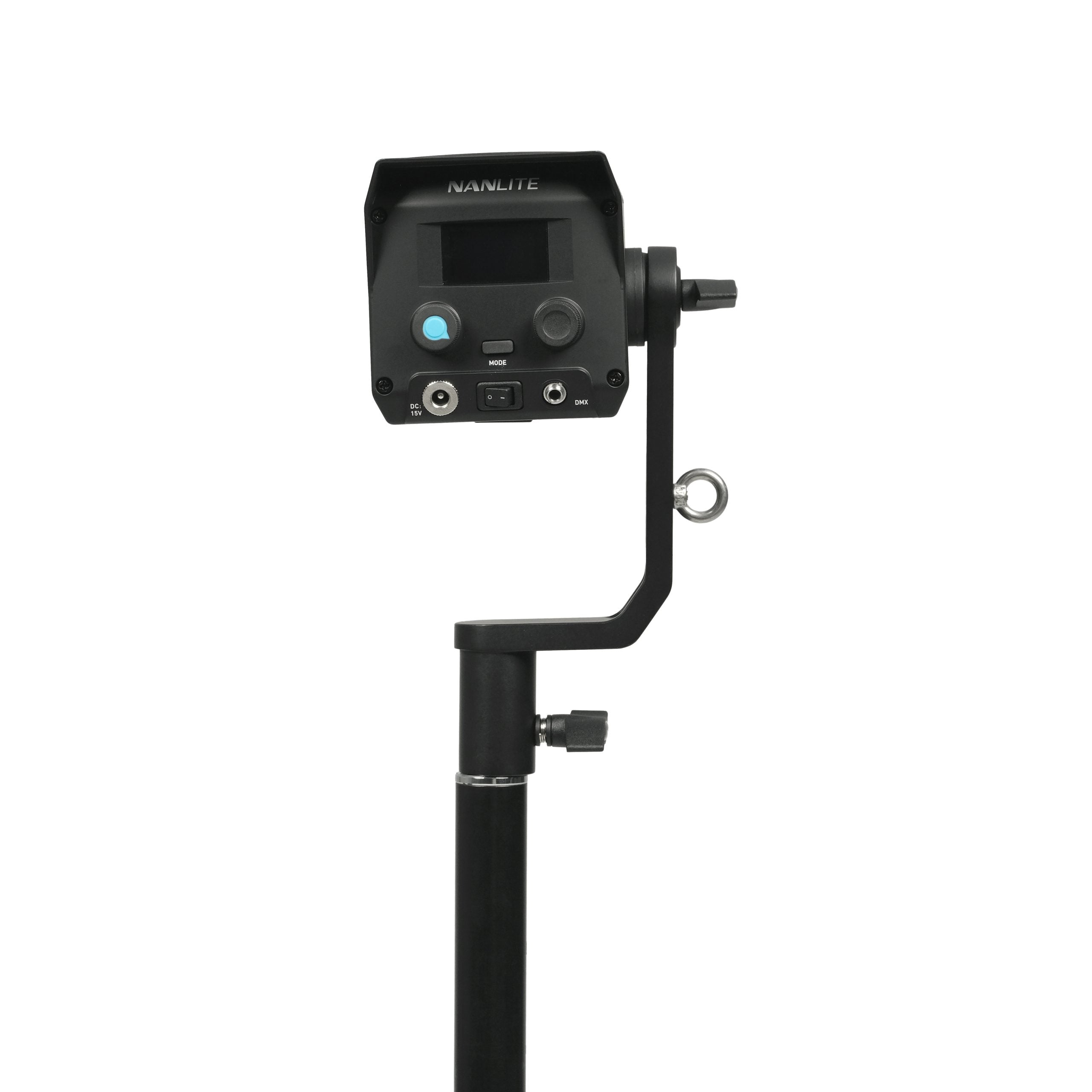

On-board Control
The control panels feature an intuitive two knobs and one button design for quick and easy interaction.

Nanlink App and Remote Controller
Built-in 2.4G and Bluetooth modules allow for control via both the remote controller and the Nanlink App for comprehensive control.

DMX/RDM Control
Controlling the light with other fixtures is possible via DMX/RDM. The USB port on the lamp head supplies power for wireless DMX receiver.

LumenRadio CRMX
The functionality ensures a stable wireless connection and control, enabling the Forza 60CR to work with other fixtures on set through wireless control.

Less Noise, Less Distance
The cooling structure of the Forza 60CR has an intelligent fan that automatically adjusts its speed according to the ambient temperature. This keeps the noise level low at about *22dB(A) and can be adapted to the noise control requirements of different shooting situations.

*When the fan is in the low speed mode, with 35°C ambient temperature. Forza 60CR has four fan modes (Smart, Full Speed, Low Speed, Off), allowing for flexible selection based on the audio recording requirements of different productions.

In Smart mode or Full Speed mode, the maximum output is 100%.
In Low Speed mode, the maximum output is 50%.
In Off mode, the maximum output is 25%.

Ready for future Optimization
Future firmware updates are possible via the USB port on the lamp head, offering the potential for future features.
