Aputure F10 Metal Barn Doors for Light Storm Series

5 In stock
Give Back Friday - You Save 5% and We Donate 5%
Supporting 'Help Bristol's Homeless' Charity.
Offer valid from 24/11/2023 to 01/12/2023. Exclusions Apply. Discount will be automatically applied at checkout, no discount code required.
Aputure F10 Barn Doors Drop-in Barndoors for the F10 Fresnel F10 FRESNEL COMPATIBLE The F10 Barn Doors are designed for...
£166.80 (Ex VAT: £139.00)
£129.60 (Ex VAT: £108.00)
  • Same Day Dispatch

    Order by 3pm for same
    day dispatch*

  • Rated 5* on Trusted Shops

    Trusted by hundreds of
    satisfied customers

  • Finance Options Available

    Spread the cost with our
    flexible finance options

  • 360 Product Capture

    We are the exclusive UK
    distributor for Orbitvu

Aputure F10 Barn Doors

Drop-in Barndoors for the F10 Fresnel

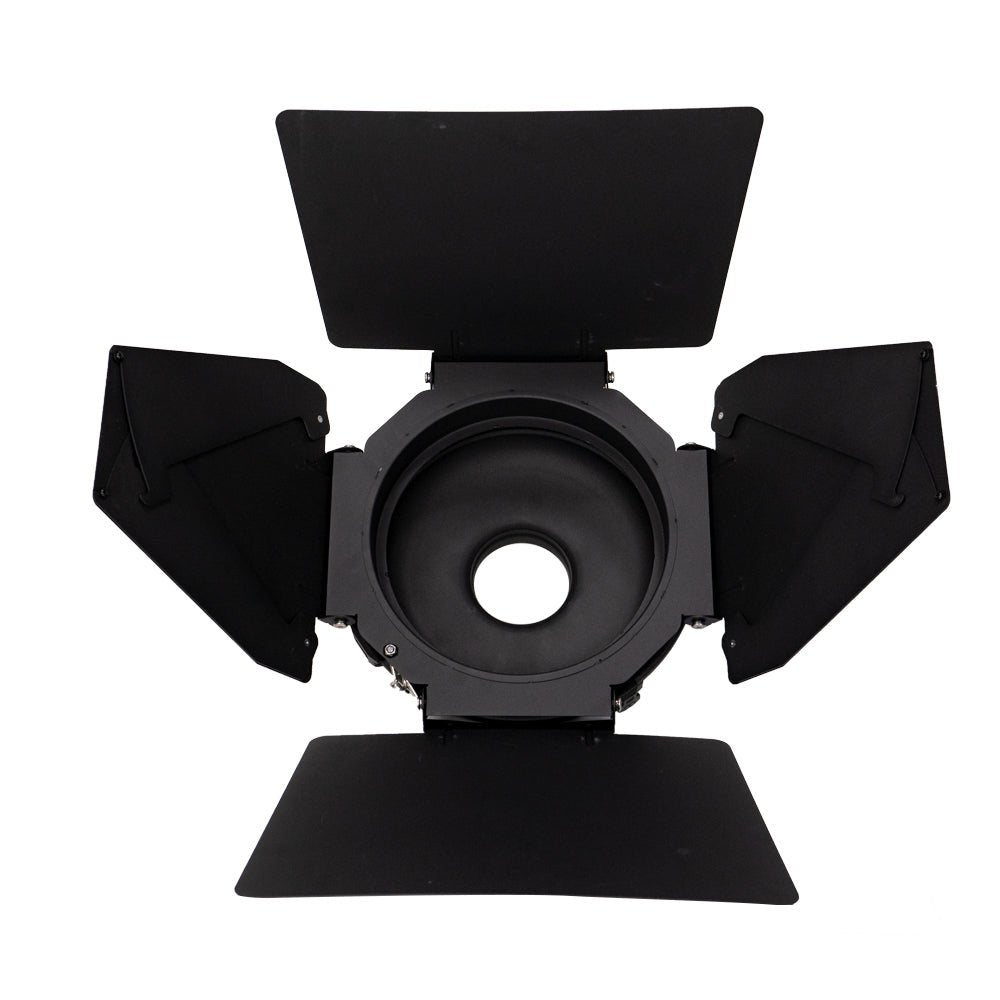

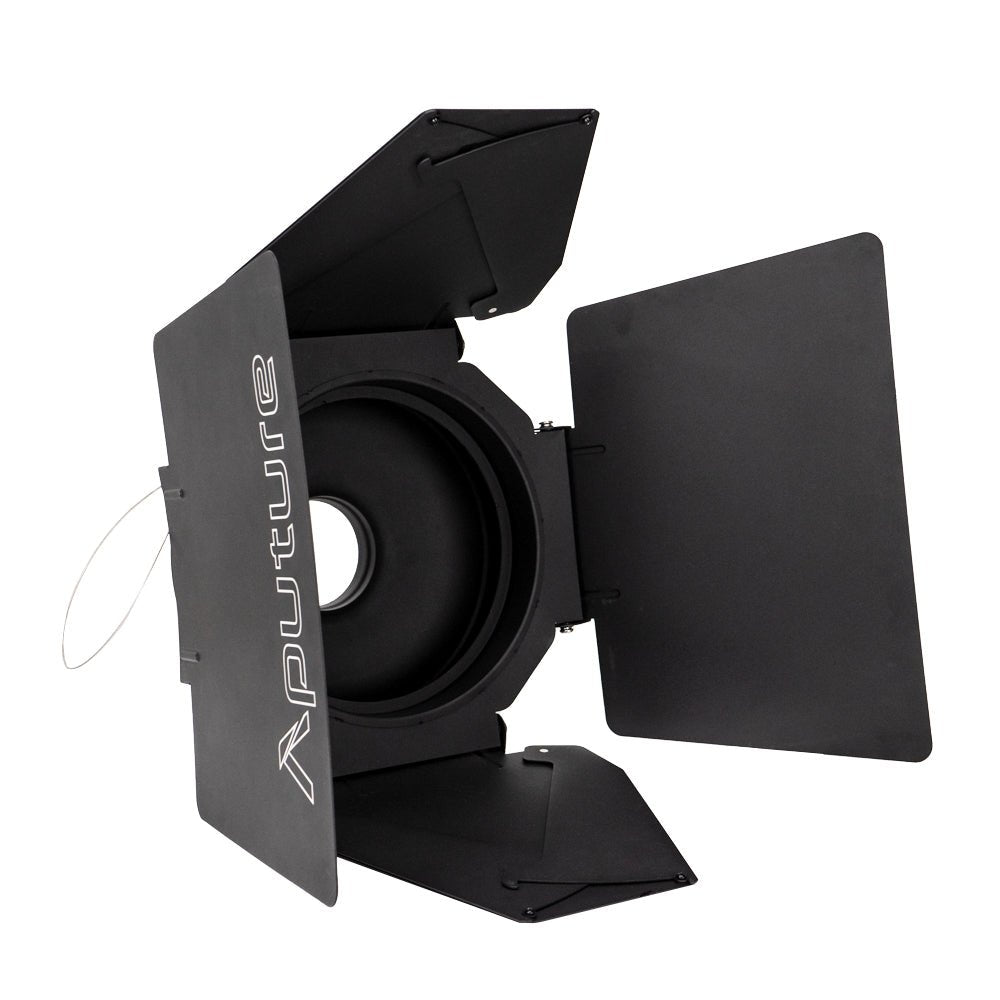

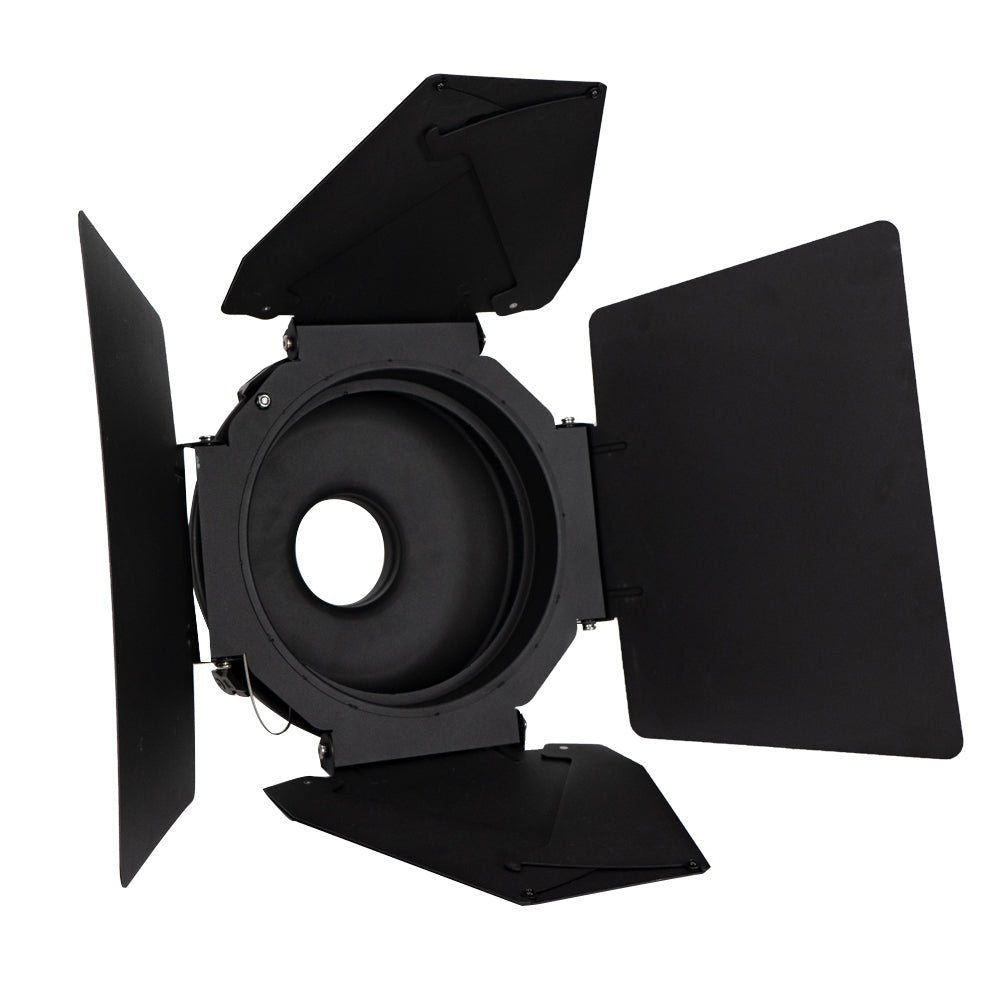

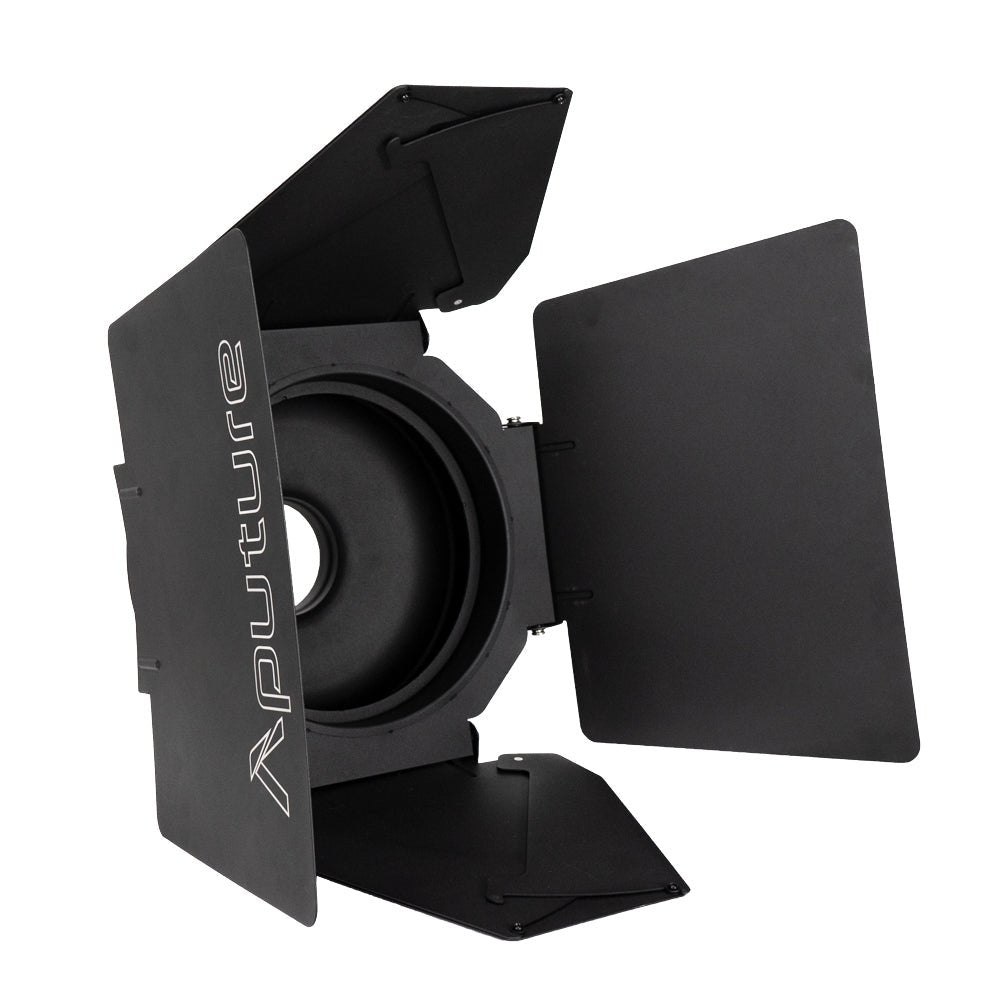

The F10 Barn Doors are designed for the F10 Fresnel, and slide into its standard 13.1-inch (333mm) Drop-In Accessory Slot. Like with traditional Fresnel Fixtures, the leaves on the F10 Barn Doors are designed to be large enough to properly shape and control the output of an industry-standard 10-inch Fresnel.

Unlike traditional Fresnel Barn Doors, the F10 Barn Doors feature an 8-Leaf design, including four smaller "helper flags" that can rotate in and out adjust the shape of the output based on your needs.

Much like the Aputure Barn Doors for the Fresnel 2X and Reflectors, the F10 Barn Doors includes a Negative Reflector (Black Reflector Dish). This black dish simultaneously allows the F10 Barn Doors to be mounted directly onto a Bowens Mount light fixture and also minimizes the size of the light-emitting source to just the LED chipset, for sharper shadows.

The F10 Barn Doors are composed of a durable black powder-coated aluminium alloy, making them tough enough for a wide range of filmmaking environments. Each set of Barn Doors also include a safety cable and mounting point, allowing you to confidently use them on set.

Main Features

  • Compatible with Aputure F10 Fresnel: The larger barn door leaves are better for shaping light, particularly from large sources
  • 8 Leaf Adjustable Barn Doors: Large leaves with additional helper flags aid in precisely shaping light
  • Includes Safety Cable: A safety cable and mounting point come fixed to the light for added security
  • Black Reflector Dish: The included black reflector features the same drop in accessory slot as the F10 Fresnel, allowing the F10 Barn Doors to mount directly to any Bowen Mount fixture
  • Sharper Cuts: Combined with the larger leaves and the black reflector dish, which minimizes the size of the light source, the F10 Barn Doors, can provide sharper cuts than many other LED barn doors
  • Compatible with the Bowens Mount LED lights, such as the Aputure LS 600d Pro, 300d II, 300x, 120d II, etc.
  • Durable Build: The F10 Barn Doors will withstand the test of time; made from single sheets of black power coated aluminium and featuring laser etched logos


Accessory Slot Diameter

332.88mm / 13.106in

Accessory Mount

Bowens Mount


Barn Doors w/ Reflector Dish


406.76*344*173.15mm / 16.014*13.543*6.817in


898*898*158.3mm / 35.354*35.354*6.232in

Barn Doors w/o Reflector Dish


406.76*344*74.85mm / 16.014*13.543*2.947in


898*898*60mm / 35.354*35.354*2.362in

Black Reflector Dish

346*340.46*118.8mm / 13.622*13.404*4.677in


F10 Barn Doors

2640g / 5.820lbs

Black Reflector Dish

1060g / 2.337lbs


In the Box

  • 1x F10 Barn Doors
  • 1x F10 Barn Doors Black Reflector Dish
  • 1x Safety Cable

      Please note: Lighting stand and light not included. Shown for illustration purposes only.
